Page 17 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Drivers Mirror Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Th

Page 18 of 60

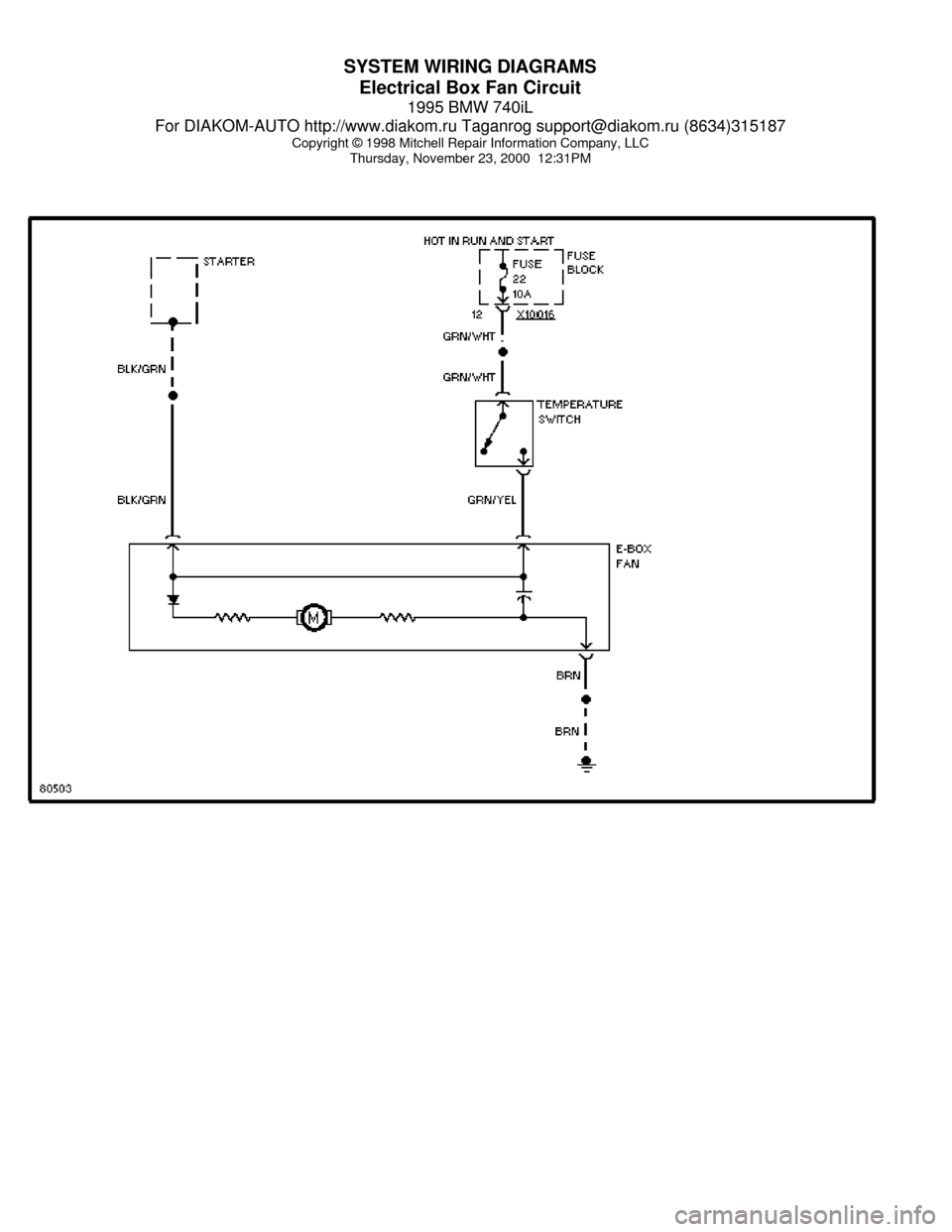

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Electrical Box Fan Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 19 of 60

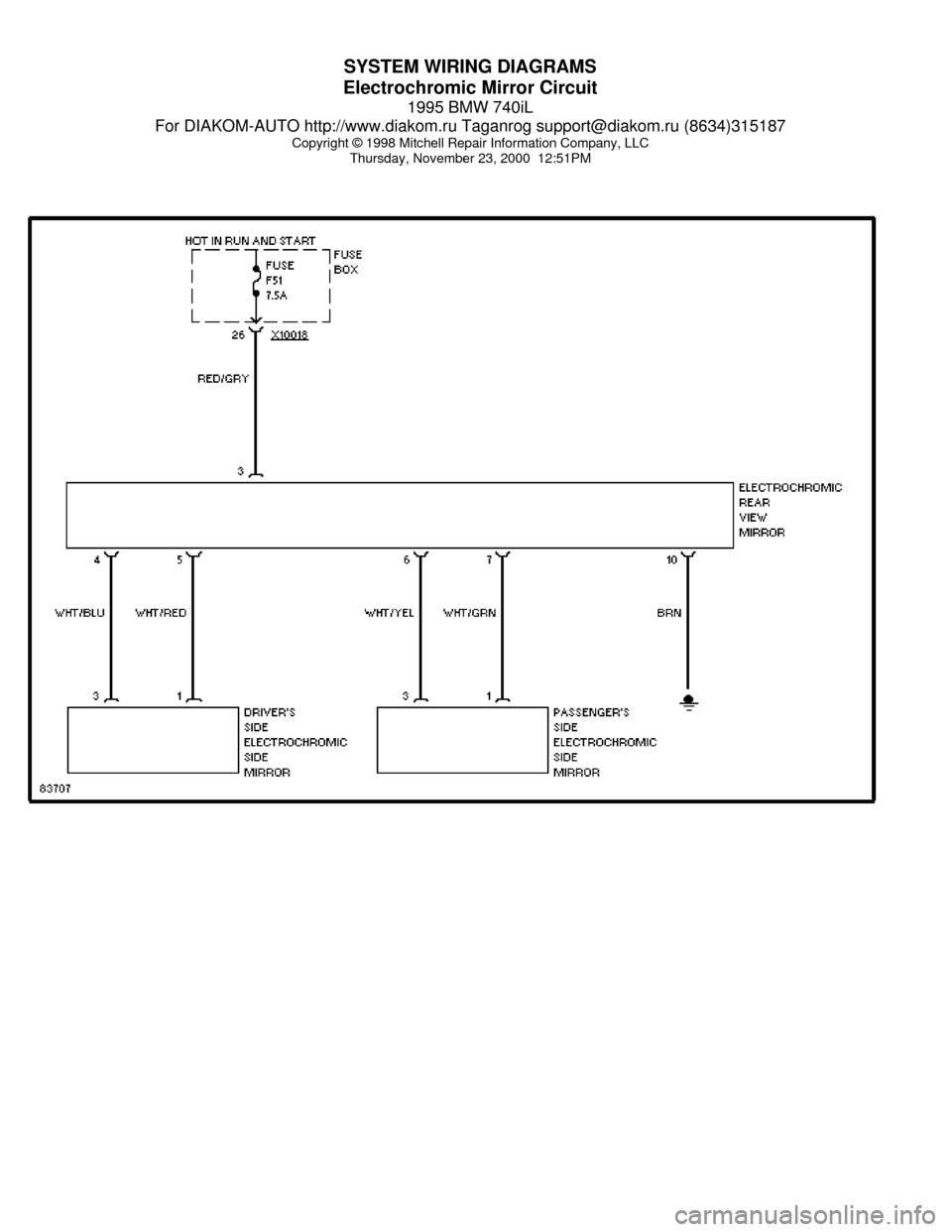

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Electrochromic Mirror Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company,

Page 20 of 60

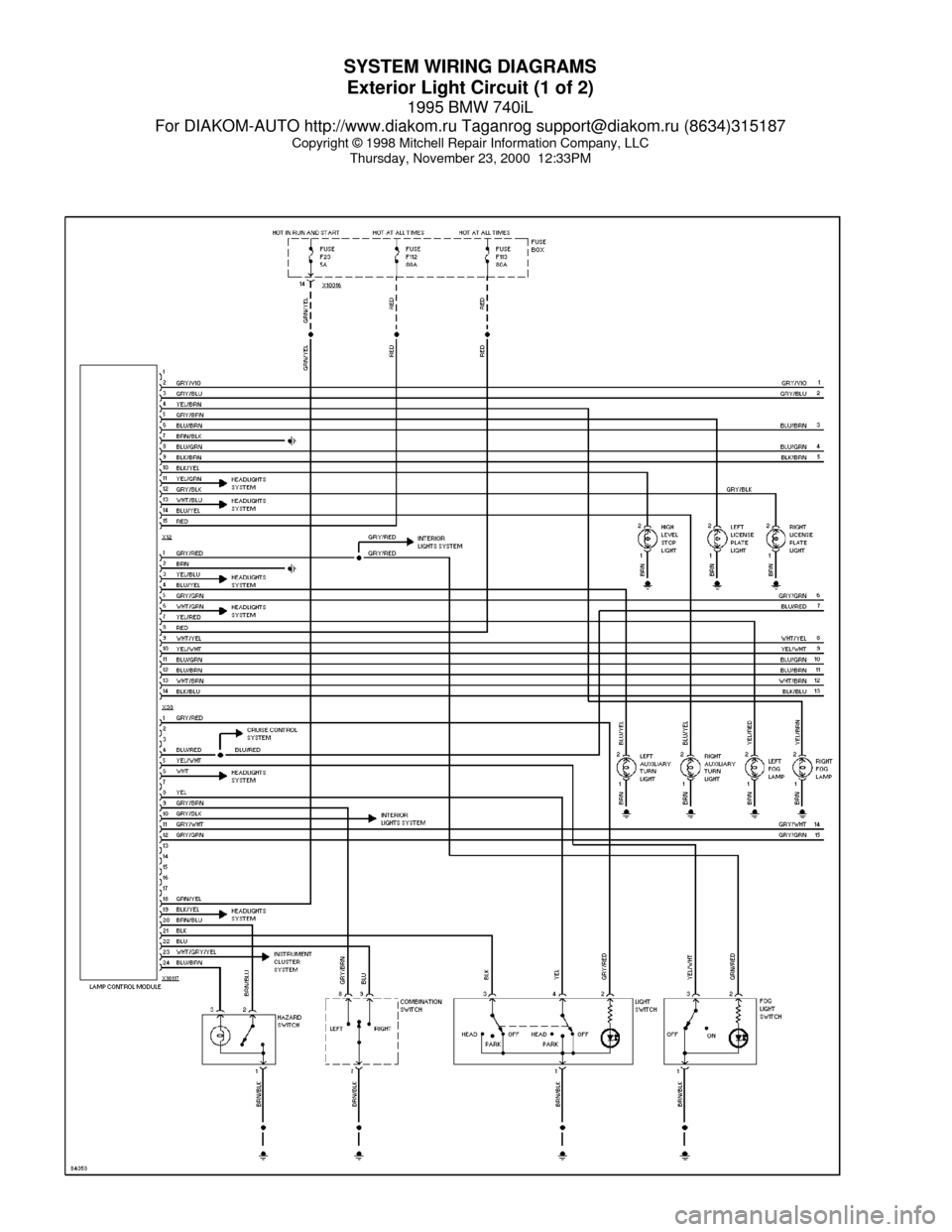

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Exterior Light Circuit (1 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company

Page 21 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Exterior Light Circuit (2 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company

Page 22 of 60

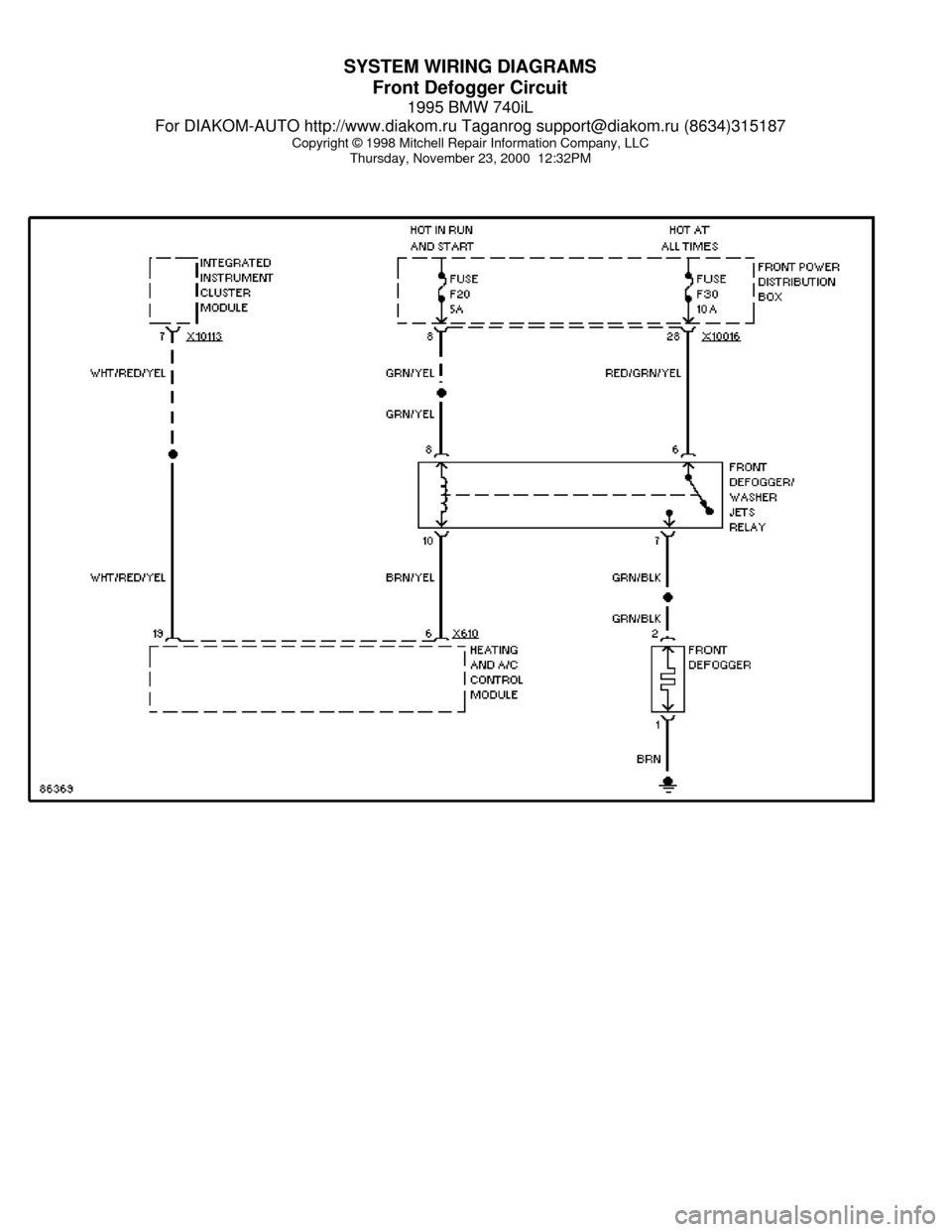

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Front Defogger Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC Thu

Page 23 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Front Seat Heater Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 24 of 60

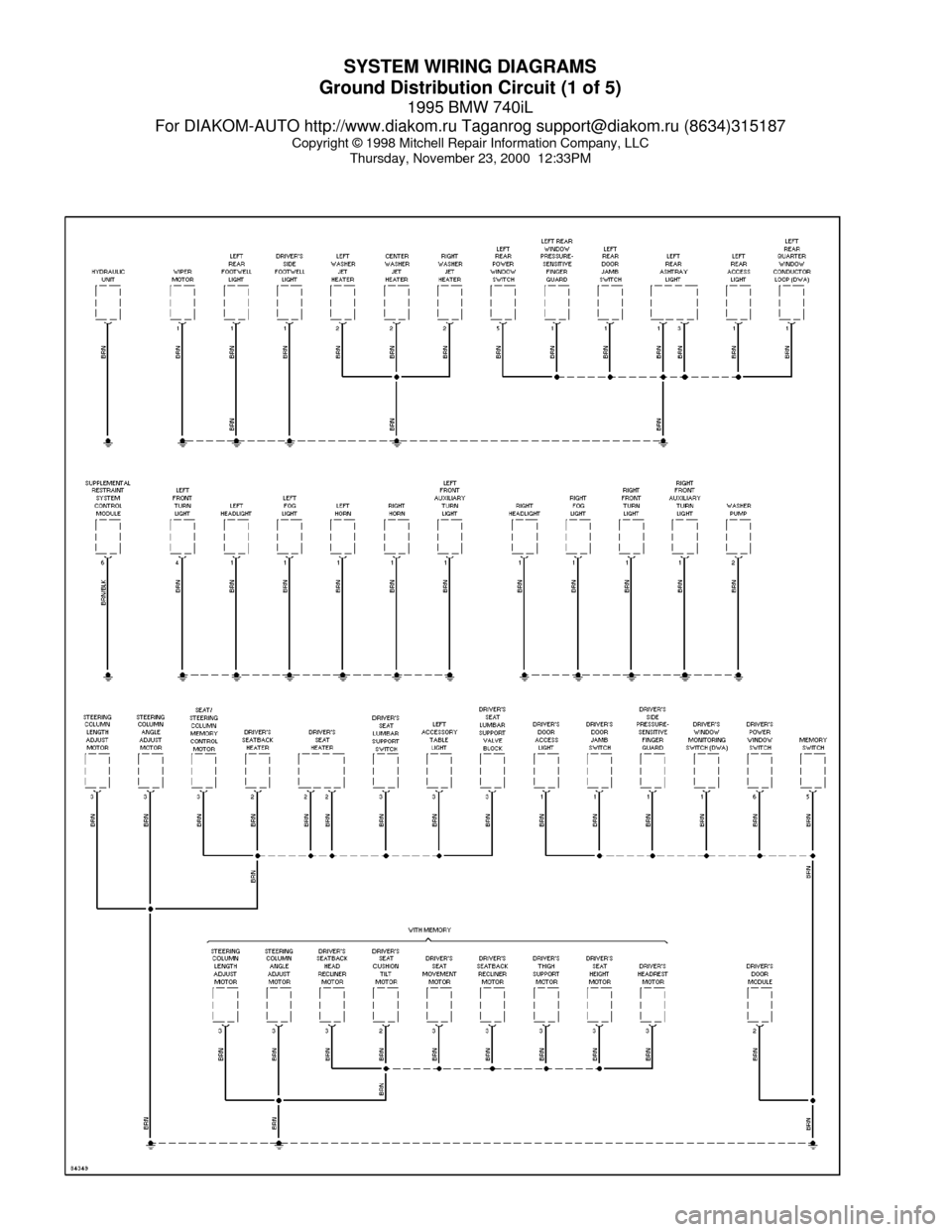

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Ground Distribution Circuit (1 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Co
