Page 9 of 60
SYSTEM WIRING DIAGRAMS
Anti-lock Brake Circuits, W/O Traction Control (2 of 2)
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:30PM
Page 10 of 60
SYSTEM WIRING DIAGRAMS
Anti-theft Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:31PM
Page 11 of 60
SYSTEM WIRING DIAGRAMS
Auxiliary Cooling Fan Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:31PM
Page 12 of 60
SYSTEM WIRING DIAGRAMS
Charging Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:53PM
Page 13 of 60
SYSTEM WIRING DIAGRAMS

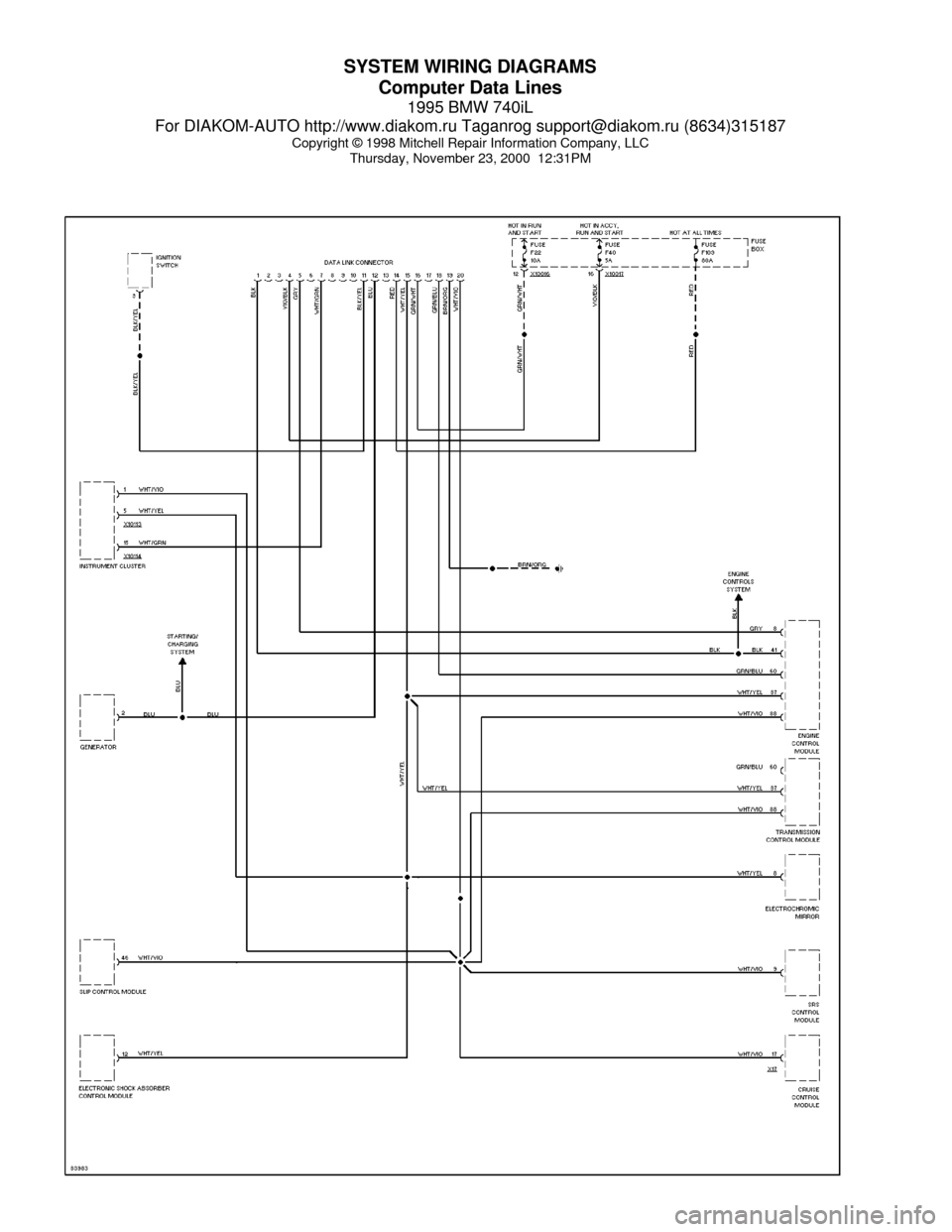

Computer Data Lines
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:31PM
Page 14 of 60
SYSTEM WIRING DIAGRAMS
Cruise Control Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:31PM
Page 15 of 60
SYSTEM WIRING DIAGRAMS

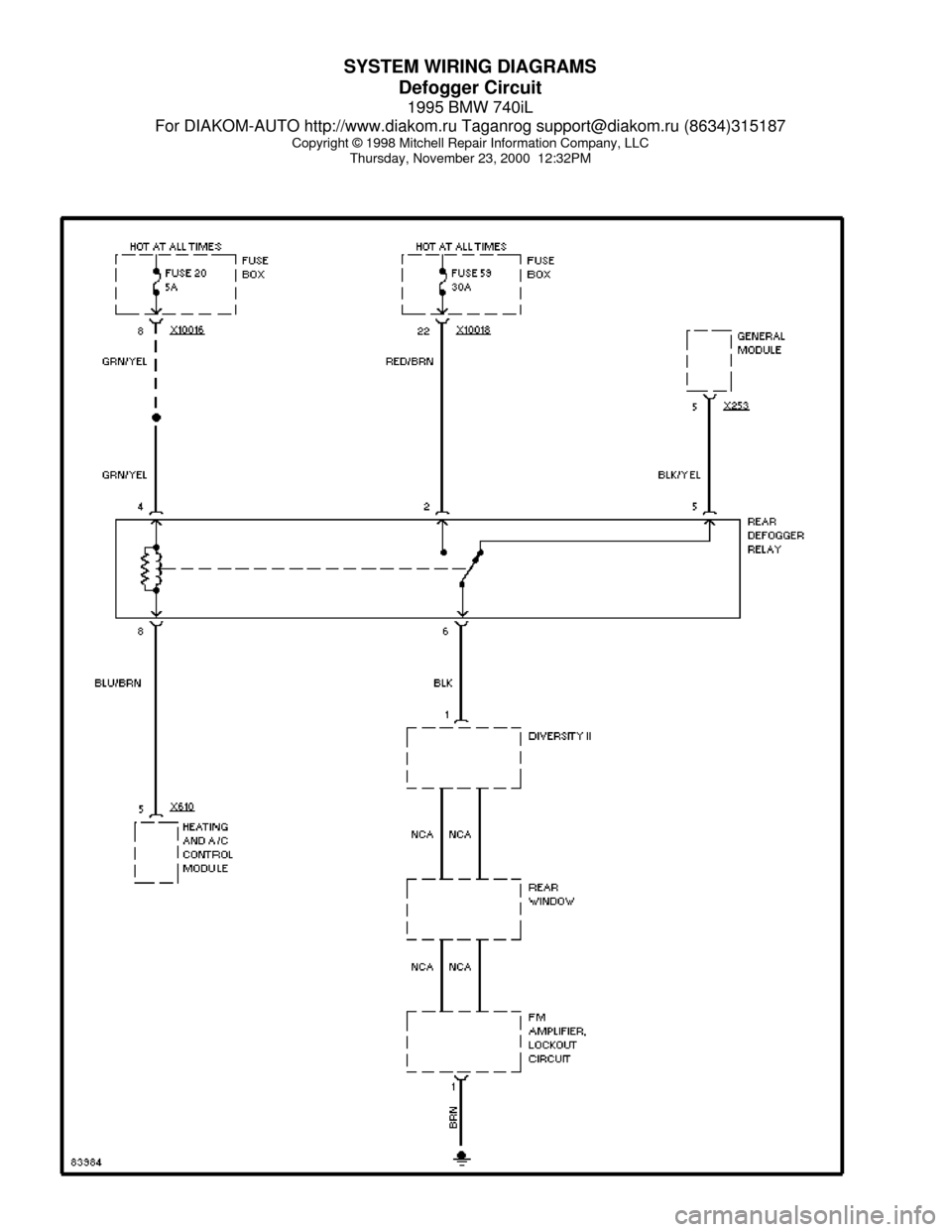

Defogger Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:32PM
Page 16 of 60
SYSTEM WIRING DIAGRAMS
Driver's Lumbar Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog [email protected] (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, November 23, 2000 12:51PM
