Page 129 of 327
Electrical schematic - Fault Code 24
0
P12 P15 f
1
'I' I P16
--n
P13
w3
PO8
P10
10
I A 7 I - -m I RP
I'i _-
I>.---
+$ I L t
I
I5
I
L-J 4
J86-1671
1. Instrument Panel Fuse 6. Passenger-side Air Bag 2. Engine Compartment Fuse 7. RH Impact Sensor 3. Safing Sensor 8. LH Impact Sensor 4. Cable Reel Cassettes 9. Air Bag MIL Lamp 5. Driver-side Air Bag 10. Diagnostic Module
Fig.
1
X300 EDM 15.1 - 23 Issue 1 August 1994
Page 130 of 327

rl Electrical
FAULT CODE 32
Driver-side Air Bag Circuit High Resistance or Open
Normal Operation
The DM monitors the resistance between pins 10 and 11. The value of this resistance is the sum of the two cable reel
cassettes, the air bag and is normally between
1.5~2 and 2Q. If the resistance measured exceeds 4Q the MIL Lamp will illuminate and fault code 32 will be present, indicating high resistance or open circuit on the air bag circuit.
Possible Causes
0 Poor connections or corrosion at clockspring / main harness connections.
0 Open circuit or high resistance of cable reel cassettes.
0 Open circuit or high resistance in driver-side air bag.
0 Faulty driver-side air bag wiring.
Fault Diagnosis
1. Circuit - check
. Disarm SRS system and disconnect DM.
Disconnect DM and remove plastic locking wedge from black DM harness connector.
. Measure resistance across harness connections to passenger air bag, wires KN and RF!
. Is resistance value less than 2Q ?
Yes -
. Ensure locking wedge has been removed correctly from black connector.
. Examine harness for broken, dirty or incorrectly seated connections.
. Rectify faults as necessary.
No - Proceed to step 2.
2. Resistance -check
. Is resistance measured in step 1 greater than 352 7
Yes - Proceed to step 4.
No - Proceed to step 3.
3. Fault code verification
. Reconnect DM and check if code 32 is still present.
Yes
- Renew DM.
No - Examine harness or broken, dirty or incorrectly seated connections. Rectify faults as necessary.
4. Resistance -check
. Disconnect cable reel cassette at base of steering column.
Install air bag simulator (ensure 2Q resistance of simulator before connection) in place of cable reel cassette.
Measure resistance across harness connections to air bag, wires KIN and RI?
Is resistance equal to between 1.m and 2.2Q 7
Yes - Renew cable reel cassette.
No - Examine harness wiring for open circuit, rectify faults as necessary.
5. On completion.
. Arm and verify the SRS system.
0
0
0
0
Issue 1 August 1994 15.1 - 24 X300 EDM
Page 131 of 327
Electrical rl
Electrical schematic - Fault Code 32
0
10
1 4
U 4
J86-1672
1. Instrument Panel Fuse 6. Passenger-side Air Bag 2. Engine Compartment Fuse 7. RH Impact Sensor
3. Safing Sensor 8. LH Impact Sensor
4. Cable Reel Cassettes 9. Air Bag MIL Lamp
5. Driver
-side Air Bag 10. Diagnostic Module
Fig. 1
X300 EDM 15.1 - 25 Issue 1 August 1994
Page 132 of 327

Electrical rl

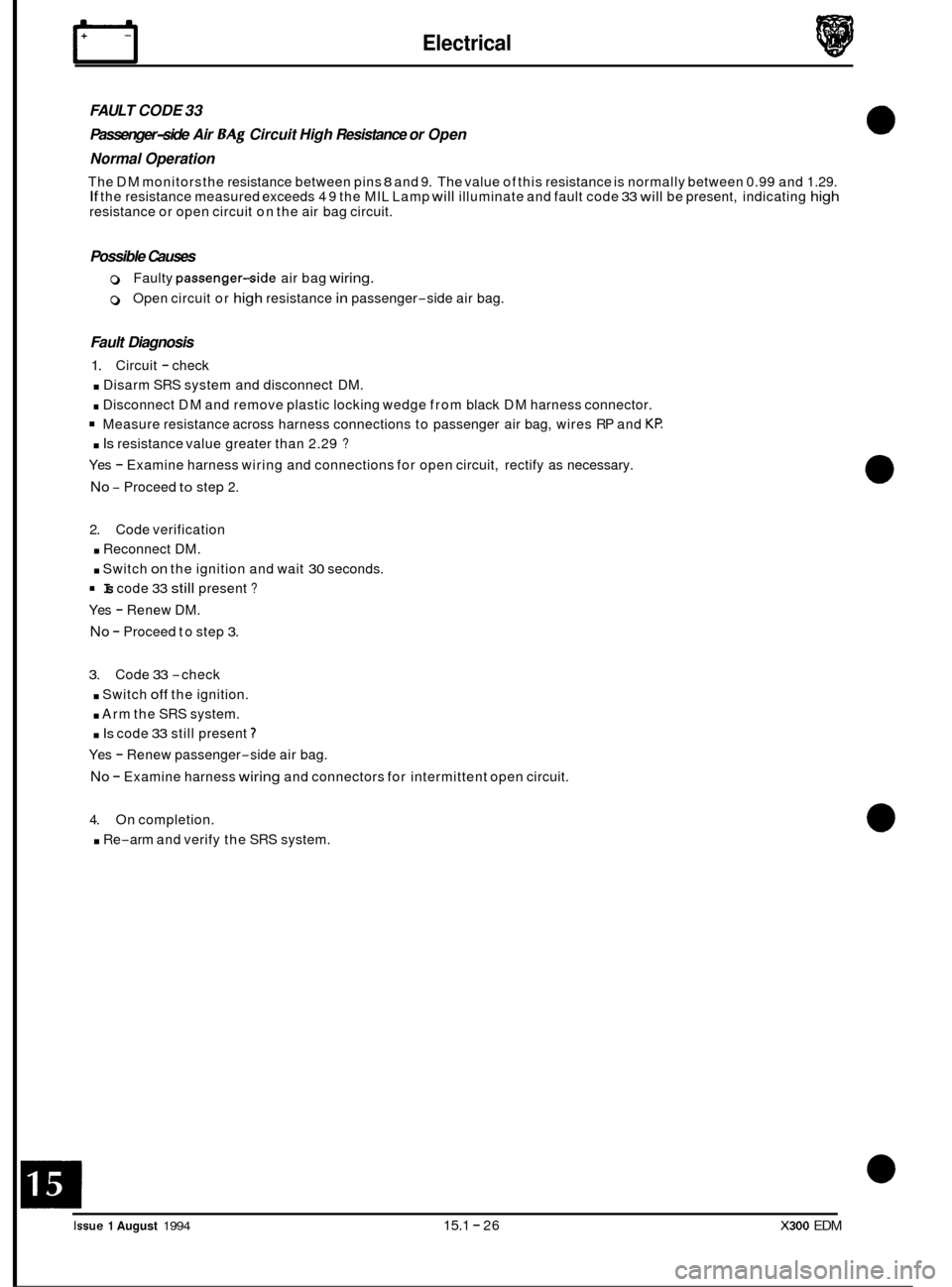

FAULT CODE 33
Passenger-side Air BAg Circuit High Resistance or Open
Normal Operation
The DM monitors the resistance between pins 8 and 9. The value of this resistance is normally between 0.99 and 1.29. If the resistance measured exceeds 49 the MIL Lamp will illuminate and fault code 33 will be present, indicating high resistance or open circuit on the air bag circuit.
Possible Causes
0 Faulty passenger-side air bag wiring.
0 Open circuit or high resistance in passenger-side air bag.
Fault Diagnosis
1. Circuit - check
. Disarm SRS system and disconnect DM.
. Disconnect DM and remove plastic locking wedge from black DM harness connector.
Measure resistance across harness connections to passenger air bag, wires RP and KP:
. Is resistance value greater than 2.29 ?
Yes - Examine harness wiring and connections for open circuit, rectify as necessary.
No - Proceed to step 2.
2. Code verification
. Reconnect DM.
. Switch on the ignition and wait 30 seconds.
Yes
- Renew DM.
No - Proceed to step 3.
Is code 33 still present ?
3. Code 33 -check
. Switch off the ignition.
. Arm the SRS system.
. Is code 33 still present 7
Yes - Renew passenger-side air bag.
No - Examine harness wiring and connectors for intermittent open circuit.
4. On completion.
. Re-arm and verify the SRS system.
rm
0
0
0
0
Issue 1 August 1994 15.1 - 26 X300 EDM
Page 133 of 327
Electrical schematic - Fault Code 33
0
0
0
0
c
5v ?
t
-=
586-1673
1. Instrument Panel Fuse 6. Passenger-side Air Bag
2. Engine Compartment Fuse 7.
RH Impact Sensor 3. Safing Sensor 8. LH Impact Sensor
4. Cable Reel Cassettes 9. Air Bag MIL Lamp
5. Driver
-side Air Bag 10.
Diagnostic Module
Fia. 1
X300 EDM 15.1 - 27 Issue 1 August 1994
Page 134 of 327

rl E I ect r ica I

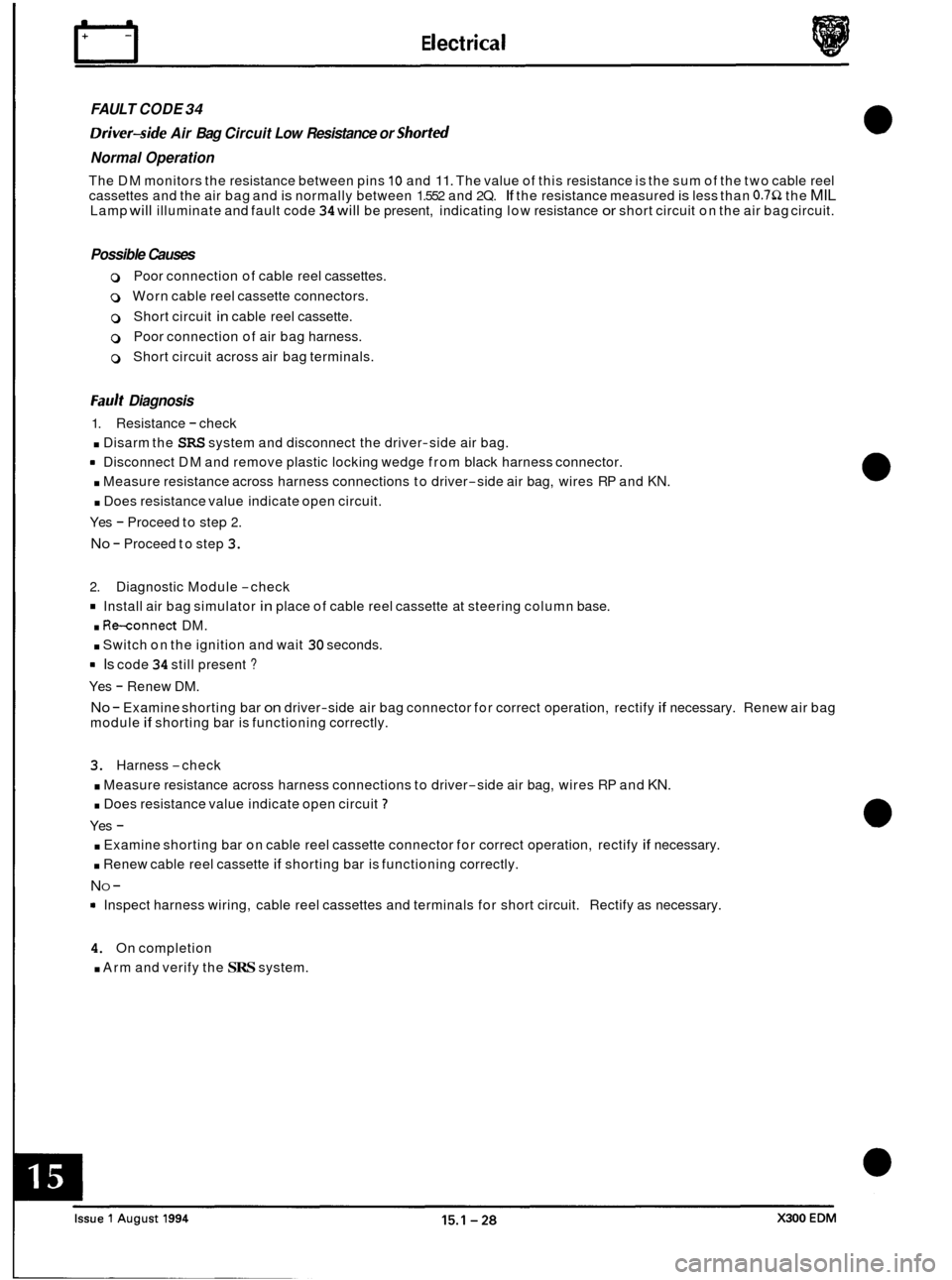

FAULT CODE 34
Driver-side Air Bag Circuit Low Resistance or Shorted
Normal Operation
The DM monitors the resistance between pins 10 and 11. The value of this resistance is the sum of the two cable reel
cassettes and the air bag and is normally between 1.552 and 2Q. If the resistance measured is less than 0.752 the MIL Lamp will illuminate and fault code 34 will be present, indicating low resistance or short circuit on the air bag circuit.
Possible Causes
0 Poor connection of cable reel cassettes.
0 Worn cable reel cassette connectors.
0 Short circuit in cable reel cassette.
0 Poor connection of air bag harness.
0 Short circuit across air bag terminals.
Fault Diagnosis
1. Resistance - check
. Disarm the SRS system and disconnect the driver-side air bag.
rn Disconnect DM and remove plastic locking wedge from black harness connector.
. Measure resistance across harness connections to driver-side air bag, wires RP and KN.
. Does resistance value indicate open circuit.
Yes
- Proceed to step 2.
No - Proceed to step 3.
2. Diagnostic Module -check
Install air bag simulator in place of cable reel cassette at steering column base.
. Re-connect DM.
. Switch on the ignition and wait 30 seconds.
rn Is code 34 still present ?
Yes - Renew DM.
No - Examine shorting bar on driver-side air bag connector for correct operation, rectify if necessary. Renew air bag
module if shorting bar is functioning correctly.
3. Harness -check
. Measure resistance across harness connections to driver-side air bag, wires RP and KN.
. Does resistance value indicate open circuit 7
Yes -
. Examine shorting bar on cable reel cassette connector for correct operation, rectify if necessary.
. Renew cable reel cassette if shorting bar is functioning correctly.
NO -
Inspect harness wiring, cable reel cassettes and terminals for short circuit. Rectify as necessary.
4. On completion
. Arm and verify the SRS system.
Page 135 of 327
Electrical
Electrical schematic - Fault Code 34
0
0
0
10
i A
P10,
A 4
I
(c KN I I L-J
4
J86-1674
1. Instrument Panel Fuse 6. Passenger-side Air Bag
2. Engine Compartment Fuse
7. RH Impact Sensor 3. Safing Sensor 8. LH Impact Sensor
4. Cable Reel Cassettes 9.
Air Bag MIL Lamp 5. Driver-side Air Bag 10. Diagnostic Module
Fig.
1
X300 EDM 15.1 - 29 Issue 1 August 1994
Page 136 of 327

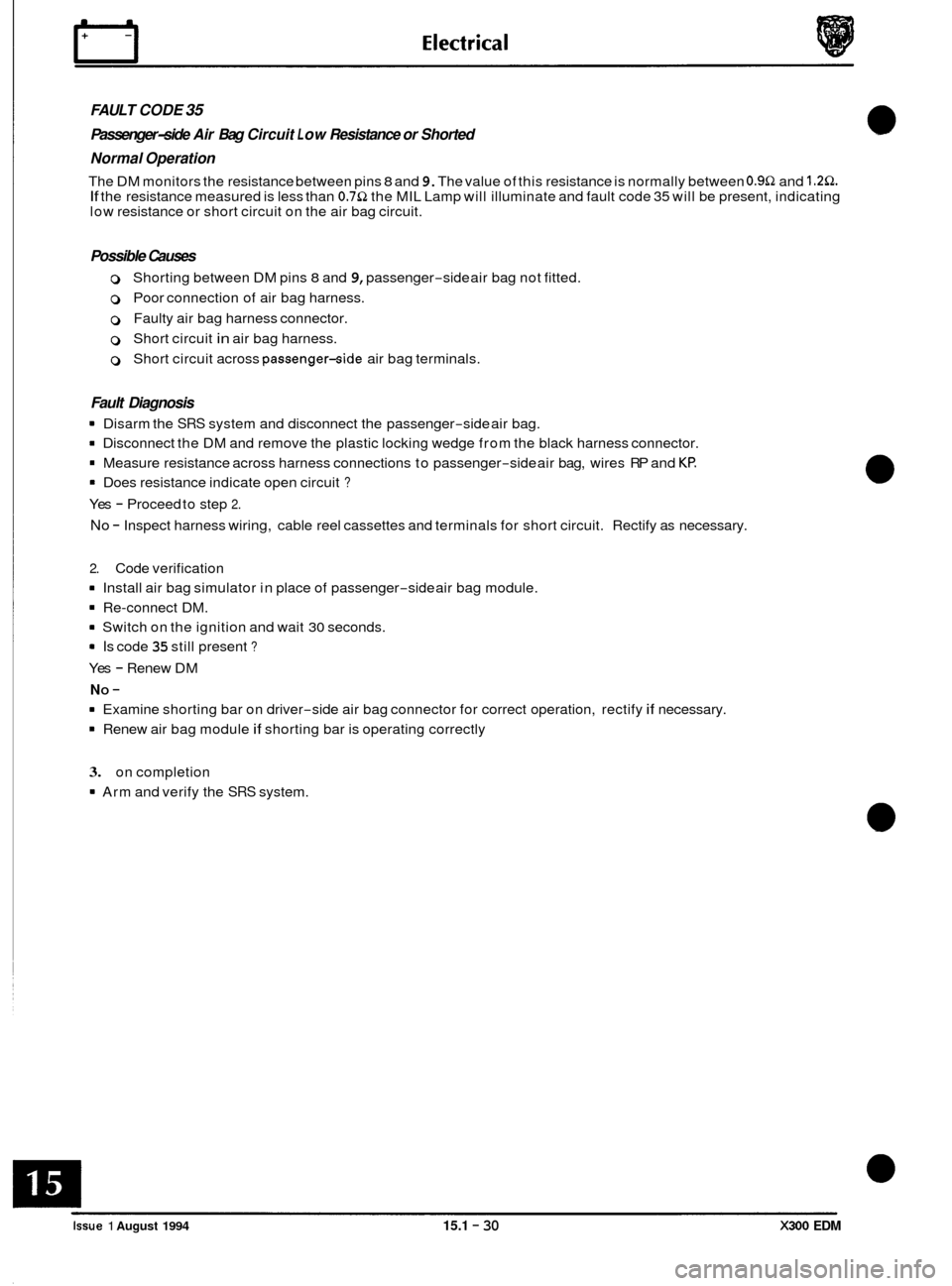

FAULT CODE 35
Passenger-side Air Bag Circuit L o w Resistance or Shorted
Normal Operation
The DM monitors the resistance between pins 8 and 9. The value of this resistance is normally between 0.9Q and 1.2Q. If the resistance measured is less than 0.7Q the MIL Lamp will illuminate and fault code 35 will be present, indicating
low resistance or short circuit on the air bag circuit.
Possible Causes
0 Shorting between DM pins 8 and 9, passenger-side air bag not fitted.
0 Poor connection of air bag harness.
0 Faulty air bag harness connector.
0 Short circuit in air bag harness.
0 Short circuit across passenger-side air bag terminals.
Fault Diagnosis
8 Disarm the SRS system and disconnect the passenger-side air bag.
8 Disconnect the DM and remove the plastic locking wedge from the black harness connector.
8 Measure resistance across harness connections to passenger-side air bag, wires RP and Kf?
8 Does resistance indicate open circuit ?
Yes - Proceed to step 2.
No - Inspect harness wiring, cable reel cassettes and terminals for short circuit. Rectify as necessary.
2. Code verification
8 Install air bag simulator in place of passenger-side air bag module.
8 Re-connect DM.
8 Switch on the ignition and wait 30 seconds.
8 Is code 35 still present ?
Yes - Renew DM
8 Examine shorting bar on driver-side air bag connector for correct operation, rectify if necessary.
8 Renew air bag module if shorting bar is operating correctly
NO -
3. on completion
8 Arm and verify the SRS system.
0
0
e
0
