1994 CADILLAC ELDORADO key

Downloaded from www.Manualslib.com manuals search engine Engine Oil Light (Cunudian\Export:Oniy)
This. light tells you if
there could be a
The ’light goes on when you turn your key
.to “Run” or ‘‘Start.” It goes off
once you start your engine. That’s just a check to be sure’the light works.
If it doesn’t, be sure to have it fixed so it will be there to.wam you if
something goes wrong.
When the light comes on and stays on, it means
oil isn’t going through
your engine properly. You
could be low on oil, or you might have some
other oil problem.
I
-I
NOTICE:
Damage to your engine from meglected oil problems can be
costly and
is not covered by your warranty.
‘I
j I
7
i I
136
I I

Downloaded from www.Manualslib.com manuals search engine n
r
Ir
r
b”
n I t-
compressor,.is ,automatically $Urned.o€L =tlaat.;hap.pgns, air
conditioned air is not delivered.
If the coolant temperature returns to
normal, you must select “AUTO”, “DEFOG” or Defrost to return to a
normal A/C compressor operation.
FUEL LEVEL VERY LOW - 11
This message serves as a warning that the fuel level in your tank is
critically low. It means you should stop for fuel immediately. I
CHECK WASHER FLUID - 25
This message shows that the washer fluid reservoir is nearly empty.
SERVICE A/C SYSTEM A/C COMPRESSOR OFT - 14 I
This message appears when the electronic sensors that control the A/C
and heating system are no longer working. You may notice a drop in
heating and
A/C efficiency when this message appears. Have your
Climate Control system serviced
if this message appears.
STARTING DISABLED DUE TO THEFT SYSTEM REMOVE
IGNITION KEY - 33
This message will a ear when the Personalized Automotive Security
System (PASS Key
gp 11) senses that an improper ignition key is being used
to try to start the vehicle. Check the ignition key for damage.
If it is
damaged, it may need to be replaced.
If you see no damage, clean the Ii
pellet contacts with a soft cloth or napkin. Remove the ignition key and
wait for the Driver Information Center to display “WAIT
3 MINUTES”.
The Instrument Panel Cluster
will then run a timer and change the
messages to “WAIT
2 MINUTES ”, “WMT 1 MINUTE”, and then
“START CAR”. When the “START
CAR” message is displayed, try again
to start the engine.
SERVICE NOW - REFER TO OWNERS MANUAL - 02
This message appears if you have a problem with the Powertrain Control
Module
(PCM). To correct this problem have your vehicle serviced at
your Cadillac dealership.
SERVICE RIDE CONTROL - 84
This message is displayed to indicate that the Suspension System is not
operating properly. To correct this problem have your vehicle serviced at
your Cadillac dealership at your earliest convenience.
145.

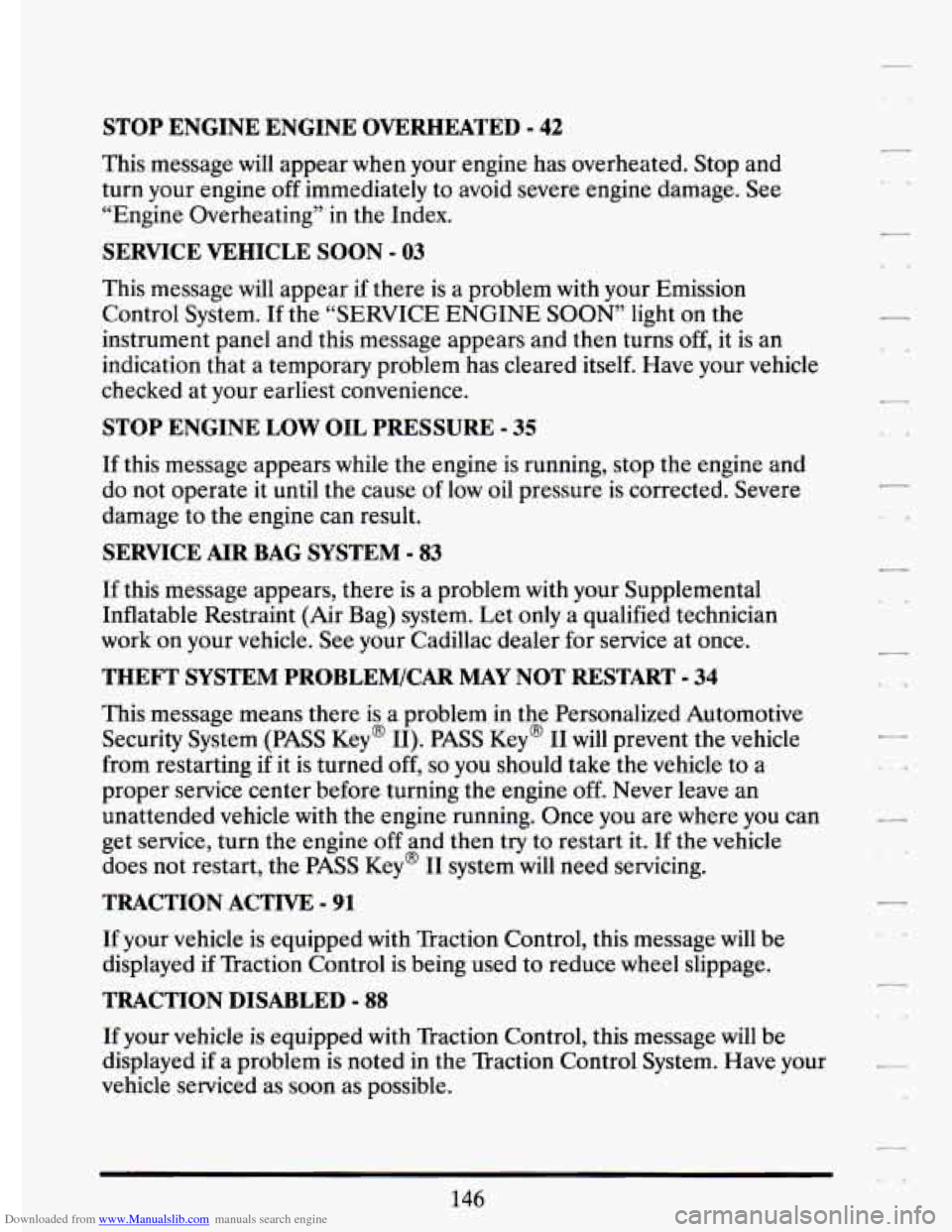

Downloaded from www.Manualslib.com manuals search engine STOP ENGINE ENGINE 0-TED - 42
This message will appear when your engine has overheated. Stop and
turn your engine off immediately to avoid severe engine damage. See
“Engine Overheating”
in the Index.
SERVICE VEHICLE SOON - 03
This message will appear if there is a problem with your Emission
Control System. If the “SERVICE ENGINE SOON” light on the
instrument panel and this message appears and then turns
off, it is an
indication that a temporary problem has cleared itself. Have your vehicle
checked at your earliest convenience.
STOP ENGINE LOW OIL PRESSURE - 35
If this message appears while the engine is running, stop the engine and
do not operate it until the cause of low oil pressure is corrected. Severe
damage to the engine can result.
SERVICE AIR BAG SYSTEM - 83
If this message appears, there is a problem with your Supplemental
Inflatable Restraint (Air Bag) system. Let only a qualified technician
work
on your vehicle. See your Cadillac dealer for service at once.
THEFT SYSTEM PROBLEM/CAR MAY NOT RESTART - 34
This message means there is a problem in the Personalized Automotive
Security System (PASS Key@ 11). PASS Key@ I1
will prevent the vehicle
from restarting
if it is turned off, so you should take the vehicle to a
proper service center before turning the engine
off. Never leave an
unattended vehicle with the engine running. Once you are where you can
get service, turn the engine off and then try to restart it. If
the vehicle
does not restart, the PASS Key@ I1 system will need servicing.
TRACTION ACTIVE - 91
If your vehicle is equipped with Traction Control, this message will be
displayed if Traction Control is being used to reduce wheel slippage.
TRACTION DISABLED - 88
If your vehicle is equipped with Traction Control, this message will be
displayed
if a problem is noted in the Traction Control System. Have your
vehicle serviced as soon as possible.
146

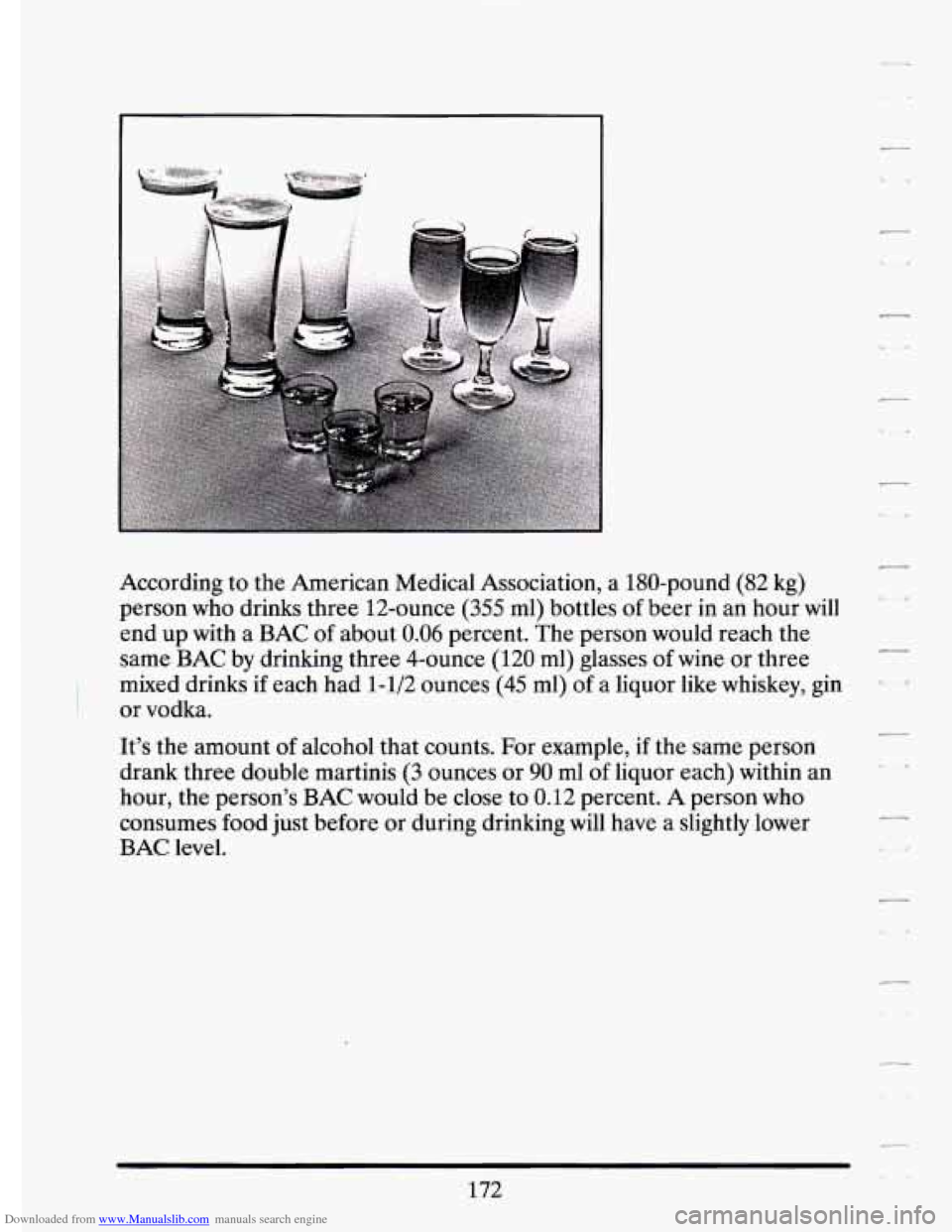

Downloaded from www.Manualslib.com manuals search engine According to the American Medical Association, a 180-pound (82 kg)
person who drinks three 12-ounce
(355 ml) bottles of beer in an hour will
end up with a BAC of about 0.06 percent. The person would reach the
same BAC by drinking three 4-ounce (120 ml) glasses of wine or three
mixed drinks
if each had 1-1/2 ounces (45 ml) of a liquor like whiskey, gin
or vodka.
It’s the amount of alcohol that counts. For example,
if the same person
drank three double martinis
(3 ounces or 90 ml of liquor each) within an
hour, the person’s
BAC would be close to 0.12 percent. A person who
consumes food just before or during drinking
will have a slightly lower
BAC level.
172

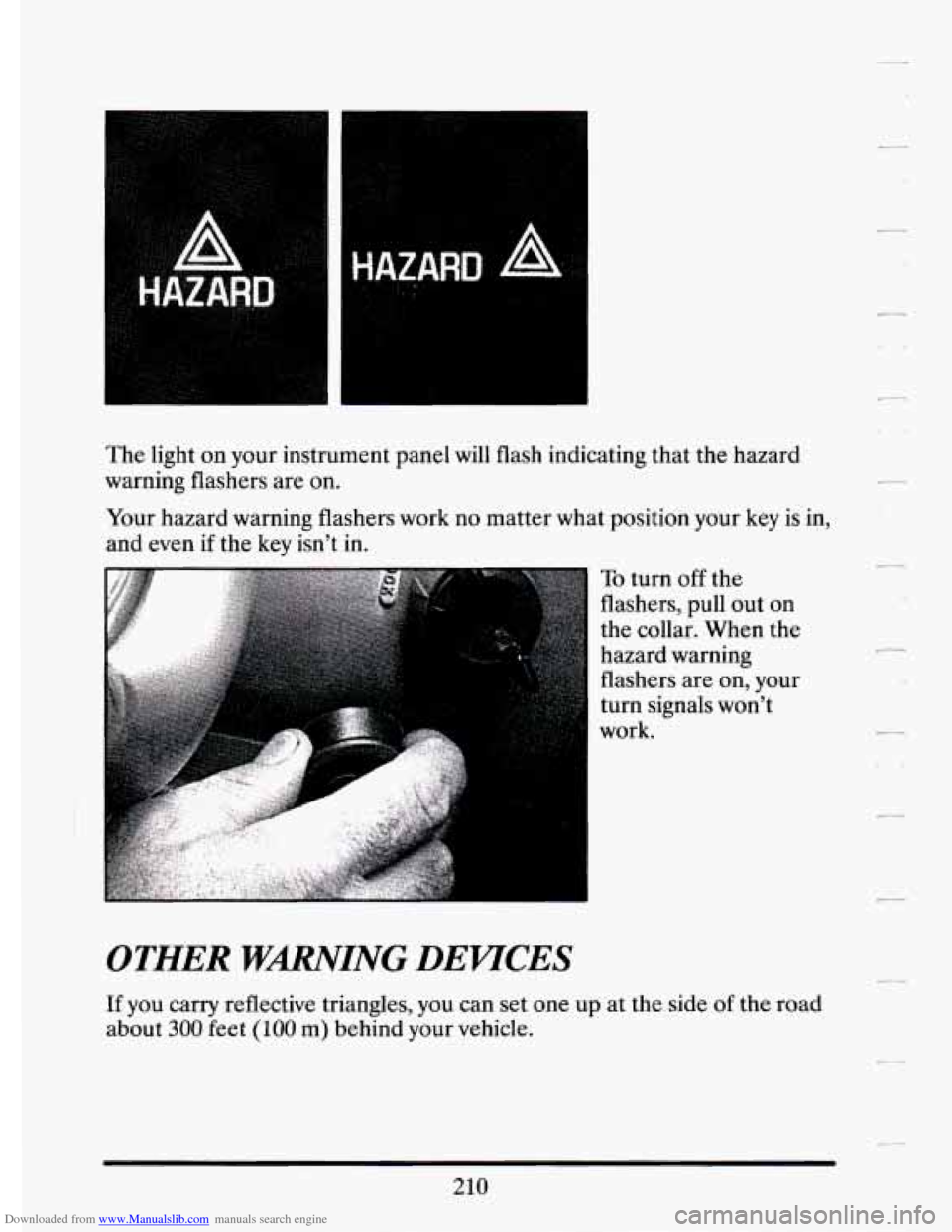

Downloaded from www.Manualslib.com manuals search engine The light on your instrument panel will flash indicating that the hazard
warning flashers
are on.
Your hazard warning flashers work no matter what position your
key is in,
and even
if the key isn’t in.
OTHER WMING DEWCES
To turn off the
flashers, pull out on
the collar. When the
hazard warning
flashers
are on, your
turn signals won’t
work.
If you carry reflective triangles, you can set one up at the side of the road
about 300 feet (100 m) behind your vehicle.
210

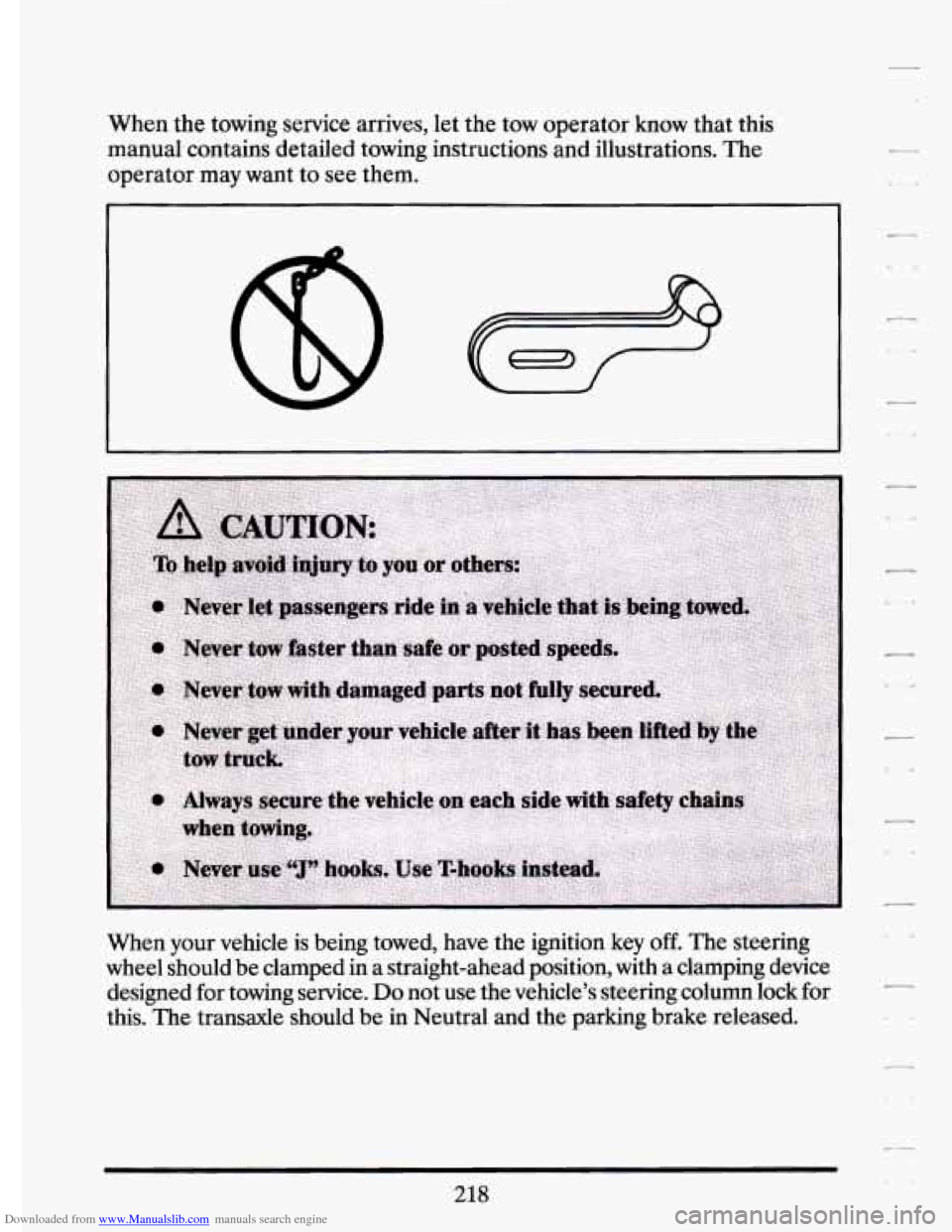

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator know that this
manual-contains detailed towing instructions and illustrations. The
operator may want to see them.
When your vehicle
is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with
a clamping device
designed for towing service.
Do not use the vehicle’s steering column lock for
this. The transaxle should be in Neutral and the parking brake relea\
sed.
218
-.

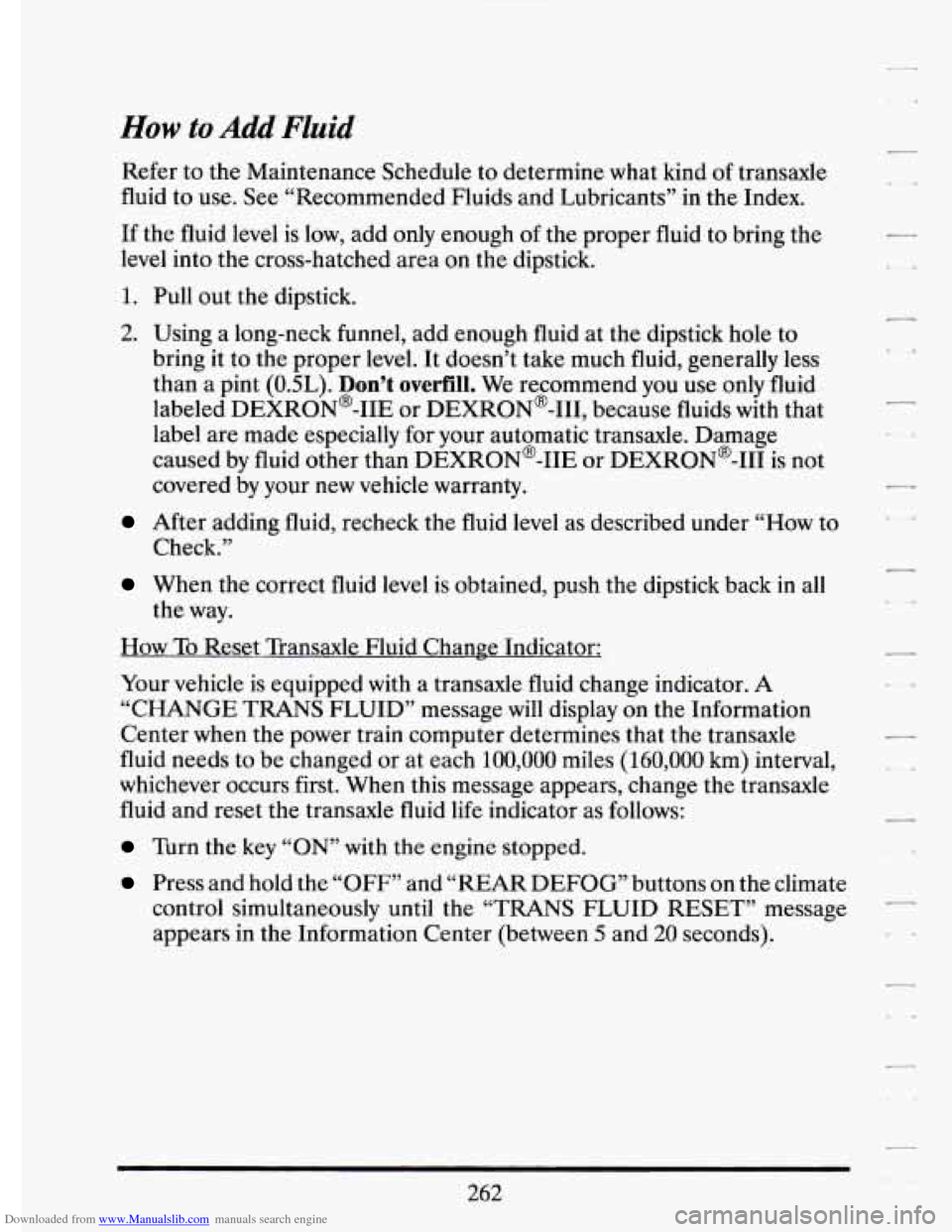

Downloaded from www.Manualslib.com manuals search engine How to Add Fluid
Refer to the Maintenance Schedule to determine what kind of transaxle
fluid
to use. See “Recommended Fluids and Lubricants” in the Index.
If
the fluid level is low, add only enough of the proper fluid to bring the
level into the cross-hatched area on the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough fluid at the dipstick hole to
bring it to
the proper level. It doesn’t take much fluid, generally less
than
a pint (OSL). Don’t overfill. We recommend you use only fluid
labeled DEXRON@-IIE or DEXRON@-111, because fluids with that
label are made especially for your automatic transaxle. Damage
caused by fluid other than DEXRON@-IIE or DEXRON@-I11 is not
covered by your
new vehicle warranty.
After adding fluid, recheck the fluid level as described under “How to
When the correct fluid level is obtained, push the dipstick back in all
Check.”
the way.
How To Reset Transaxle Fluid Change Indicator:
Your vehicle is equipped
with a transaxle fluid change indicator. A
“CHANGE TRANS FLUID” message will display on the Information
Center when the power train computer determines that the transaxle
fluid needs to be changed or at each
100,000 miles (160,000 km) interval,
whichever occurs first. When this message appears, change the transaxle
fluid and reset the transaxle fluid life indicator as follows:
Turn the key “ON” with the engine stopped.
Press and hold the “OFF” and “REAR DEFOG” buttons on the climate
control simultaneously until the “TRANS FLUID RESET” message
appears in the Information Center (between
5 and 20 seconds).
262

Downloaded from www.Manualslib.com manuals search engine WPER BLADE REPLACEMENT
. Position the windshield wipers on the windshield in the “mid” wipe
position.
To do this, turn the ignition key to ‘‘Accessory” and turn the
wipers on. Then with the door open, turn the ignition key to
“Off. F I L
I- t.
r
Do the same with the passenger side wiper blade assembly.
To install the wiper blade align the wiper arm pin with the hole on the 7 1 wiper blade assembly and snap it into place.
I
Y
283
