1994 BUICK REGAL oil capacities

Part 6 Service and Appearance Care
Here you will find information about the care of your Buick . This part begins with service and fuel information. and
then
it shows how to check important fluid and lubricant levels . There is also technical information about your
vehicle. and a section devoted to its appearance care
.
Part 6 includes:
Service ........................................................................\
.. 208
Fuel
........................................................................\
..... 209
HoodRelease
..................................................................... 212
Engineoil
....................................................................... \
214
Aircleaner
....................................................................... \
219
Automatic Transaxle Fluid
................................................... : ....... 220
Enginecoolant
.................................................................... 223
PowerSteeringFluid
............................................................... 226
Windshield Washer Fluid
............................................................ 227
Brakes
........................................................................\
... 228
Battery
........................................................................\
.. 231
LoadingYourVehicle
............................................................... 235
Tires
........................................................................\
.... 236
Vehicle Identification Number (VIN)
.................................................. 253
Fuses and Circuit Breakers
....................... ’. ................................... 254
Capacities and Specifications
......................................................... 260
BulbReplacement
................................................................. 232
Appearancecare
.................................................................. 244
207
ProCarManuals.com

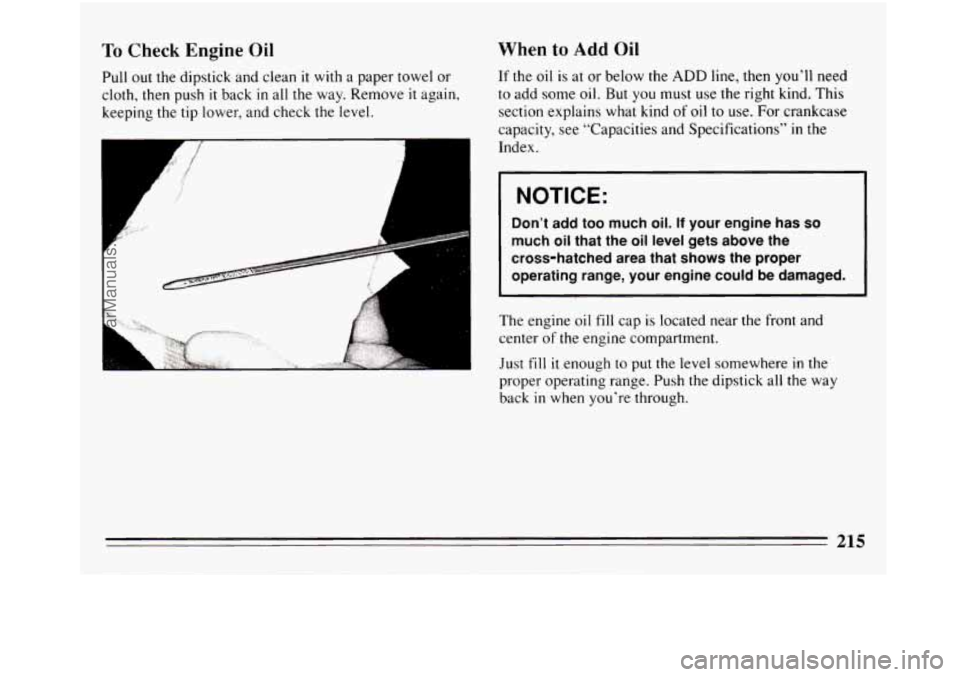

To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push
it back in all the way. Remove it again,
keeping the tip lower, and check the level.
A
A
r
When to Add Oil
If the oil is at or below the ADD line, then you’ll need
to add some oil. But you must use the right kind. This
section explains what kind of oil
to use. For crankcase
capacity, see “Capacities and Specifications’’
in the
Index.
NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that shows the proper
operating range, your engine could be damaged.
The engine oil fill cap is located near the front and
center
of the engine compartment.
Just
fill it enough to put the level somewhere in the
proper operating range. Push the dipstick all
the way
back
in when you’re through.
215
ProCarManuals.com

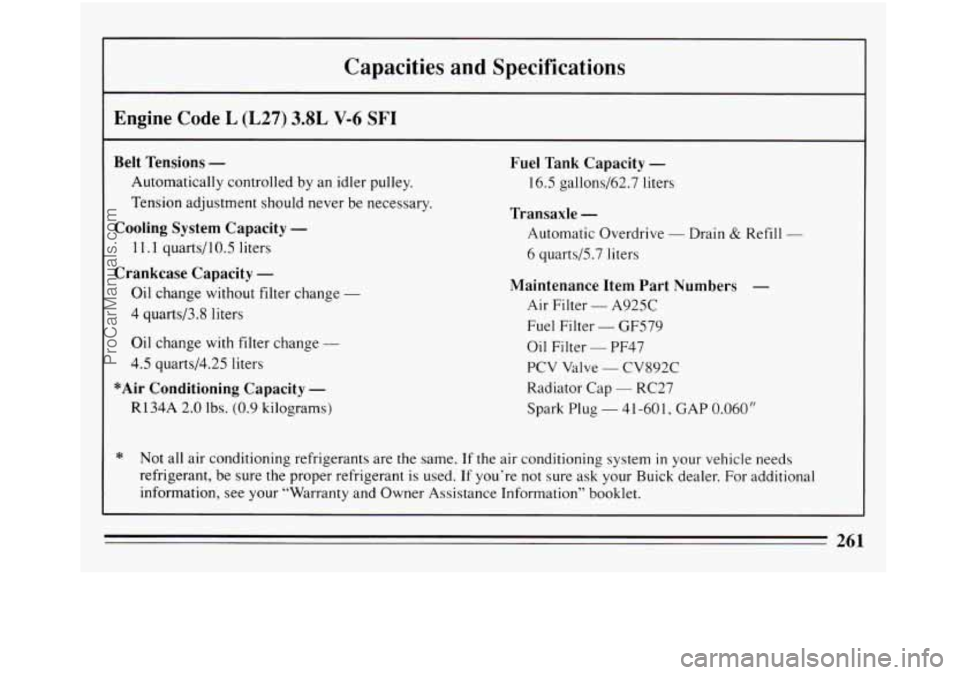

Capacities and Specifications
Engine Code L (L27) 3.8L V-6 SF1
Belt Tensions -
Automatically controlled by an idler pulley.
Tension adjustment should never be necessary.
Cooling System Capacity -
11.1 quartsl10.5 liters
Crankcase Capacity -
Oil change without filter change -
4 quarts/3.8 liters
Oil change with filter change -
4.5 quarts/4.25 liters
*Air Conditioning Capacity -
R134A 2.0 lbs. (0.9 kilograms)
Fuel Tank Capacity -
16.5 gallons/62.7 liters
Transaxle -
Automatic Overdrive - Drain & Refi 11 -
6 quarts/5.7 liters
Maintenance Item Part Numbers -
Air Filter - A925C
Fuel Filter
- GF579
Oil Filter
- PF47
PCV Valve
- CV892C
Radiator Cap
- RC27
Spark Plug
- 4 1-60 1, GAP 0.060”
* Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If you’re not sure ask your Buick dealer. For additional
information, see your “Warranty and Owner Assistance Information” booklet.
261
ProCarManuals.com

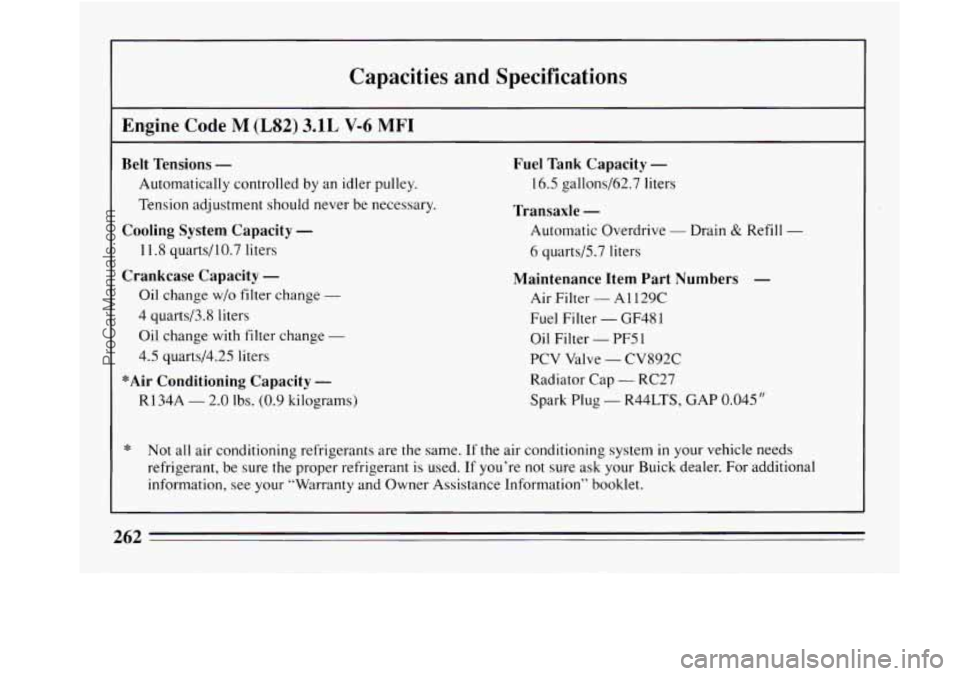

Capacities and Specifications
Engine Code M (LS2) 3.1L V-6 MFI
Belt Tensions -
Automatically controlled by an idler pulley.
Tension adjustment should never be necessary.
Cooling System Capacity -
11.8 quartsll0.7 liters
Crankcase Capacity -
Oil change w/o filter change -
4 quarts/3.8 liters
Oil change with filter change
-
4.5 quarts/4.25 liters
*Air Conditioning Capacity -
R134A - 2.0 lbs. (0.9 kilograms)
Fuel Tank Capacity -
16.5 gallons/62.7 liters
Transaxle -
Automatic Overdrive - Drain & Refill -
6 quarts/5.7 liters
Maintenance Item Part Numbers -
Air Filter - A 1 129C
Fuel Filter - GF48 1
Oil Filter - PF5 1
PCV Valve - CV892C
Radiator Cap
- RC27
Spark Plug
- R44LTS, GAP 0.045”
* Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If you’re not sure ask your Buick dealer. For additional
information, see your “Warranty and Owner Assistance Information” booklet.
262
ProCarManuals.com

'Blowout. Tire ................................... 196
Adjustment
.................................. 230
Anti-lock
.................................... 145
Fluid
................................. ; ..... 228
Master Cylinder
.............................. 228
Parking
...................................... 87
Replacement
................................. 230
System. Anti-lock Warning Light
................. 115
System Warning Light
......................... 114
Wear
....................................... 229
Brakes. Trailer
.................................. 167
Braking
........................................ 144
Braking in Emergencies
......... : ................. 146
Break-In. New Vehicle
............................ 79
BulbChart
..................................... 2 60
Bulb Replacement ............................... 23 1
Bulbs. Halogen
.................................. 231
Brake
PedalTravel
................................. 230
Capacities and Specifications Chart
............. 261. 262
CarbonMonoxide
...... : ......................... 91
Carrier. Luggage
................................ 11 1
Cassette Tape Player ......................... 128, 132
Cassette Tape Player Care
......................... 135
Cautions, Safety
.................................. 10
CB Radio, Adding ........................... 125, 253
Changing a Flat Tire
.............................. 197
Cellular Telephone, Adding
.................... 125,
253
Chains, Tire
.................................... 243 Check Gages Light
............................... 119
Engine Coolant
................................ 223
Power Steering Fluid
.......................... 226
Restraint Systems
............................... 67
Transaxle Fluid
............................... 220
Underhood
.................................. 212
Windshield Washer Fluid
....................... 227
Chemical Paint Spotting
........................... 251
Child Restraints
.................................. 52
Children and Safety Belts
........................... 50
Cigarette Lighter ................................ 110
Circuit Breakers and Fuses
........................ 254
CityDriving
.................................... 155
Cleaner. Air
.................................... 219
Cleaning Aluminum Wheels
............................ 249
Antenna
..................................... 136
Cassette Player
............................... 135
Fabric
...................................... 245
Glass
....................................... 247
Inside Your Buick
............................. 244
Instrument Panel
.............................. 247
Leather
..................................... 247
Outside Your Buick
........................... 248
Safety Belts
.................................. 247
Underbody Maintenance
........................ 250
Vinyl
....................................... 246
White Sidewall Tires
........................... 249
Windshield Wiper and Blades
.................... 248
Checking
BrakeFluid
.................................. 228
Engine Oil
.................................... 214
294
ProCarManuals.com

Fabric Cleaning ................................ 245
Features and Controls
............................. 69
Fiberglass Springs
............................... 25 1
Filling the Fuel Tank ............................. 21 1
Filter. Oil ...................................... 214
Finish Care
..................................... 248
Finish Damage
.................................. 250
FirstGear
....................................... 86
Flash-To-Pass
................................... 96
Flashers. Hazard Warning
......................... 172
Flat Tire ....................................... 196
FloodedEngine
.................................. 80
Fluid Brake
....................................... 228
Capacities
............................... 26 1. 262
Power Steering
............................... 226
Transaxle
.................................... 220
Windshield Washer
............................ 227
Fluids and Lubricants Recommended
................ 279
FogLights
..................................... 103
Foreign Operation
............................... 2 10
Francais. Guide En
................................. 2
Freeway Driving
................................ 156
French Language Manual
........................... 2
Fuel
.......................................... 209
Capacities
............................... 26 1. 262
FillingYourTank
............................. 211
Gage
....................................... 113
In Foreign Countries ........................... 2 10
LowLight ................................... 114
Fuses and Circuit Breakers
........................ 254 Gage
Battery (Voltage Indicator)
...................... 119
Engine Coolant Temperature
.................... 116
Fuel
........................................ 113
Gasoline
....................................... 209
Gasoline Tank Filling
............................. 211
Gear Positions
................................... 84
Engine Oil
Pressure
........................... 117
Glasscleaning
.................................. 247
Halogen Bulbs
................................. 231
Hazard Warning Flashers
.......................... 172
Headlamp Bulb Replacement
........................ 23
Headlights
..................................... 103
High-Low Beam Changer
....................... 96
Headlight “On” Warning
....................... 103
Head Restraints
.................................. 17
Hearing Impaired Assistance ....................... 285
Heater
......................................... 121
Heater. Engine Block (Engine Coolant Heater)
...... 83. 219
Highway Hypnosis
............................... 158
Hill and Mountain Roads
.......................... 159
Hitches. Trailer
.................................. 166
Hood Release
................................... 212
Horn
........................................... 93
Hot Coolant Warning Gage
........................ 116
Hot Engine Safety Warnings
....................... 187
Hydroplaning
................................... 154
