1994 BUICK PARK AVENUE Owners Manual

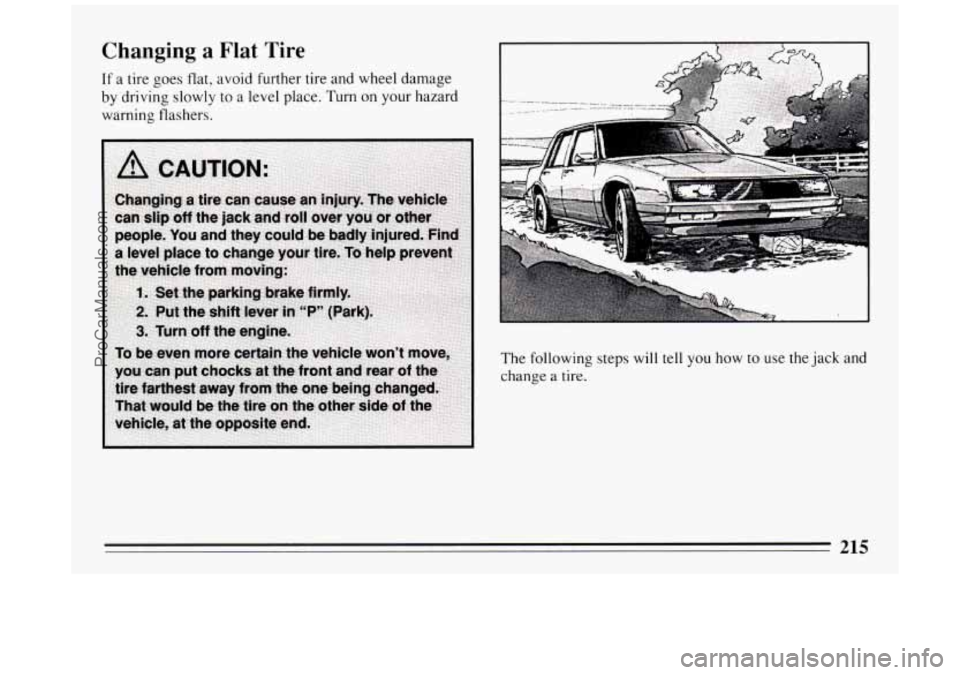

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a
level place. Turn on your hazard
warning flashers.
i
The following steps will tell you how to use the jack and
change
a tire.
215
ProCarManuals.com

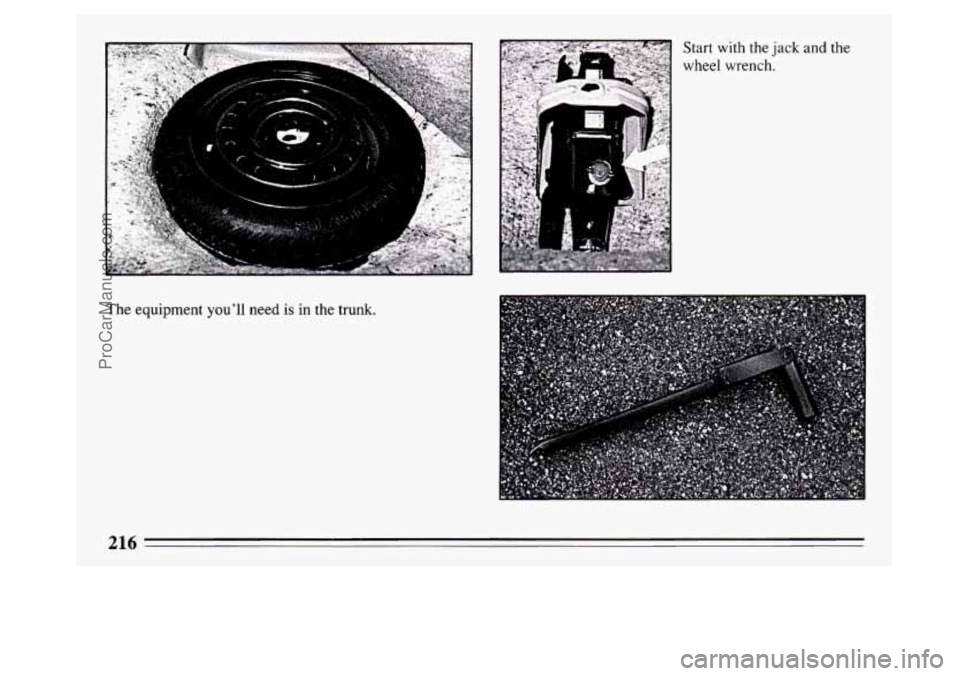

The equipment you'll need is in the trunk. Start
with the jack and the
wheel wrench.
216
ProCarManuals.com

The jack has a bolt at
the end. Attach the
wheel wrench to the
jack bolt.
Rotate the wheel wrench clockwise
(to the right). That
will raise
the lift head a little.
If your Buick has a wheel cover, you must take it off to
reach the wheel nuts.
'A
A
If your vehicle has an aluminum wheel with a center
cover, remove
it using the flat end of the wheel wrench.
217
ProCarManuals.com

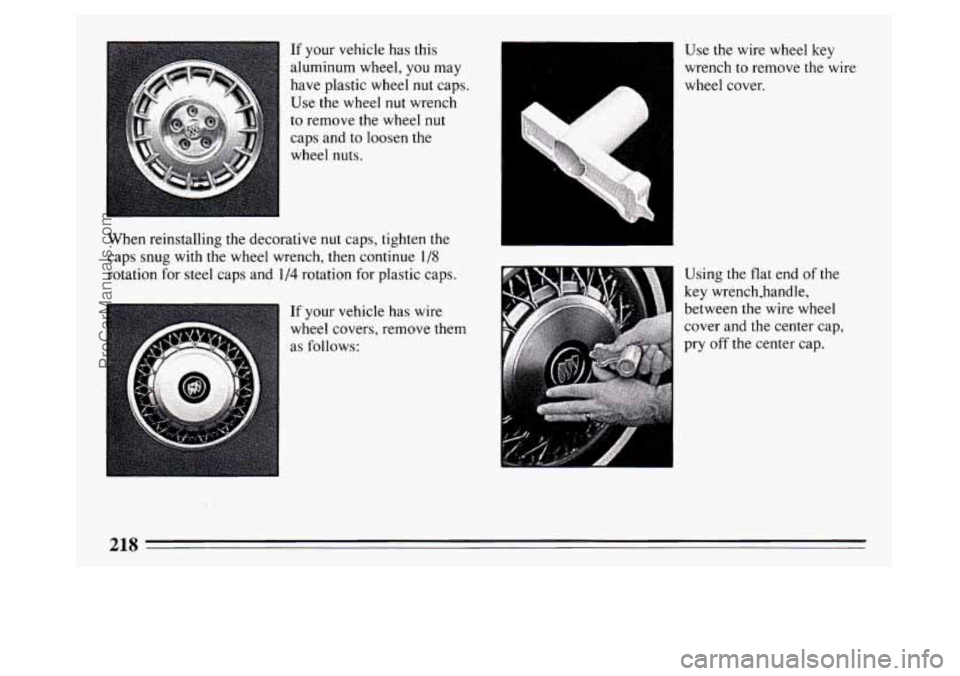

If your vehicle has this
aluminum wheel, you may
have plastic wheel
nut caps.
Use the wheel
nut wrench
to remove the wheel nut
caps and
to loosen the
wheel nuts.
When reinstalling the decorative nut caps, tighten the
caps snug with
the wheel wrench, then continue 1/8
rotation for steel caps and 1/4 rotation for plastic caps.
If your vehicle has wire
wheel covers, remove them
as follows:
P
F
.
P
Use the wire wheel key
wrench to remove the wire
wheel cover.
Using the flat end of
the
key wrench-handle,
between the wire wheel
cover and the center cap,
pry off the center cap.
218
ProCarManuals.com

Remove the theft deterrent wheel
nut, by placing the
key end of the wire wheel
key wrench over the
nut
and turning it to the left.
Pull
off the wire wheel
cover. Note: When
reppacing the wheel cover,
carefully line up the tire
.,’ valve stem and the notch in
the wheel cover.
54
Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them yet. Next, attach the wheel wrench
to the bolt on the end of the jack. Raise the jack a little
by rotating the wheel wrench clockwise (to the right). The jack
handle has markings at 8” for the rear and 10”
for the front, which will help you to locate the jacking
notches in the frame.
219
ProCarManuals.com

Position the jack under the
vehicle. There is a notch
in
the frame near each of the
wheels. Fit the top
of the
jack into the notch nearest
the wheel
with the flat tire.
I NOTICE:
Raising your vehicle with the jack improperly
positioned will damage the vehicle
or may allow
the vehicle to fall off the jack. Be sure to
fit the
jack lift head into the proper location before raising your vehicle.
t I
Raise the vehicle by rotating the wheel wrench
clockwise. Raise the vehicle far enough
off the ground
so there is enough room for the spare tire to fit.
220
ProCarManuals.com

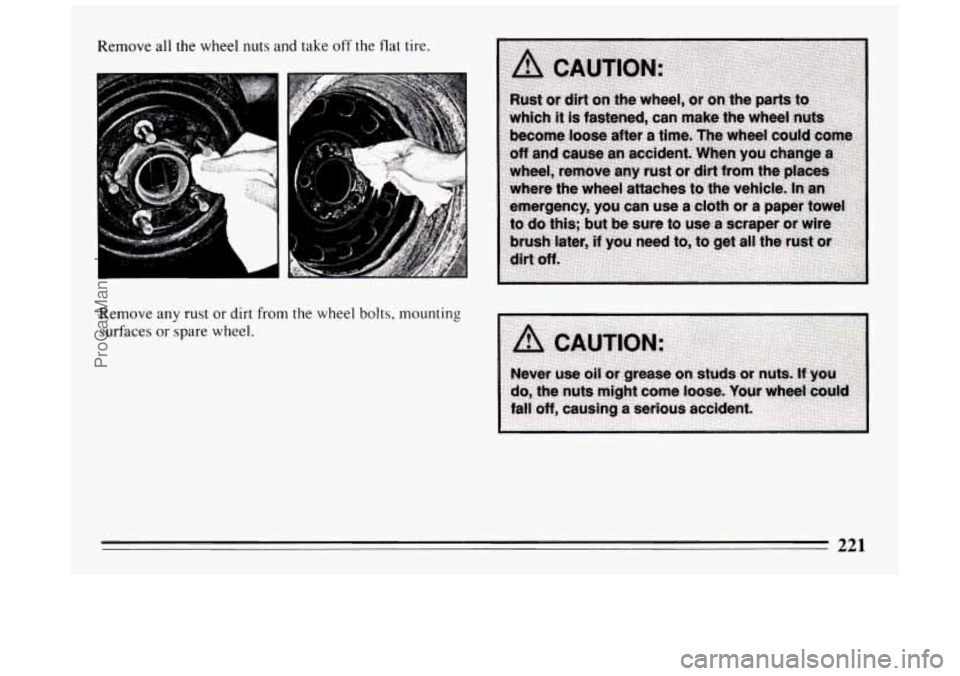

Remove all the wheel nuts and take off the flat tire.
Remove any rust or dirt from the wheel
bolts, mounting
surfaces or spare wheel.
221
ProCarManuals.com

Place the spare on the
wheel mounting surface.
Replace the wheel nuts
with the rounded end
of the
nuts toward the wheel.
Tighten each
nut by hand
until the wheel is held
against the hub. Lower
the vehicle by rotating the wheel wrench
counterclockwise. Lower the jack completely.
222
