1993 Oldsmobile Cutlass Supreme Owner's Manuals

2. Adjust the seat, if necessary, before
setting the height control.
Rotate the HUD image height control
all the way up, raising the image as
far as possible. Then rotate the HUD
image height control downward
so
the image is as low as possible but in
full view.
3. Slide the dimmer control toward
OFF until the HUD image is no
brighter than necessary.
To turn the
HUD off, slide the HUD dimmer
control to
OFF.
If the sun comes out, or it becomes
cloudy, or
if you turn on your
headlights, you may need
to adjust the
HUD's brightness using the HUD
dimmer control. Polarizing sunglasses
could make the HUD image harder
to see.
I I
CAUTION I
A
If the HUD image is too
bright, or too high
in your
field of view, it may take you more
time to see things you need to see
when it's dark outside. Be sure to
I
keep the HUD image dim and
I placed low in your field of view.
203

Features & Controls
I
104
Head-Up Display (CONT.)
Pushing the ENG/MET rocker switch
on the center console
will switch the
HUD speedometer from English
(conventional) to metric units, or back
again.
Some vehicles may not be
equipped
with the ENG/MET switch.
Care of the Head-Up Display
Clean the inside of the windshield as
needed to remove any dirt or
film that
reduces the sharpness
or clarity of the
HUD image.
To Clean the HUD:
Spray household glass cleaner on a soft,
clean cloth. Wipe the HUD lens gently,
then
dry it. Do not spray cleaner
directly on the lens, because the cleaner
fluid could leak inside the unit
if you do.
If You Can’t See the HUD Image
When the Ignition
is On:
Is anything cbvering the HUD unit?
Is the HUD dimmer control close
enough
to MAX?
Is the HUD image-adjusted to the
proper height?
Still no HUD image? Check the fuse
in the
CLUST position in the glove
box fuse panel. See the Index under
Fuses G Circuit Breakers.
..

If the HUD Image is Not Clear:
It could be too bright. Move the HUD
dimmer control closer to
OFF.
You may need to clean the windshield
and HUD lens.
Your windshield is part of the HUD
system.
If you ever have to have a new
windshield, be sure
to get one designed
for HUD.
If you don’t, the HUD image
may look blurred and out
of focus.

I Notes I
106

107

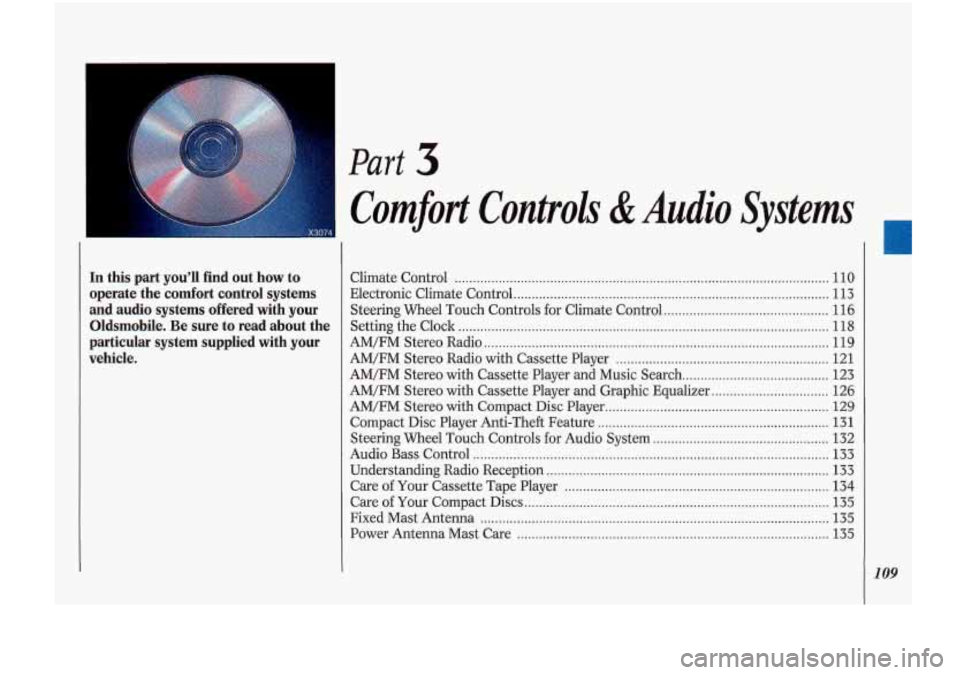

In this part you’ll find out how to
operate the comfort control systems
and audio systems offered with
your
Oldsmobile . Be sure to read about the
particular system supplied with your
vehicle
.
I Part 3
I Comfort Controls & Audio Systems
Climate Control ........................................................................\
.............................. 110
Electronic Climate Control
........................................................................\
.............. 113
Steering Wheel Touch Controls for Climate Control ............................................. 116
Setting the Clock
........................................................................\
............................. 118
AM/FM Stereo Radio ........................................................................\
...................... 119
AM/FM Stereo Radio
with Cassette Player .......................................................... 121
AM/FM Stereo with Cassette Player and Graphic Equalizer
................................ 126
Compact Disc Player Anti-Theft Feature
............................................................... 131
Audio Bass Control
........................................................................\
......................... 133
Understanding Radio Reception ........................................................................\
..... 133
Care of Your Compact Discs ........................................................................\
........... 135
Fixed Mast Antenna
........................................................................\
....................... 135
Power Antenna Mast Care ........................................................................\
............. 135
AM/FM Stereo with Cassette Player and Music Search ........................................ 123
AM/FM Stereo with Compact Disc Player ............................................................. 129
Steering Wheel Touch Controls for Audio System
................................................ 132
Care
of Your Cassette Tape Player ........................................................................\
134
109

~ Comfort Controls &Audio Systems
i I
I
I
I
! I
I
I
~ 110
Climate Control
The air conditioner and heater work
best
if you keep your windows closed
while using them. Your vehicle also has
the flow-through ventilation system
described later in this section.
OFF: Press to turn the blower off.
Some air will still come from the outlets
at the floor. Press any function button
to turn the system
on.
Temperature Control Lever: This
lever changes the temperature of the air
coming through the system. The higher
the lever setting, the warmer the air.
3f: Selects the force of air you want.
Press
LO to lower the fan speed, HI to
raise
it.
Air Conditioning
On very hot days, open the windows
long enough to let hot inside air escape.
This reduces the time it tales for your
vehicle to cool down, which should help
fuel economy.
There are three air conditioning
settings:
MAX: Provides maximum cooling or
quick cool-down
on very hot days. This
setting also helps prevent outside odors
from entering your vehicle.
This setting recirculates much of the air
inside your vehicle, and it should not be
used for long periods because the air
may become too cold and
dry. This
setting is not recommended if an
occupant is smoking.
NORM: Use for normal cooling on hot
days. This setting brings in outside air,
cools it and directs it through the
instrument panel outlets.
BI-LEV (Bi-Level): Use on cool, but
sunny days. This setting brings in the
outside air, but directs it in two ways.
The cool air is directed to the upper
portion of your body through the
instrument panel outlets, but most
warmed air is directed through the
heater ducts and a little to the defrost
and side window vents. At times this
temperature difference may be more
apparent than others.
