1993 CHEVROLET BLAZER Owners Manual

Features & Controls

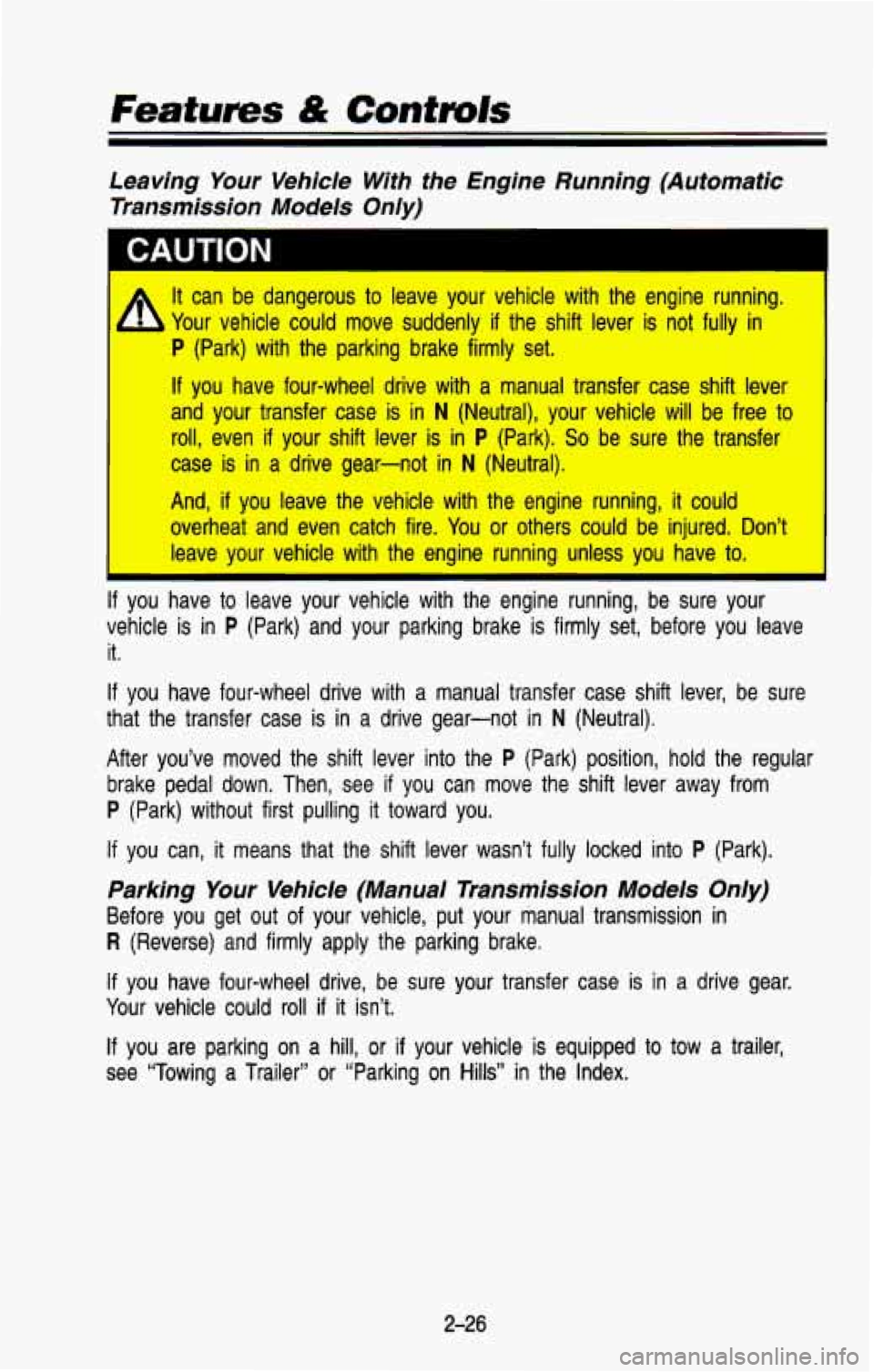

Leaving Your Vehicle With the Engine Running (Automatic
Transmission Models Only)
A It can be dangerous to leave your vehicle with the engine running.
h Your vehicle could move suddenly if the shift lever is not fully in
P (Park) with the parking brake firmly set.
If you have four-wheel drive with a manual transfer case shift le\
ver
and your transfer case
is in N (Neutral), your vehicle will be free to
roll, even
if your shift lever is in P (Park). So be sure the transfer
case is in a drive gear-not in
N (Neutral).
And,
if you leave the vehicle with the engine running, it could
overheat and even catch fire. You or others could be injured. Don’t
I leave your vehicle with the engine running unless you have to.\

If you have to leave your vehicle with the englne runnmg, De sure your
vehicle is in
P (Park) and your parking brake is firmly set, before you leave
it.
If you have four-wheel drive with a manual transfer case shift le\
ver, be sure
that the transfer case is in a drive gear-not in
N (Neutral).
After you’ve moved the shift lever into the
P (Park) position, hold the regular
brake pedal down. Then,
see if you can move the shift lever away from
P (Park) without first pulling it toward you.
If you can, it means that the shift lever wasn’t fully locked \
into P (Park).
Parking Your Vehicle (Manual Transmission Models Only)
Before you get out of your vehicle, put your manual transmission in
R (Reverse) and firmly apply the parking brake.
If you have four-wheel drive, be sure your transfer case is in a drive gear.
Your vehicle could roll
if it isn’t.
If you are parking on a hill, or if your vehicle is equipped to tow a trailer,
see “Towing a Trailer” or “Parking on Hills” in the Index.
2-26

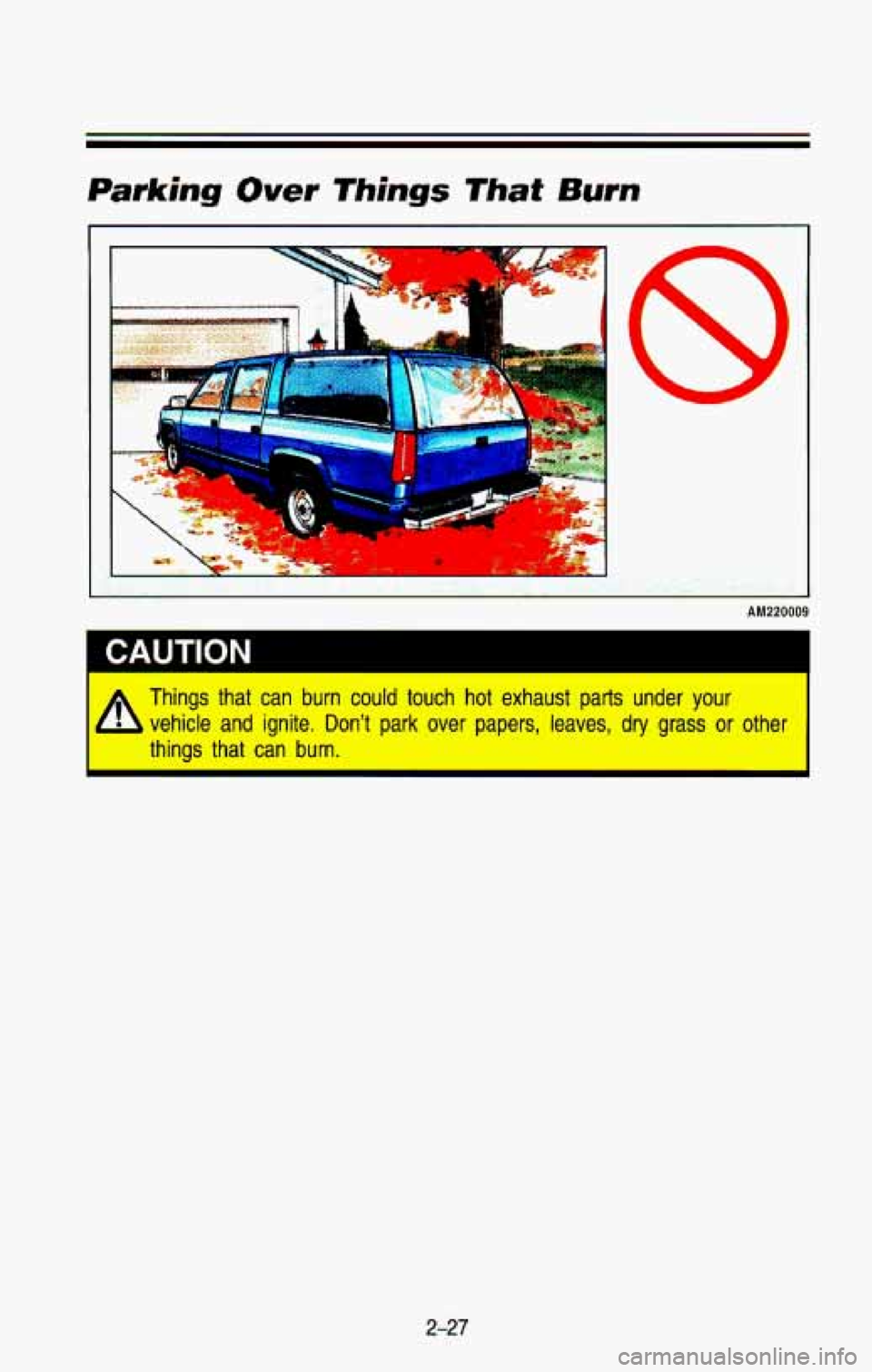

Parking Over Things That Burn
.. .'.- L.' . 8
AM220009
* Things that can burn could touch hot exhaust parts under your
4 vehicle and ignite. Don't park over papers, leaves, dry grass or other
I things that can burn. I
2-27

Features & Controls

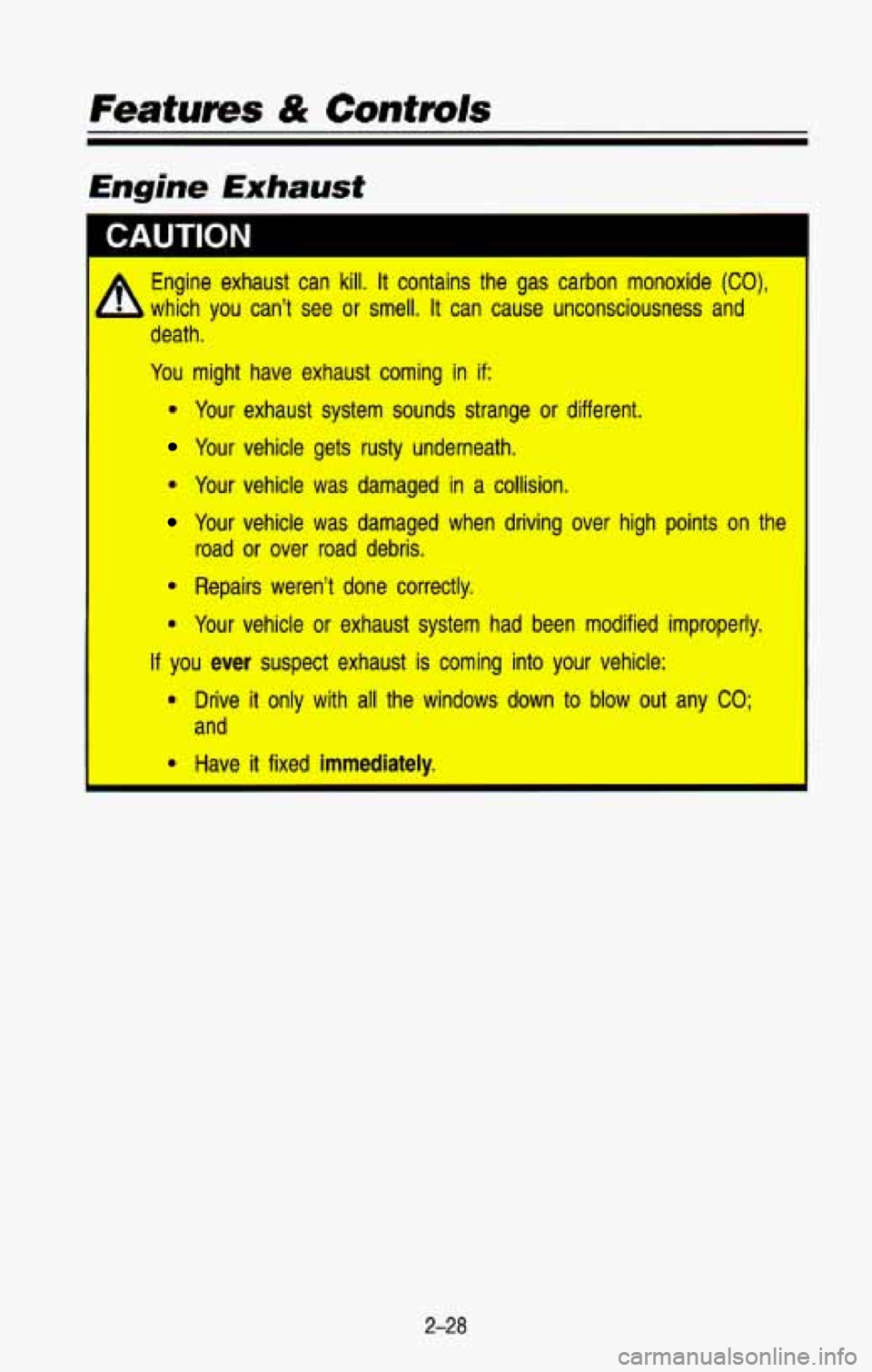

Engine Exhaust
I I
Engine exhaust can kill. It contains the gas carbon monoxide (CO),
which you can’t see or smell. It can cause unconsciousness and
death
.
You might have exhaust coming in if:
0 Your exhaust system sounds strange or different.
Your vehicle gets rusty underneath.
* Your vehicle was damaged in a collision.
Your vehicle was damaged when driving over high points on the
m Repairs weren’t done correctly.
e Your vehicle or exhaust system had been modified improperly.
road or over road debris.
If you ever suspect exhaust is coming into your vehicle:
0 Drive it only with all the windows down to blow out any CO;
and
I * Have
it fixed immediately.
2-28

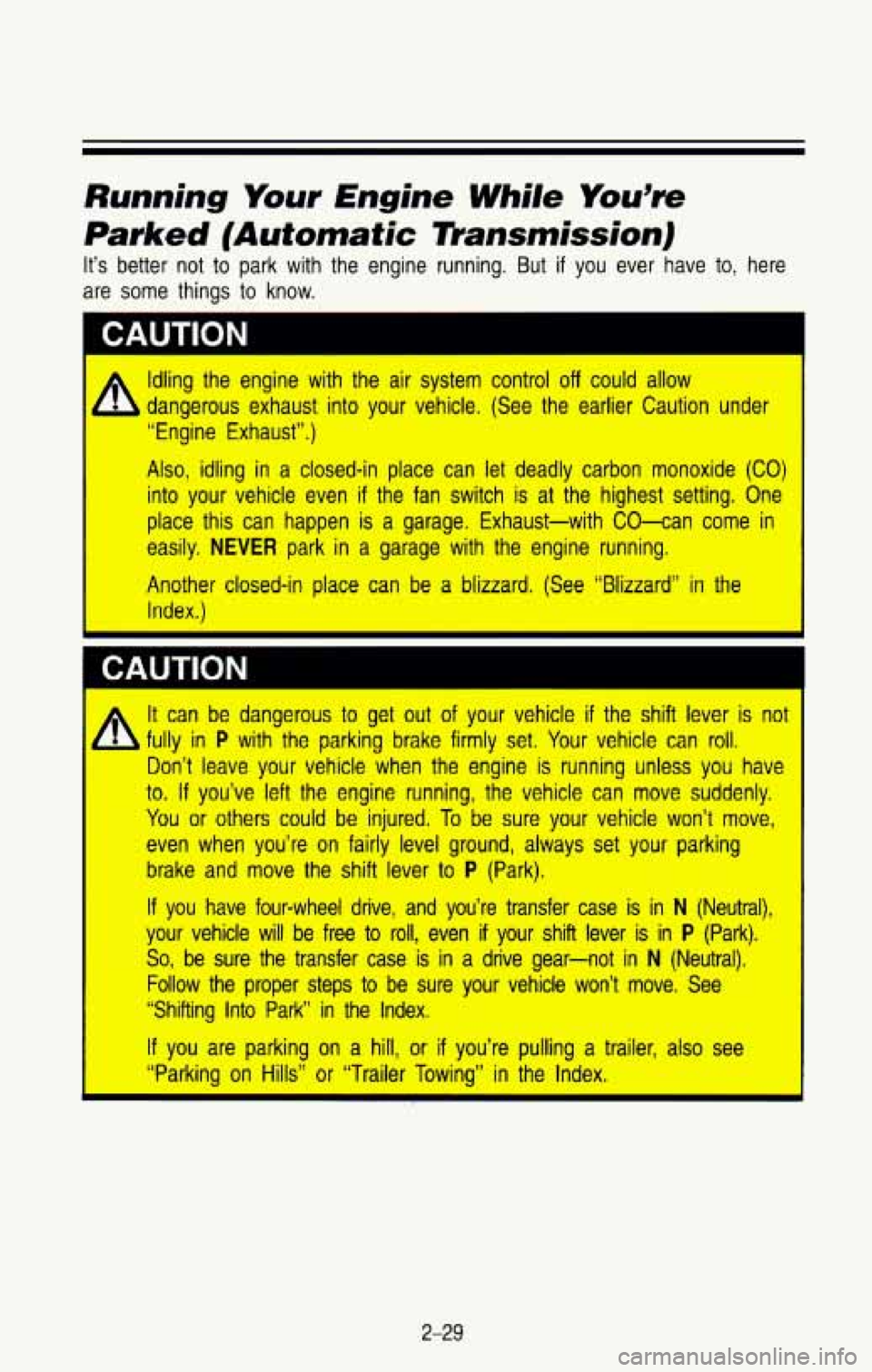

Running Your Engine While You’re
Parked (Automatic rnansrnission)
It’s better not to park with the engine running. But if you ever have to, here
are
some things to know.
I CAUTION
I A Idling the engine with the air system control off could allow
A dangerous exhaust into your vehicle. (See the earlier Caution under
“Engine Exhaust”.)
Also, idling in a closed-in place can let deadly carbon monoxide (CO)
into your vehicle even if the fan switch is at the highest setting. One
place this can happen is a garage. Exhaust-with Chan come in
easily.
NEVER park in a garage with the engine running.
Another closed-in
place can be a blizzard, {See “Blizzard” in the
Index.)
It can be dangerous to get out of your vehicle if the shift lever is not
fully in P with the parking brake firmly set. Your vehicle can roll.
Don’t
leave your vehicle when the engine is running unless you have
to.
If you’ve left the engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your vehicle won’t move,
even when you’re on fairly level ground, always set your parking
brake and move the shift lever to P (Park).
If you have four-wheel drive, and you’re transfer case is in N (Neutral),
your vehicle will be free to roll, even if your shift lever is in P (Park).
So, be’ sure the transfer case is in a drive gear-not in N (Neutral).
Follow
the proper steps to be sure -your vehicle won? move. See
“Shifting
Into Park” in the tndex.
If you are parking on a hill, or if you’re pulling a trailer, also see
“Parking on Hills” or “Trailer Towing” in the Index.
2-29

It can be dangerous to get out of your vehicle if the shift lever is nut
four-wheel drive, also be sure the transfer case is in a drive gear.
Your vehicle can roll.
If you have left the engine running, the vehicle
can move suddenly. You
or others could be injured. To be sure your
vehicle won’t move, follow the steps below. If you are parking on a
hill,
or if you’re pulling a trailer, see “Parking on Hills’’ or “Trailer
Towing” in the Index.
fully in P (Park) with the parking brake firmly set. If you have
If your vehicle has four-wheel drive, you can send your engine’\
s driving power
to
all four wheels for extra traction. To get the most satisfaction out of
four-wheel drive, you must be familiar with its operation. Read the pan that
follows before using four-wheel drive. You
should use 2H for most normal
driving conditions.
I
Driving in the 4H or 4L positions for a long time on dry or wet pavement
could shorten the life of your vehicle’s drivetrain.
Transfer Case
2-30

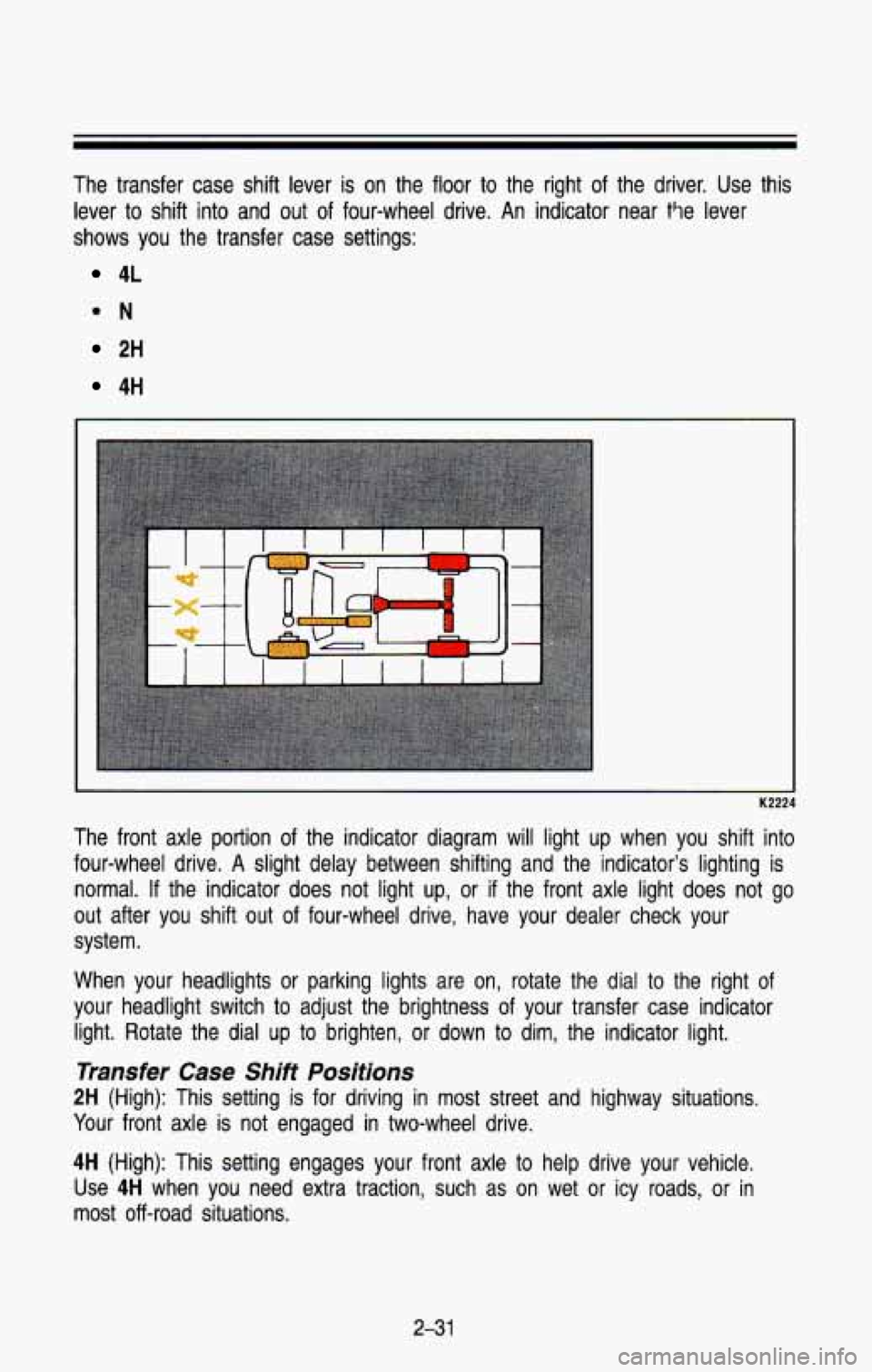

The transfer case shift lever is on the floor to the right of the driver. Use this
lever to shift into and
out of four-wheel drive. An indicator near t9e lever
shows you the transfer case settings:
4L
ON
2H
4H
The front axle portion of the indicator diagram will light up when you shift into
four-wheel drive. A slight delay between shifting and the indic\
ator’s lighting is
normal. If the indicator does not light up, or
if the front axle light does not go
out after you shift
out of four-wheel drive, have your dealer check your
system.
When your headlights or parking lights are
on, rotate the dial to the right of
your headlight switch
to adjust the brightness of your transfer case indicator
light. Rotate the dial up
to brighten, or down to dim, the indicator light.
Transfer Case Shift Positions
2H (High): This setting is for driving in most street and highway situations.
Your front axle
is not engaged in two-wheel drive.
4H (High): This setting engages your front axle to help drive your vehicle.
Use
4H when you need extra traction, such as on wet or icy roads, or in
most
off -road situations.
2-31

Features & Contmls

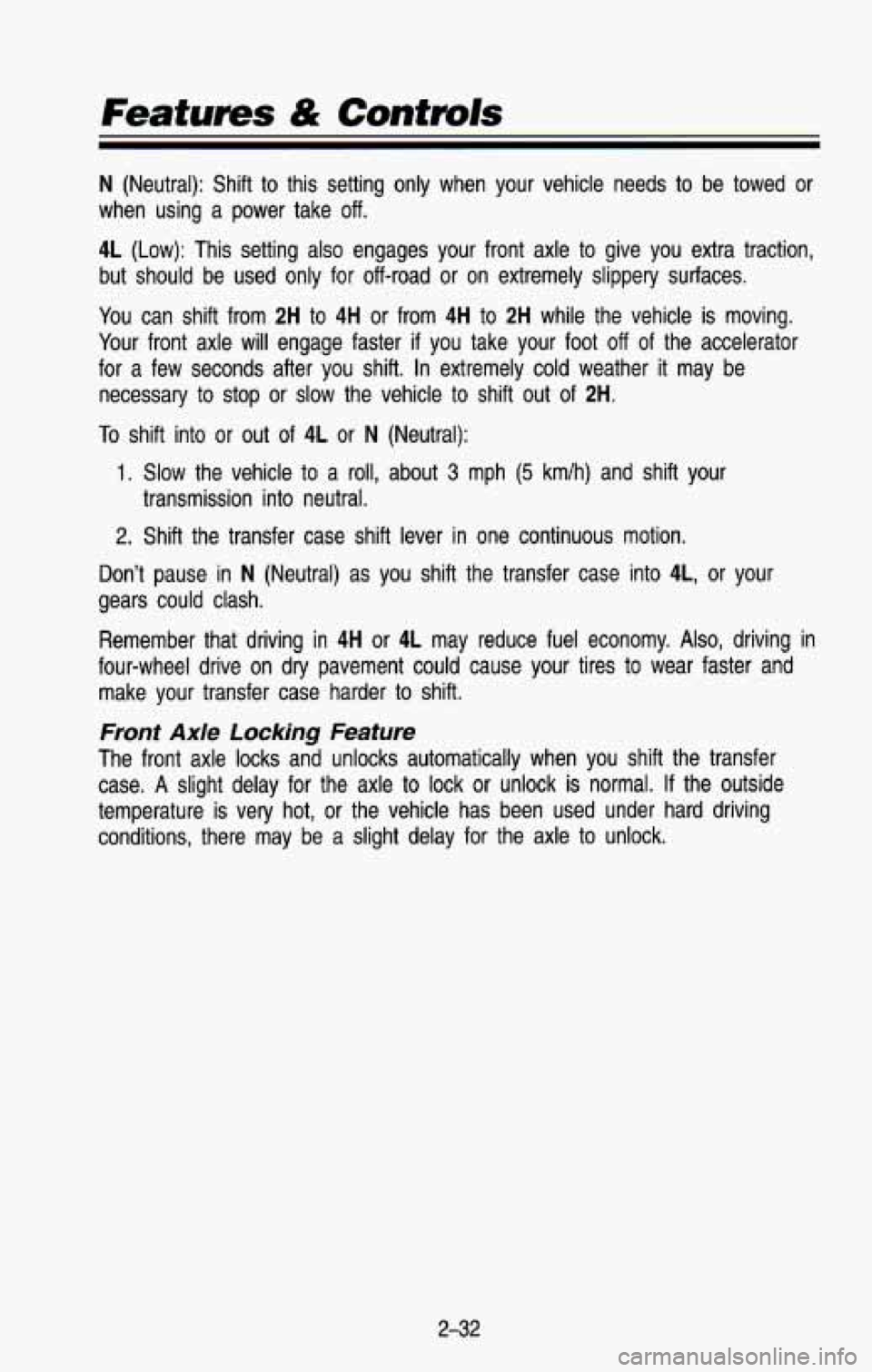

N (Neutral): Shift to this setting only when your vehicle needs to be towed or
when using a power take
off.
4L (Low): This setting also engages your front axle to give you extra traction,
but should be used only for off-road or on extremely slippery surfaces.
You can shift from
2H to 4H or from 4H to 2H while the vehicle is moving.
Your front axle will engage faster if you take your foot
off of the accelerator
for a few seconds after you shift. In extremely cold weather it may be
necessary to stop or slow the vehicle to shift out of
2H.
To shift into or out of 4L or N (Neutral):
1. Slow the vehicle to a roll, about 3 mph (5 km/h) and shift your
transmission into neutral.
2. Shift the transfer case shift lever in one continuous motion.
Don’t pause in
N (Neutral) as you shift the transfer case into 4L, or your
gears could clash.
Remember that driving in
4H or 4L may reduce fuel economy. Also, driving in
four-wheel drive on
dry pavement could cause your tires to wear faster and
make your transfer case harder to shift.
Front Axle Locking Feature
The front axle locks and unlocks automatically when you shift \
the transfer
case.
A slight delay for the axle to lock or unlock is normal. If the outside
temperature is very hot, or the vehicle has been used under hard driving
conditions, there may be a slight delay for the axle to unlock.
2-32

K2364

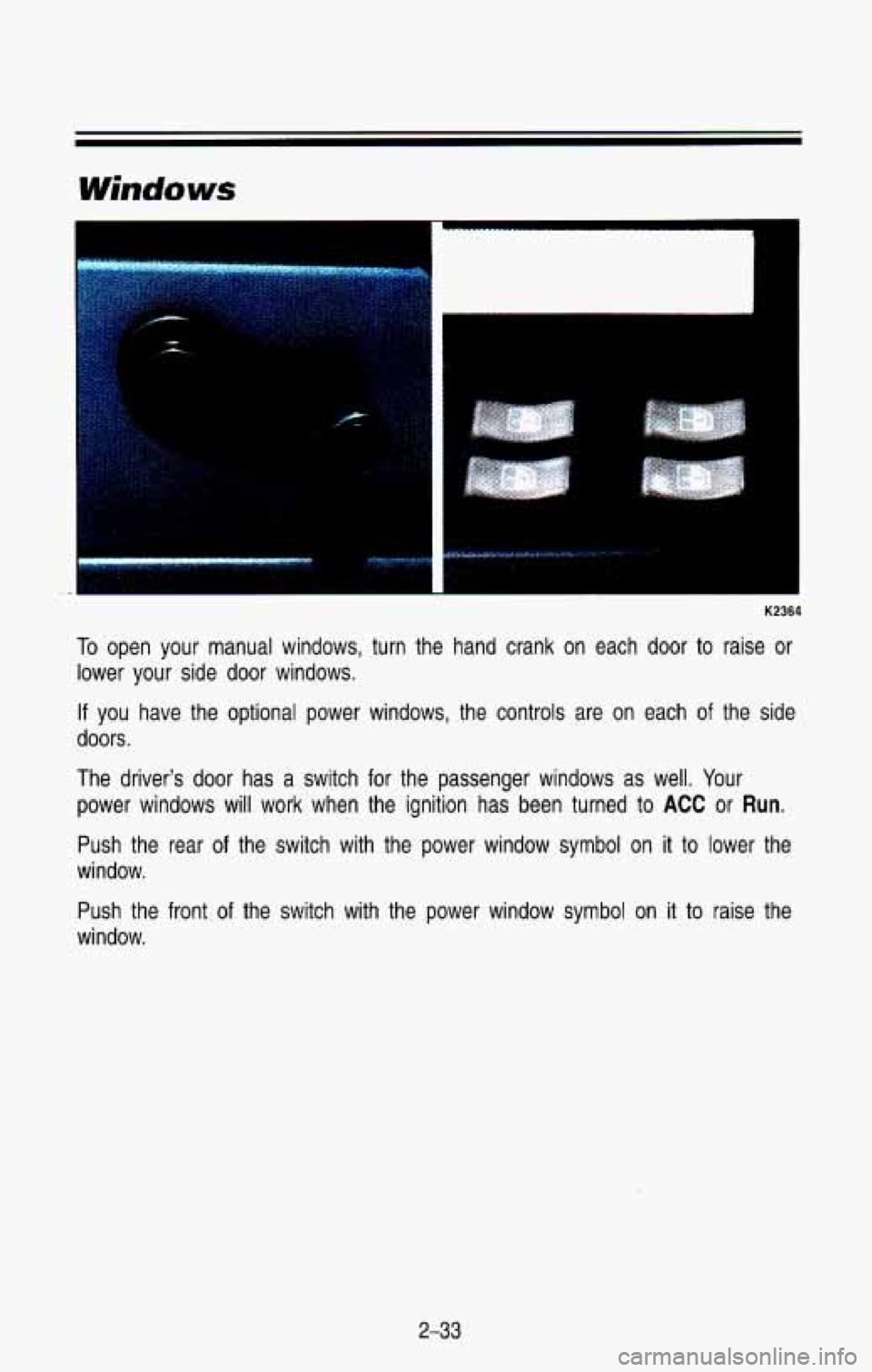

To open your manual windows, turn the hand crank on each door to raise or
lower your side door windows.
If you have the optional power windows, the controls are on each \
of the side
doors
.
The driver's door has a switch for the passenger windows as well. Your
power windows will work when the ignition has been turned
to ACC or Run.
Push the rear of the switch with the power window symbol on it to lower the
window.
Push the front
of the switch with the power window symbol on it to raise the
window.
2-33
