1993 CHEVROLET ASTRO PASSENGER instrument panel

Downloaded from www.Manualslib.com manuals search engine Shoe polish, wax crayon, tar and asphalt will stain if left on a vehicle
seat fabric. They should be removed as soon as possible. Be careful,
because the cleaner will dissolve them and may cause them
to bleed.
Non-Greasy Stains: Like catsup, coffee (black), egg, fruit, fruit juice, milk,
soft drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then sponge the soiled area \
with cool
water.
If a stain remains, follow the foam-type instructions above.
If an odor lingers after cleaning vomit or urine, treat the area with a
watedbaking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
Finally, if needed, clean lightly with solvent-type cleaner.
Combination Stains: Like candy, ice cream, mayonnaise, chili sauce and
unknown stains.
Carefully scrape off excess stain, then clean with cool water and allow to
If a stain remains, clean it with solvent-type cleaner.
dry.
Cleaning Vinyl
or Leather
Just use warm water and a clean cloth.
Rub with a clean, damp cloth to remove dirt. You may have to do it
more than once.
Things like tar, asphalt and shoe polish will stain if you do\
n’t get them
off quickly. Use a clean cloth and solvent-type vinyl/leather cleane\
r.
Cleaning the Top of the Instrument Panel
Use only mild soap and water to clean the top surfaces of the instrument
panel. Sprays containing silicones
or waxes may cause annoying reflections in
the windshield and even make it difficult
to see through the windshield under
certain conditions.
Care of Safety Belts
Keep belts clean and dry.
CAUTION
* Do not bleach or dye safety’belts. If you do, it may severely weaken I
protection. Clean safety belts only with mild soap and lukewarm\

water.
I
c L them. In a crash they might not be able to provide, adequate
6-55

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
-. .
KO641
This is the legal identifier for your vehicle. It appears on a plate in the front
corner of the instrument panel, on the driver's side.
You can see it if you
look through the windshield from outside your vehicle. The VIN also \
appears
on the Vehicle Certification and Service Parts labels and the certificates of
title and registration.
Engine Identification
The eighth character in your VIN is the engine code for your GM engine.
This code will help you identify your engine, specifications, a\
nd replacement
parts in this section.
6-60

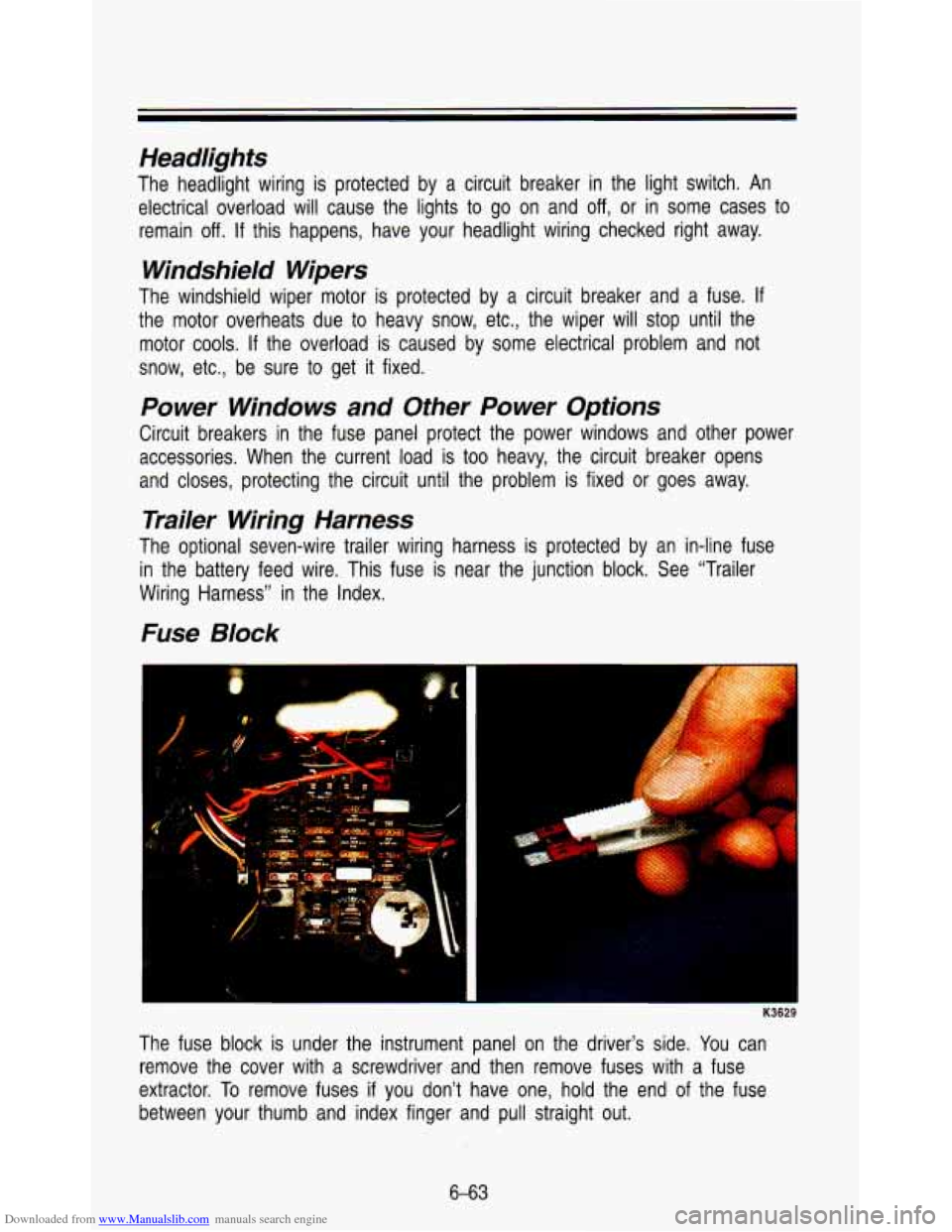

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch. An
electrical overload will cause the lights
to go on and off, or in some cases to
remain
off. If this happens, have your headlight wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse. If
the motor overheats due to heavy snow, etc., the wiper will s\
top until the
motor cools. If the overload is caused by some electrical prob\
lem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows a\
nd other power
accessories. When the current load is too heavy, the circuit b\
reaker opens
and closes, protecting the circuit until the problem is fixed
or goes away.
Trailer Wiring Harness
The optional seven-wire trailer wiring harness is protected by \
an in-line fuse
in the battery feed wire. This fuse is near the junction bloc\
k. See “Trailer
Wiring Harness” in the Index.
Fuse Block
K3629
The fuse block is under the instrument panel on the driver’\
s side. You can
remove the cover with
a screwdriver and then remove fuses with a fuse
extractor. To remove fuses
if you don’t have one, hold the end of the fuse
between your thumb and index finger and pull straight out.
6-63

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
Fuses and Circuit Breakers Usage
Name
Inst. Lps.
Pwr. Acc.
Horn-Dm.
Gages
Aux. Htr. NC
Stop-Haz.
Tail Lps.
Turn
BIU
Htr. NC
Radio
ECM B
ECM
I
Pwr. Wdo.
Wiper
Brake
Fog Lamps***
DRL**
Pow. Mirrors*
Trailer*
Circuits Protected
Instrument Panel Lamps, Radio Dial
Lamps, Heater Lamps
Power Door Locks, Power Seat
Horn Relay, Digital Clock, Cigarette
Lighter, Dome Lights, Radio Memory,
Glove Box Lamp
Instrument Cluster Gages, Brake
Switch, Audio Alarm, Headlight Switch
Illumination, Ash Tray Illumination,
Cruise Control
Auxiliary Heater-Rear NC
(if equipped)
Stop Lamps, Hazard Flash, Digital
Instrument Cluster
Headlamp Switch, Tail and Parking
Lamps
Direction Signal Flash, Back Up
Lamps
Front Heater
& Air Conditioning
Radio
Engine Control Module
Engine Control Module
Power Windows
Windshield Wiper
Anti-Lock Brake System,
Speedometer
Fog Lamps
Canadian Daytime Running Lights
Power Mirror
Trailer Wirina Harness
Fuse
10 Amp
30 Amp
20 Amp
25 Amp
20 Amp
20 Amp
20 Amp
20 Amp
10 Amp
10 Amp
10 Amp
25 Amp
15 Amp
15 Amp
10 Amp
3 Amp
30 Amr,
Circuit
Breaker
30 Amp
30 Amp
*In-line fuse.
**Canada only.
“*In-line fuse (certain models).
TO007
6-68

Downloaded from www.Manualslib.com manuals search engine Cusfomer Assistance hformafion
Customer Satisfaction Pmcedum
Your satisfaction and goodwill are important to your dealer and Chevrolet.
Normally, any concern with the sale,s transaction or the operation of your
vehicle will be resolved by your dealer’s Sales or Service \
Departments. Sometimes, however, despite the best intentions
of all concerned,
misunderstandings can occur.
If your concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE -Discuss your concern with a member of dealership
management. Complaints can often be quickly resolved at that le\
vel.
If the
matter has already been reviewed with the Sales, Service, or P\
arts Manager,
contact the owner
of the dealership or the General Manager.
STEP TWO -If after contacting a member of Dealership Management, it
appears your concern cannot be resolved by the dealership witho\
ut further help, contact Chevrolet’s Customer Assistance Center by calling
1-800-222-1 020. In Canada, contact the GM of Canada Customer Assistance
Center in Oshawa by calling 1-800-263-3777 (English)
or 1-800-263-7854
(French).
In Mexico, call (525) 254-3777.
In Puerto Rico or U. S. Virgin Islands, call
1-809-763-1 315. In all other overseas locations, contact GM In\
ternational
Export Sales in Canada by calling 1-416-644-4112
.
For prompt assistance, please have the following information ava\
ilable to give
the Customer Assistance Representative:
Your name, address, telephone number
Vehicle Identification Number (This is available from the vehicle
registration or title, or the plate attached to the left top of the instrument
panel and visible through the windshield.)
Dealership name and location
Vehicle delivery date and present mileage
Nature of concern
We encourage you to call the toll-free number listed previously in order to
give your inquiry prompt attention. However,
if you wish to write Chevrolet,
write to: Chevrolet Motor Division, Chevrolet Customer Assistance\
Center, P.O.
Box 7047, Troy,
MI 48007-7047.
A listing
of all Chevrolet offices and offices outside the U.S. which can assist
you can also be found in the warranty booklet. These services \
are not
available in Canada.
8-2

Downloaded from www.Manualslib.com manuals search engine c
Carbon Monoxide ..... 2.24. 4.42. 4-47
Capacities and Specifications
...... 6-64
Cassette Tape Player
Catalytic Converter
....................... 6-41
Certification/Tire Label
.................. 6-42
Changing
A Flat Tire .. 5.16. 5.17. 5-21
Charging System Light
................ 2-65
Chemical Paint Spotting
.............. 6-58
Child Restraints
............................ 1-33
Cigarette Lighter/Ashtrays
............ 2-50
Cleaning
Glass
.......................................... 6-55
Inside
of Vehicle ....................... 6-53
Instrument Panel
....................... 6-55
Outside of Vehicle .................... 6-56
Special Problems
...................... 6-54
Vinyl or Leather
........................ 6-55
Windshield
................................. 6-56
Comfort Controls
............................ 3-3
Constant Velocity Joints (All Wheel Drive Only)
............. 6-40
Coolant (See “Engine”)
Cooling System
............................ 6-64
Crankcase
..................................... 6-65
Cruise Control
............................... 2-35
Increase Speed
......................... 2-38
On Hills
..................................... 2-39
Passing
...................................... 2-39
Reduce Speed
.......................... 2-39
Resume a Set Speed
.............. 2-37
To Get Out of
........................... 2-40
To Set
....................................... 2-36
Hearing or Speech Impaired
..... 8-3
Procedure
.................................... 8-2
(See “Audio Systems”)
Clock
..... 3-12, 3-14. 3-17, 3-20, 3-24
Customer Assistance for the Customer Satisfaction
D
Finish ......................................... 6-57
Sheet Metal
............................... 6-57
Daytime Running Lights
(Canada Only)
.................... 2-43, 2-66
Indicator Light
.................. 2-43, 2-66
Defogger, Rear Window
................. 3-8
Dome Lights
.................................. 2-44
Doors
............................................... 2-5
Power Locks
.............................. 2-11
Rear
............................................. 2-7
Side
.............................................. 2-5
Side, Sliding
................................ 2-6
Sliding Tracks
............................ 6-40
At Night
........................... 4-23, 4-25
City
............................................. 4-30
Control
Of A Vehicle ................ 4-12
Defensive
..................................... 4-8
Highway Hypnosis
..................... 4-34
Hydroplaning
.............................. 4-27
In
A Blizzard ............................. 4-42
In Deep Snow
........................... 4-43
In Fog, Mist and Haze
............. 4-28
In Sand, Mud, Ice or Snow
..... 5-32
In The Rain
..................... 4-26, 4-28
Long Distance
........................... 4-33
Loss
of Control ......................... 4-22
Night Vision
............................... 4-24
On Curves
................................. 4-18
On Grades
................................. 4-48
On Hill and Mountain Roads
... 4-35
On Snow or Ice
........................ 4-40
On The Freeway
....................... 4-31
Skidding
..................................... 4-22
Through Deep Water
................ 2-16
Winter
......................................... 4-40
With a Trailer
............................ 4-47
Drunken Driving
.............................. 4-9
Damage
Locks
.......................................... 2-10
Driving
9-2
