1993 BMW 850i Electrical Troubleshooting Manual

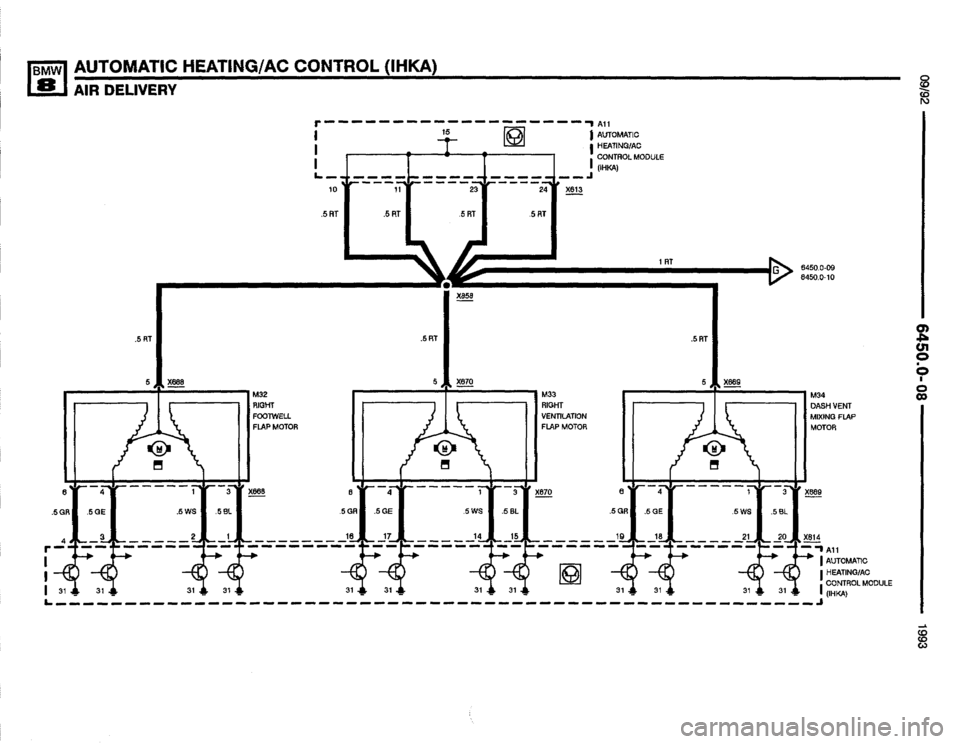

Page 361 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

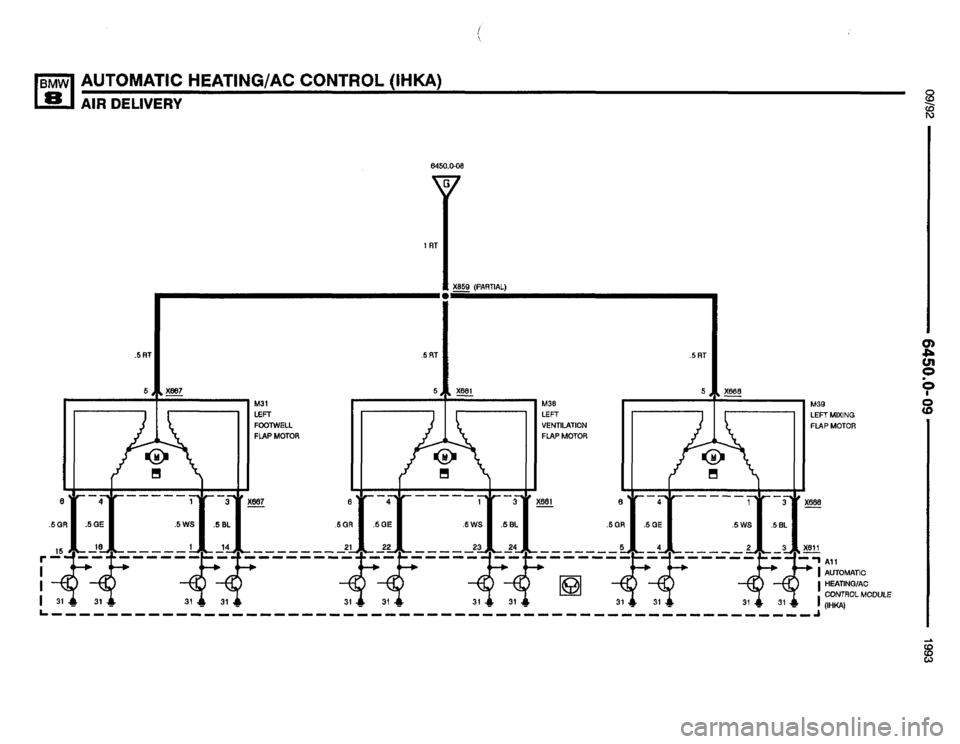

Page 362 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

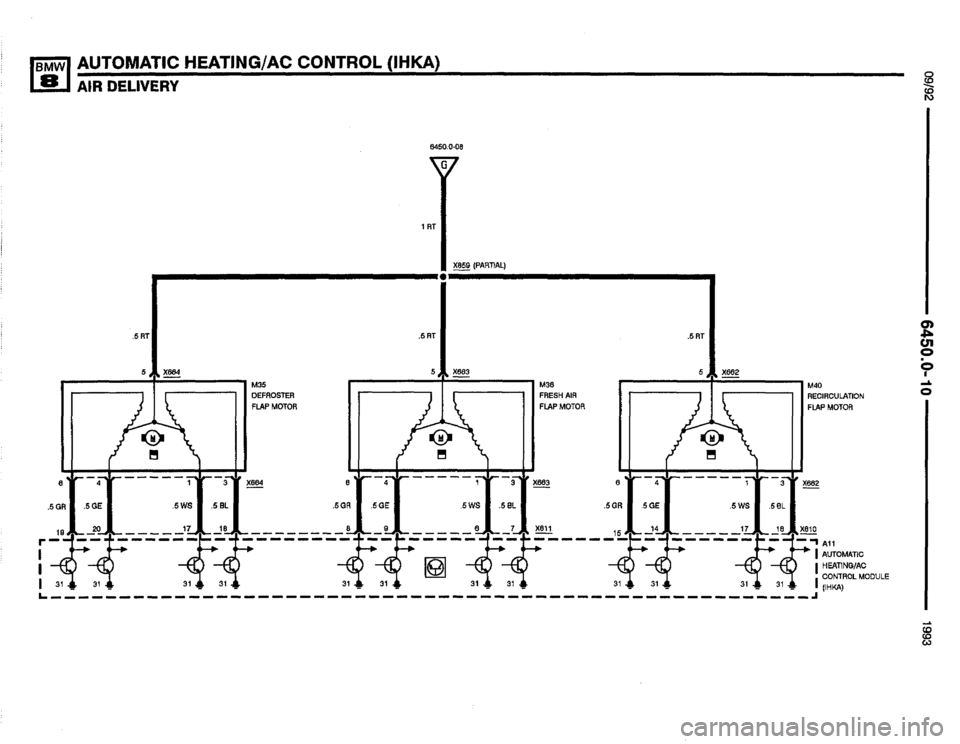

Page 363 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

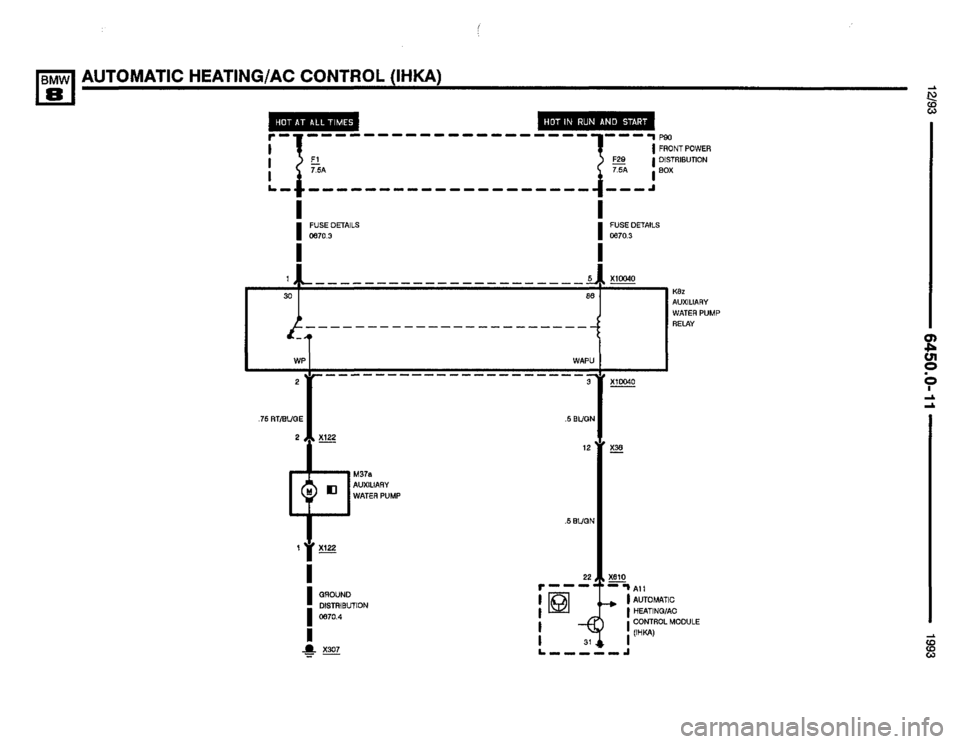

Page 364 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

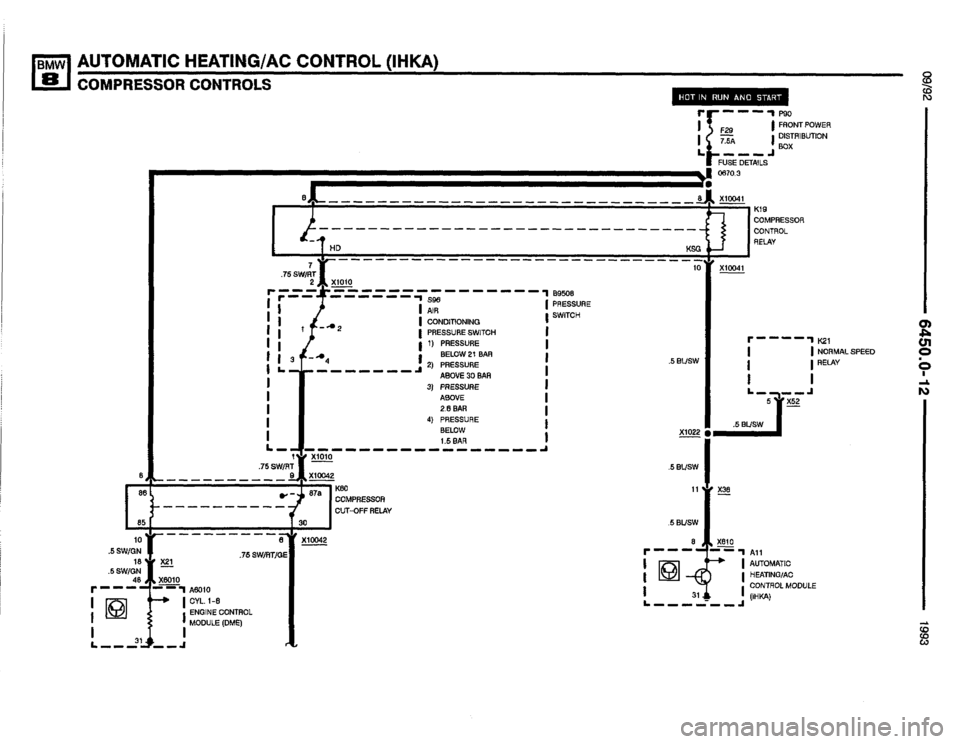

Page 365 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

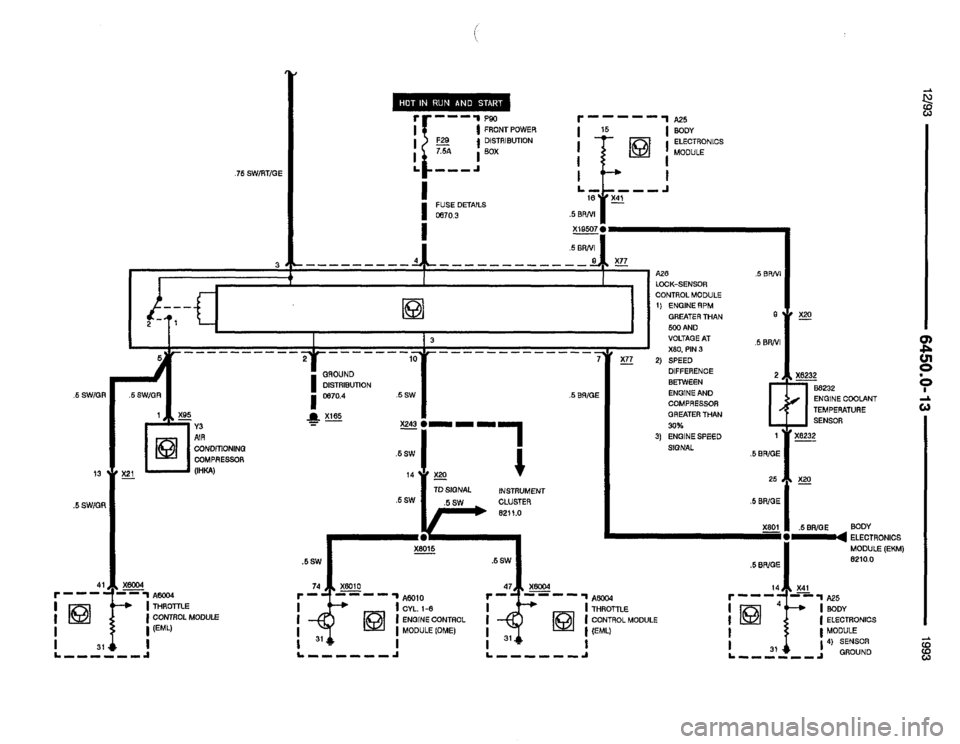

Page 366 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

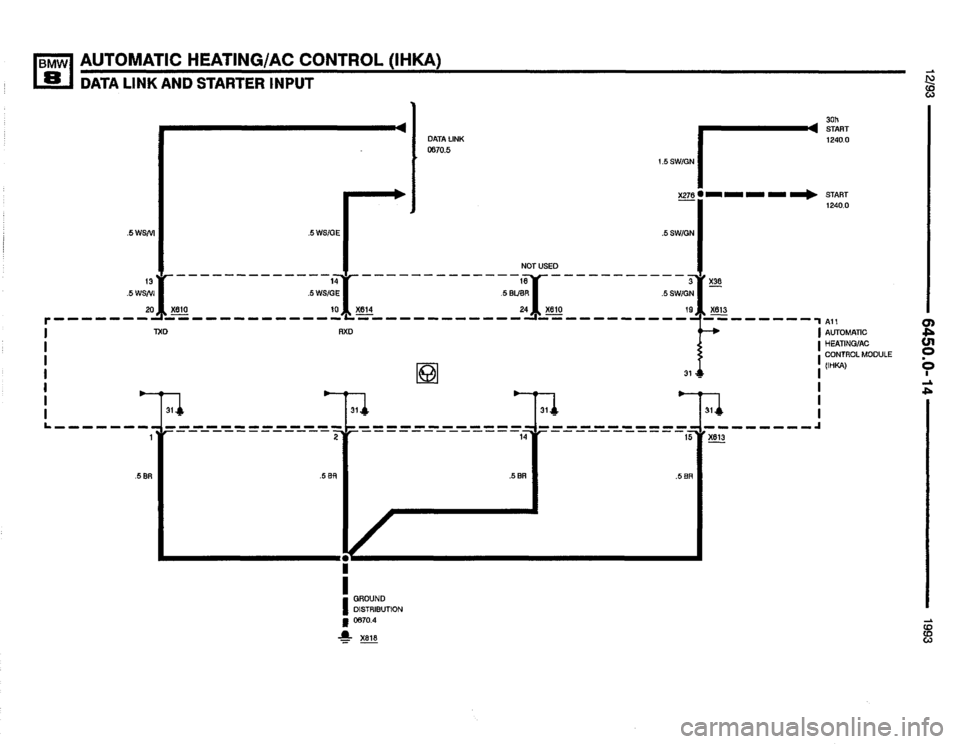

Page 367 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 368 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual
