1993 BMW 850i Electrical Troubleshooting Manual

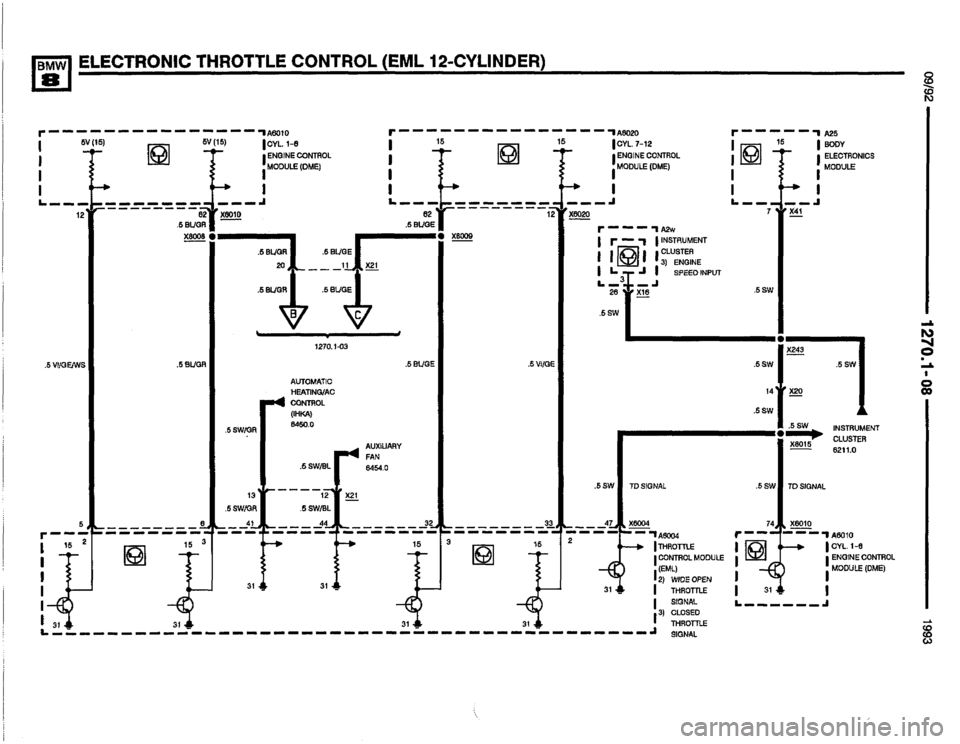

Page 137 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

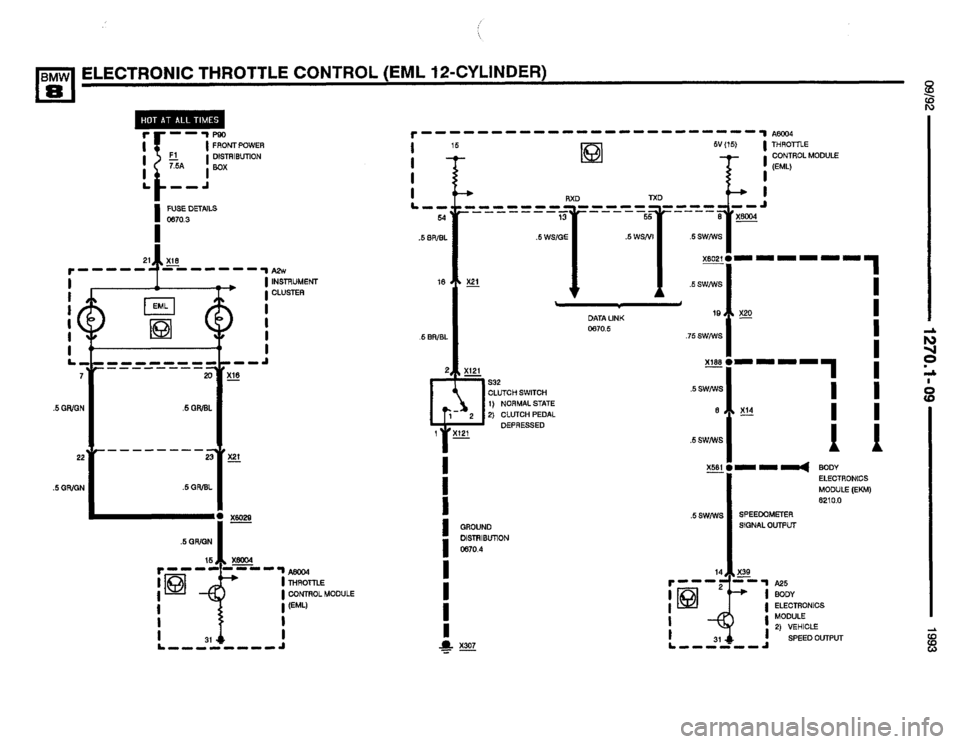

Page 138 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

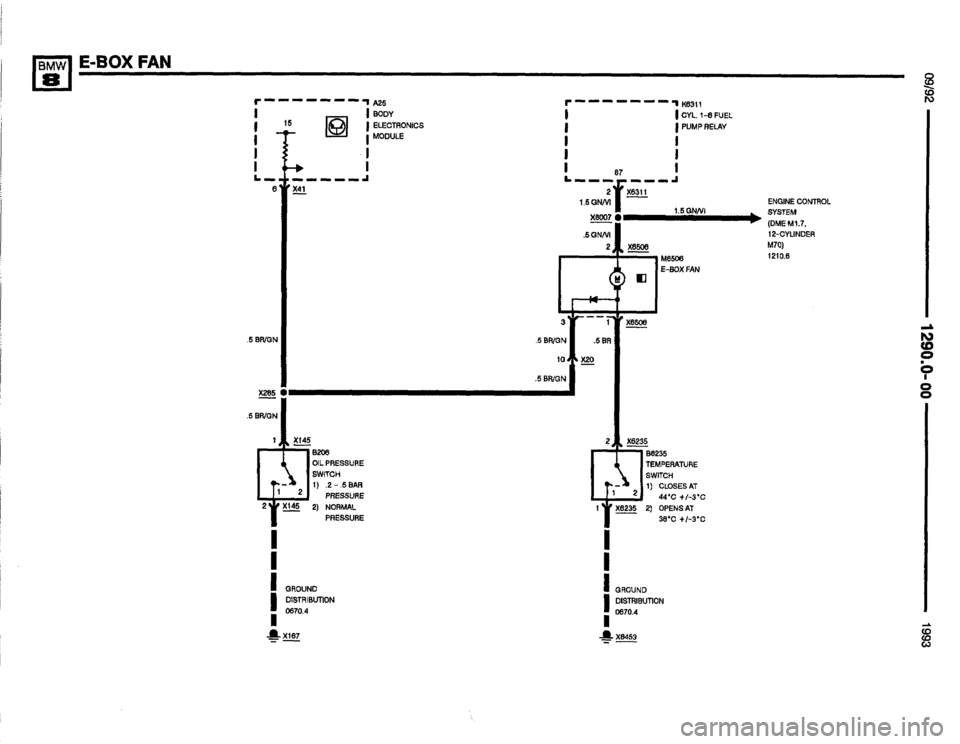

Page 139 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

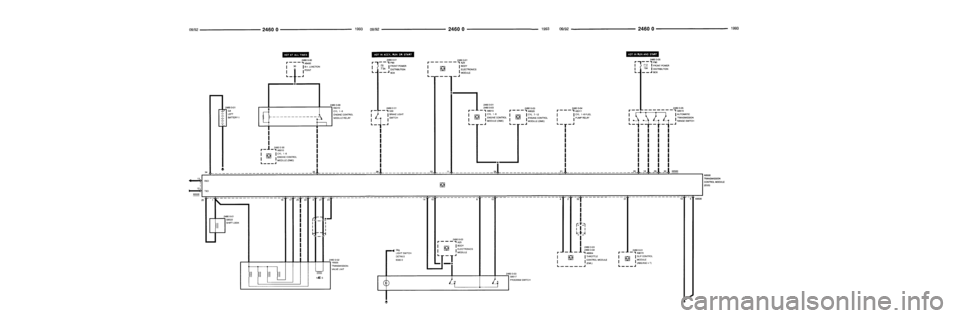

Page 140 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

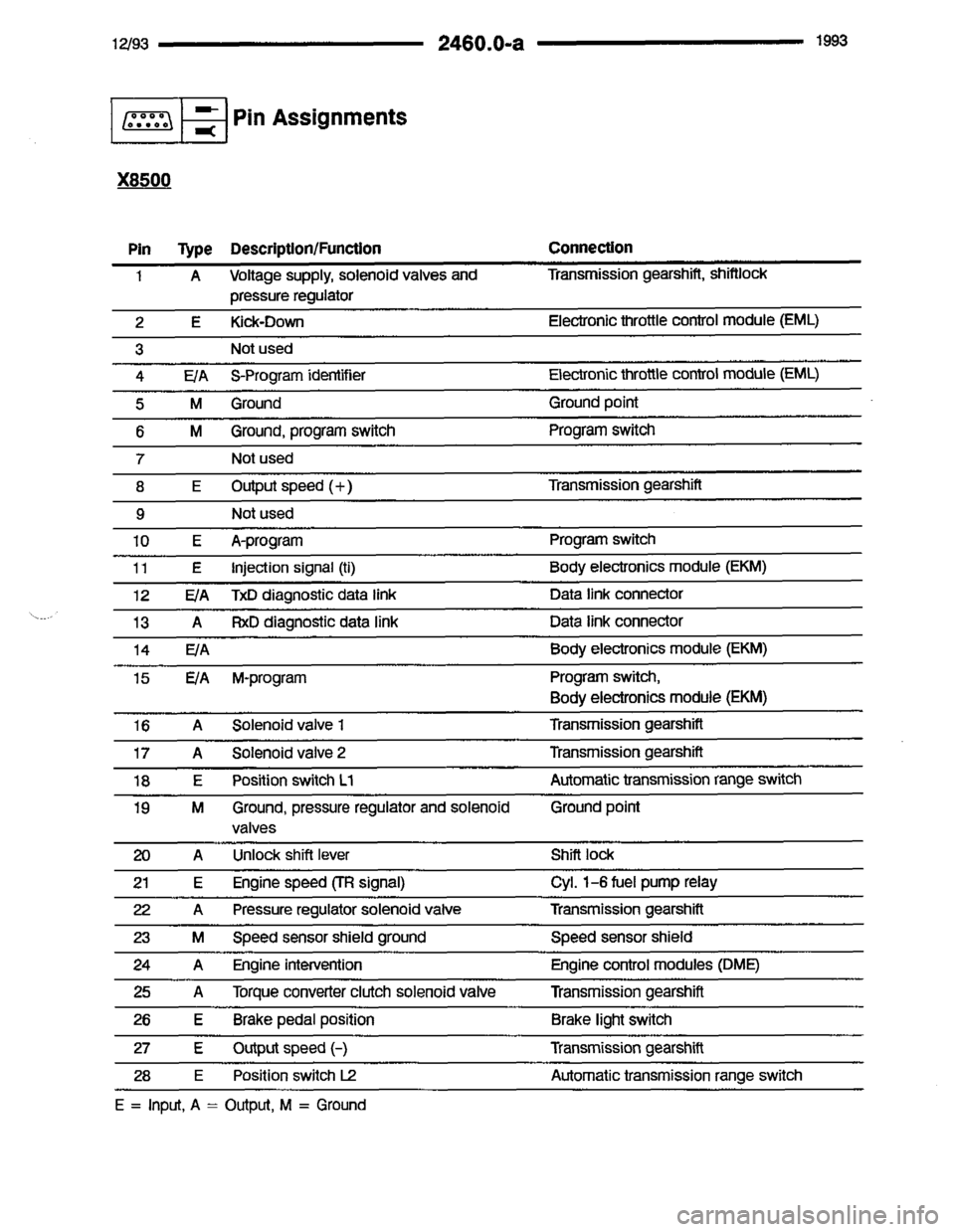

Page 141 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 142 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 143 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 144 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual
