1993 BMW 850i Electrical Troubleshooting Manual

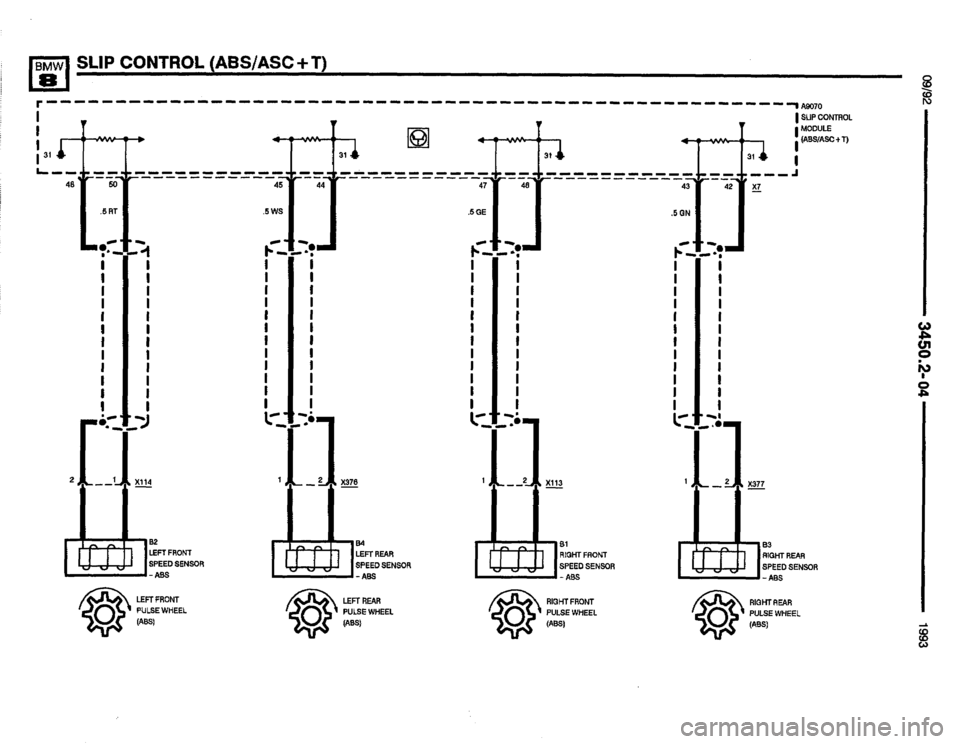

Page 169 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

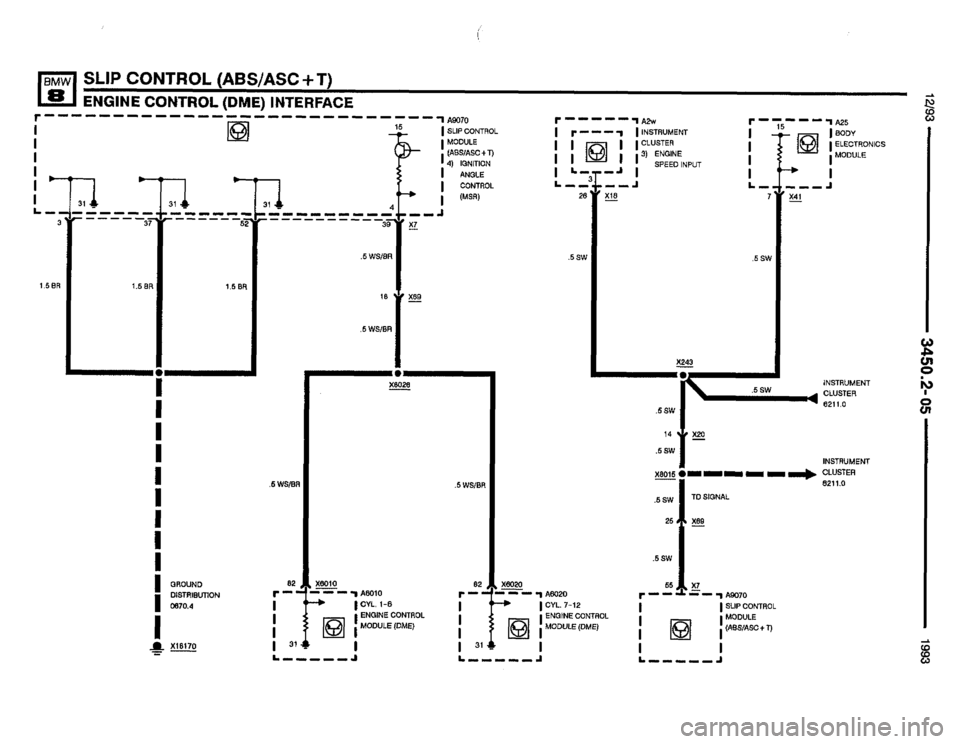

Page 170 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

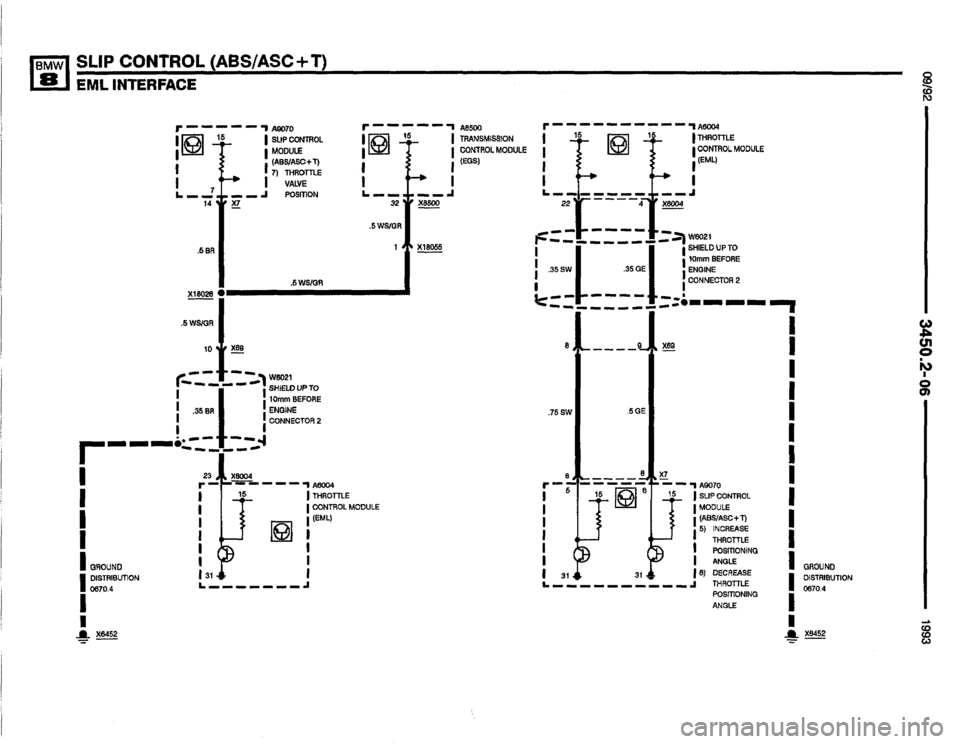

Page 171 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

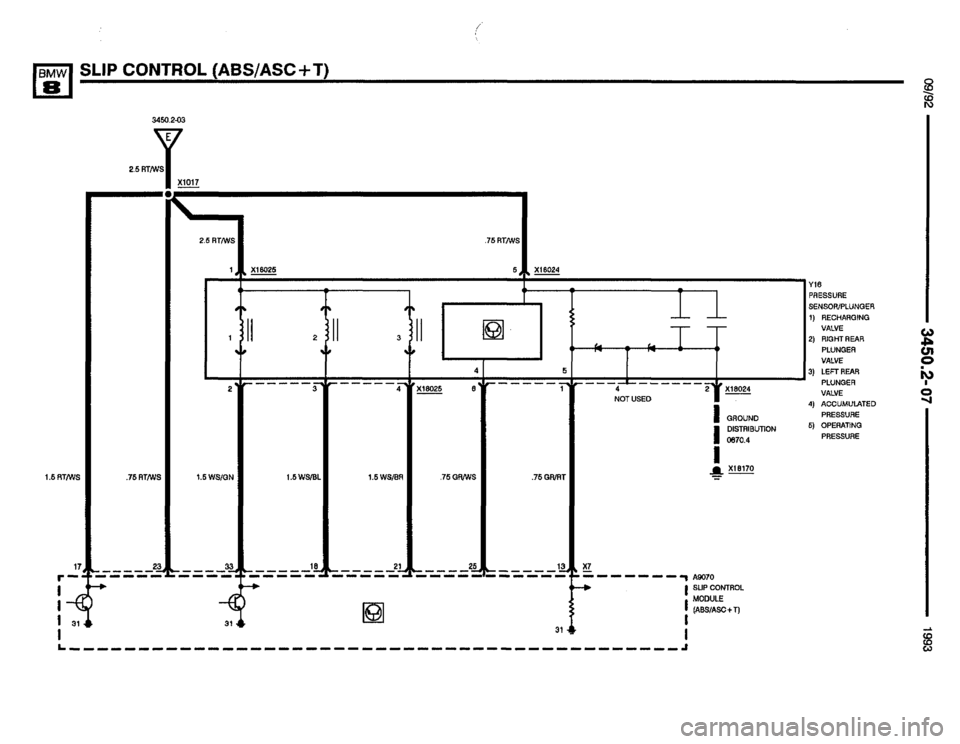

Page 172 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

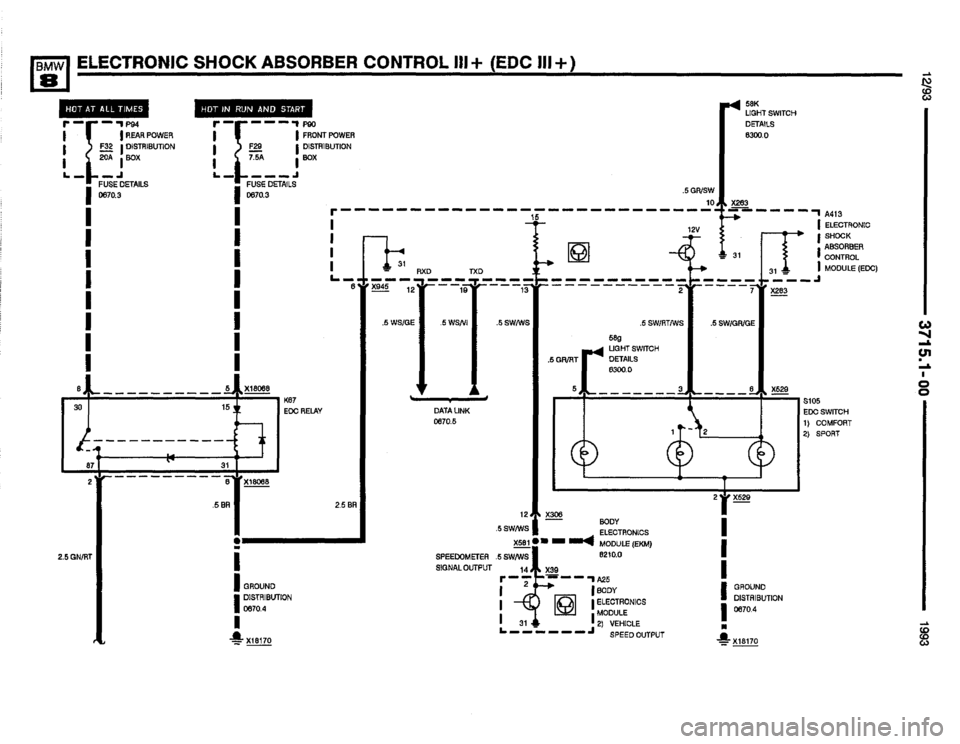

Page 173 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

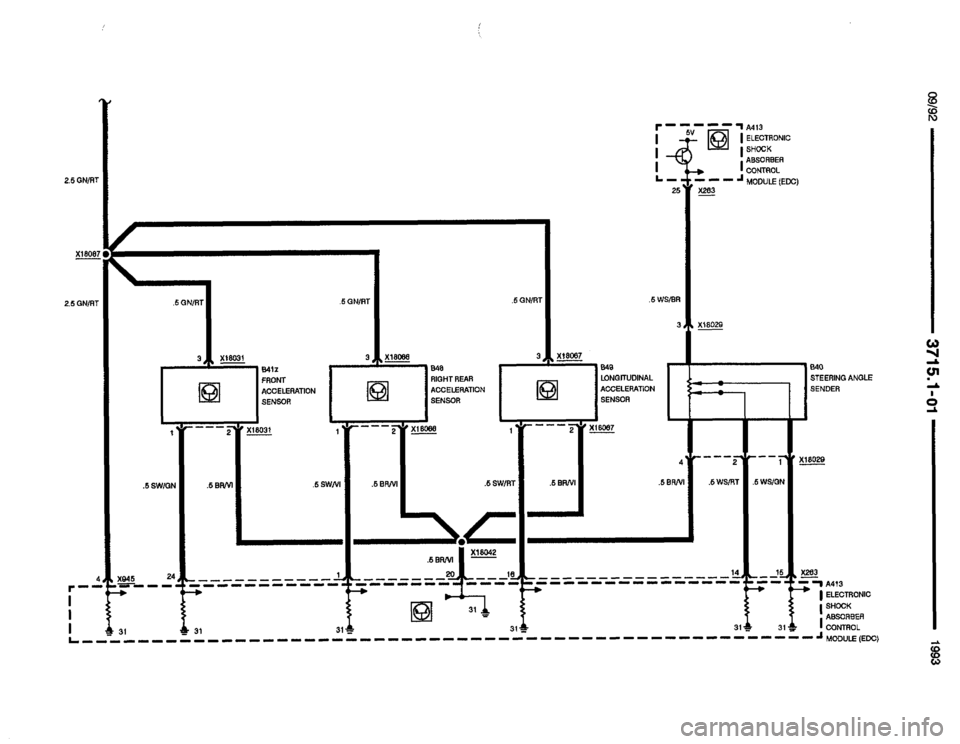

Page 174 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 175 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual

Page 176 of 492

BMW 850i 1993 E31 Electrical Troubleshooting Manual
