1991 LEXUS SC400 Throttle Position

OKNG
OKNG
OKNG
INSPECTION PROCEDURE
1Main throttle position signal check.
C
OK
Hint
PTurn ignition switch ON (Do not start the engine).
Check voltage at the terminal T
T of the DLC2 while grad-
ually depressing the accelerator pedal from the fully
closed position to the fully opened position.
Voltage changes from 0 V to 8 V by stages.
Do not depress the brake pedal during this test. The
voltage will stay at 0 V if depressed.
Proceed to next circuit inspection shown on matrix chart
(See page AT±66).
2Check throttle position sensor.
See engine troubleshooting section in EG section.
Replace throttle position sensor.
3Check harness and connector between ECM and throttle position sensor (S\
ee page IN±33).
Repair or replace harness or connector.
Check and replace ECM.
±
A304E (1UZ±FE) AUTOMATIC TRANSMISSION TROUBLESHOOTINGAT±103
WhereEverybodyKnowsYourName

IN±33
WIRING DIAGRAM
TT Terminal Circuit
CIRCUIT DESCRIPTION
Checks of ECM input and output signals related to the throttle position sensor\
brakes, shift position and
other circuits can be performed by measuring the voltages at terminal T
T of the DLC1.
DIAGNOSTIC CHARTDIAGNOSTIC CHART
AT±120±
A304E (1UZ±FE) AUTOMATIC TRANSMISSION TROUBLESHOOTING
WhereEverybodyKnowsYourName

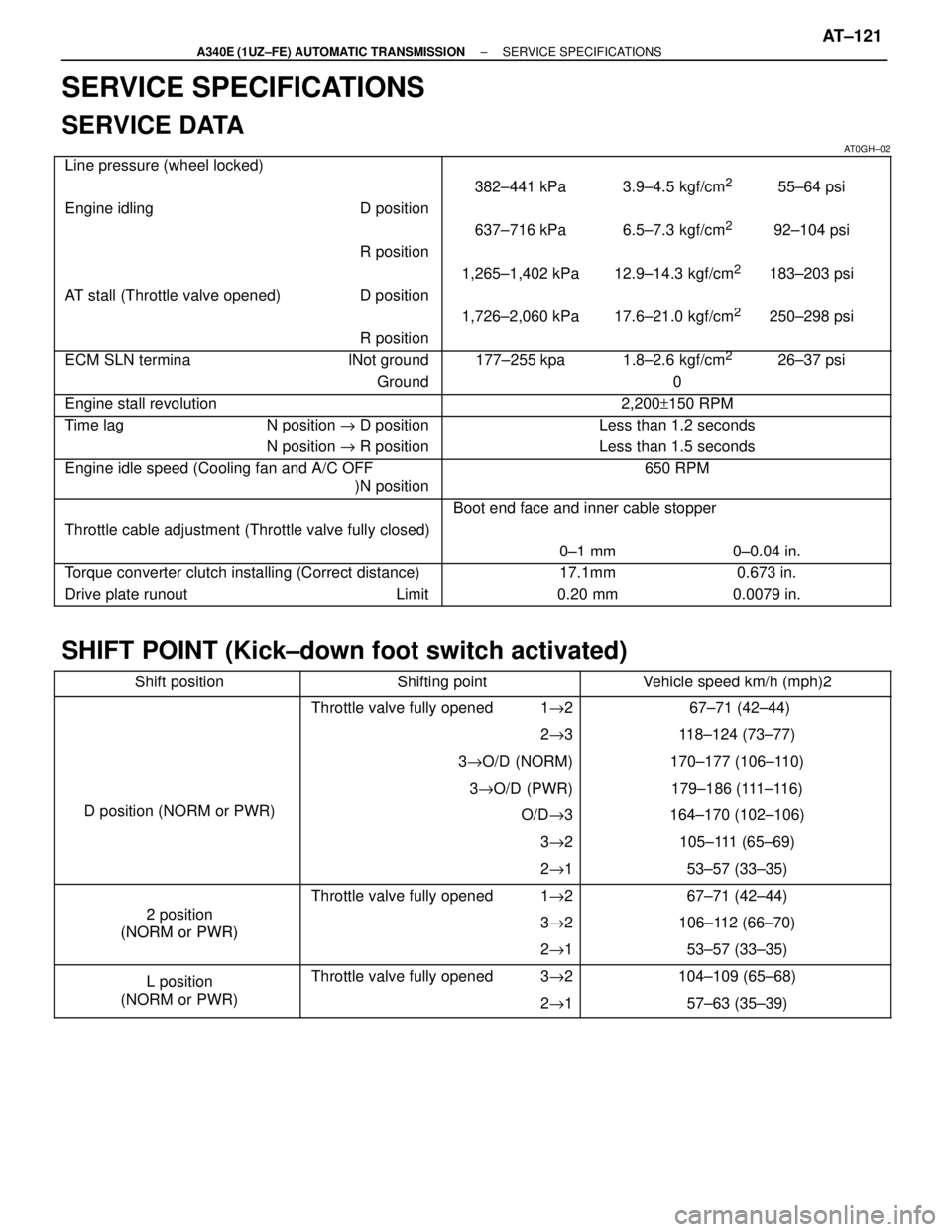

SERVICE SPECIFICATIONS
SERVICE DATA
AT0GH±02 Line pressure (wheel locked)\
 \

 \
 \
382±441 kPa 3.9±4.5 kgf/cm255±64 psi
 Engine idling D position\
 \

 \
 \
637±716 kPa 6.5±7.3 kgf/cm292±104 psi
 R position\
 \

\
1,265±1,402 kPa 12.9±14.3 kgf/cm2183±203 psi AT stall (Throttle valve opened) D position\
 \

 \
 \
1,726±2,060 kPa 17.6±21.0 kgf/cm2250±298 psi R position\
 \

 ECM SLN termina lNot ground\
 \
177±255 kpa 1.8±2.6 kgf/cm226±37 psi
 Ground\
 \
0
 Engine stall revolution\
 \
2,200+150 RPM
 Time lag N position " D position\
 \
Less than 1.2 seconds
 N position " R position\
 \
Less than 1.5 seconds
 Engine idle speed (Cooling fan and A/C OFF
)N position\
 \
650 RPM
 \
 \
Boot end face and inner cable stopper Throttle cable adjustment (Throttle valve fully closed)\
 \

 \
 \
0±1 mm 0±0.04 in.
 Torque converter clutch installing (Correct distance)\
 \
17.1mm 0.673 in.
 Drive plate runout Limit\
 \
0.20 mm 0.0079 in.
SHIFT POINT (Kick±down foot switch activated)
 Shift position Shifting point Vehicle speed km/h (mph)2
  Throttle valve fully opened 1"2 67±71 (42±44)
  2" 3 118±124 (73±77)
  3" O/D (NORM) 170±177 (106±110)
  3" O/D (PWR) 179±186 (111±116)
 D position (NORM or PWR) O/D "3 164±170 (102±106)
  3" 2 105±111 (65±69)  2" 1 53±57 (33±35)

2 iti


Throttle valve fully opened 1
"2


67±71 (42±44)
 2 position
(NORM or PWR) 3
" 2 106±112 (66±70)

(NORM or PWR)
 2" 1 53±57 (33±35)
 L position Throttle valve fully opened 3 "2 104±109 (65±68)

L osition
(NORM or PWR) 2" 1 57±63 (35±39)
±
A340E (1UZ±FE) AUTOMATIC TRANSMISSION SERVICE SPECIFICATIONSAT±121
WhereEverybodyKnowsYourName

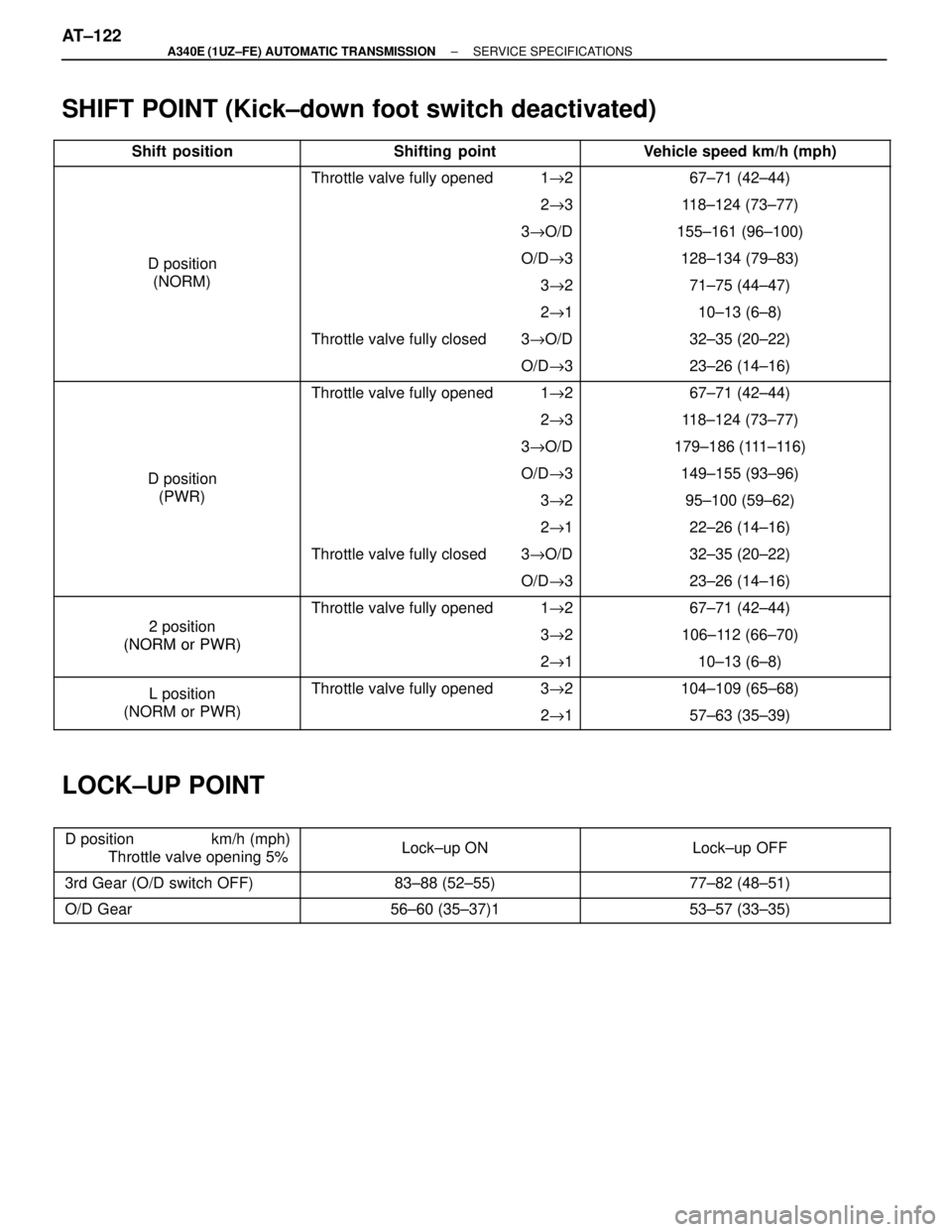

SHIFT POINT (Kick±down foot switch deactivated)
 Shift position Shifting point Vehicle speed km/h (mph)




Throttle valve fully opened 1
"2


67±71 (42±44)
  2
" 3 118±124 (73±77)
  3" O/D 155±161 (96±100)
 D position O/D "3 128±134 (79±83)

D osition
(NORM) 3" 2 71±75 (44±47)
  2" 1 10±13 (6±8)
  Throttle valve fully closed 3 "O/D 32±35 (20±22)  O/D "3 23±26 (14±16)




Throttle valve fully opened 1
"2


67±71 (42±44)
  2
" 3 118±124 (73±77)
  3" O/D 179±186 (111±116)
 D position O/D "3 149±155 (93±96)

D osition
(PWR) 3" 2 95±100 (59±62)
  2" 1 22±26 (14±16)
  Throttle valve fully closed 3 "O/D 32±35 (20±22)  O/D "3 23±26 (14±16)

2 iti


Throttle valve fully opened 1
"2


67±71 (42±44)
 2 position
(NORM or PWR) 3
" 2 106±112 (66±70)

(NORM or PWR)
 2" 1 10±13 (6±8)
 L position Throttle valve fully opened 3 "2 104±109 (65±68)

L osition
(NORM or PWR) 2" 1 57±63 (35±39)
LOCK±UP POINT



D position km/h (mph)
Throttle valve opening 5%

Lock±up ON


Lock±up OFF
 3rd Gear (O/D switch OFF) 83±88 (52±55) 77±82 (48±51)
 O/D Gear 56±60 (35±37)1 53±57 (33±35)
AT±122±
A340E (1UZ±FE) AUTOMATIC TRANSMISSION SERVICE SPECIFICATIONS
WhereEverybodyKnowsYourName

TORQUE SPECIFICATION
AT07F±04\
 \
Part tightened NVm kgf Vcm ft Vlbf\

\

\
Engine x Transmission


64


650


47
\
 \
Rear mounting x Body 25 260 19
\
 \
Rear mounting x Extension housing 25 250 18
\
 \
Transmission housing x Transmission case 14 mm (0.55 in.) 34 345 25
\
 \
17 mm (0.67 in.) 57 580 42
\
 \
Extension housing x Transmission case 34 345 25
\
 \
Valve body x Transmission case 10 100 7
\
 \
Oil strainer 10 100 7
\
 \
Oil pan 7.4 75 65 in.
Vlbf\
 \
No.1 vehicle speed sensor 16 160 12\

\

\
No.2 vehicle speed sensor

5.4

55

48 in.
Vlbf
\
 \
Solenoid wiring stopper plate 5.4 55 48 in. Vlbf
\
 \
O/D direct clutch speed sensor 5.4 55 48 in. Vlbf
\
 \
Transmission output flange 123 1,250 90
\
 \
Throttle cable x Transmission case 5.4 55 48 in. Vlbf
\
 \
Union 29 300 22
\
 \
Cooler pipe union nut 34 350 25
\
 \
Drive plate x Crankshaft 99 1,000 72
\
 \
Torque converter clutch x Drive plate 33 340 25\
 \
Park/Neutral position switch Bolt 13 130 9\
 \
Nut 6.9 70 61 in. Vlbf\

\

\
Control shaft lever


16


160


12
±
A340E (1UZ±FE) AUTOMATIC TRANSMISSION SERVICE SPECIFICATIONSAT±123
WhereEverybodyKnowsYourName

HOW TO PROCEED WITH TROUBLESHOOTING
AT09N±0D
1. CUSTOMER PROBLEM ANALYSISUsing the customer problem analysis check sheet for reference, ask the c\
ustomer in as much detail as
possible about the problem.
2. CHECK AND CLEAR THE DIAGNOSTIC TROUBLE CODES (PRECHECK) Before confirming the problem symptom, first check if there are any diagnostic\
trouble malfunction codes
stored in memory. When there are malfunction codes, make a note of them, then clear them\
and proceed
to ª3. Problem Symptom Confirmationº.
3. PROBLEM SYMPTOM CONFIRMATION Confirm the problem symptoms.
4. SYMPTOM SIMULATION If the problem does not reappear, be sure to simulate the problem by mainly checking the circuits indica\
ted
by the diagnostic trouble code in step 2., using ªProblem Simulation me\
thodº.
5. DIAGNOSTIC TROUBLE CODE CHECK Check the diagnostic trouble codes. Check if there is abnormality in the\
sensors or the wire harness.
If a malfunction code is output, proceed to ª6. Diagnostic Trouble Code Chartº.
If the normal code is output, proceed to ª11. Matrix Chart of Problem Symptomsº.
Be sure to proceed to ª6. Diagnostic Trouble Code Chartº after the steps 2. and 3. are completed.
If troubleshooting is attempted only by following the malfunction code sto\
red in the memory is output, errors
could be made in the diagnosis.
6. DIAGNOSTIC TROUBLE CODE CHART If a malfunction code is confirmed in the diagnostic trouble code check, p\
roceed to the inspection proce-
dure indicated by the matrix chart for each diagnostic trouble code.
7. PRELIMINARY CHECK Carry out a preliminary check of the transmission oil level, throttle ca\
ble adjustment, etc.
8. SHIFT POSITION SIGNAL CHECK
Carry out the shift position signal check when the transmission gears do\
not up±shift, down±shift or lock±
up. This is to check the output condition from the ECM to each solenoid. If the r\
esults are NG, then it is
likely that the trouble is in the electrical system (particularly in th\
e sensors or the ECM).
Proceed to Part 1 (Electrical System) under ª11. Matrix Chart of Problem Symptomsº. If all the circuits speci-
fied in Part 1 are OK, check the ECM and replace it.
9. MECHANICAL SYSTEM TEST (Stall Test, Time Lag Test, Line Pressure Test, Accumulator Back Pressure Test)
If the malfunction is found in the stall test, time lag test, line press\
ure test or accumulator back pressure
test, check the parts indicated in the respective tests. If the problem is th\
at ªshift shock is largeº, perform
the accumulator back pressure test.
10. MANUAL SHIFTING TEST If the results of the manual driving test are NG, it is likely that the trouble is in the mechanical system or
hydraulic system. Proceed to Part 2 (Mechanical System) under the Matrix Chart \
of Problem Symptoms.
AT±32
±
A304E (1UZ±FE) AUTOMATIC TRANSMISSION TROUBLESHOOTING
WhereEverybodyKnowsYourName

WIRING DIAGRAM
DTC25, 26, 27TRAC Sub±Throttle Valve
CIRCUIT DESCRIPTION
DTC No.DTC Detecting ConditionTrouble Area
25
The difference between the sub±throttle sensor signal
voltage and the voltage required by the step count is 1
V or more.

Sub±throttle actuator.

Throttle body (sub±throttle valve is truck or operation is
faulty).

Sub±throttle position sensor.

Open or short in sub±throttle position sensor circuit.

ECM

TRAC ECU
26
Even when sub±throttle valve is driven to the fully open
position, input voltage at terminal VSH does not come
within range of the specifications 3 ~ 4.5 V.

Sub±throttle actuator.

Throttle body (sub±throttle valve is truck or operation is
faulty).

Sub±throttle position sensor.

Open or short in sub±throttle position sensor circuit.

ECM

TRAC ECU
27When input voltage at ECU terminal VSH is less than
the specification by about 2.5 V for 0.2 sec. or more.

Sub±throttle actuator (return spring is disconnected).

Sub±throttle position sensor.

Open or short in sub±throttle position sensor circuit.

ECM

TRAC ECU
C
OK
Hint
PRemove air cleaner and duct.
Open and close the sub±throttle valve manually and
check the condition during operation.
The valve should operate smoothly without catch-
ing.
If sub±throttle actuator, sub±throttle valve, sub±throttle
position sensor and harness are free from any defect,
ECM may be defective. If ECM is free from any defect,
TRAC ECU may be defective.
±
BRAKE SYSTEM TRACTION CONTROL SYSTEM (TRAC)BR±189
WhereEverybodyKnowsYourName

DTC45, 46Main Throttle Position Sensor Circuit
CIRCUIT DESCRIPTION
This circuit is not directly related to the TRAC control, but as it has an i\
nfluence on TRAC control when trouble
occurs in this circuit, it is used to switch off the TRAC system as a fail safe function.
DTC No.DTC Detecting ConditionTrouble Area
45
Either of the following (1) and (2) continues for 0.12
sec.:
(1) IDL switch of main throttle position sensoris ON.
(2) Input voltage of TRAC ECU terminal VTH:1.45 V or
more.
Main throttle position sensor

Open in VTH circuit

Short in IDL1 circuit

ECM

TRAC ECU
46
Either of the following (1) or (2) continues for0.12 sec.:
(1) Input voltage of TRAC ECU terminal VTH:4.3 V or
more.
(2) Input voltage of TRAC ECU terminal VTHwhile
IDL1 switch is OFF: 0.2 V or less
Main throttle position sensor

Short in VTH circuit

ECM

TRAC ECU
BR±200±
BRAKE SYSTEM TRACTION CONTROL SYSTEM (TRAC)
