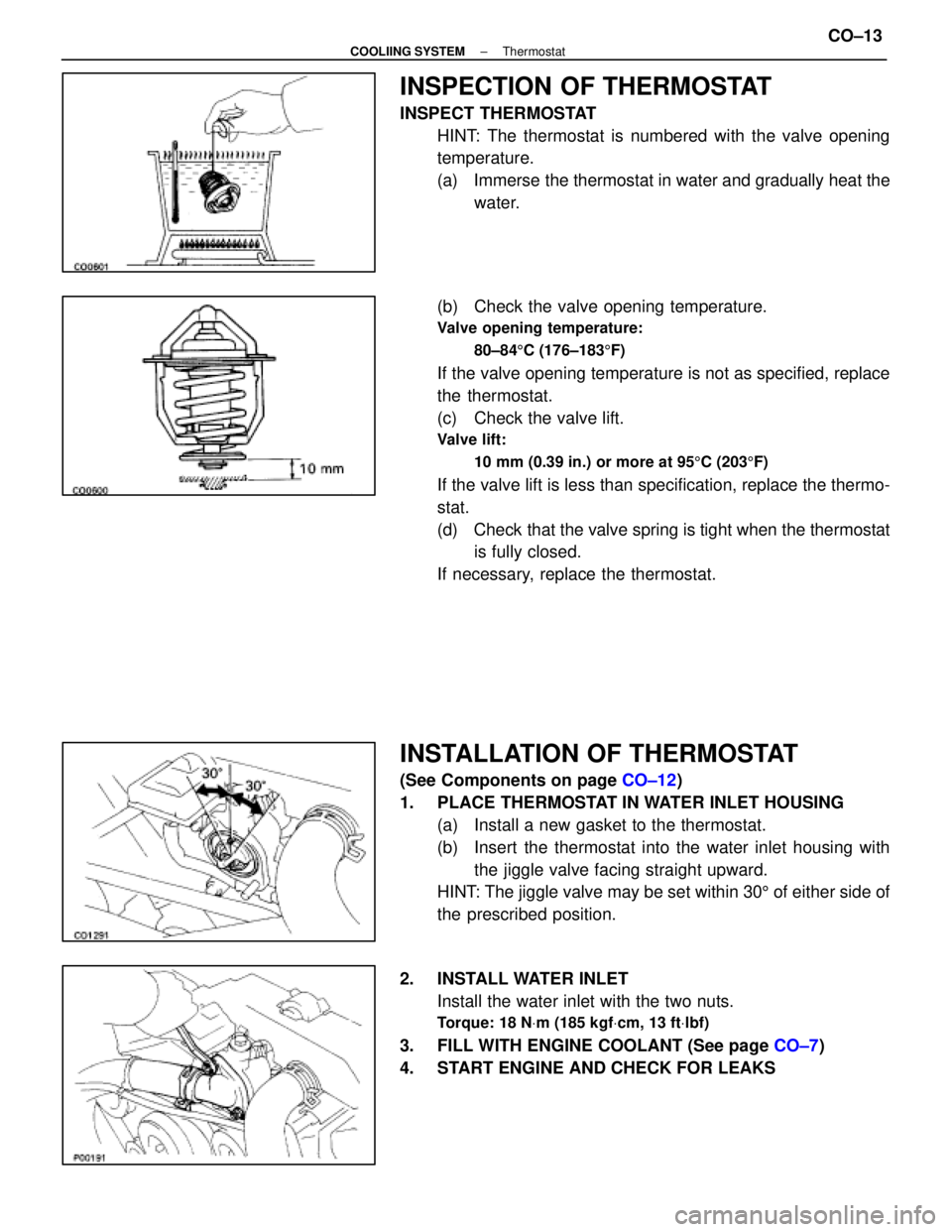

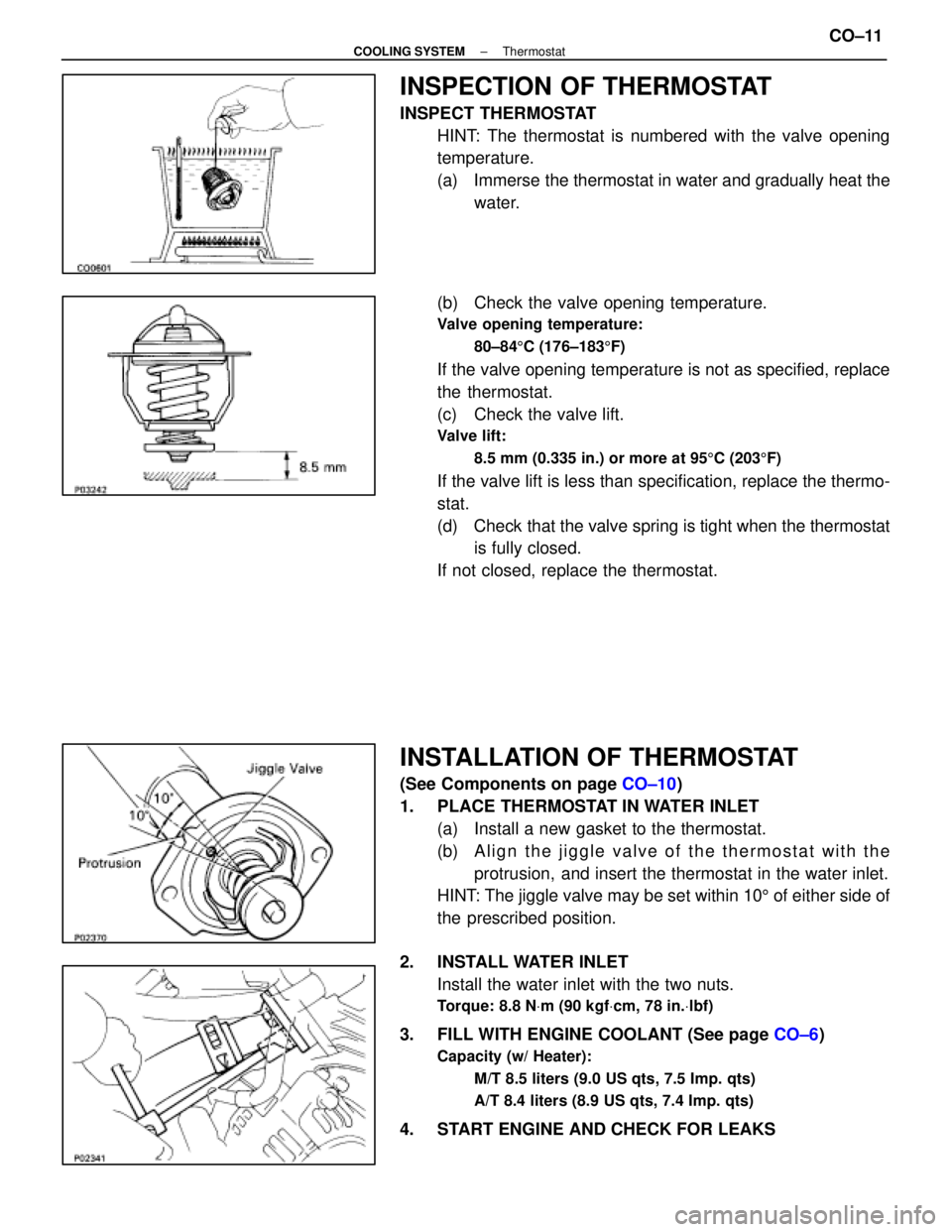

INSPECTION OF THERMOSTAT
INSPECT THERMOSTATHINT: The thermostat is numbered with the valve opening
temperature.
(a) Immerse the thermostat in water and gradually heat thewater.
(b) Check the valve opening temperature.
Valve opening temperature: 80±84 5C (176±183 5F)
If the valve opening temperature is not as specified, replace
the thermostat.
(c) Check the valve lift.
Valve lift:
8.5 mm (0.335 in.) or more at 95 5C (203 5F)
If the valve lift is less than specification, replace the thermo-
stat.
(d) Check that the valve spring is tight when the thermostat
is fully closed.
If not closed, replace the thermostat.
INSTALLATION OF THERMOSTAT
(See Components on page CO±10)
1. PLACE THERMOSTAT IN WATER INLET (a) Install a new gasket to the thermostat.
(b) A l i g n t h e j i g g l e v a l v e o f t h e t h e r m o s t a t w i t h t h eprotrusion, and insert the thermostat in the water inlet.
HINT: The jiggle valve may be set within 10 5 of either side of
the prescribed position.
2. INSTALL WATER INLET Install the water inlet with the two nuts.
Torque: 8.8 N Vm (90 kgf Vcm, 78 in. Vlbf)
3. FILL WITH ENGINE COOLANT (See page CO±6)
Capacity (w/ Heater):
M/T 8.5 liters (9.0 US qts, 7.5 Imp. qts)
A/T 8.4 liters (8.9 US qts, 7.4 Imp. qts)
4. START ENGINE AND CHECK FOR LEAKS
±
COOLING SYSTEM ThermostatCO±11
WhereEverybodyKnowsYourName

INSPECTION OF THERMOSTAT
INSPECT THERMOSTATHINT: The thermostat is numbered with the valve opening
temperature.
(a) Immerse the thermostat in water and gradually heat thewater.
(b) Check the valve opening temperature.
Valve opening temperature: 80±84 5C (176±183 5F)
If the valve opening temperature is not as specified, replace
the thermostat.
(c) Check the valve lift.
Valve lift:
10 mm (0.39 in.) or more at 95 5C (203 5F)
If the valve lift is less than specification, replace the thermo-
stat.
(d) Check that the valve spring is tight when the thermostat
is fully closed.
If necessary, replace the thermostat.
INSTALLATION OF THERMOSTAT
(See Components on page CO±12)
1. PLACE THERMOSTAT IN WATER INLET HOUSING (a) Install a new gasket to the thermostat.
(b) Insert the thermostat into the water inlet housing withthe jiggle valve facing straight upward.
HINT: The jiggle valve may be set within 30 5 of either side of
the prescribed position.
2. INSTALL WATER INLET Install the water inlet with the two nuts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
3. FILL WITH ENGINE COOLANT (See page CO±7)
4. START ENGINE AND CHECK FOR LEAKS
±
COOLIING SYSTEM ThermostatCO±13
WhereEverybodyKnowsYourName

RADIATOR
CLEANING OF RADIATOR
Using water or a steam cleaner, remove any mud and dirt
from the radiator core.
NOTICE: If using a high pressure type cleaner, be careful
not to deform the fins of the radiator core. If the cleaner
nozzle pressure is 2,942±3,432 kPa (30±35 kgf/cm2,
427±498 psi), keep a distance at least 40±50 cm
(15.75±19.69 in.) between the radiator core and cleaner
nozzle.
INSPECTION OF RADIATOR

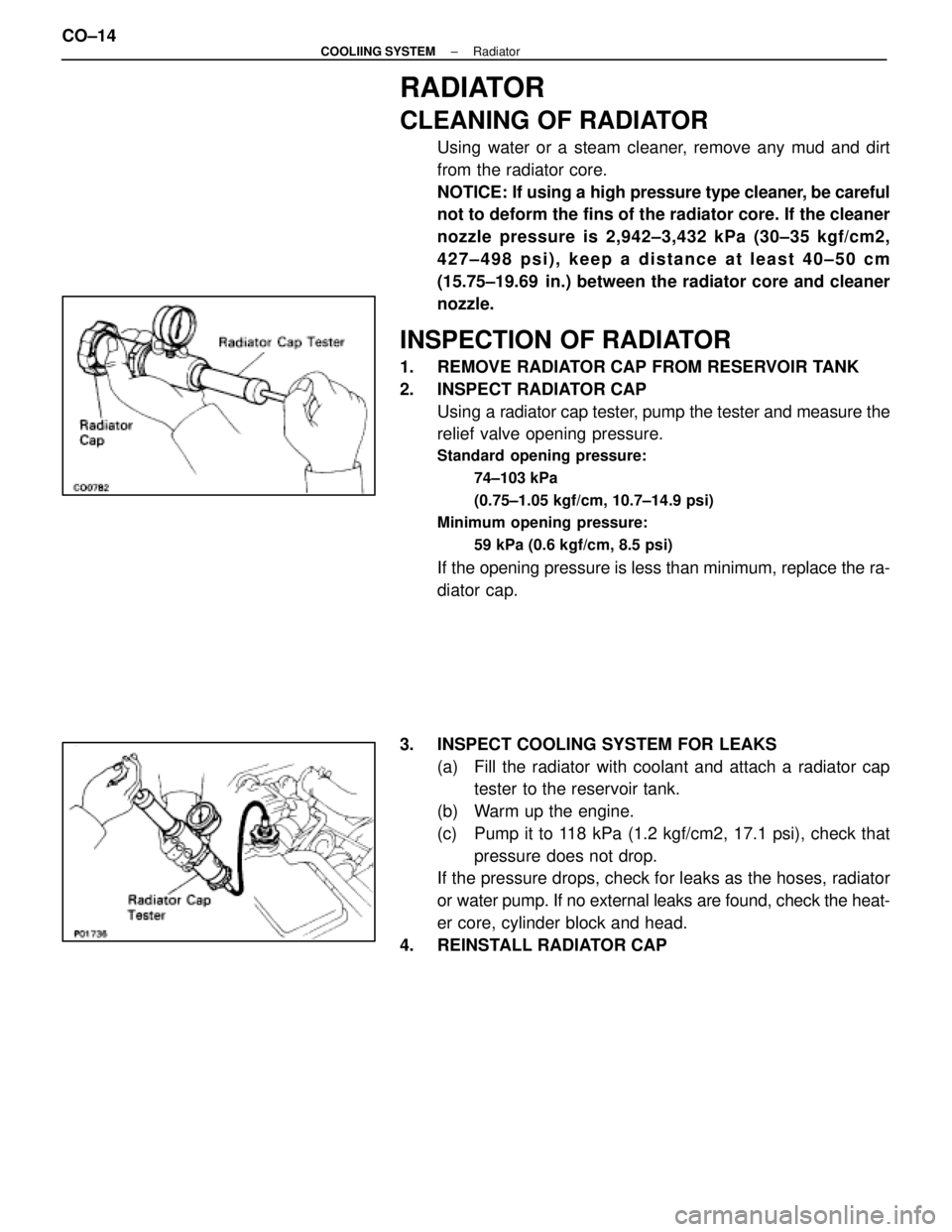

1. REMOVE RADIATOR CAP FROM RESERVOIR TANK
2. INSPECT RADIATOR CAPUsing a radiator cap tester, pump the tester and measure the
relief valve opening pressure.
Standard opening pressure:
74±103 kPa
(0.75±1.05 kgf/cm, 10.7±14.9 psi)
Minimum opening pressure:
59 kPa (0.6 kgf/cm, 8.5 psi)
If the opening pressure is less than minimum, replace the ra-
diator cap.
3. INSPECT COOLING SYSTEM FOR LEAKS (a) Fill the radiator with coolant and attach a radiator captester to the reservoir tank.
(b) Warm up the engine.
(c) Pump it to 118 kPa (1.2 kgf/cm2, 17.1 psi), check that pressure does not drop.
If the pressure drops, check for leaks as the hoses, radiator
or water pump. If no external leaks are found, check the heat-
er core, cylinder block and head.
4. REINSTALL RADIATOR CAP
CO±14
±
COOLIING SYSTEM Radiator
WhereEverybodyKnowsYourName

9. FILL ENGINE WITH COOLANT (See page CO±7)
10. FILL COOLING FAN RESERVOIR TANK WITH FLUID (See pages CO±23 and 24)
11. CHECK AUTOMATIC TRANSMISSION FLUID LEVEL
(See page MA±11)
NOTICE: Do not overfill.
12. START ENGINE AND CHECK FOR LEAKS
13. INSTALL ENGINE UNDER COVER
±
COOLIING SYSTEM RadiatorCO±21
WhereEverybodyKnowsYourName

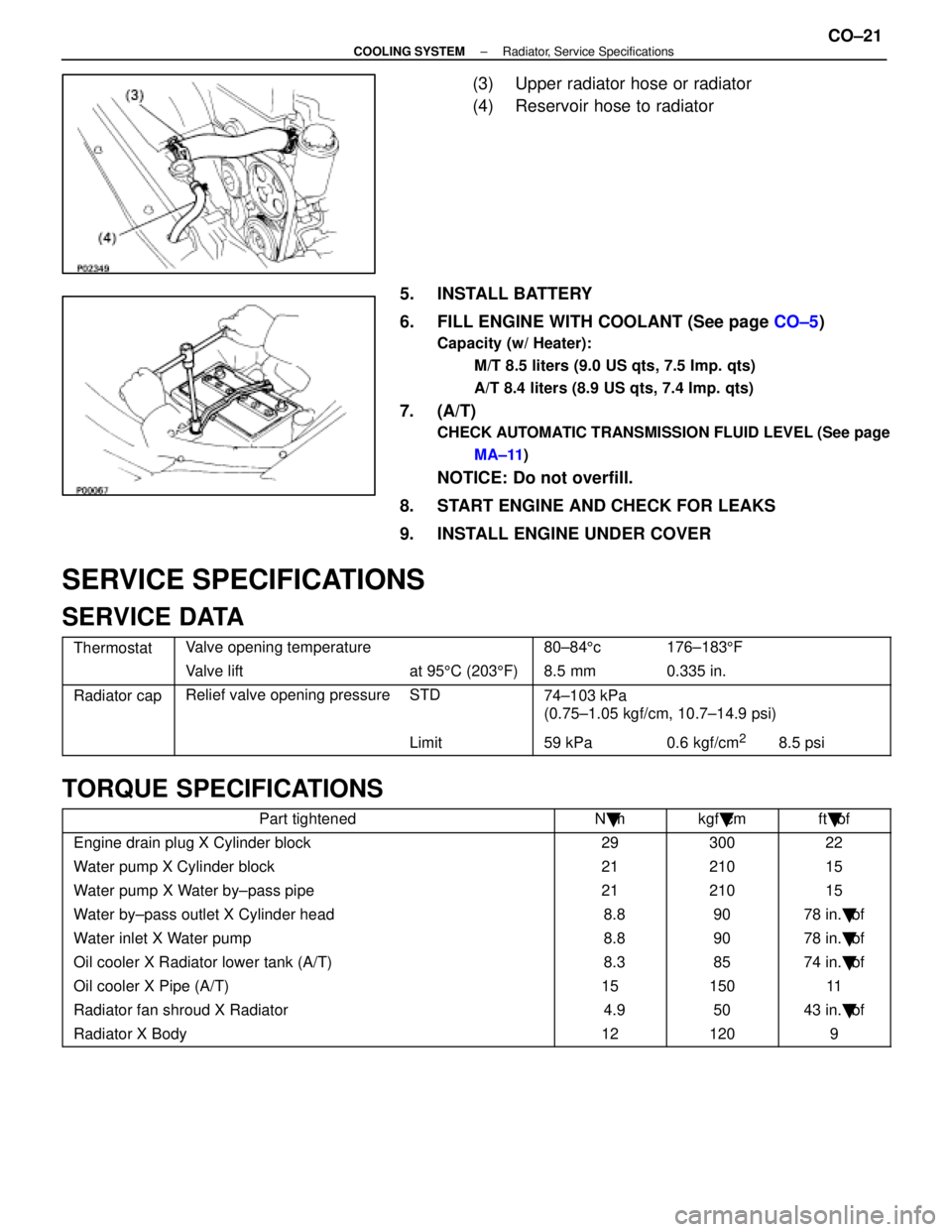

(3) Upper radiator hose or radiator
