compartment. For further information regarding these regulations, please\
contact your dealer. pg. 3 Seat belts: "Something We Believe In"
Despite our strongest recommendations, and your best intentions, not wea\
ring a seat belt is like
believing "It'll never happen to me!". Volvo urges you and all adult occ\
upants of your car to wear seat
belts and ensure that children are properly restrained, using an infant,\
car or booster seat determined by
age, weight and height.
Fact: Inevery state and province, some type of child-restraint legislati\
on has been passed. Additionally,
most states and provinces have already made it mandatory for occupants o\
f a car to use seat belts.
So, urging you to "buckle up" is not just our recommendation - legislati\
on in your state or province may
mandate seat belt usage. The few seconds it takes to buckle up may one d\
ay allow you to say, "It's a
good thing I was wearing my seat belt". pg. 4 General Information
Do not export your Volvo to another country before investigating the cou\
ntry's applicable safety and
exhaust emission requirements. In some cases it may be difficult or impo\
ssible to comply with these
requirements. Modifications to the emission control system(s) may rend\
er your Volvo not certifiable for
legal operation in the U.S., Canada or other countries.

Model versions of the basic Volvo Models 240, 240 DL

USA: Canada:
240 4-door, Wagon 240 DL 4-door, Wagon
240 DL 4-door, Wagon pg. 5 Keys
Owner's Key
This key operates all locks in the vehicle

Service Key
Front doors
Starting (ignition)/steering wheel lock

The key number codes are stamped on a separate tag supplied with the key\
s. This tag should be
file:///K|/ownersdocs/1990/1990_240/90240_00.htm (3 of 4)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
5 Instruments 10
6 Wiper/washer, tailgate window wiper/washer (wagon) 16
7 Starting (ignition) switch/steering wheel lock 14
8 Air louver 23
9 Radio location 25
10 Air louver 23
11 Glove box -
12 Air louver 23
13 Fuse box 81
14 Hood release handle 34
15 Horn -
16 Cigarette lighter 20
17 Rear window demister 18
18 Hazard warning flashers 18
19 Air conditioning (some models) 24
20 Seat belt reminder light 28
21 Heating and ventilation 22
22 Gear lever or gear selector 45, 46
23 Ash tray 20
24 Storage compartment -
25 Electrically-operated windows (certain models only) 21
26 Control for electrically operated side mirrors (certain models only)\
-
27 Parking brake 19
28 Electrically-operated window, right front door (certain models only)\
21
29 Seat belt release buttons 28
30 Seat heaters 19
31 Seat belt reminder light 28
32 Ash tray 20

The pages in this section provide a detailed description of the vehicle'\
s instruments and controls.
Note that some vehicles may be equipped differently, depending on model,\
special legal requirements,
etc. pg. 10 Instruments
file:///K|/ownersdocs/1990/1990_240/90240_01.htm (3 of 5)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
Brake failure warning light (red)

If the light comes on while driving and the brake
pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not
functioning. Stop immediately, open engine hood
and check brake fluid level (see section "Brake fluid,
power steering").
Reservoir empty: do NOT drive. Tow car to shop for
check/repair of brake system. Reservoir not empty:
proceed immediately and with caution to a Volvo
dealer for an inspection of the brake system.
Canadian models are equipped with this warning
light:

pg. 12 Service reminder light, Clock, Ambient temperature gauge
Supplemental Restraint System (SRS)

If the light comes on (or stays on after the vehicle has started), the\
SRS diagnostic system has detected a
fault. Take the car to an authorized Volvo dealer for an inspection of t\
he system. See the SRS section for
more information.

Service reminder light

This light will come on at 5,000 mile (8,000 km) intervals. It is a re\
minder to the driver that the 5,000
mile (8,000 km) service interval has been exceeded. The light will sta\
y on 2 minutes after start until
reset by the servicing dealer.

Check Engine warning light
file:///K|/ownersdocs/1990/1990_240/90240_02.htm (2 of 4)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
pg. 14 Starting (ignition) switch, Turn signals
Starting (ignition) switch/steering wheel lock

O Locked position: remove the key to lock the steering wheel.
I Intermediate position: certain circuits (heater blower, cigarette lig\
hter, accessories, etc.) on.
II Drive position: key position when engine is running.
III Starting position: release the key when engine starts. The key retur\
ns automatically to
drive position.
The steering wheel lock may be under tension when the car is parked. Tur\
n the steering wheel slightly to
free the ignition key.
A chime will sound if the starting key is in the ignition lock and the f\
ront door on the driver's side is
open. The chime will also sound if the headlights or parking lights are \
on when the door is open. The
chime goes off when the front door is closed.

file:///K|/ownersdocs/1990/1990_240/90240_03.htm (1 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

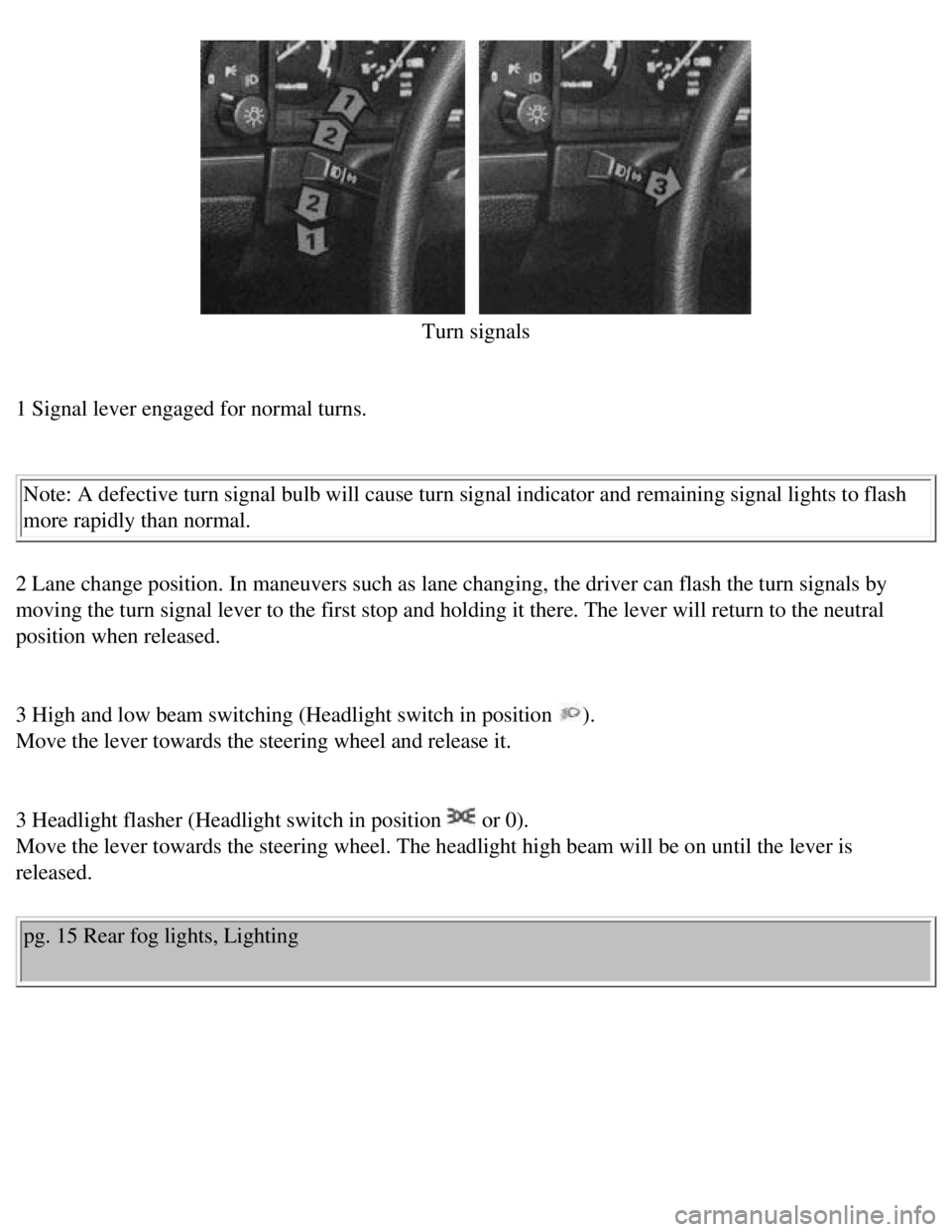

Turn signals

1 Signal lever engaged for normal turns.
Note: A defective turn signal bulb will cause turn signal indicator and \
remaining signal lights to flash
more rapidly than normal.

2 Lane change position. In maneuvers such as lane changing, the driver c\
an flash the turn signals by
moving the turn signal lever to the first stop and holding it there. The\
lever will return to the neutral
position when released.

3 High and low beam switching (Headlight switch in position
).
Move the lever towards the steering wheel and release it.

3 Headlight flasher (Headlight switch in position
or 0).
Move the lever towards the steering wheel. The headlight high beam will \
be on until the lever is
released.
pg. 15 Rear fog lights, Lighting
file:///K|/ownersdocs/1990/1990_240/90240_03.htm (2 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

Rear fog lights

The rear fog lights are considerably brighter than the normal tail light\
s and should be used only when
atmospheric conditions, such as fog, rain, snow, smoke or dust reduce th\
e daytime or nighttime visibility
of other vehicles to less than 500 ft. (152 meters). (The headlights \
must be switched on.)
Note: Local regulations governing the use of these lights may
vary.


Headlights and position lights

0 All lights off*
Parking lights on*
Headlights and parking lights on
Switch from upper to lower beams, and vice versa, by moving the turn sig\
nal switch lever on the left
side of the steering column towards the steering wheel. The parking ligh\
ts can be used without switching
on the starting (ignition) key.
* Canadian models equipped with daytime running lights: Headlights and p\
arking lights on when
file:///K|/ownersdocs/1990/1990_240/90240_03.htm (3 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

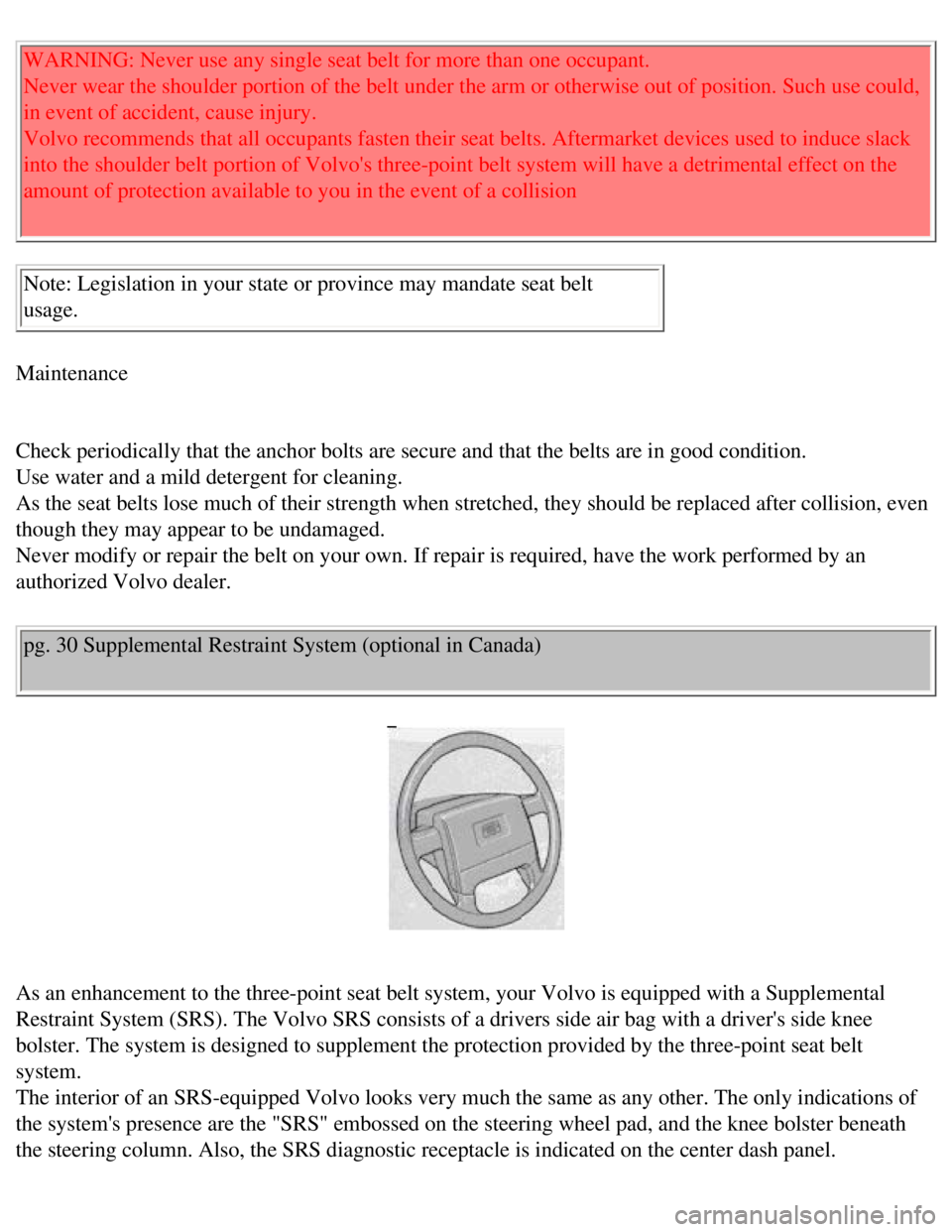

WARNING: Never use any single seat belt for more than one occupant.
Never wear the shoulder portion of the belt under the arm or otherwise o\
ut of position. Such use could,
in event of accident, cause injury.
Volvo recommends that all occupants fasten their seat belts. Aftermarket\
devices used to induce slack
into the shoulder belt portion of Volvo's three-point belt system will h\
ave a detrimental effect on the
amount of protection available to you in the event of a collision
Note: Legislation in your state or province may mandate seat belt
usage.

Maintenance

Check periodically that the anchor bolts are secure and that the belts a\
re in good condition.
Use water and a mild detergent for cleaning.
As the seat belts lose much of their strength when stretched, they shoul\
d be replaced after collision, even
though they may appear to be undamaged.
Never modify or repair the belt on your own. If repair is required, have\
the work performed by an
authorized Volvo dealer.
pg. 30 Supplemental Restraint System (optional in Canada)

As an enhancement to the three-point seat belt system, your Volvo is equ\
ipped with a Supplemental
Restraint System (SRS). The Volvo SRS consists of a drivers side air b\
ag with a driver's side knee
bolster. The system is designed to supplement the protection provided by\
the three-point seat belt
system.
The interior of an SRS-equipped Volvo looks very much the same as any ot\
her. The only indications of
the system's presence are the "SRS" embossed on the steering wheel pad, \
and the knee bolster beneath
the steering column. Also, the SRS diagnostic receptacle is indicated on\
the center dash panel.
file:///K|/ownersdocs/1990/1990_240/90240_06.htm (6 of 9)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model
The air bag is folded and located in the center of the steering wheel. I\
t is released only during a frontal
or certain front-angular collision in which the forces sustained by the \
car are equivalent to an impact into
a rigid barrier of approximately 12 mph (19 kph).
WARNING! As its name implies, SRS is designed to be a SUPPLEMENT to - no\
t a replacement for -
the three-point belt system. The air bag is not designed to be released \
in the event of a protection, wear
seat belts at all times. Be aware that no system can prevent all possibl\
e injuries that may occur in an
accident.


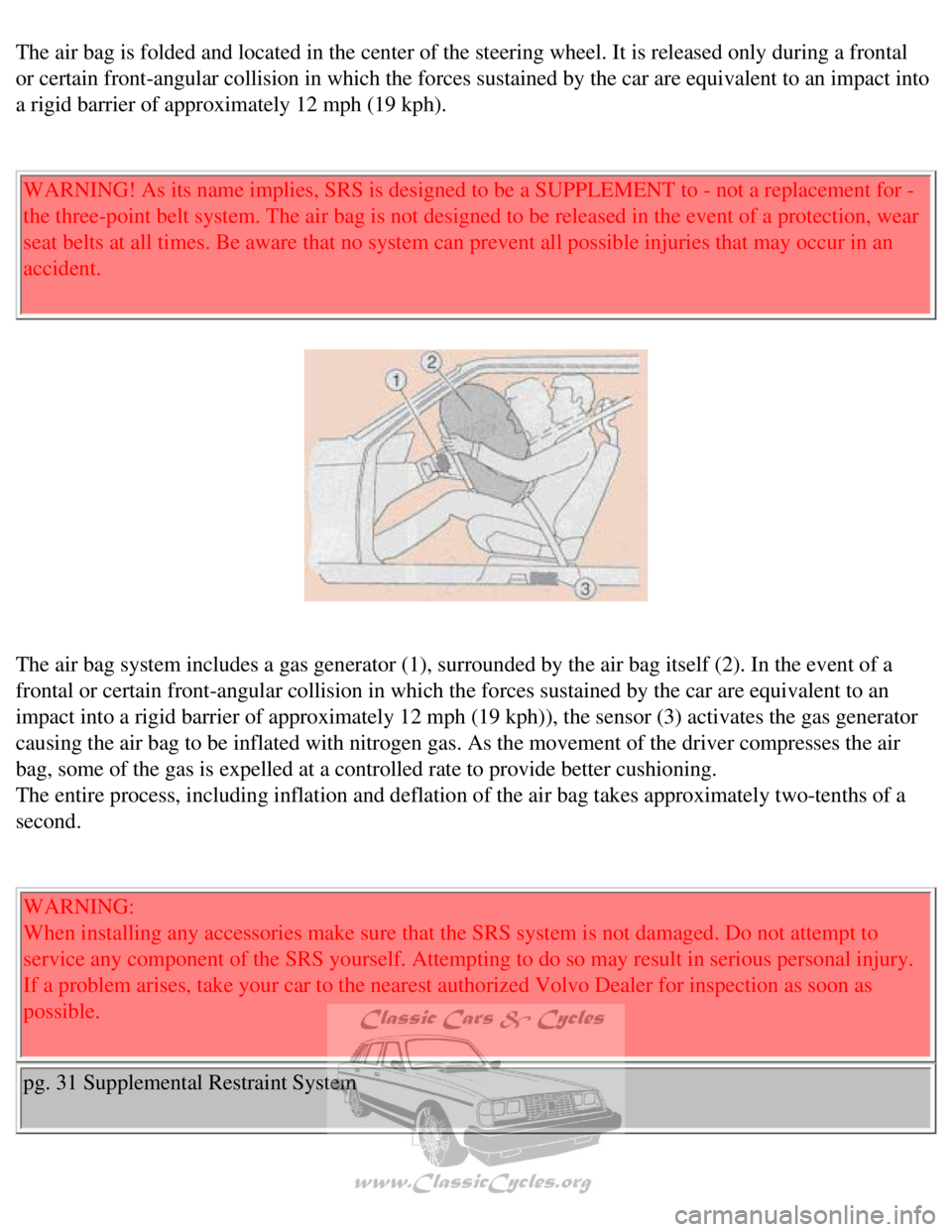

The air bag system includes a gas generator (1), surrounded by the air\
bag itself (2). In the event of a
frontal or certain front-angular collision in which the forces sustained\
by the car are equivalent to an
impact into a rigid barrier of approximately 12 mph (19 kph)), the se\
nsor (3) activates the gas generator
causing the air bag to be inflated with nitrogen gas. As the movement of\
the driver compresses the air
bag, some of the gas is expelled at a controlled rate to provide better \
cushioning.
The entire process, including inflation and deflation of the air bag tak\
es approximately two-tenths of a
second.
WARNING:
When installing any accessories make sure that the SRS system is not dam\
aged. Do not attempt to
service any component of the SRS yourself. Attempting to do so may resul\
t in serious personal injury.
If a problem arises, take your car to the nearest authorized Volvo Deale\
r for inspection as soon as
possible.
pg. 31 Supplemental Restraint System
file:///K|/ownersdocs/1990/1990_240/90240_06.htm (7 of 9)12/30/2006 8:\
