1987 MAZDA 626 boot

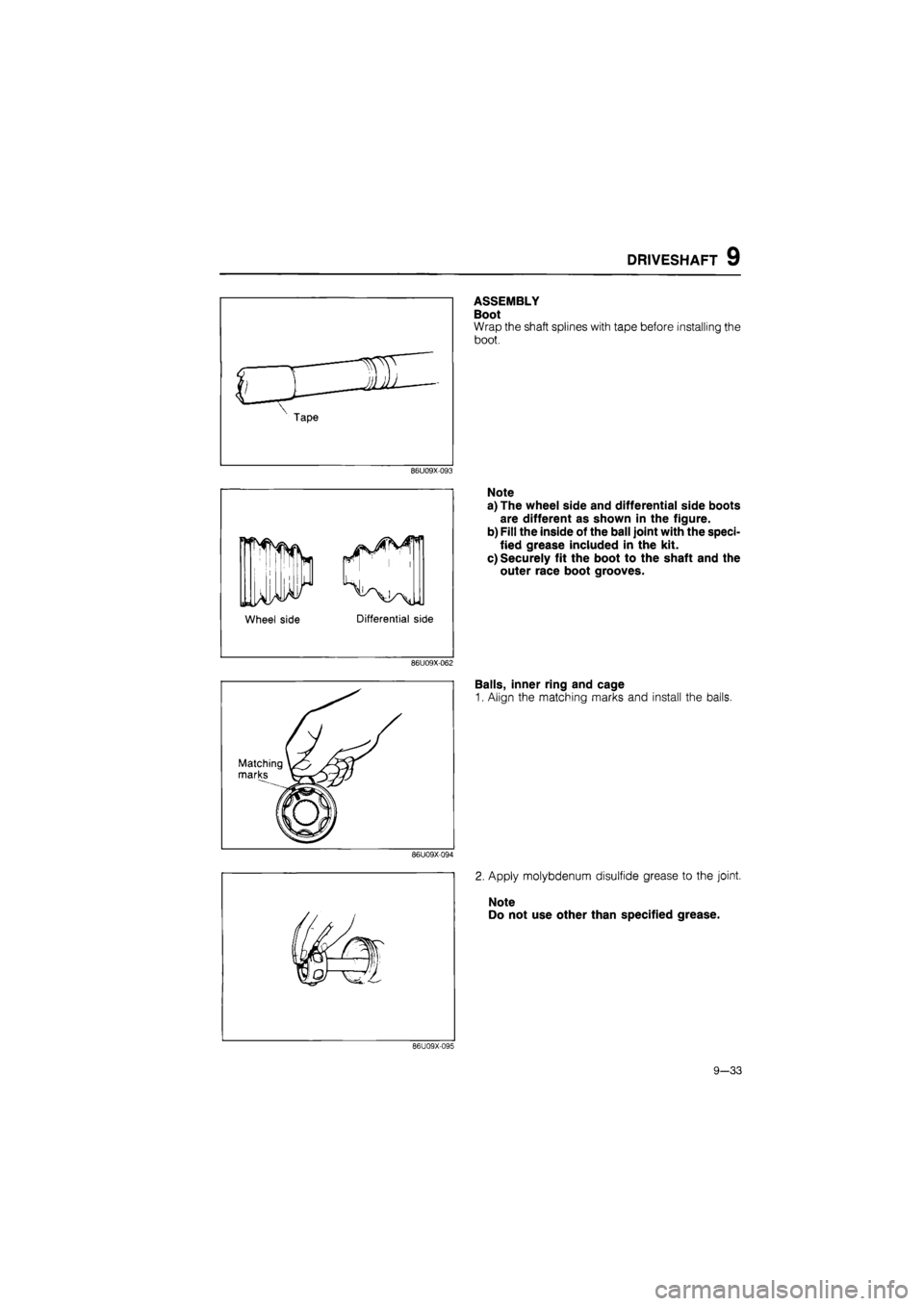

DRIVESHAFT 9
ASSEMBLY
Boot
Wrap the shaft splines with tape before installing the
boot.
86U09X-093
Wheel side
Note
a) The wheel side arid differential side boots
are different as shown in the figure.
b) Fill the inside of the ball joint with the speci-
fied grease included in the kit.
c) Securely fit the boot to the shaft and the
outer race boot grooves.
86U09X-062
Balls, inner ring and cage
1. Align the matching marks and install the balls.
86U09X-094
2. Apply molybdenum disulfide grease to the joint.
Note
Do not use other than specified grease.
86U09X-095
9-33

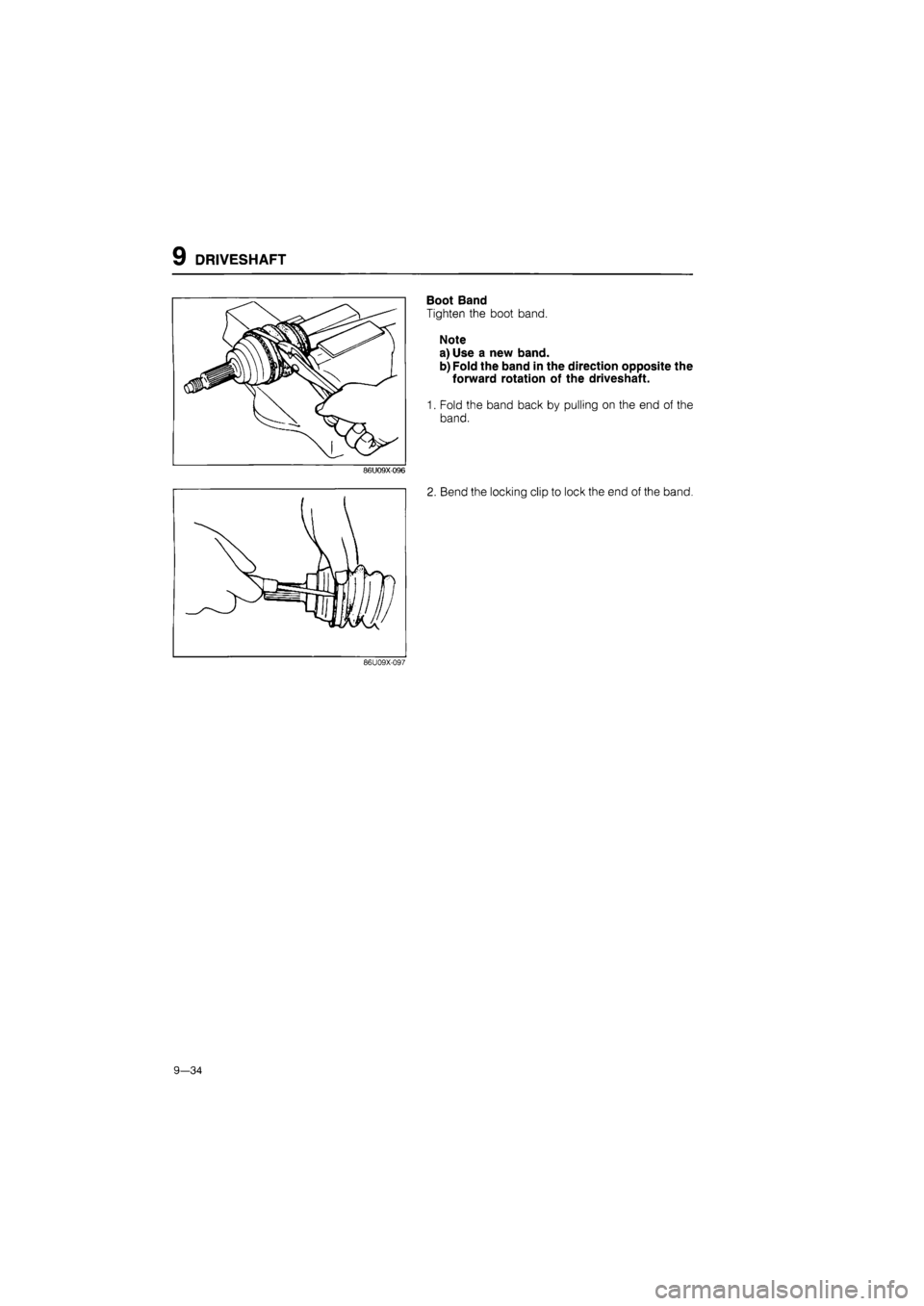

9 DRIVESHAFT
Boot Band
Tighten the boot band.
Note a) Use a new band.
b) Fold the band in the direction opposite the
forward rotation of the driveshaft.
1. Fold the band back by pulling on the end of the
band.
86U09X-096
2. Bend the locking clip to lock the end of the band.
86U09X-097
9—34

DRIVESHAFT 9
[ATX]
DISASSEMBLY
Disassemble in the sequence shown in the figure referring to the disassembly note for the specially
marked parts.
86U09X-064
1. Boot band 6. Boot band 9. Clip
2. Tripod joint assembly 7. Boot 10. Sensor rotor (Refer to Sec-
3. Boot band 8. Shaft and ball-joint as- tion 11)
4. Boot sembly
5. Boot band
Disassembly Note
Tripod joint assembly
1. Remove the snap ring using snap ring pliers, then
remove the tripod joint bearing.
2. Disassemble the joint shaft assembly.
86U09X-065
9-35

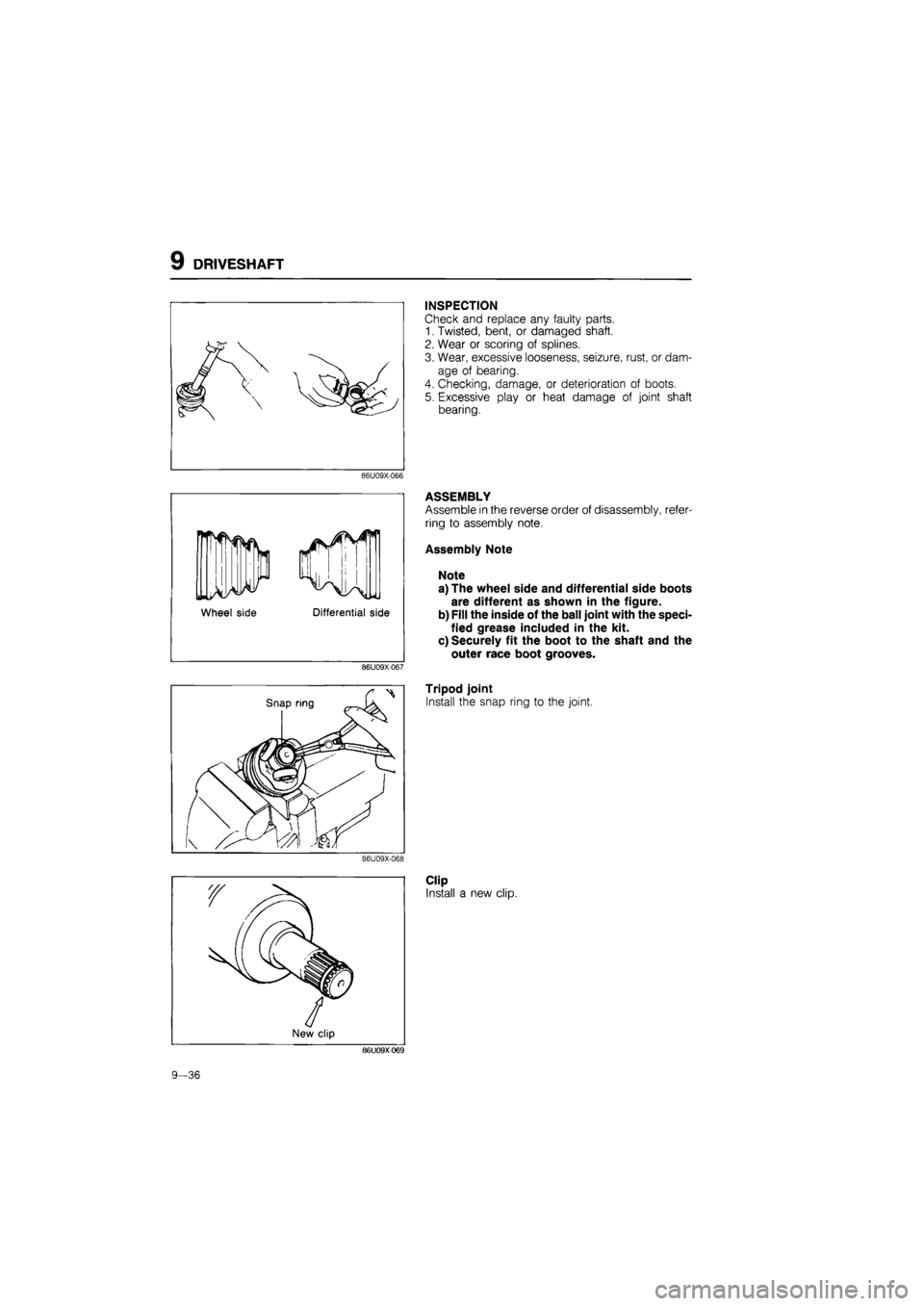

9 DRIVESHAFT
INSPECTION
Check and replace any faulty parts.
1. Twisted, bent, or damaged shaft.
2. Wear or scoring of splines.
3. Wear, excessive looseness, seizure, rust, or dam-
age of bearing.
4. Checking, damage, or deterioration of boots.
5. Excessive play or heat damage of joint shaft
bearing.
86U09X-066
Wheel side Differential side
86U09X-067
ASSEMBLY
Assemble in the reverse order of disassembly, refer-
ring to assembly note.
Assembly Note
Note
a) The wheel side and differential side boots
are different as shown in the figure.
b) Fill the inside of the ball joint with the speci-
fied grease included in the kit.
c) Securely fit the boot to the shaft and the
outer race boot grooves.
Tripod joint
Install the snap ring to the joint.
86U09X-068
Clip
Install a new clip.
86U09X-069
9-36

10
STEERING SYSTEM
OUTLINE 10— 2
STRUCTURAL VIEW 10— 2 SPECIFICATIONS 10— 6
TROUBLESHOOTING GUIDE 10— 7
MANUAL STEERING 10— 7
POWER STEERING 10— 8
4WS 10— 9
ON-VEHICLE MAINTENANCE 10— 10
STEERING WHEEL PLAY 10— 10
LOOSENESS OR PLAY OF THE
STEERING WHEEL 10— 10
STEERING WHEEL EFFORT 10— 10
POWER STEERING FLUID LEVEL 1 fl-11
LOOSE OR DAMAGED
OIL PUMP BELT IC— 12
REAR STEERING GEAR OIL 10— 12 LEAKAGE OF POWER STEERING
FLUID 10— 13
INSPECTION AND ADJUSTMENT. 10— 15
BLEEDING OF POWER STEERING
SYSTEM 10— 15
POWER STEERING PRESSURE ... 10— 16
TIE-ROD END BOOTS 10— 18
REMOVAL AND INSTALLATION .. 10— 18
STEERING WHEEL AND COLUMN 10— 21
STRUCTURAL VIEW 10— 21
REMOVAL 10— 22
DISASSEMBLY AND ASSEMBLY.. 10— 24
INSPECTION 10— 25
INSTALLATION 1 fl-27
STEERING GEAR AND LINKAGE .. IC— 28
STRUCTURAL VIEW 10— 28
REMOVAL 10— 29
INSTALLATION 10— 30
4-WHEEL STEERING GEAR AND
LINKAGE 10— 31
STRUCTURAL VIEW 10— 31 4WS PERFORMANCE INSPECTION 10— 32
ADJUSTMENT OF STEERING
ANGLE TRASFER SHAFT 10— 35
REMOVAL AND INSTALLATION .. 10— 37
INSPECTION 10— 44
MANUAL STEERING 10— 48
DISASSEMBLY 10— 48
INSPECTION 10— 51
ASSEMBLY 10— 52
ENGINE SPEED SENSING POWER
STEERING 10— 58
DISASSEMBLY 10— 58
INSPECTION 10— 62
ASSEMBLY 10— 64
ELECTRONICALLY-CONTROLLED
POWER STEERING 10— 75
DISASSEMBLY 10— 75
INSPECTION 10— 78
ASSEMBLY 10— 79
OIL PUMP 10— 83
REMOVAL AND INSTALLATION .. 10— 83
ELECTRICAL COMPONENTS OF
ELECTRONICALLY-CONTROLLED
POWER STEERING 10— 87
CIRCUIT DIAGRAM 10— 87
TROUBLESHOOTING GUIDE 10— 87
TROUBLESHOOTING 10— 87
ELECTRICAL COMPONENTS OF
4 WHEEL STEERING 10— 94
CIRCUIT DIAGRAM 10— 94
TROUBLESHOOTING GUIDE 10— 95
TROUBLESHOOTING 10— 95
4WS WARNING LIGHT 10—102
SPEED SENSOR (IN METER) 10—103
SPEED SENSOR (AT TRANSAXLE) 10—103
REAR-TO-FRONT STEERING
RATIO SENSOR 10—103
OIL LEVEL SWITCH
(IN P/S RESERVOIR) 10—103
RELAY AND TIMER 10—104 76G10X-001

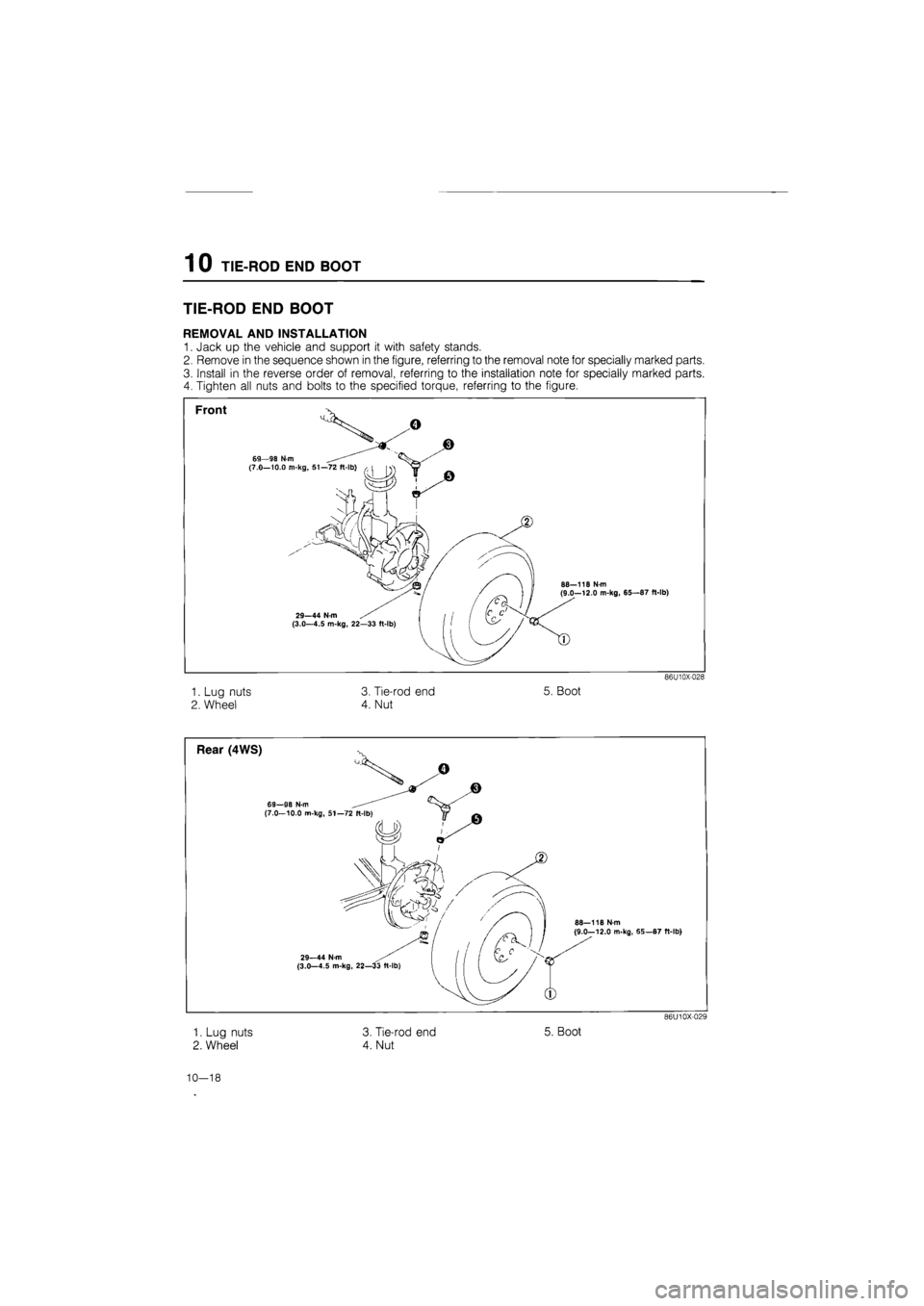

1 0 TIE-ROD END BOOT
TIE-ROD END BOOT
REMOVAL AND INSTALLATION
1. Jack up the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Install in the reverse order of removal, referring to the installation note for specially marked parts.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
Front
69—9S N m (7.0—10.0 m-kg, 51—72 ft-lb}
29—44 N-m (3.0—4.5 m-kg, 22—33 ft-lb)
88—118 N-m (9.0—12.0 m-kg, 65—87 ft-lb)
1. Lug nuts
2. Wheel
3. Tie-rod end
4. Nut
5. Boot
86U10X-028
Rear (4WS)
69—98 N-m (7.0—10.0 m-kg, 51—72 ft-lb)
29—44 N m (3.0—4.5 m-kg, 22-33 ft-lb)
88—118 N-m (9.0—12.0 m-kg, S5—87 ft-lb)
86U10X-029
1. Lug nuts
2. Wheel
3. Tie-rod end
4. Nut
5. Boot
10—18

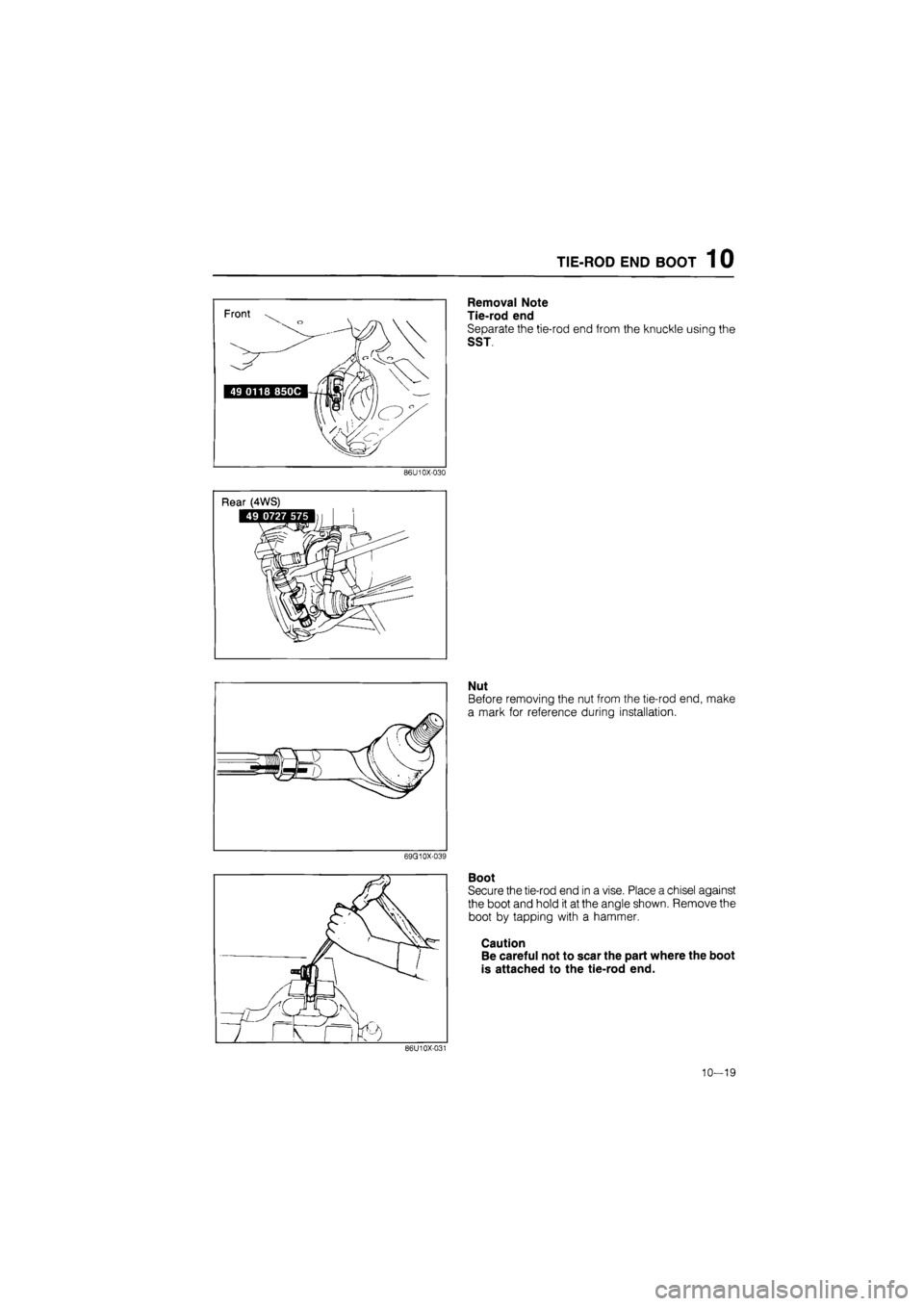

TIE-ROD END BOOT 1 0
86U10X-030
Removal Note
Tie-rod end
Separate the tie-rod end from the knuckle using the
SST
69G10X-039
Nut
Before removing the nut from the tie-rod end, make
a mark for reference during installation.
Boot
Secure the tie-rod end in a vise. Place a chisel against
the boot and hold it at the angle shown. Remove the
boot by tapping with a hammer.
Caution
Be careful not to scar the part where the boot
is attached to the tie-rod end.
86U10X-031
10—19

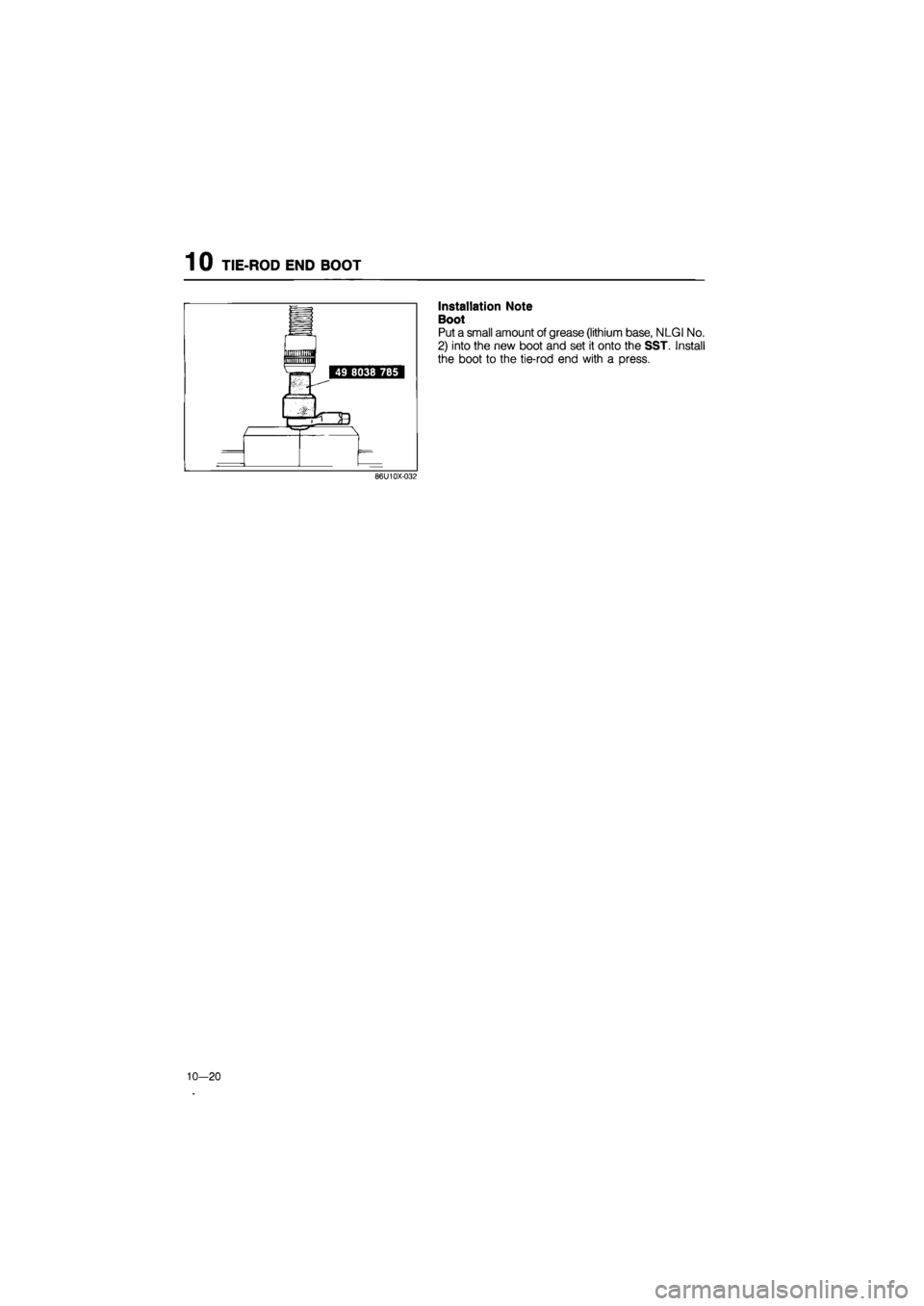

1 0 TIE-ROD END BOOT
Installation Note
Boot
Put a small amount of grease (lithium base, NLGI No.
2) into the new boot and set it onto the SST. Install
the boot to the tie-rod end with a press.
86U10X-032
10-20
