16 COMPRESSOR
76G16X-611

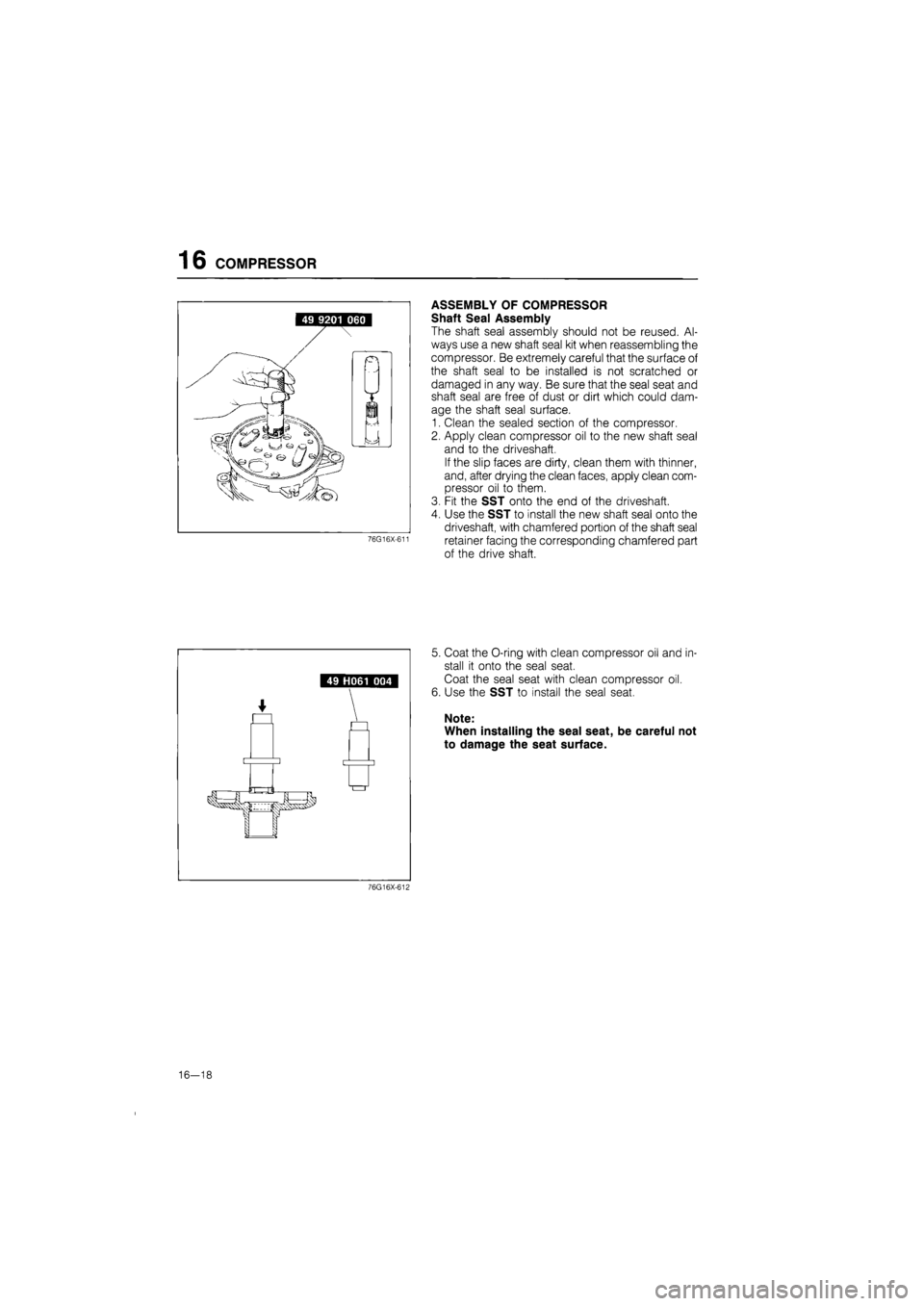

ASSEMBLY OF COMPRESSOR
Shaft Seal Assembly
The shaft seal assembly should not be reused. Al-
ways use a new shaft seal kit when reassembling the
compressor. Be extremely careful that the surface of
the shaft seal to be installed is not scratched or
damaged in any way. Be sure that the seal seat and
shaft seal are free of dust or dirt which could dam-
age the shaft seal surface.
1. Clean the sealed section of the compressor.
2. Apply clean compressor oil to the new shaft seal
and to the driveshaft.
If the slip faces are dirty, clean them with thinner,
and, after drying the clean faces, apply clean com-
pressor oil to them.
3. Fit the SST onto the end of the driveshaft.
4. Use the SST to install the new shaft seal onto the
driveshaft, with chamfered portion of the shaft seal
retainer facing the corresponding chamfered part
of the drive shaft.
5. Coat the O-ring with clean compressor oil and in-
stall it onto the seal seat.
Coat the seal seat with clean compressor oil.
6. Use the SST to install the seal seat.
Note:
When installing the seal seat, be careful not
to damage the seat surface.
76G16X-612
16-18
SPECIAL TOOLS 40
TOOL NUMBER
& DESCRIPTION PRIORITY ILLUSTRATION
49 G032 3A0
Repair set, power steering (ESPS)
A
0 "
'
= 1 6 J
•Dn
0 O
•ujQ
BRAKE
TOOL NUMBER
& DESCRIPTION PRIORITY ILLUSTRATION
49 0259 770B
Wrench, flare
nut
A
49 0221 600C
Expand tool,
disc brake
B
49 FA18 602
Wrench disc,
brake piston B
SUSPENSION
TOOL NUMBER & DESCRIPTION PRIORITY ILLUSTRATION
49 G028 2A0
Replacer lower arm bush (4WS)
A
49 G034 2A0
Replacer lower arm bush A
-
Q
0a0(D
TOOL NUMBER & DESCRIPTION PRIORITY ILLUSTRATION
— — —
TOOL NUMBER & DESCRIPTION PRIORITY ILLUSTRATION
49 B043 002
Bearing installer (Rear disc)
A
49 F043
001
Adjust gauge A
49 B043 001
Adjust gauge
(FE
DOHC-R.H.D)
—
iP
TOOL NUMBER
& DESCRIPTION PRIORITY ILLUSTRATION
49 U034 2A0
Replacer rubber bush (4WS)
A
49 G034
1
AO
Coil spring
compressor
A
40—9
