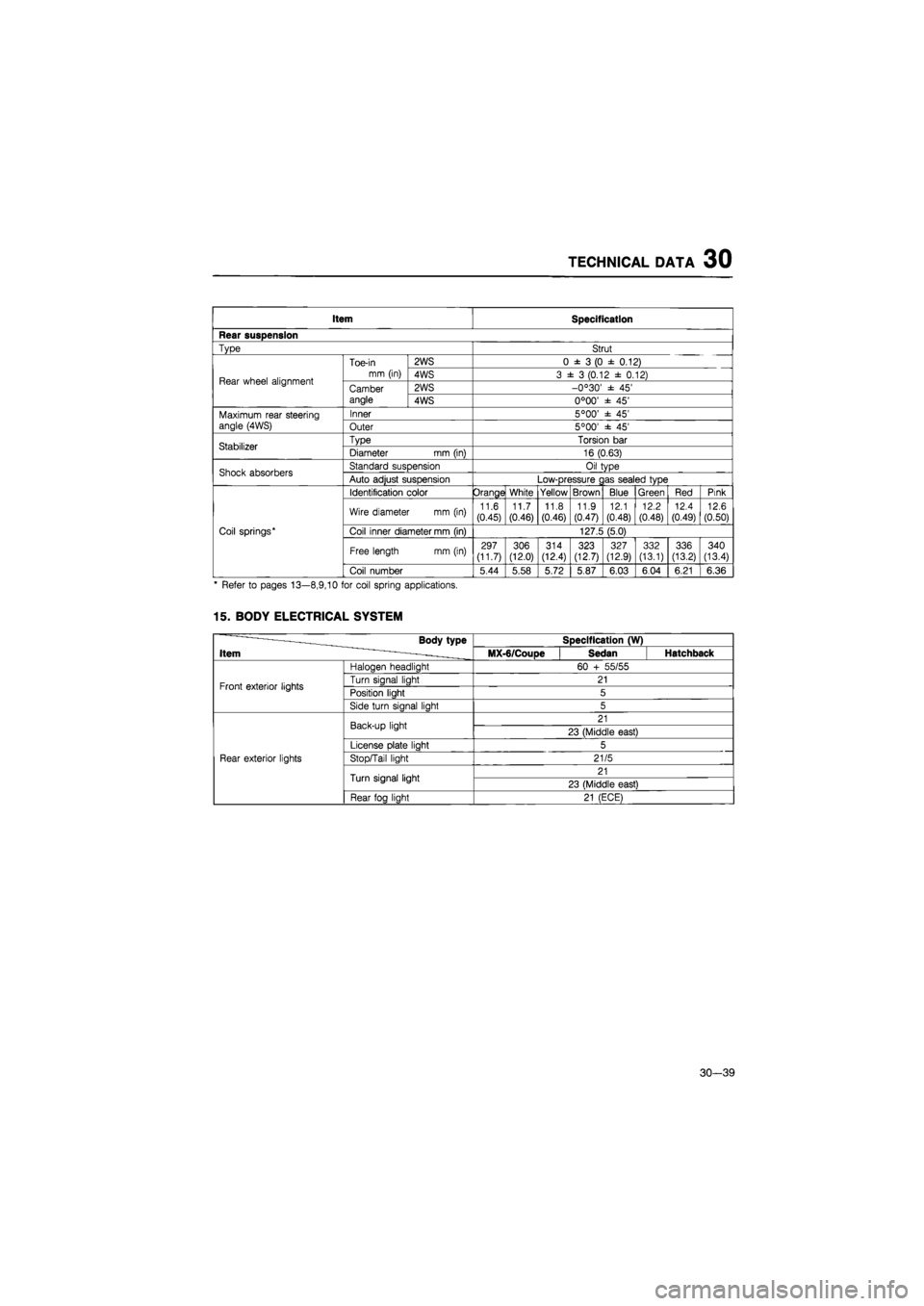

TECHNICAL DATA 30
Item Specification
Rear suspension

Type Strut
Rear wheel alignment
Toe-in
mm (in)
2WS 0
± 3 (0 ±
0.12)
Rear wheel alignment
Toe-in
mm (in) 4WS 3
± 3
(0.12
±
0.12) Rear wheel alignment Camber angle
2WS -0°30'
± 45'
Rear wheel alignment Camber angle 4WS 0°00'
± 45'

Maximum rear steering angle (4WS)
Inner 5°00'
± 45'
Maximum rear steering angle (4WS) Outer 5°00'
± 45'

Stabilizer Type Torsion
bar
Stabilizer Diameter
mm
(in) 16 (0.63)
Shock absorbers Standard suspension Oil type Shock absorbers Auto adjust suspension Low-pressure
c
as sealed type
Coil springs*
Identification color Orange White Yellow Brown Blue Green Red Pink
Coil springs*
Wire diameter
mm (in)
11.6 (0.45)
11.7
(0.46)
11.8
(0.46) 11.9
(0.47)
12.1
(0.48)
12.2
(0.48)
12.4
(0.49)
12.6
(0.50)
Coil springs* Coil inner diameter mm (in) 127.5 (5.0) Coil springs*
Free length mm (in) 297 (11.7) 306 (12.0)
314
(12.4) 323 (12.7)
327 (12.9) 332
(13.1)
336
(13.2)
340
(13.4)
Coil springs*
Coil number 5.44 5.58 5.72 5.87 6.03 6.04 6.21 6.36
* Refer
to
pages 13—8,9,10
for
coil spring applications.

15. BODY ELECTRICAL SYSTEM
-—— Body type
Item ~ - -.
Specification (W) -—— Body type
Item ~ - -. MX-6/CouDe Sedan Hatchback

Front exterior lights
Haloaen headliaht 60
+
55/55
Front exterior lights Turn sianal liaht 21 Front exterior lights Position light 5 Front exterior lights
Side turn sianal liaht 5
Rear exterior lights
Back-up light 21
Rear exterior lights
Back-up light 23 (Middle east)
Rear exterior lights
License
Dlate
liaht 5
Rear exterior lights Stop/Tail light 21/5 Rear exterior lights
Turn signal light 21
Rear exterior lights
Turn signal light 23 (Middle east)
Rear exterior lights
Rear foa liaht 21 (ECE)

30—39

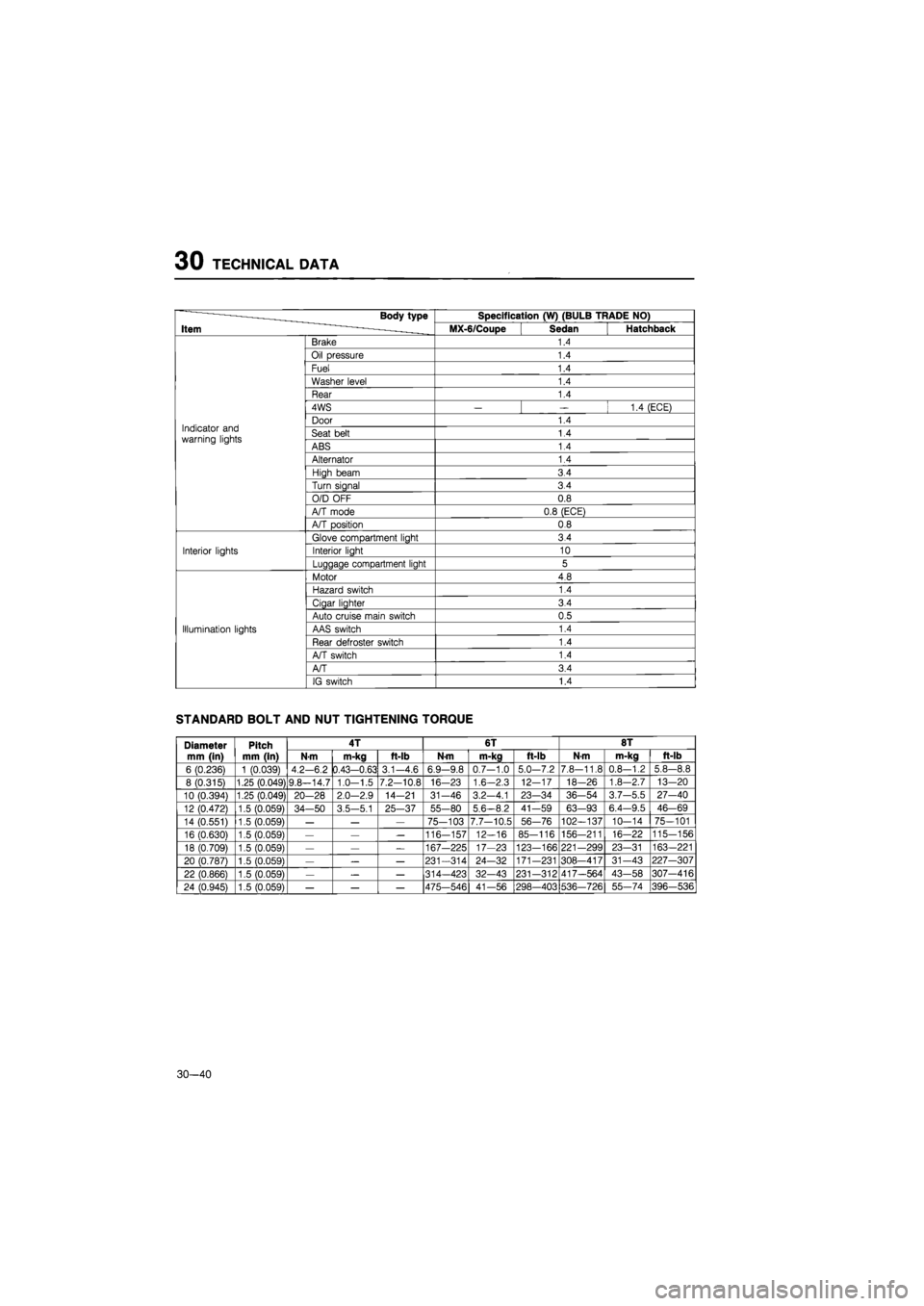

30 TECHNICAL DATA
Body type Specification (W) (BULB TRADE NO)
Item MX-6/Coupe Sedan Hatchback

Brake 1.4
Oil pressure 1.4
Fuel 1.4
Washer level 1.4
Rear 1.4
4WS
— —
1.4 (ECE)
Indicator and warning lights
Door 1.4 Indicator and warning lights Seat belt 1.4 Indicator and warning lights ABS 1.4
Alternator 1.4
High beam 3.4
Turn signal 3.4
O/D OFF 0.8
A/T mode 0.8 (ECE)
A/T position 0.8
Glove compartment light 3.4
Interior lights Interior light 10
Luggage compartment light 5
Motor 4.8
Hazard switch 1.4
Cigar lighter 3.4
Auto cruise main switch 0.5
Illumination lights AAS switch 1.4
Rear defroster switch 1.4
A/T switch 1.4
A/T 3.4
IG switch 1.4

STANDARD BOLT AND NUT TIGHTENING TORQUE
Diameter
mm (in)
Pitch
mm (in)
4T 6T 8T Diameter
mm (in)
Pitch
mm (in) N-m m-kg ft-lb N-m m-kg ft-lb N-m m-kg ft-lb

6 (0.236) 1 (0.039) 4.2-6.2 0.43-0.63 3.1-4.6 6.9-9.8 0.7-1.0 5.0-7.2 7.8-11.8 0.8-1.2 5.8—8.8
8 (0.315) 1.25 (0.049) 9.8—14.7 1.0-1.5 7.2-10.8 16-23 1.6-2.3 12-17 18—26 1.8-2.7 13-20
10 (0.394) 1.25 (0.049) 20-28 2.0—2.9 14-21 31-46 3.2-4.1 23—34 36-54 3.7-5.5 27-40
12 (0.472) 1.5 (0.059) 34—50 3.5-5.1 25-37 55-80 5,6-8.2 41-59 63-93 6.4-9.5 46-69
14 (0.551) 1.5 (0.059)
— — —
75-103 7.7-10.5 56-76 102—137 10-14 75-101
16 (0.630) 1.5 (0.059)
— — —
116-157 12-16 85-116 156-211 16-22 115-156
18 (0.709) 1.5 (0.059)
— — —
167-225 17-23 123-166 221-299 23-31 163—221
20 (0.787) 1.5 (0.059)
— — —
231-314 24-32 171-231 308—417 31-43 227-307
22 (0.866) 1.5 (0.059)
— — —
314—423 32-43 231-312 417—564 43-58 307-416
24 (0.945) 1.5 (0.059)
— — —
475—546 41—56 298—403 536-726 55-74 396-536

30—40

40 SPECIAL TOOLS

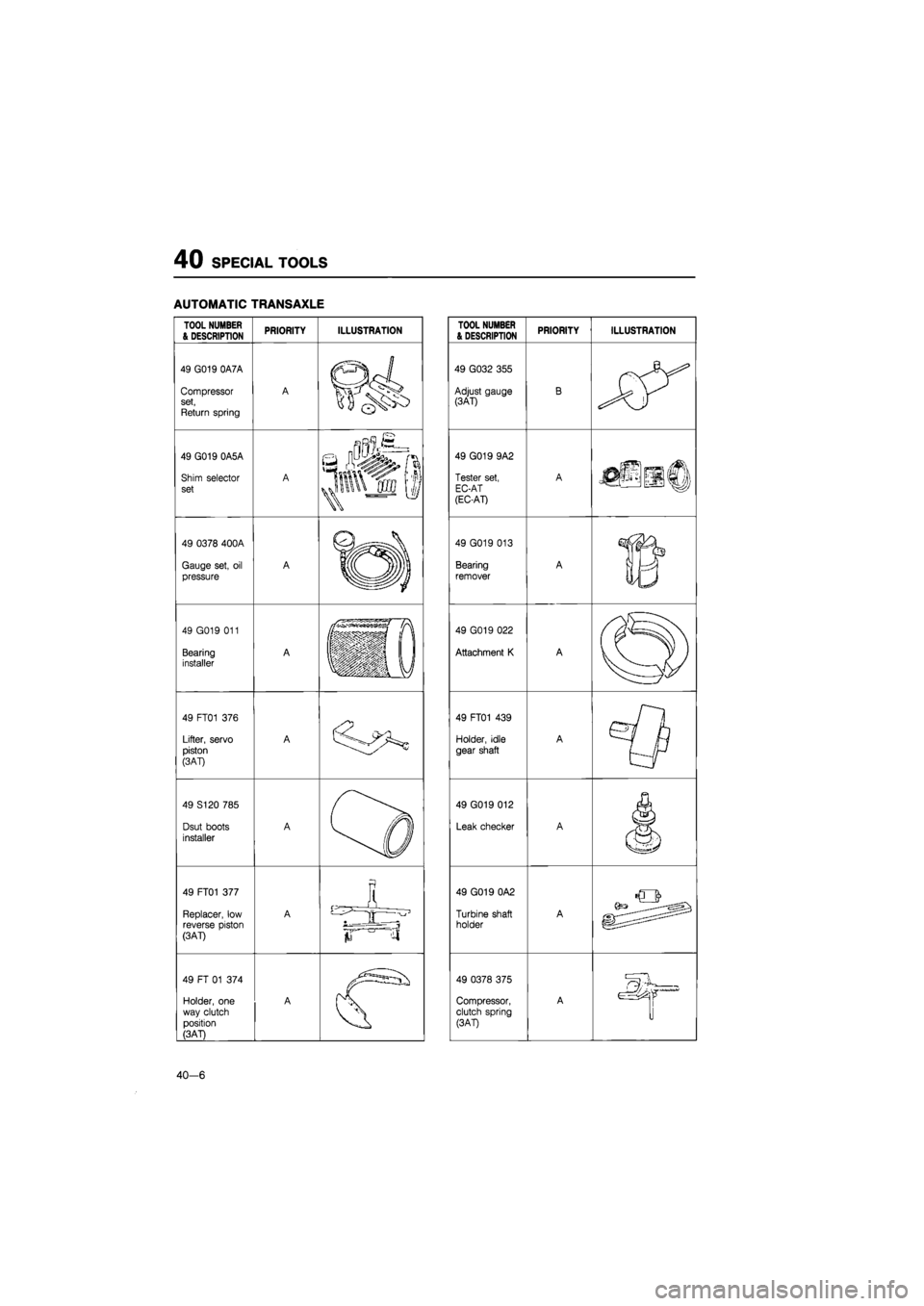

AUTOMATIC TRANSAXLE
TOOL NUMBER & DESCRIPTION PRIORITY ILLUSTRATION

49 G019 0A7A
Compressor set, Return spring
A
49 G019 0A5A
Shim selector set A
a

x|mJen
It
49 0378 400A
Gauge set,
oil

pressure
A

lal

49 G019 011
Bearing installer A
mm H

49 FT01
376

Lifter, servo
piston
(3AT)
A
49 S120 785
Dsut boots
installer
A
49 FT01
377

Replacer,
low
reverse piston (3A1)
A

fl
jr "

49 FT 01
374

Holder,
one
way clutch position (3AT1
A

TOOL NUMBER & DESCRIPTION PRIORITY ILLUSTRATION

49 G032 355
Adjust gauge (3 AT) B
49 G019 9A2
Tester set, EC-AT
(EC-AT)
A
J3||
i®
49 G019 013
Bearing
remover
A

©5

49 G019 022
Attachment
K
A
49 FT01
439

Holder, idle
gear shaft
A
49 G019 012
Leak checker A

I

49 G019 0A2
Turbine shaft holder A

•o

49 0378 375
Compressor, clutch spring (3AT)
A i

U
40-6

40 SPECIAL TOOLS

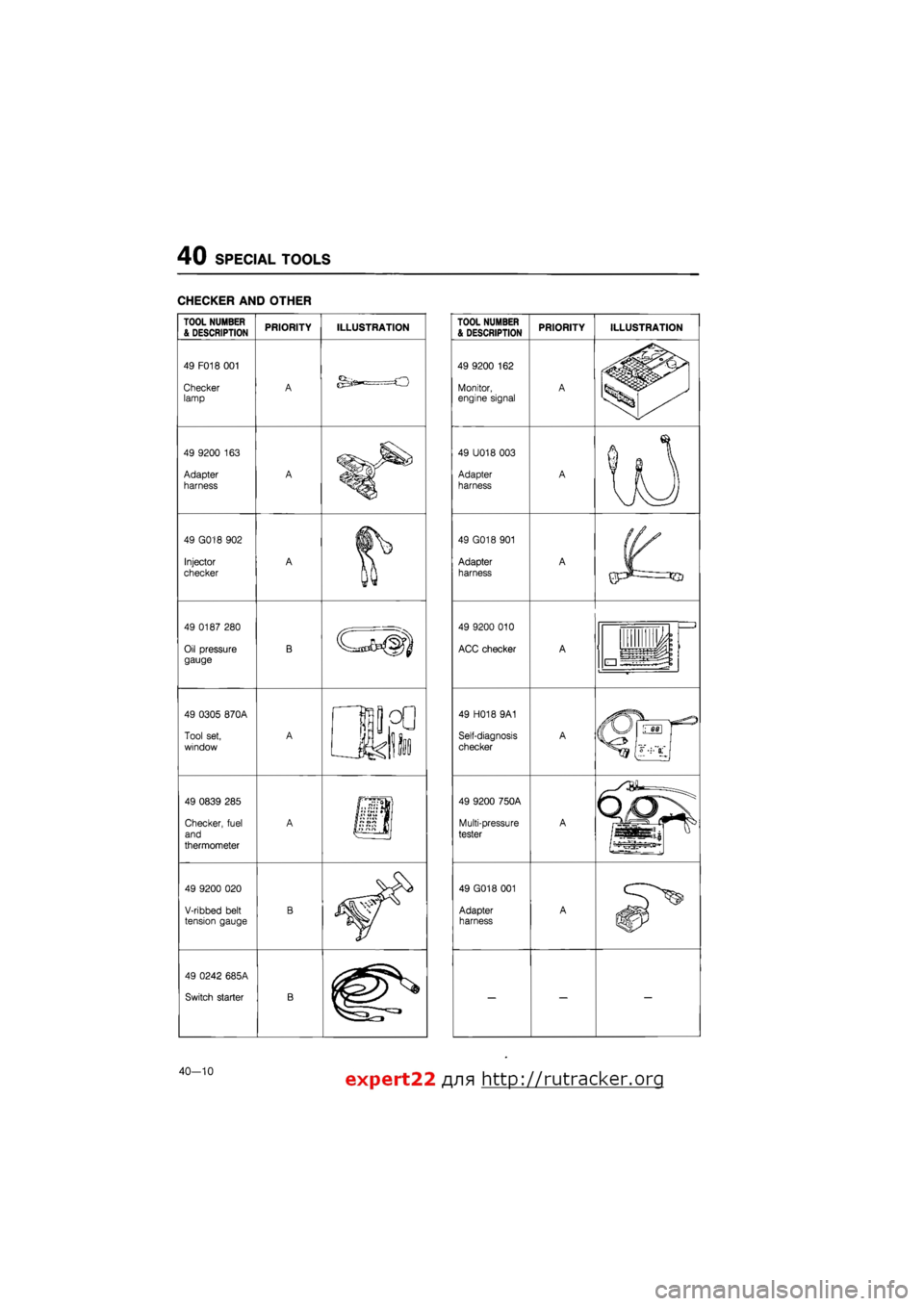

CHECKER AND OTHER
TOOL NUMBER & DESCRIPTION

49 F018 001
Checker lamp
49 9200
163

Adapter
harness
49 G018 902
Injector
checker
49 0187 280
Oil pressure gauge
49 0305 870A
Tool set,
window
49 0839 285
Checker, fuel
and
thermometer
49 9200
020

V-ribbed belt tension gauge
49 0242 685A
Switch starter

PRIORITY ILLUSTRATION TOOL NUMBER & DESCRIPTION

49 9200
162

Monitor, engine signal
49 U018 003
Adapter harness
49 G018 901
Adapter
harness
49 9200 010
ACC checker
49 H018 9A1
Self-diagnosis
checker
49 9200 750A
Multi-pressure
tester
49 G018 001
Adapter harness

PRIORITY ILLUSTRATION
