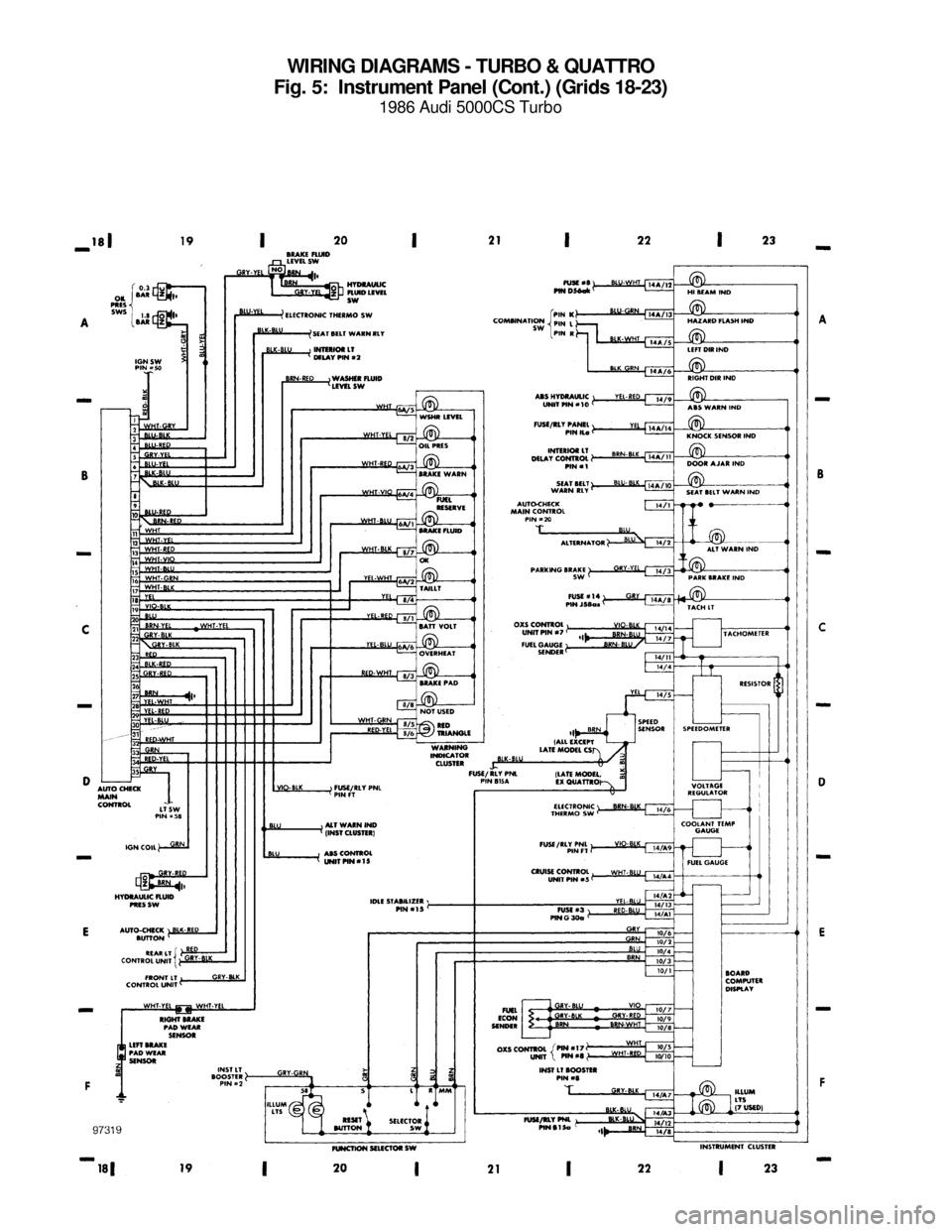

AUDI 5000CS 1986 C2 System Wiring Diagram WIRING DIAGRAMS - TURBO & QUATTRO Fig. 5: Instrument Panel (Cont.) (Grids 18-23) 1986 Audi 5000CS Turbo For x Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:5

Page 26 of 27

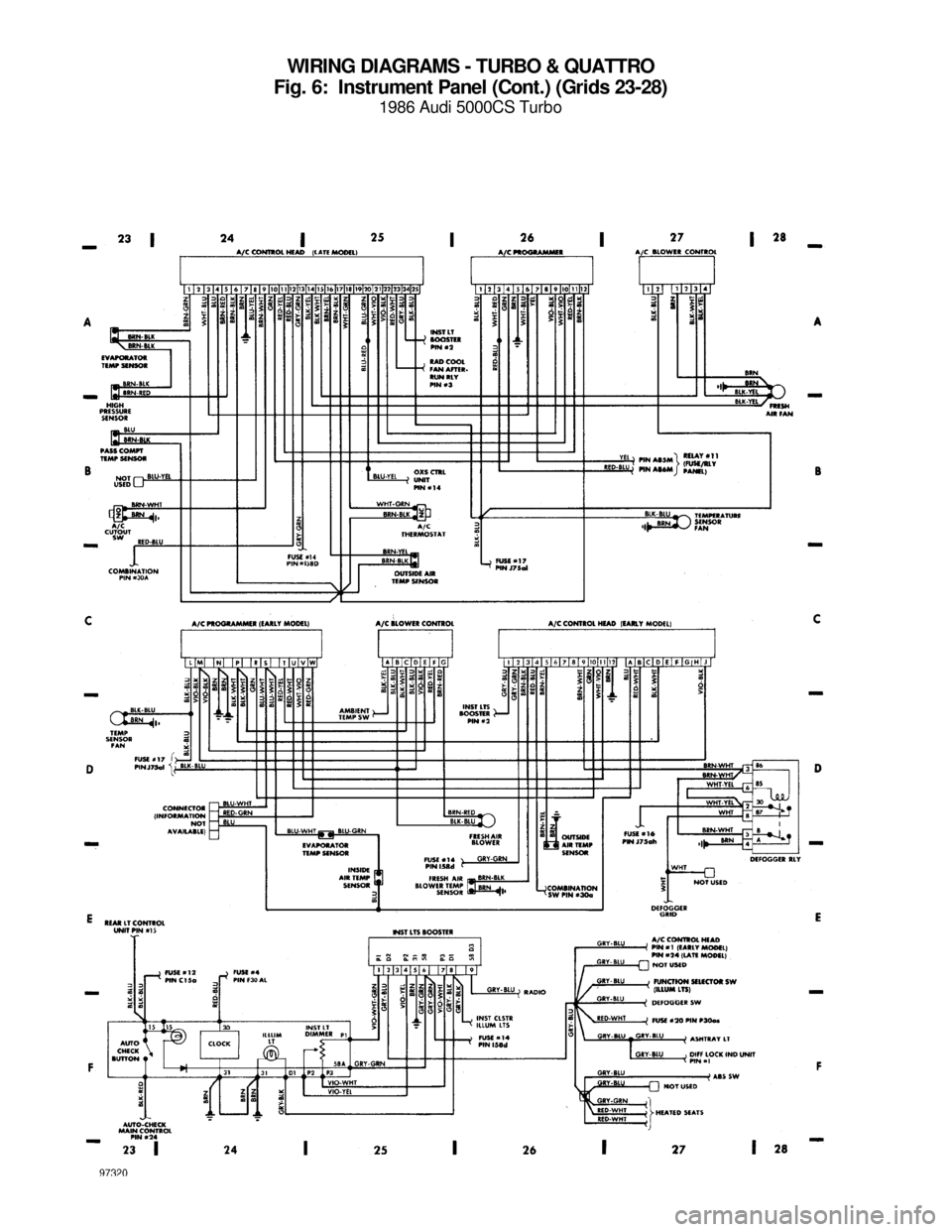

AUDI 5000CS 1986 C2 System Wiring Diagram WIRING DIAGRAMS - TURBO & QUATTRO Fig. 6: Instrument Panel (Cont.) (Grids 23-28) 1986 Audi 5000CS Turbo For x Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:5

Page 27 of 27

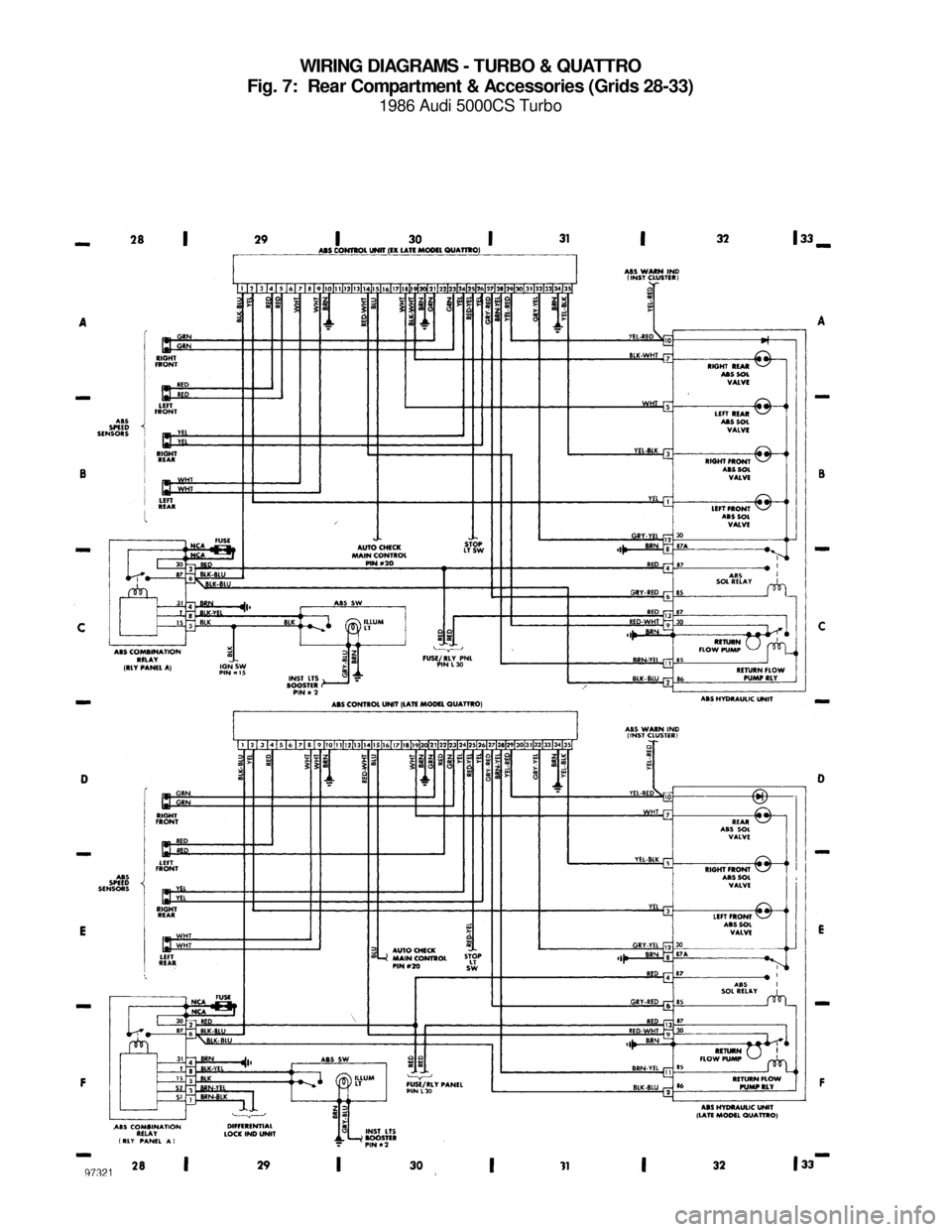

AUDI 5000CS 1986 C2 System Wiring Diagram WIRING DIAGRAMS - TURBO & QUATTRO Fig. 7: Rear Compartment & Accessories (Grids 28-33) 1986 Audi 5000CS Turbo For x Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004
