1986 AUDI 5000CS System Wiring Diagram

SYSTEM WIRING DIAGRAMS
Power Window Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM

WIRING DIAGRAMS - TURBO & QUATTRO

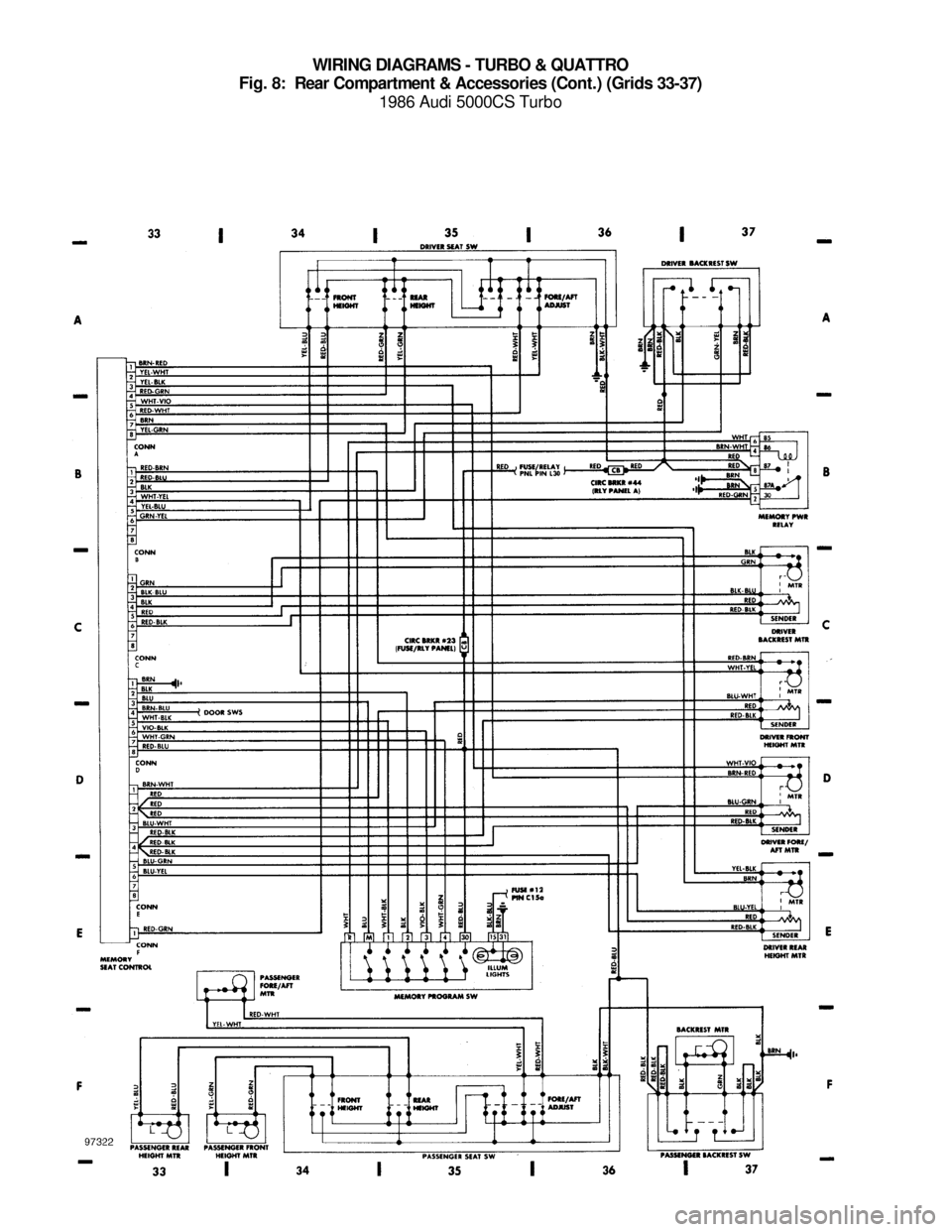

Fig. 8: Rear Compartment & Accessories (Cont.) (Grids 33-37)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO
Fig. 9: Rear Compartment & Accessories (Cont.) (Grids 37-42)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO

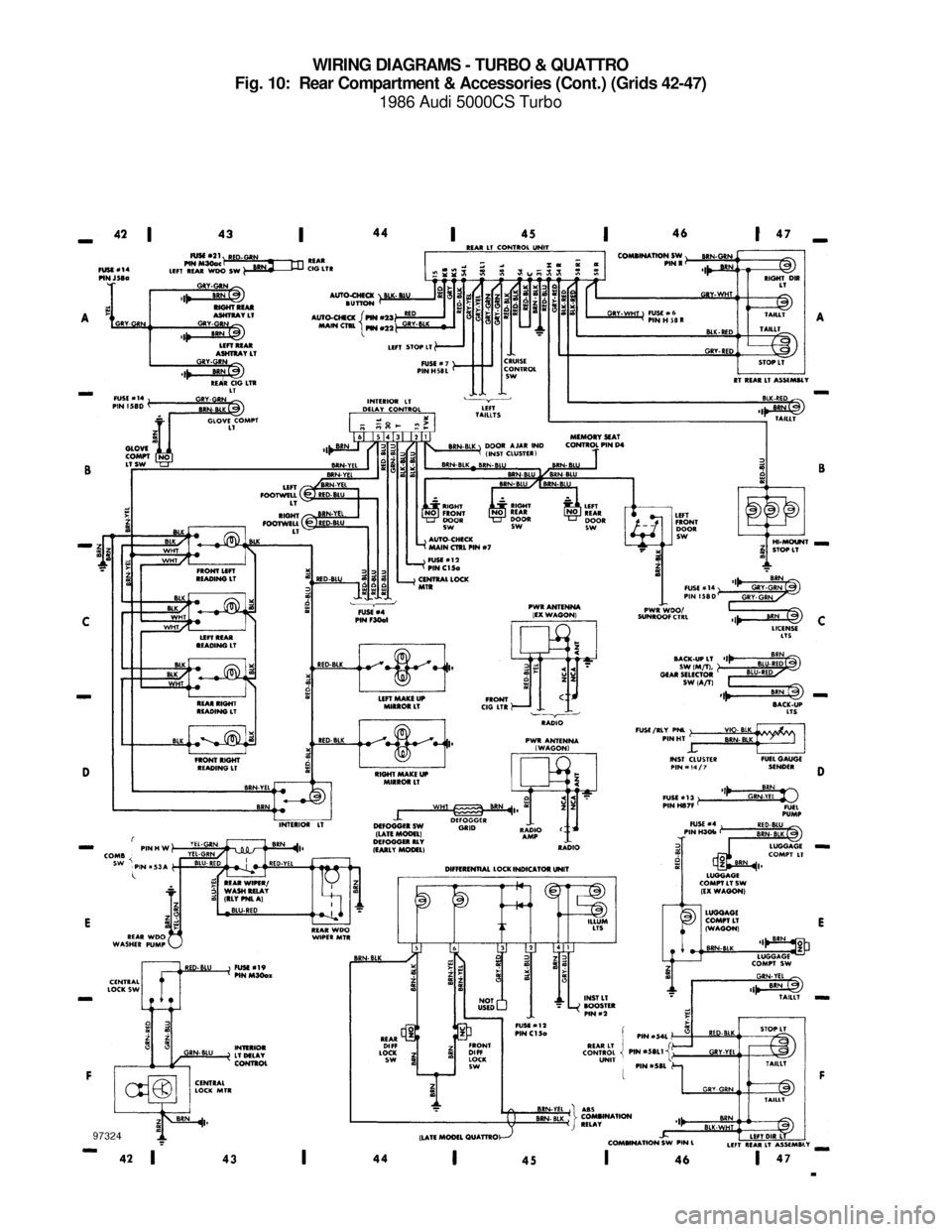

Fig. 10: Rear Compartment & Accessories (Cont.) (Grids 42-47)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO
Fig. 1: Engine Compartment (Grids 1-4)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO

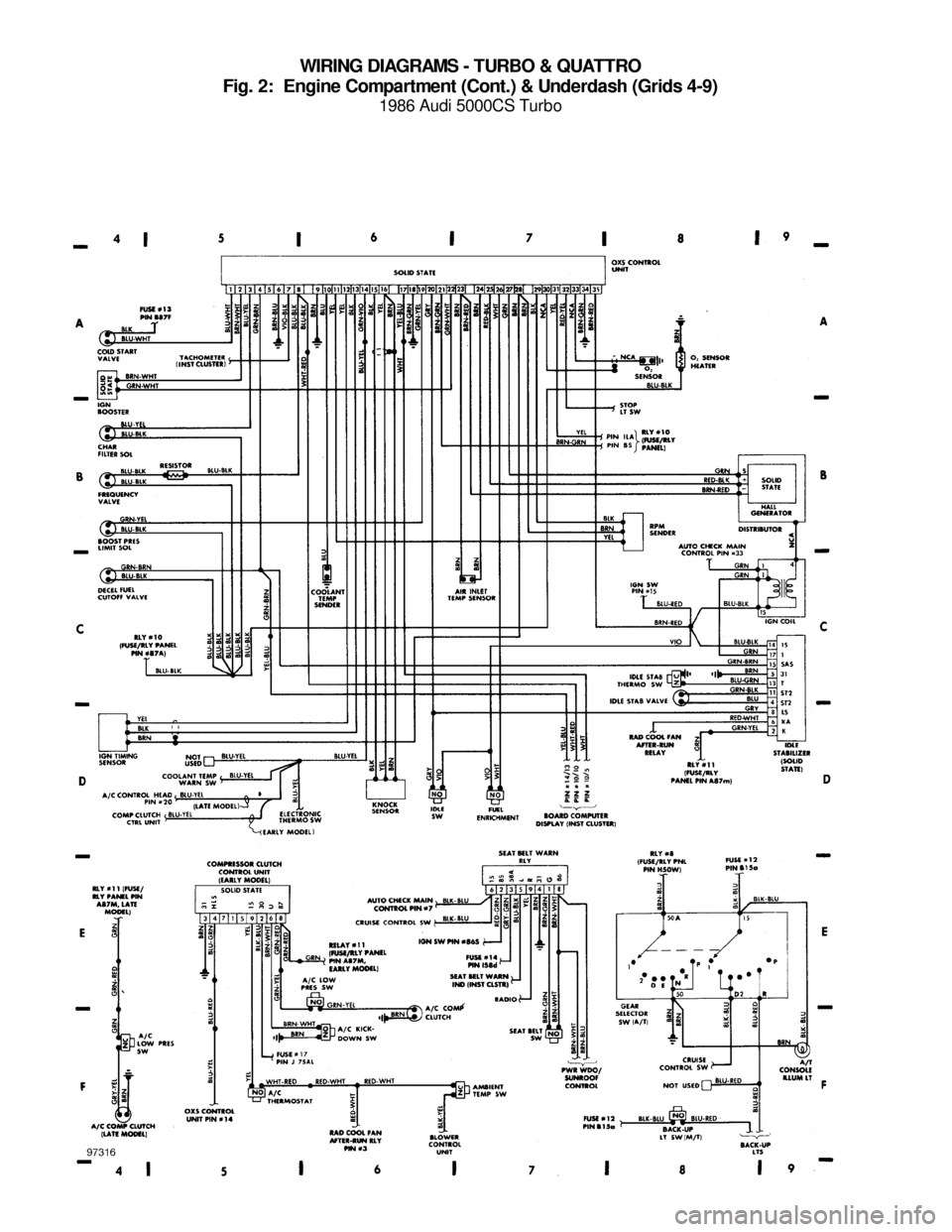

Fig. 2: Engine Compartment (Cont.) & Underdash (Grids 4-9)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO
Fig. 3: Underdash (Cont.) & Fuse Block (Grids 9-14)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM

WIRING DIAGRAMS - TURBO & QUATTRO

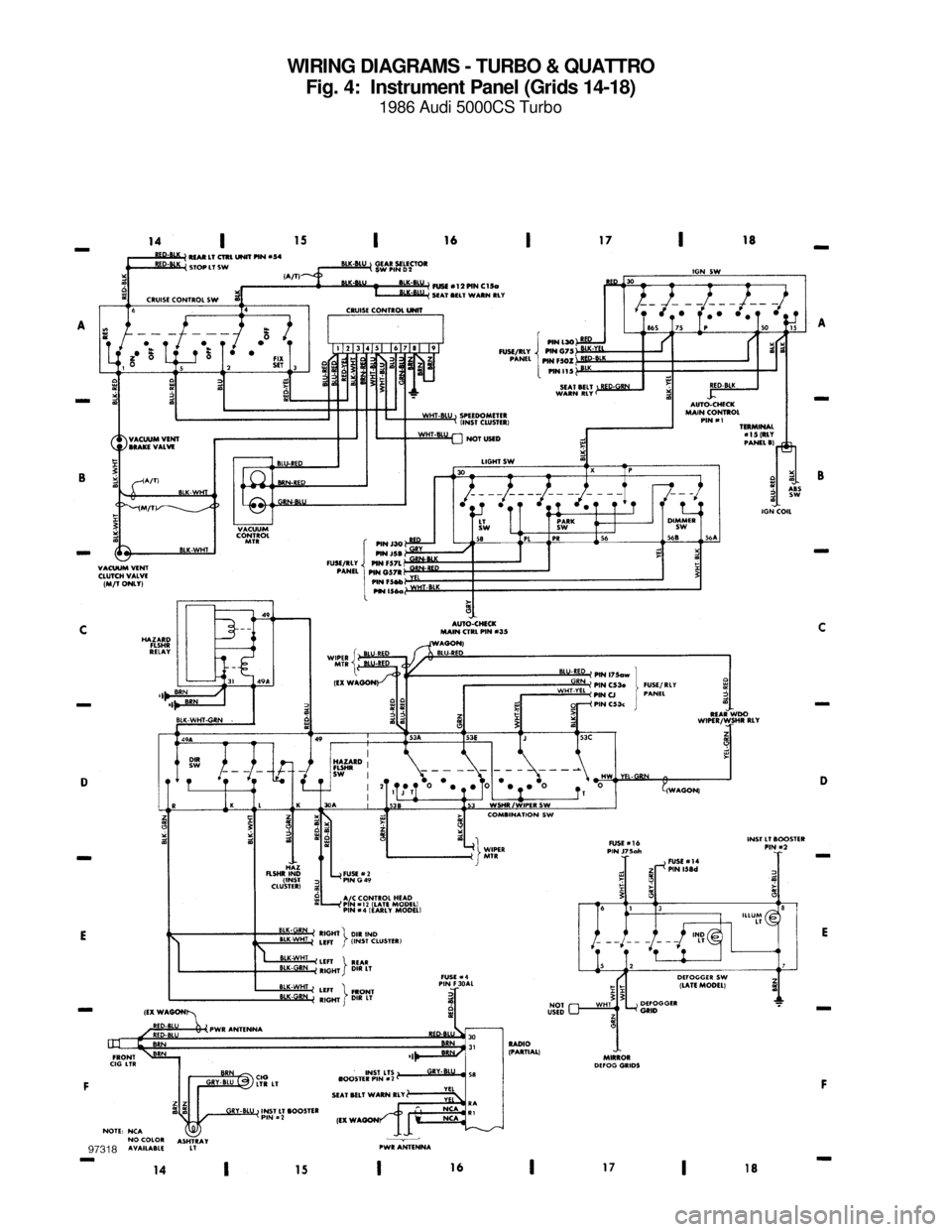

Fig. 4: Instrument Panel (Grids 14-18)
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:55PM
