Page 9 of 27
SYSTEM WIRING DIAGRAMS
Defogger Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:51PM
Page 10 of 27
SYSTEM WIRING DIAGRAMS
Horn Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 11 of 27
SYSTEM WIRING DIAGRAMS

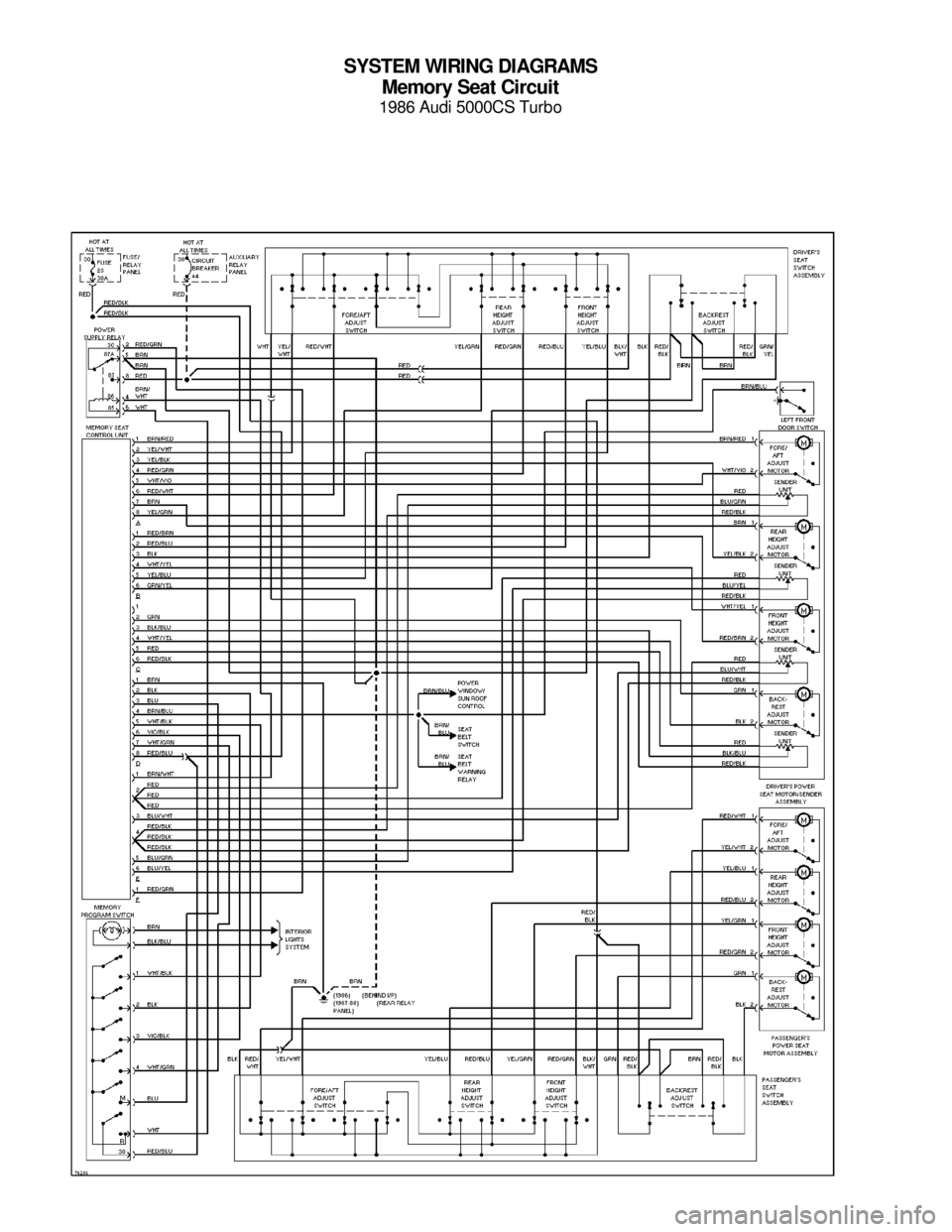

Memory Seat Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 12 of 27
SYSTEM WIRING DIAGRAMS

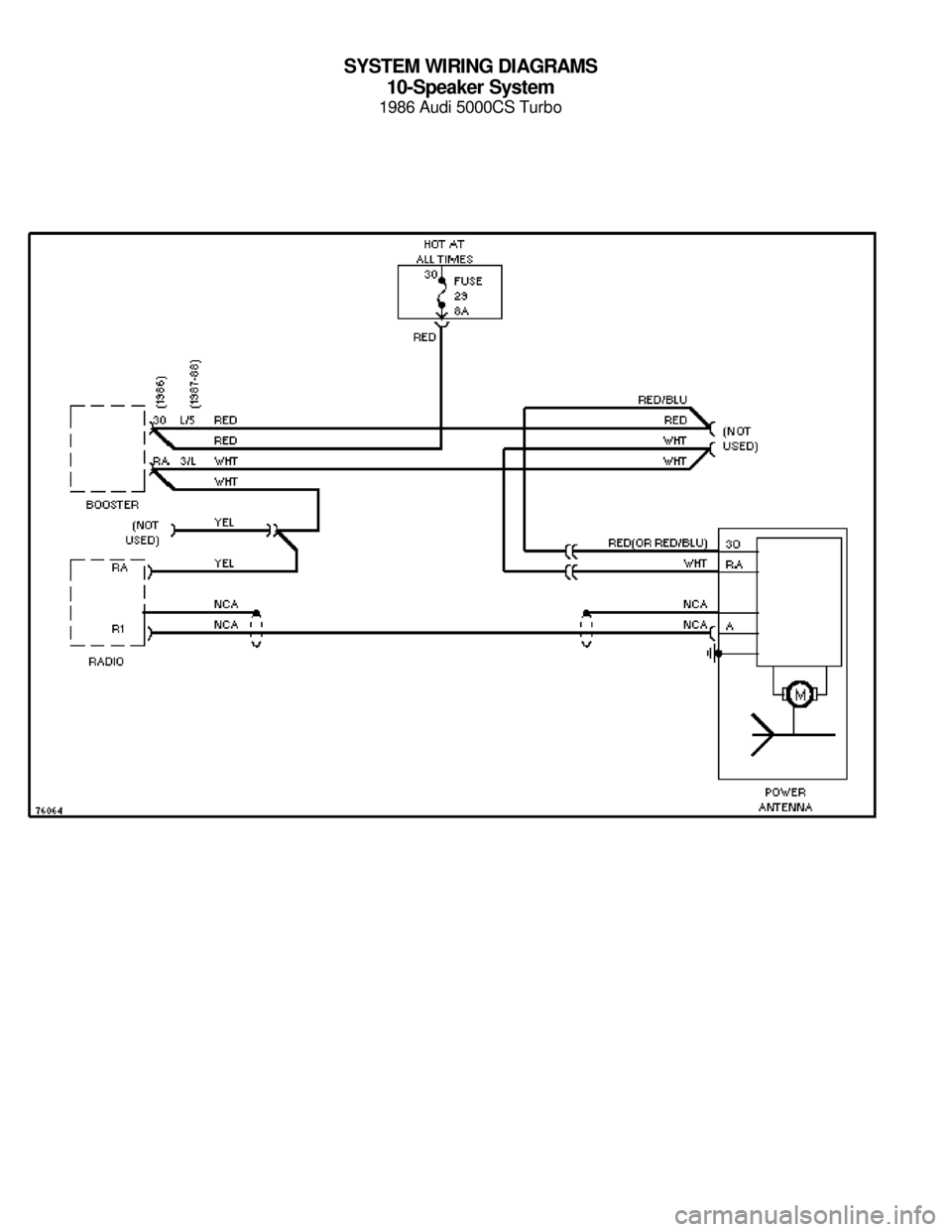

10-Speaker System
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 13 of 27
SYSTEM WIRING DIAGRAMS

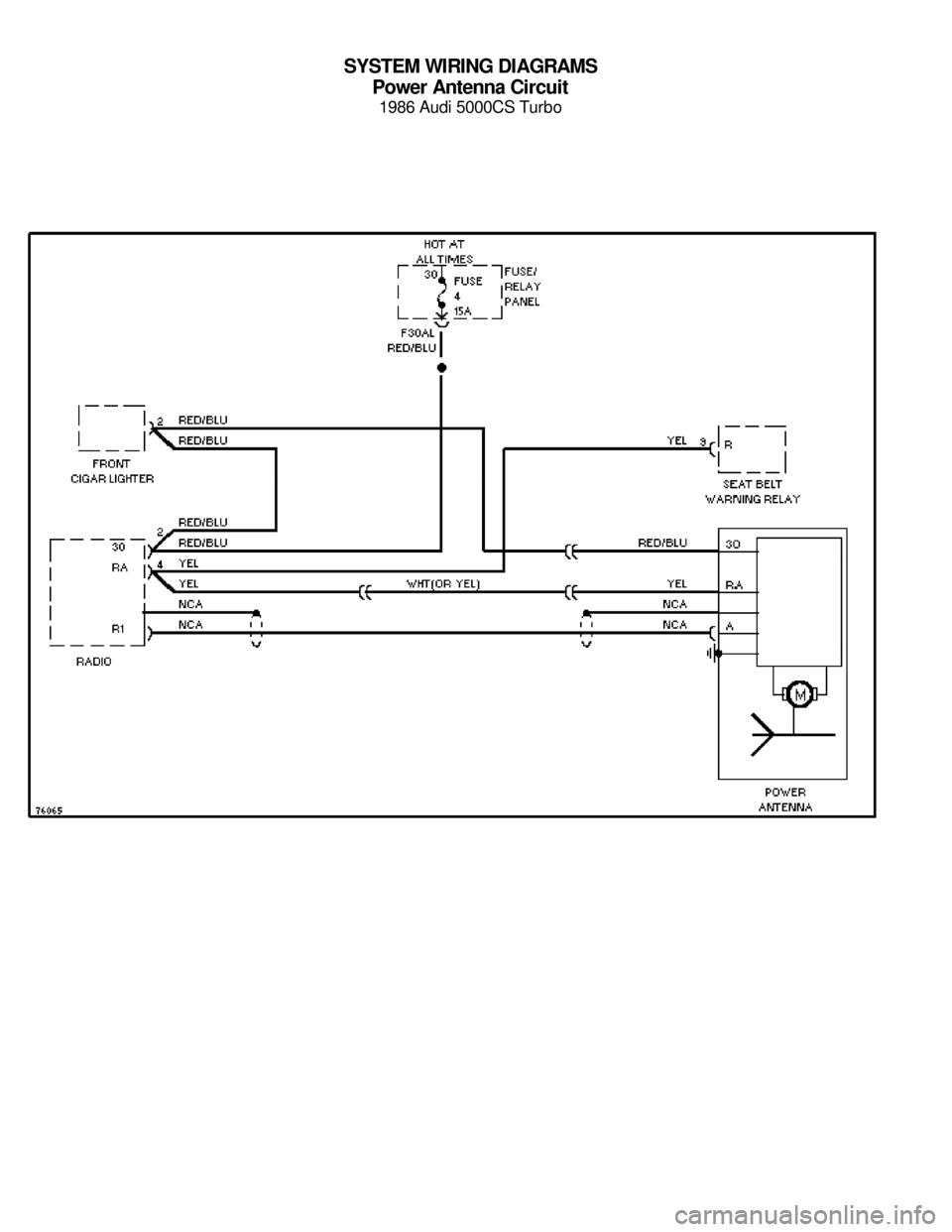

Power Antenna Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 14 of 27
SYSTEM WIRING DIAGRAMS

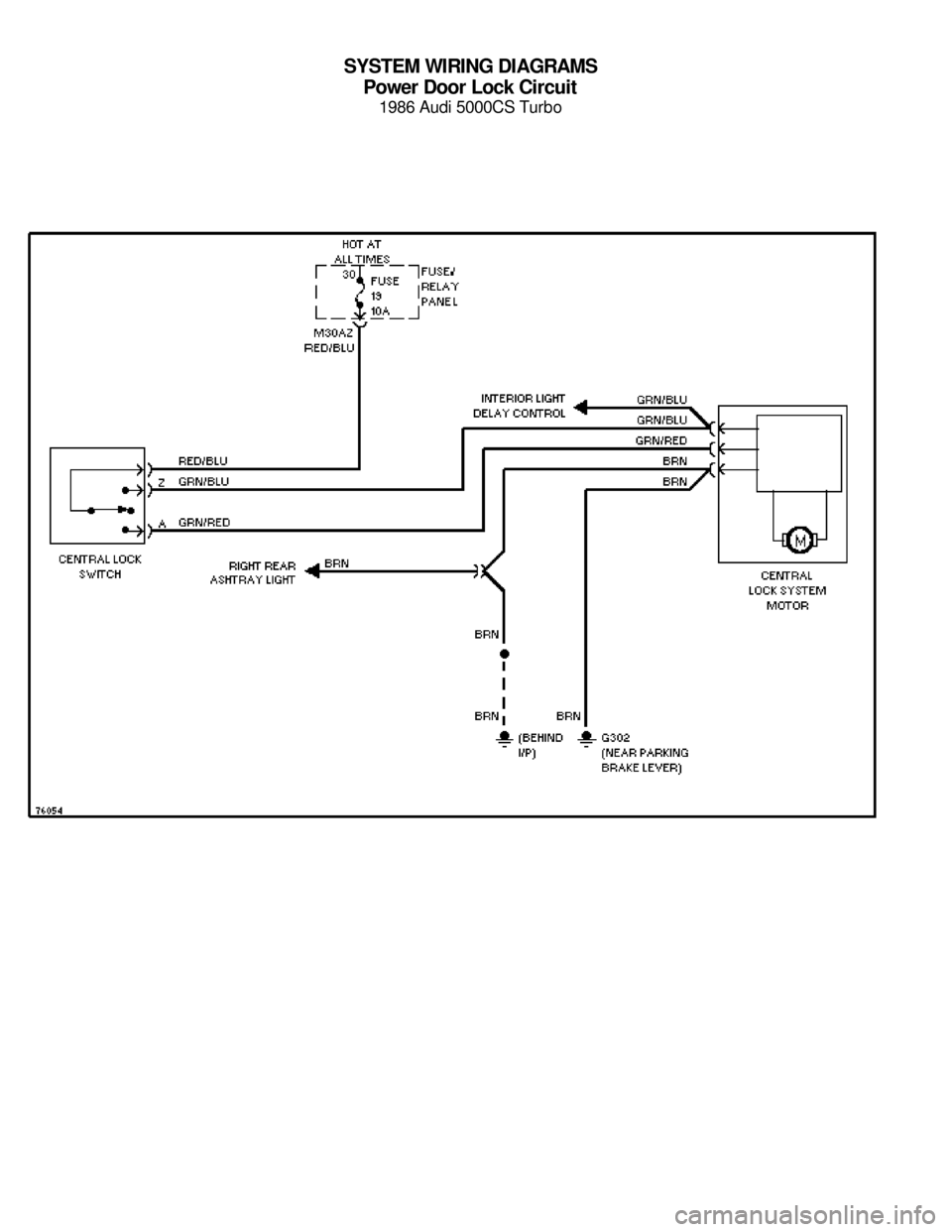

Power Door Lock Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 15 of 27
SYSTEM WIRING DIAGRAMS

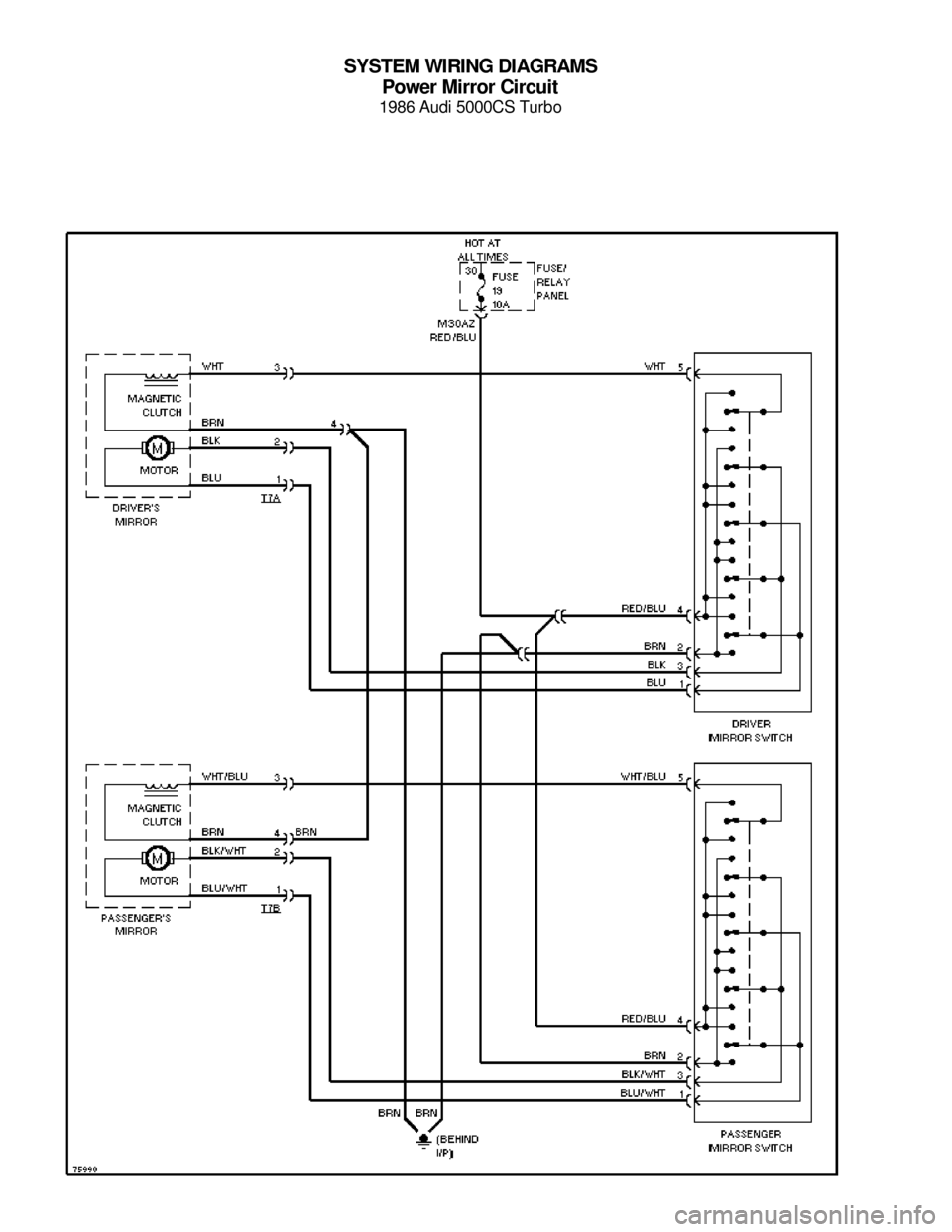

Power Mirror Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
Page 16 of 27
SYSTEM WIRING DIAGRAMS

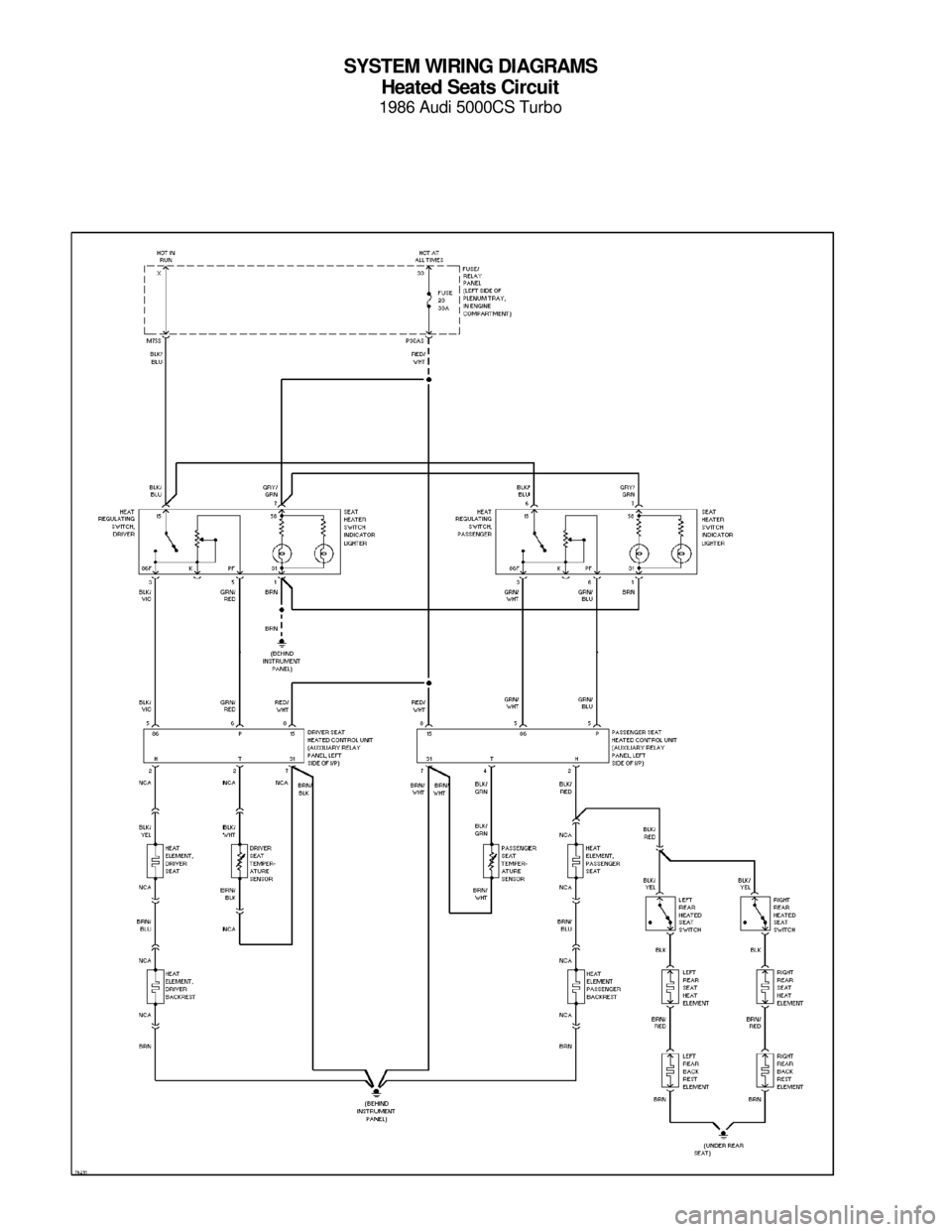

Heated Seats Circuit
1986 Audi 5000CS Turbo
For x
Copyright © 1998 Mitchell Repair Information Company, LLCMonday, July 19, 2004 05:52PM
