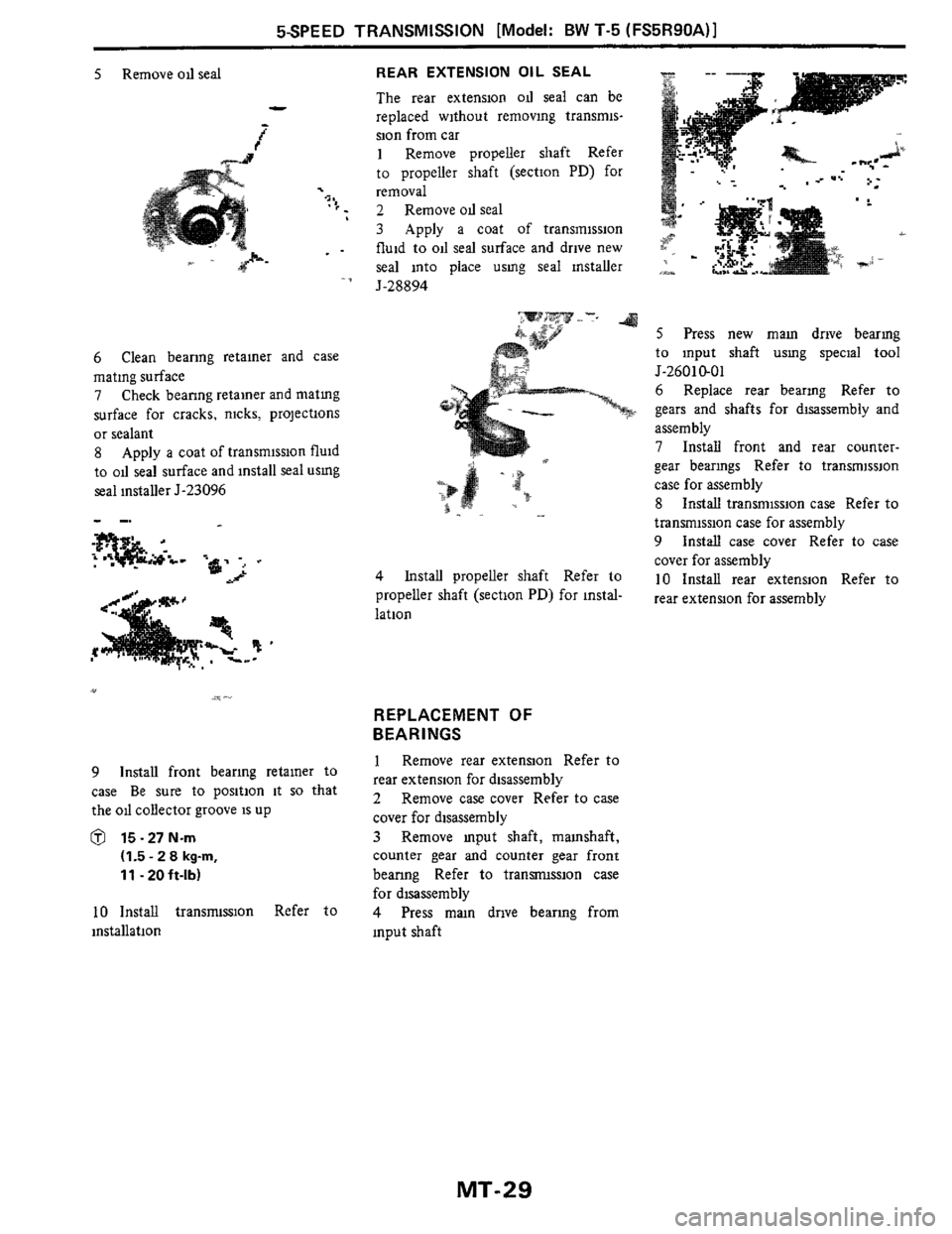

SSPEED TRANSMISSION [Model: BW T-5 (FS5R90A)l
5 Remove oil seal
6 Clean bearing retainer and case
mating surface
7 Check beanng retainer and matmg
surface for cracks, nicks, projections
or sealant
8 Apply a coat of transmission fluid
to oil seal surface and install seal usmg
seal installer J-23096
- -.
REAR EXTENSION OIL SEAL
The rear extension oll seal can be
replaced without removing transmis-
sion from car
1 Remove propeller shaft Refer
to propeller shaft (section
PD) for
removal
2 Remove oll seal
3 Apply a coat of transmission
fluid
to oil seal surface and drive new
seal into place
usmg seal installer
J-28894
4 Install propeller shaft Refer to
propeller shaft (section
PD) for instal-
lation
REPLACEMENT OF
BEARINGS
9 Install front bearing retainer to
case Be sure to position
it so that
the
oil collector groove is up
@ 15.27N.m
(1.5 - 2 8 kg-m,
11 -20ft-lbl
10 Install transmission Refer to
installation
1 Remove rear extension Refer to
rear extension for disassembly
2 Remove case cover Refer
to case
cover for disassembly
3 Remove mput shaft, mmshaft,
counter gear
and counter gear front
beanng Refer to tranmission case
for disassembly
4 Press man drive bearmg from
input shaft
5 Press new mam drive bearmg
to mput shaft usmg special tool
J-26010-01 6 Replace rear bearmg Refer
to
gears and shafts for disassembly and
assembly
7 Install front and rear counter-
gear bearmgs Refer to transmission
case for assembly
8 Install transmission case Refer to
transmission case for assembly
9 Install case cover Refer to case
cover for assembly
10 Install rear extension Refer to
rear extension for assembly
MT-29
