1984 BMW 633csi Electrical Troubleshooting Manual

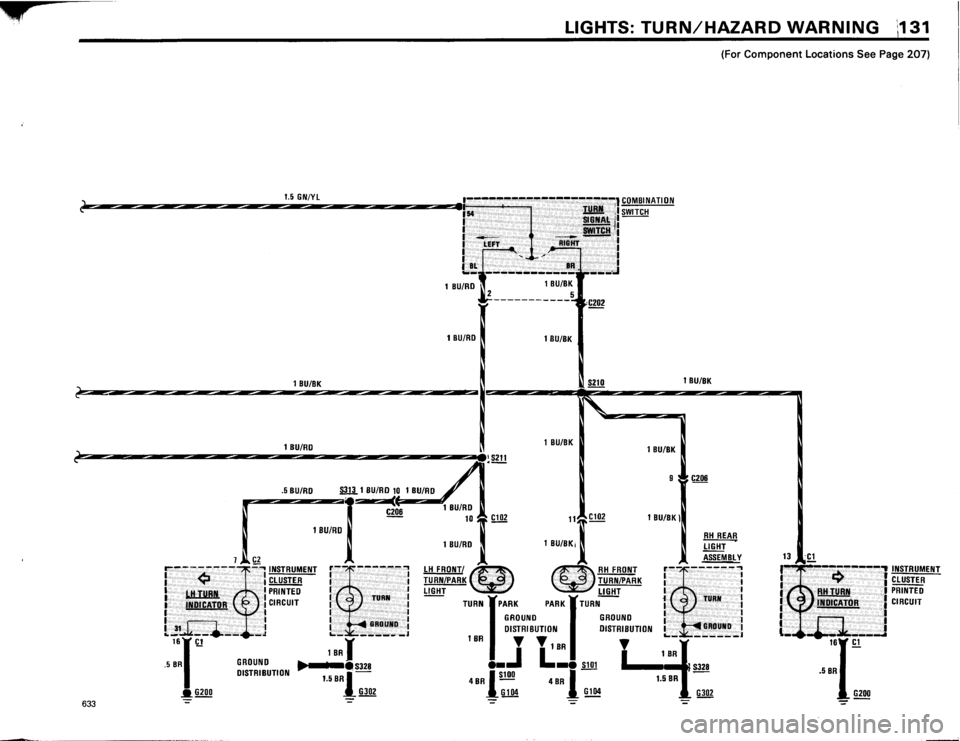

Page 41 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

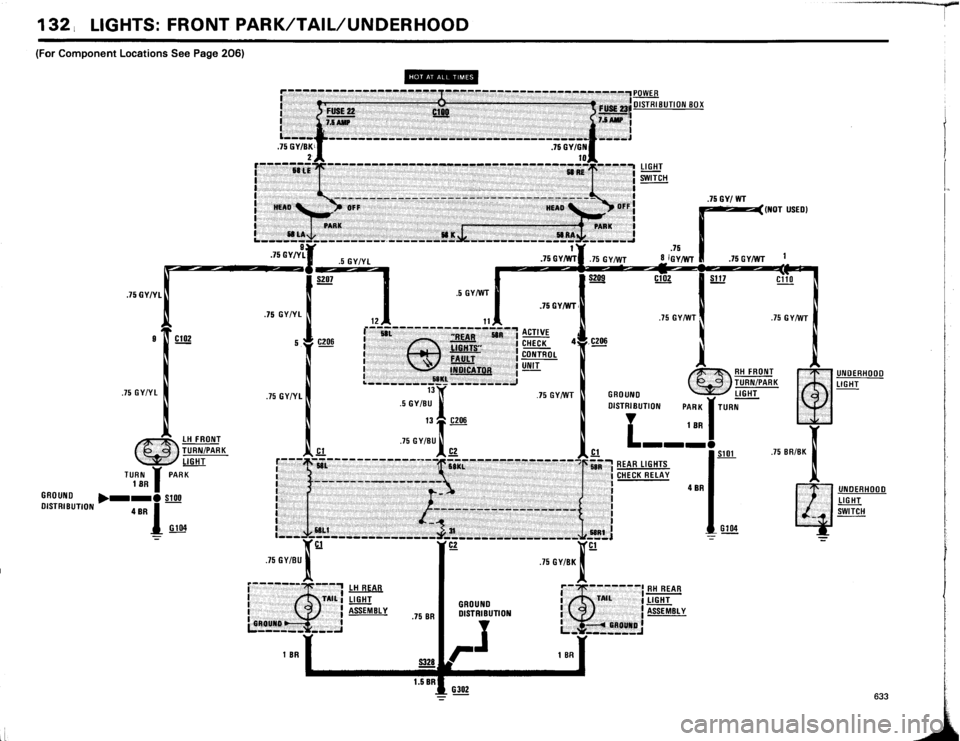

Page 42 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

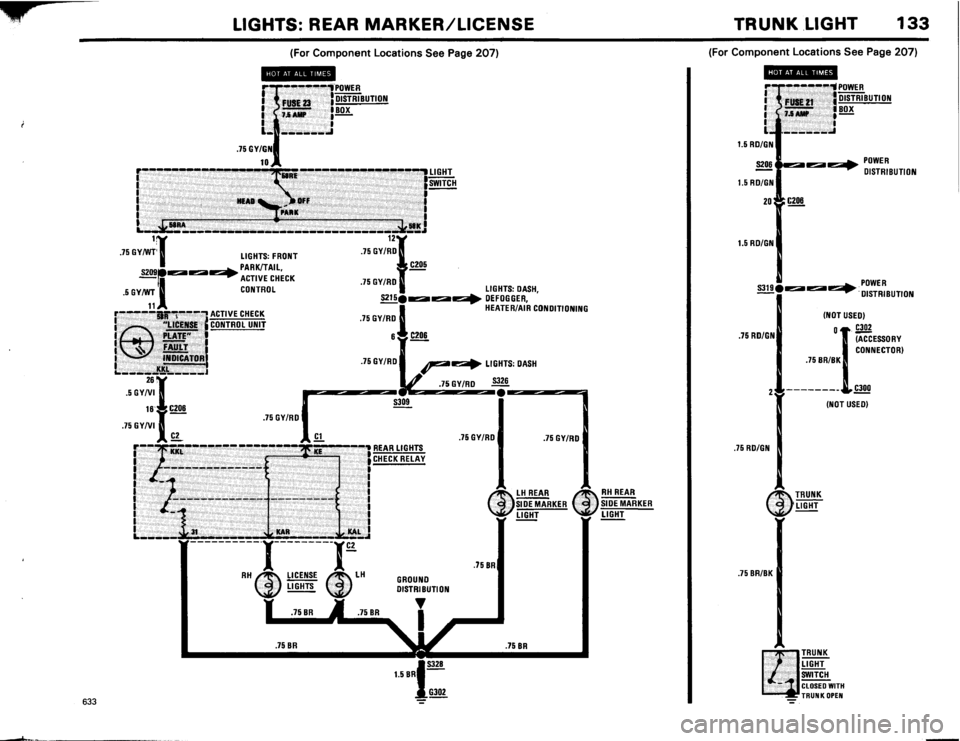

Page 43 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

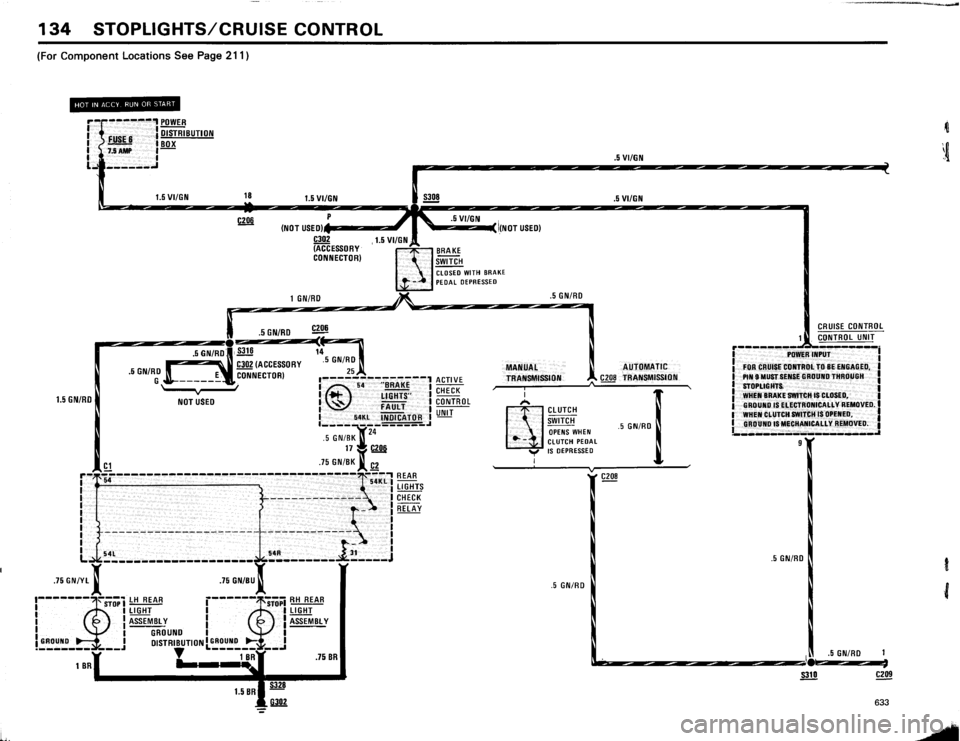

Page 44 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

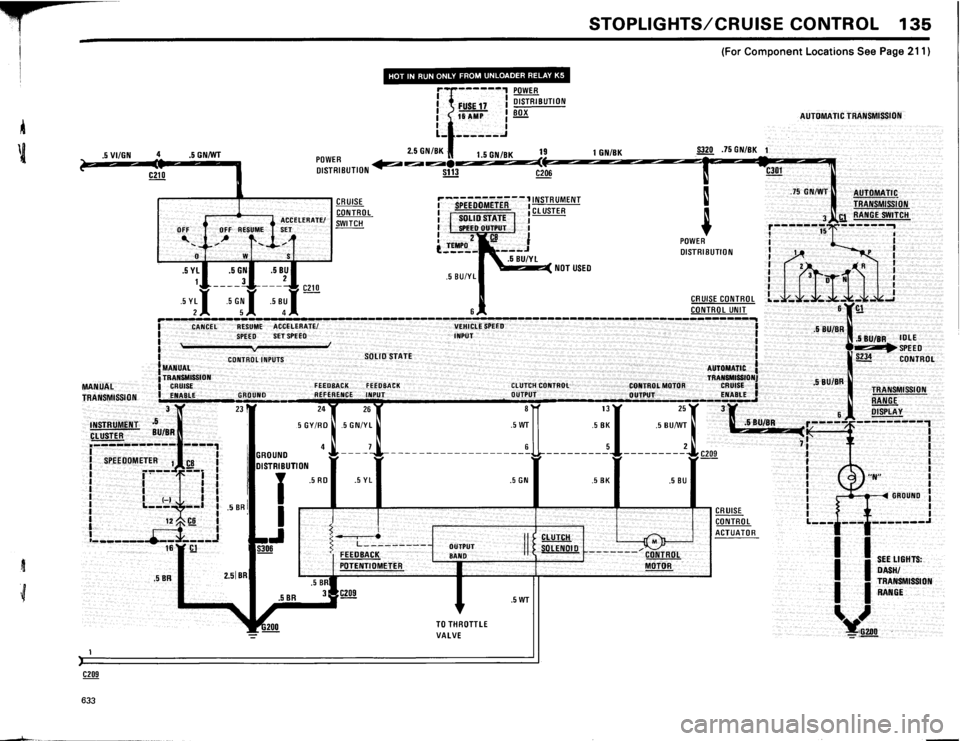

Page 45 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

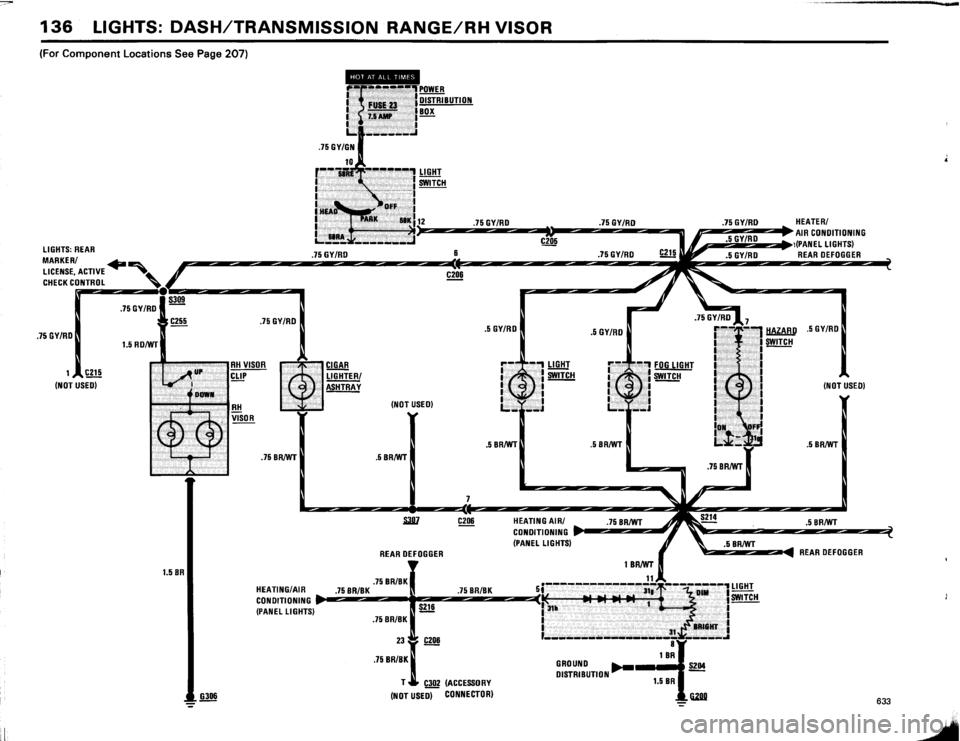

Page 46 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

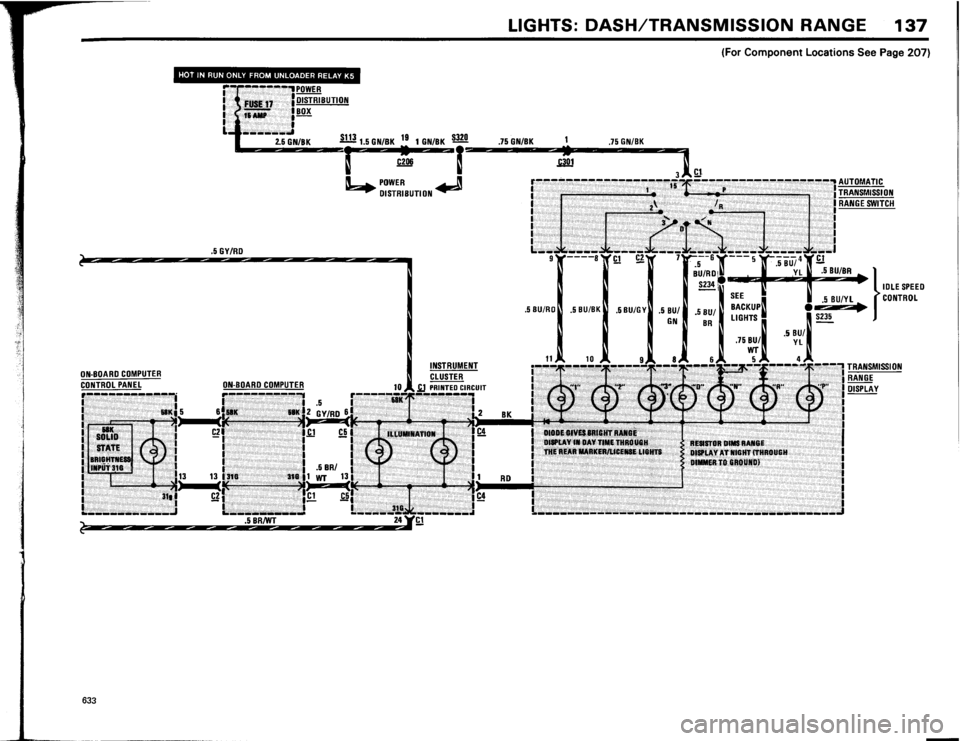

Page 47 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

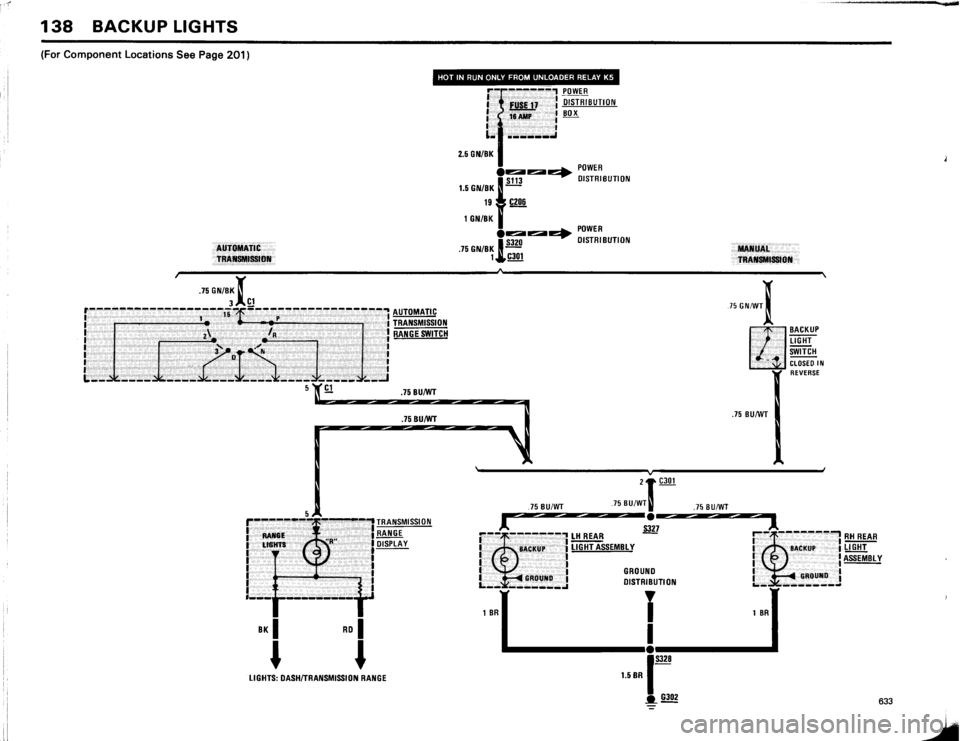

Page 48 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual
