1984 BMW 633csi Electrical Troubleshooting Manual

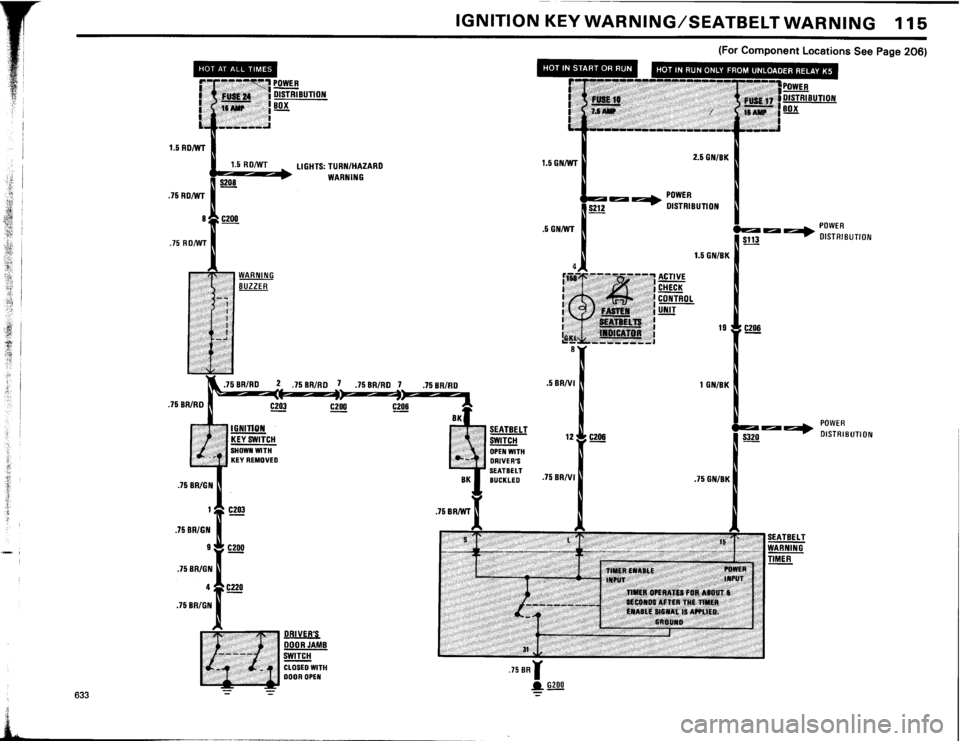

Page 25 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

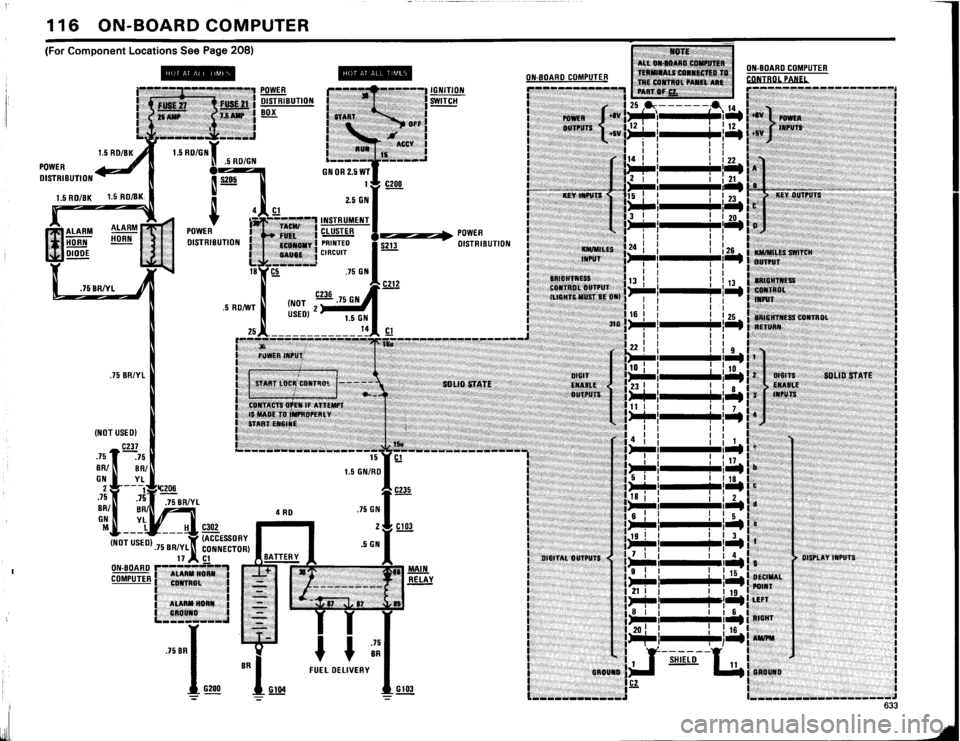

Page 26 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

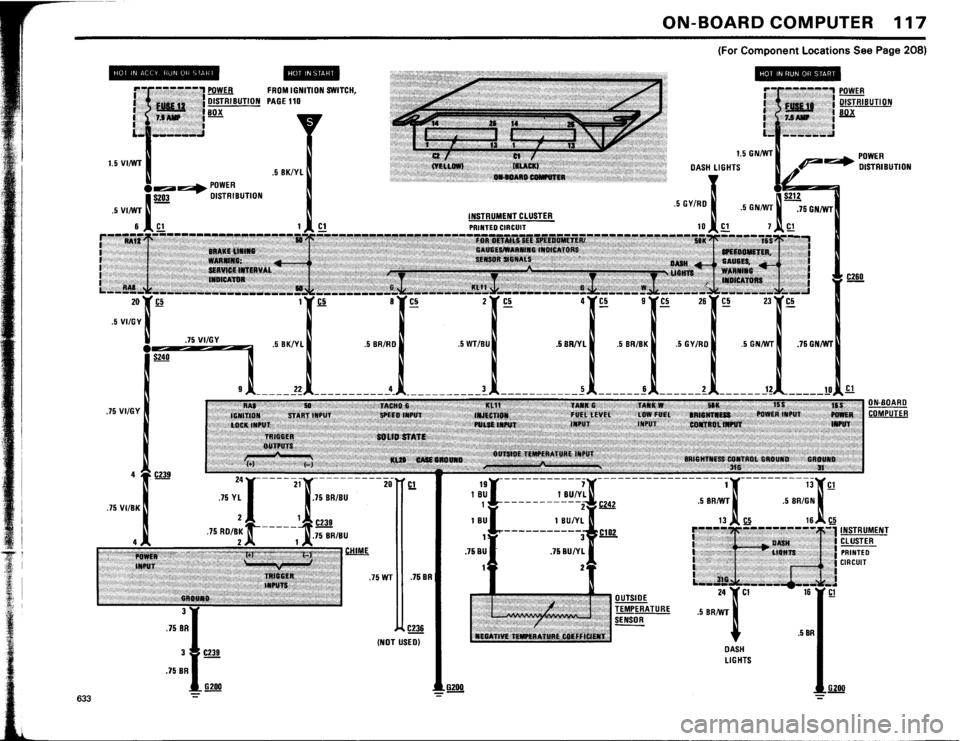

Page 27 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

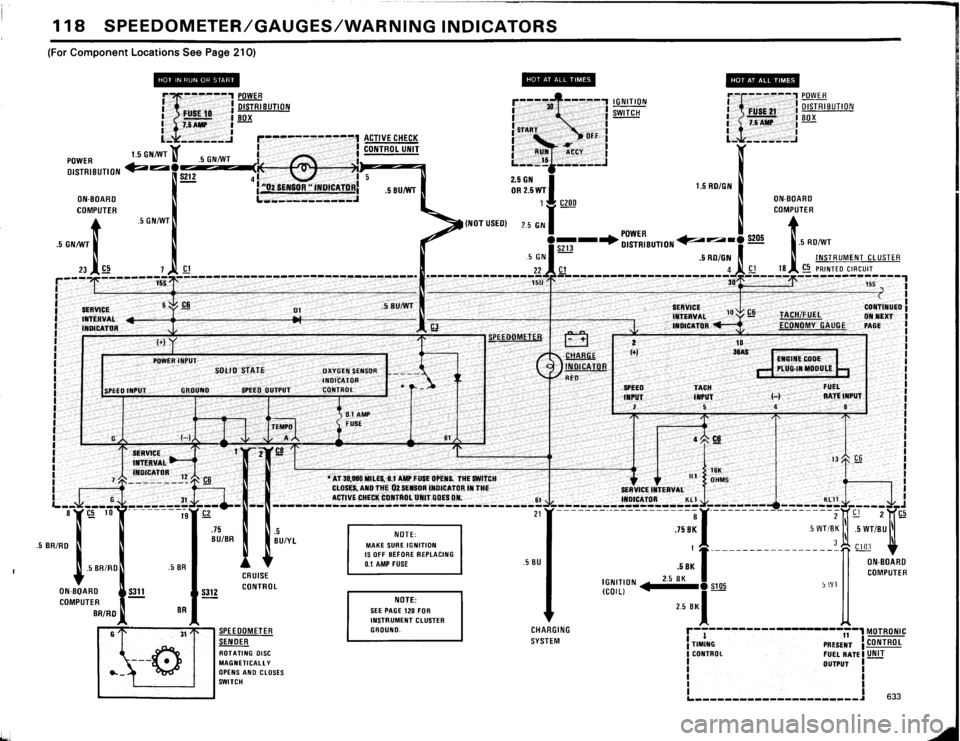

Page 28 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

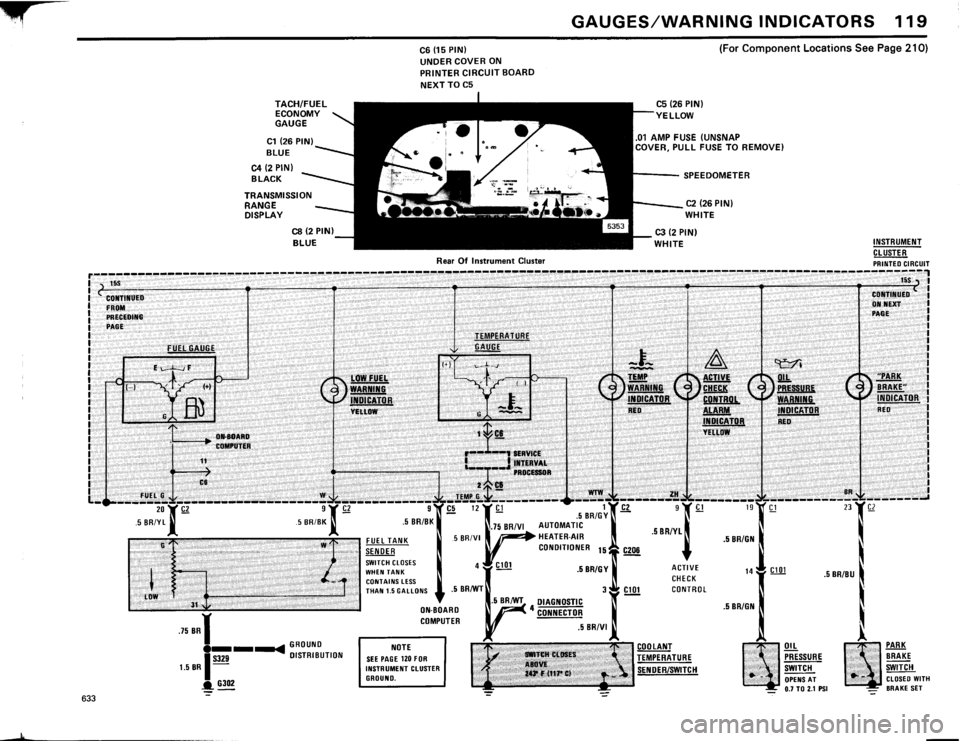

Page 29 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

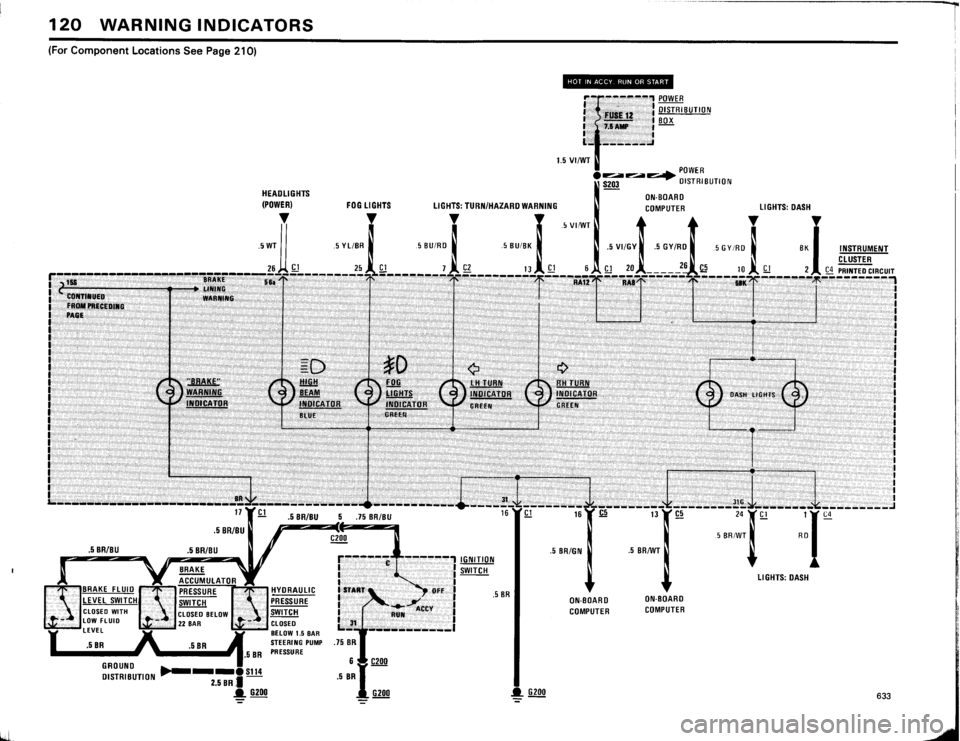

Page 30 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

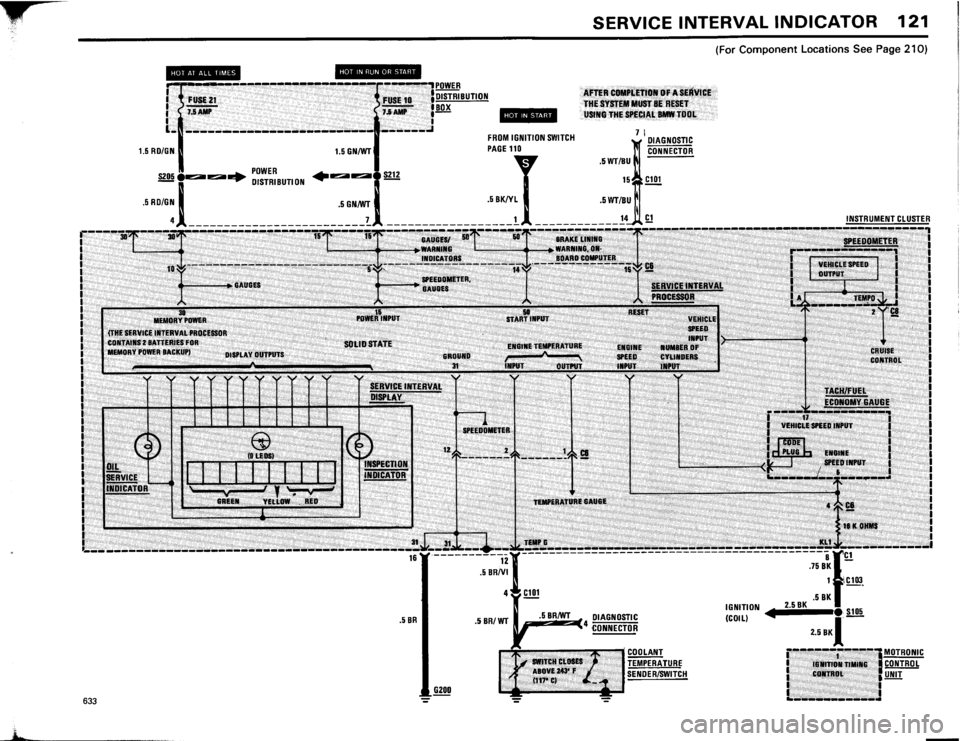

Page 31 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

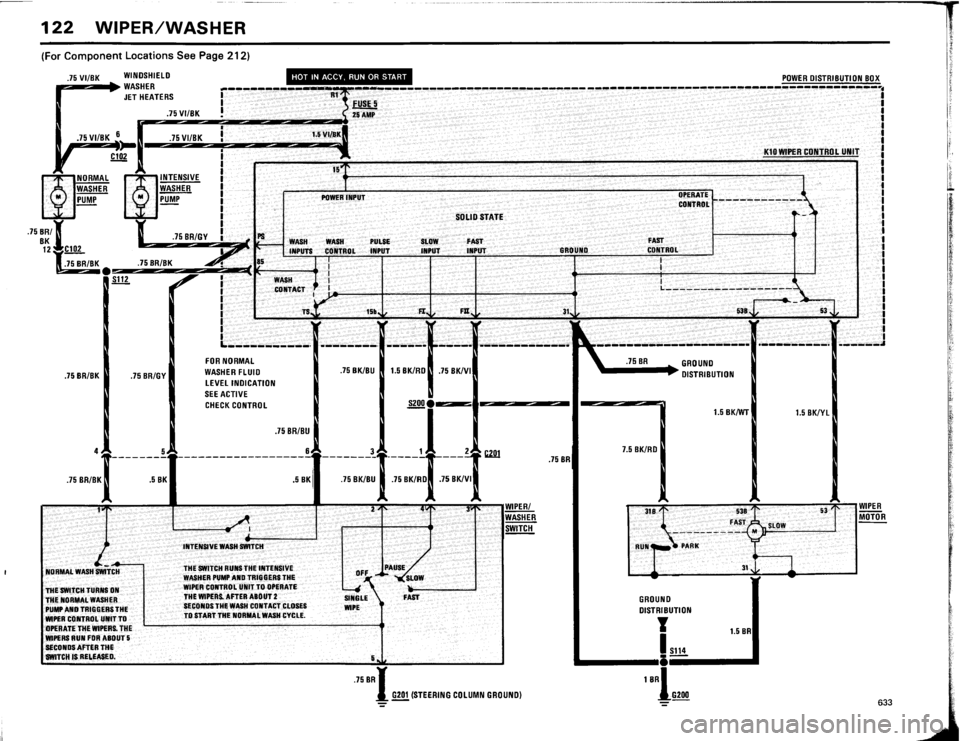

Page 32 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual
