1984 BMW 633csi Electrical Troubleshooting Manual

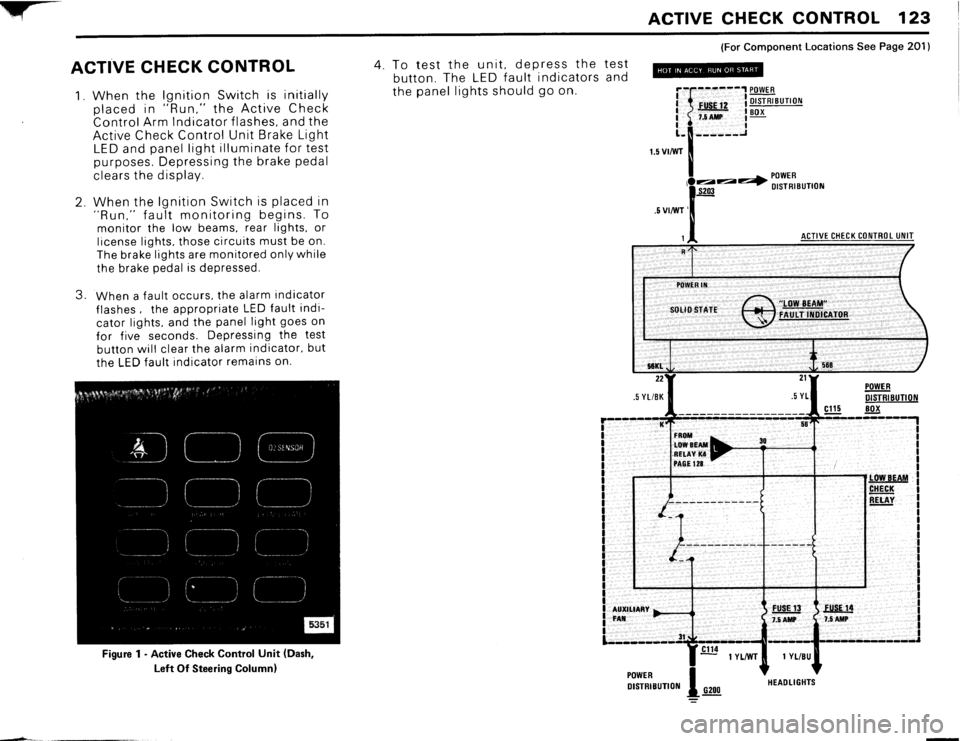

Page 33 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

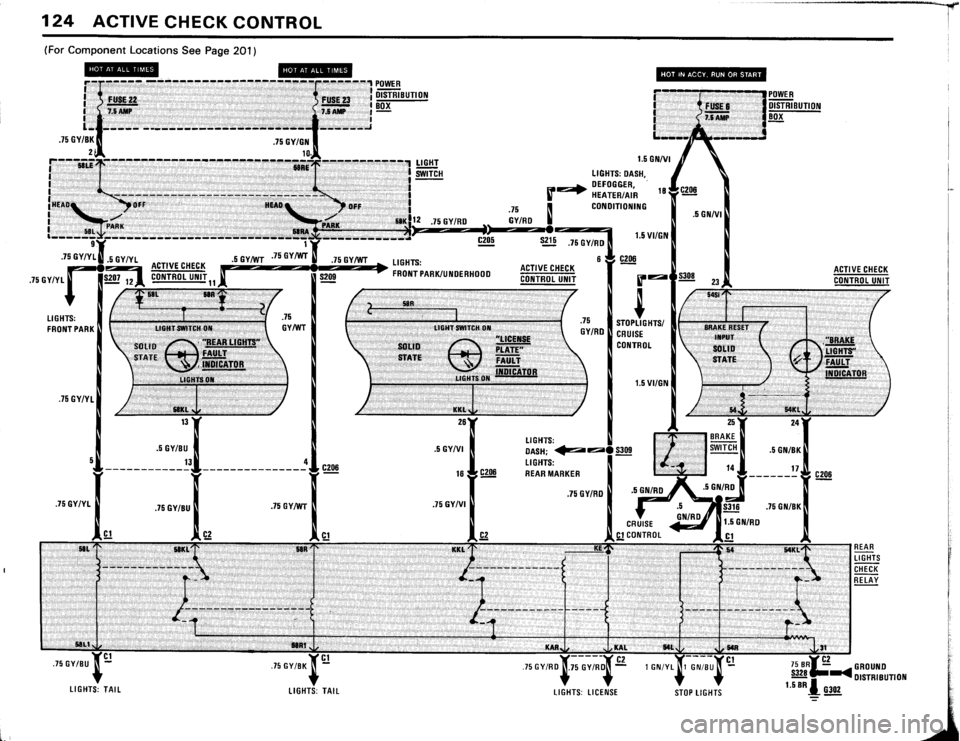

Page 34 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

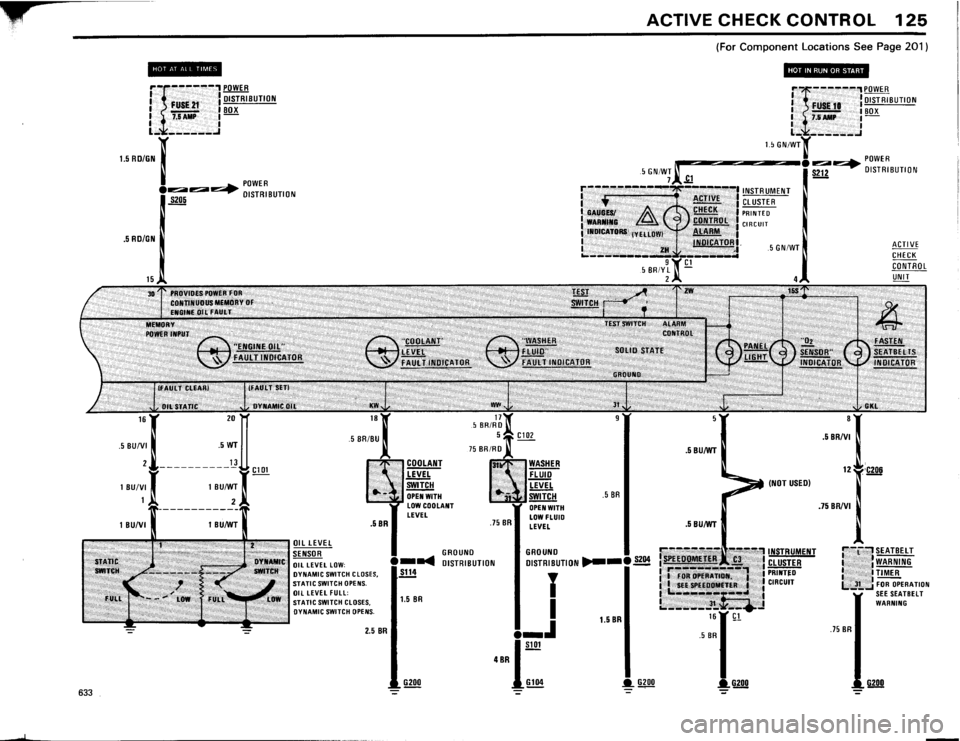

Page 35 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

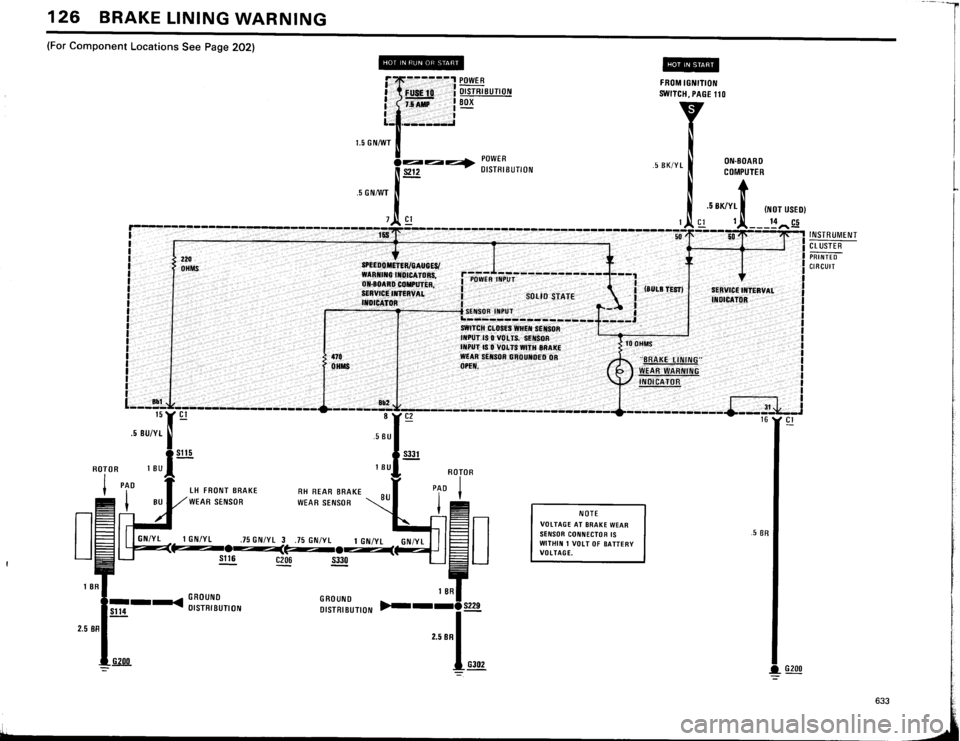

Page 36 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

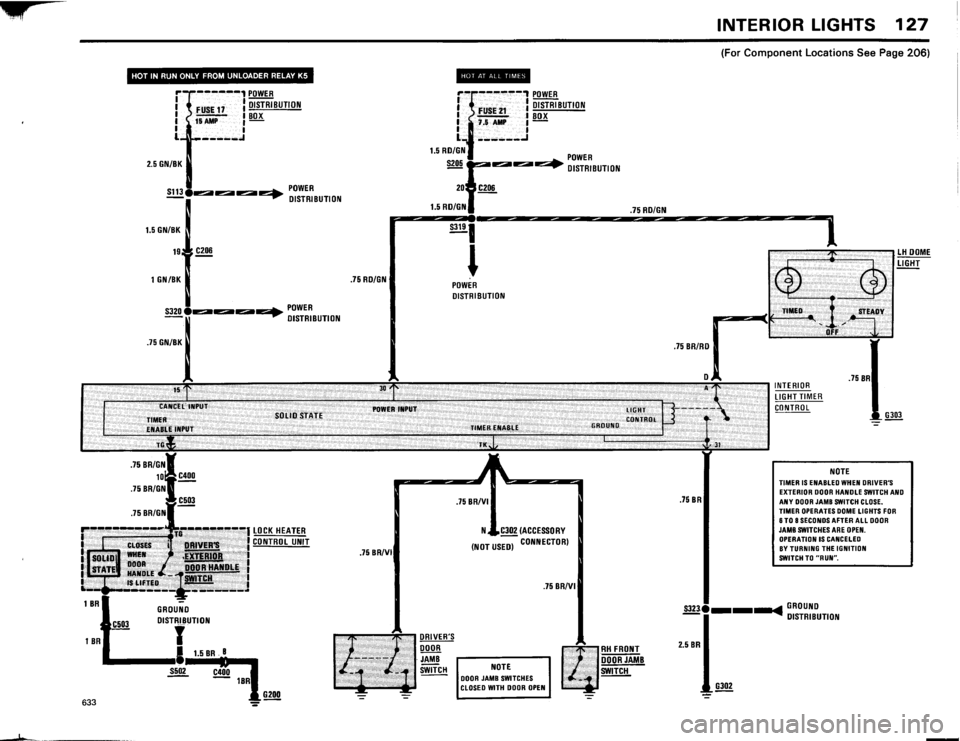

Page 37 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

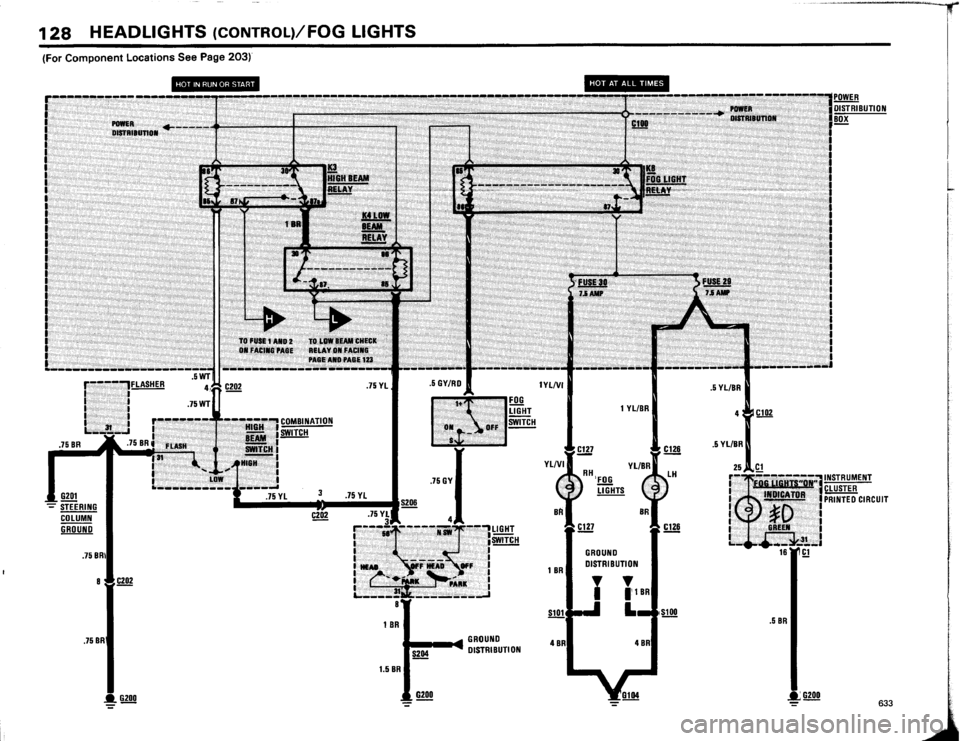

Page 38 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

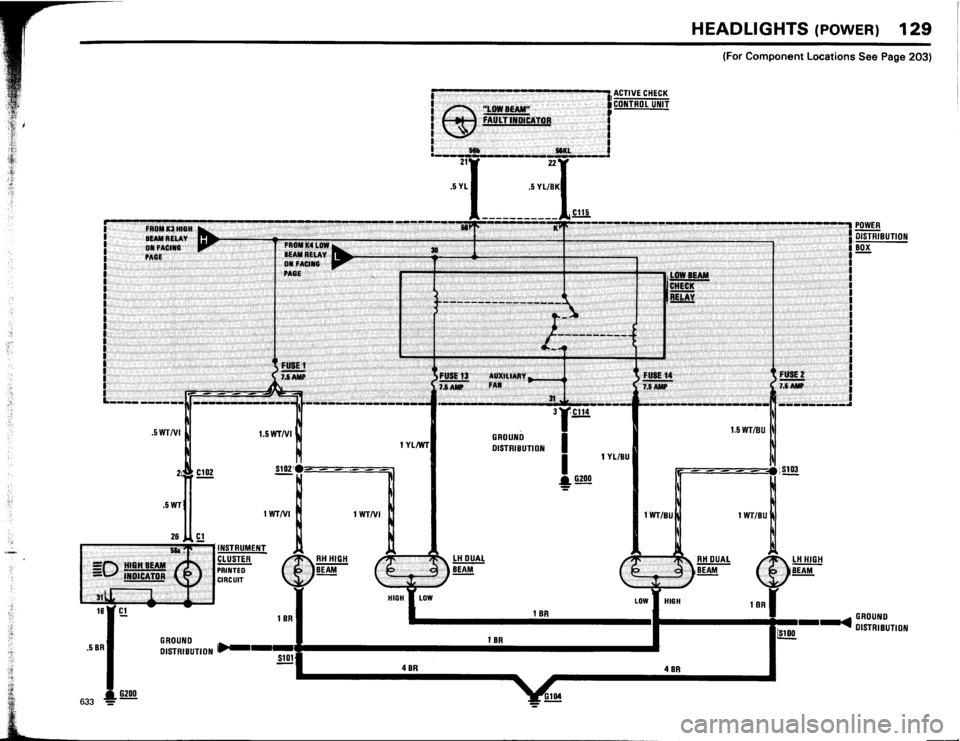

Page 39 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual

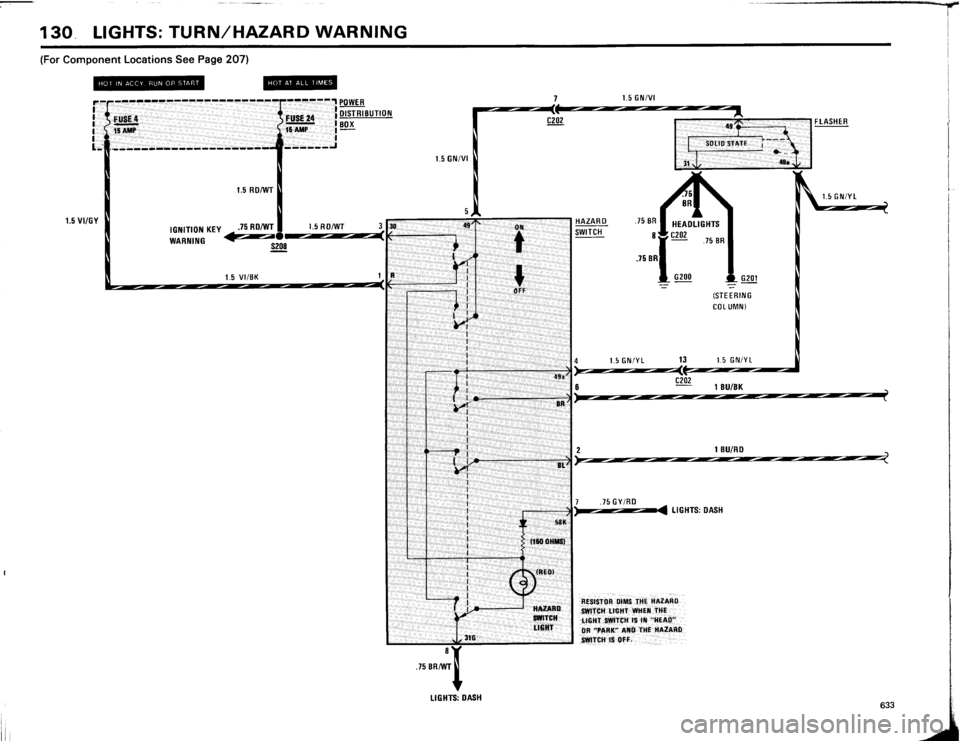

Page 40 of 85

BMW 633csi 1984 E24 Electrical Troubleshooting Manual
