1973 CHEVROLET CAMARO window

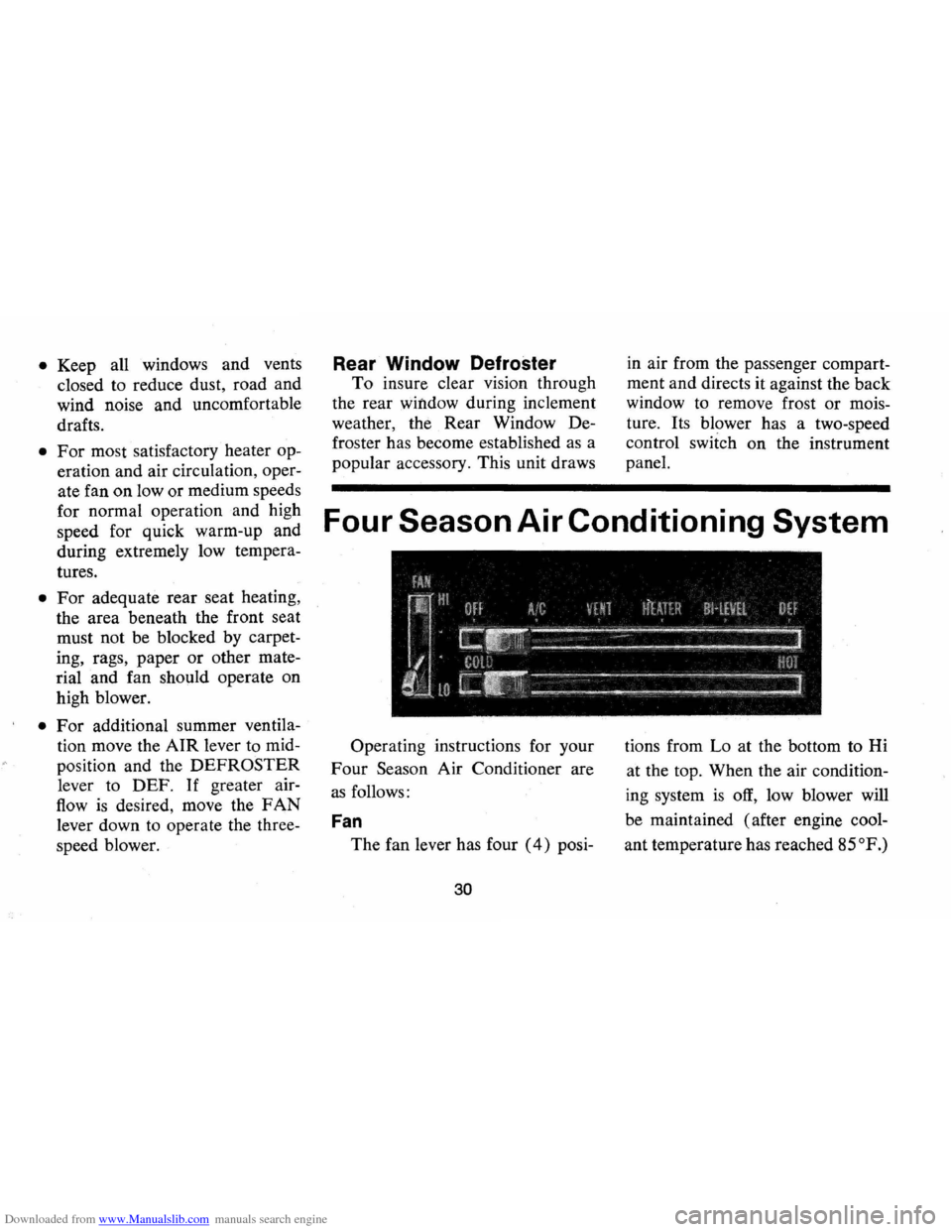

Downloaded from www.Manualslib.com manuals search engine • Keep all windows and vents
closed to reduce dust, road and
wind noise and uncomfortable
drafts.
• For most satisfactory heater op­
eration and air circulation , oper­
ate fan
on low or medium speeds
for normal operation and high
speed for quick warm-up and
during extremely low tempera­
tures.
• For adequate rear seat heating,
the area beneath the front seat
must not be blocked by carpet­
ing, rags, paper or other mate­
rial and fan should operate on
high blower.
• For additional summer ventila­
tion move the
AIR lever to mid­
position and the
DEFROSTER
lever to DEF. If greater air­
flow is desired, move the FAN
lever down to operate the three­
speed blower .
Rear Window Defroster
To insure clear vision through
the rear window during inclement
weather, the Rear Window De­
froster has become established as a
popular accessory . This unit draws in
air from the passenger compart­
ment and directs it against the back
window to remove frost or mois­
ture . Its blower has a two-speed
control switch on the instrument
panel.
Four Season Air Conditioning System
Operating instructions for your
Four Season Air Conditioner are
as follows:
Fan
The fan lever has four (4) posi-
30
tions from Lo at the bottom to Hi
at the top. When the air condition­
ing system
is off, low blower will
be maintained (after engine cool­
ant temperature has reached
85°P.)

Downloaded from www.Manualslib.com manuals search engine Dealer Assistance. . . . . . . . . . . . . . . . . . . . . 70
Defogger, Rear Window ............ ... 30 Defroster, Defogger, Windshield .... .... 29 Delco Eye On Battery . . . . . . . . . . . . . . . .. 61 Dimensions, Vehicle ................... 66 Dimmer Switch , Headlamp ............ 21 Directional Signals.. . . . . .. . . . . . . . . .. .. 17 Door Locks. . . . . . . . . . . . . . . . . . . . . . . . . . 4 Drive Belts, Engine. . . . . . . . . . . . . . . . . .. 48
Driver Seat Adjustment. . . . . . . . . . . . . . . . . . . .
5 "Drive" (D) Transmission Range. . . . . 15 Dusty Conditions, Operating Under Oil Change Interval. . . . . . . . . . . . . . . .. 46 Oil Filter Change Interval. . . . . . . . . . . . 46
Electric Clock.. .. .. . .. .. . .. .. .. . . .. .. 27 Electrical System Ammeter ................ .......... 26 Battery ......................... ... 61 Bulbs ..................... ........ 69 Fuses ................... .......... 69 Generator Indicator Light. . . . . . . . . .. 24 Emergency, In Case Of ...... , . ........ 36 Brake Warning Light ................ 24 Generator Indicator Not Charging. . .. 22 Hazard Warning Flasher ............. 36 Jacking To Change Wheels ........... 39 Jump Starting with Auxiliary Battery.. 37 Overheated Radiator. . . . . . . . . . . . . . .. 39 (Temperature Indicator: Hot) Pushing To Start. . . . . . . . . . . . . . . . . .. 37 Energizer (See Battery)
Engine Cooling
........................... 53
Exhaust Gas Caution .......... ...... 12 Flooded, Starting Procedure .......... 14
Overheating. . . . . . . . . . . . . . . . . . . . . . .. 39
Serial Number.... . . . . . . . . . . . . .. . ... 66
Specifications ....................... 66 Starting. . . . . . . . . . . . . . . . . . . . . . . . . .. 13 Temperature Light .................. 24
Engine Oil
Capacity. . . . . . . . . . . . . . . . . . . . . . . . .
.. 66
Change Interval ................... , 46 Dip Stick .......................... 47 Filter ................. , ........... , 46
Pressure Indicator ................. , 23 Recommendation . . . . . . . . . . . . . . . . . .. 46
Ethylene Glycol Coolant. ............. , 53 Exhaust Gas Caution ...... ............ 12
Driving With Trunk Open ........... 12 Parked With Engine Running. . . . . . .. 12 Pulling A Trailer ............... .. . , 10 Exterior Finish and Trim Care. . . . . . . .. 43
Fabric Care . ........ ................ , 41 Fan Belt .......... ..................... 48
Ventilating ......................... 27 Filters OiL ............................... 46
Finish Care, Exterior. . . . . . . . . . . . . . . .. 43
First Few Hundred Miles of Driving ........................ .... 2
First Gear. . . . . . . . . . . . . . . . . . . . . . . . . .. 17 Flame Arrestor. . . . . . . . . . . . . . . . . . . . . .. 48
Flammable Cleaning Solvents .......... 41 Flashers Hazard Warning .................... 36 Turn Signal. . . . .. .. .. .. .. .. .. .. .... 17 Flooded Engine, Starting. . . . . . . . . . . . .. 14 Floor Controls. . . . . . . . . . . . . . . . . . . . . .. 20
Fluid Levels
Battery
............... ............. 61 Brake Master Cylinder ............. , 51 Engine Oil. . . .. .. .. . . . . . . .. . . .. . . .. 48
75
Power Steering. . . . . . . . . . . . . . . . . . . .. 51 Radiator .................. , ........ 55 Rear Axle. . . . . . . . . . . . . . . . . . . . . . . .. 48
Transmission ................ . .. . , .. 49
Fluid Recommendations
Battery
.......................... .. 61 Brake ................... .......... 51 Power Steering . . . . . . . . . . . . . . . . . . . .. 51 Radiator ............ , ........... , .. 55
Transmission .......... ............. 49
Windshield Washer ...... ........... 27 Fogging, With Air Conditioner. . . . . . . .. 32
Folding Seat Back Latches ........... " 4
Foreign Countries, Operation In ........ 11 Four Way Hazard Flasher. . . . . . . . . . . .. 36 Front Suspension . . . . . . . . . . . . . . . . . . . .. 50 Front Wheel Bearings ................. 51 Fuel (See Gasoline) Full Rated Load (See Tires)
Fumes Engine Exhaust . . . . . . . . . . . . . . . . . . .
.. 12
Gasoline ........ ... ................ 12
Fuses
Chart ............................. 69 Location ........................... 68 Gas Station Information
Inside Back Cover Gasoline (See Also Fuel) Do Not Use For Cleaning ........... 41 Filler Cap Location ................ IBC
Fumes ...................... ....... 12
Gauge .......... ......... .......... 23 Low-Lead .......... ................ 45
Recommendations. . . . . . . . . . . . . . . . .. 45
Gauge, Fuel. . . . . . . . . . . . . . . . . . . . . . . . .. 23 GearshiftLever .................... '" 17 Generator Indicator Light ("AMP") .................... ...... 24

Downloaded from www.Manualslib.com manuals search engine Recommendations. . . . . . . . . . . . . . . . .. 46 Transmissions. . . . . . . . . . . . . . . . . . . . .. 49 Viscosity ., .......... ............... 47 Operation in Foreign Countries ......... II Other Controls and Features. . . . . . . . . .. 35 Outside
Air Vents .......................... 28 Overheated Engine
Indicator Light. ............. : . . . . .. 24 What To Do ....................... 24 Overseas Operation. . . . . . . . . . . . . . . . . .. 11 Owner Assistance ..................... 70 Paint Care ........ ............... ....... 43 Touch Up ......... ................ 43 Parking Brake ............................. 20 Brake Check . . . .. . . . . . . . . . . . . . . .. .. 20 Lights ........... .................. 69 "Park" (P) Transmission Position ... .. 16 Precautions. . . . . . . . . . . . . . . . . . . . . . .. 20 Polishing And Waxing ................. 43 Positive Traction Differential. . . . . . . . . .. 35 Power Brakes ........ .................... 20 Steering . . . . . . . . . . . . . . . . . . . . . . . . . .. 18 Pressure, Tire Inflation . . . . . . . . . . . . . . .. 56 Pushing To Start. . . . . . . . . . . . . . . . . . . .. 36 Radiator
Coolant ........................... 55 Coolant Level Inspection. . . . . . . . . . .. 53 Overheating.. . . .. . . . .. . . . . . . . . . .... 39 Pressure Cap. . . . . . . . . . . . . . . . . . . . . .. 55 Radio
AM/FM ......... .. .. .............. 33 Antenna ..................•.. ...... 33 Tape System. . . . . . . . . . . . . . . . . . . . . .. 34 Raising Car With Jack. . . . . . . . . . . . . . .. 40
Rear
Axle .............................. 48 Speaker ................... ...... .. 34 Window Defogger. . . . . . . . . . . . . . . . . . 30 Registration, Vehicle Engine Number. . . . . . . . . . . . . . . . . . . . 66 Vehicle Identification Number ........ 66 Release, Hood ....................... IBC
Replacement Tires. . . . . . . . . . . . . . . . . . .. 58 Replacement Wheels. . . . . . . . . . . . . . . . .. 59 Restarting. . . . . . . . . . . . . . . . . . . . . .. . . .. 14 Restraints
Child ........... . ........ .......... 9
Lap Belts .... ...................... 5
Methods Of Restraining Children. .. . . 9 Shoulder Belts . . . . . . . . . . . . . . . . . . . . . . 7
Retractors, Lap Belt. . . . . . . . . . . . . . . . . . 5
"Reverse " (R) Transmission Range ..... 16 Roof Care, Vinyl . . . . . . . . . . . . . . . . . . . .. 44 Rotation, Tire.. . . . . . . . . . . . . . . . . . . . . .. 57 Safet y Belts (Seat Belts).. . . . . . . . . . . . . . . . . . . 5
Carrier, Infant.... . . . . . . . . . . . . . . . . . . 9
Seat , Child ....................... " 9
Schedule .
Break-In... .. . ... ..
... ...... . .. .. .. 2
Maintenance. . . . . . . . . . . . . . . . . . .. . .. 45 Seat Adjustment, Manual. . . . . . . . . . . . . . . . 5
Back Latch, Folding Front. . . . . . . . . .. 4
Child
Safety.. .. . . .. . . . . . . . . . . . . . . .. 9 Seat Belts
Buzzer Light Reminder. ... .. .. .. .... 6
Child Restraint. . . . . . . . . . . . . . . . . . . .. 9
Inspection and Care. . . . . . . . . . . . . . . . . 8
Lap
............... ................ 5
Retractors. . . . . . . . . . . . . . . . . . . . . . . .. 5 Shoulder........................... 7
77
Self-Adjusting Brakes. . . . . . . . . . . . . . . .. 21 Service and Maintenance. . . . . . . . . . . ... 45 Shift Linkage Maintenance . . . . . . . . . . . . . .. 50 Operation (See Transmission) .. : . . . .. 15 Shoulder Belts Adjustment . . . .. . . . . . . . . 7 Side Marker Lights. . • . . . . . . . . . . . . . . .. 69 Signals, Turn ......................... 17 Solvents , Recommended Cleaning ....... 41 Sound Systems (See Radio) Space Saver Tire ........ .. ; ......... .. 60 Spare Tire
Jacking Instructions. . . . . . . . . . . . . . . .. 40 Spark Knock (See Fuel
Recommendations)
Speaker, Rear. . . . . . . . . . . . . . . . . . . . . . .. 34 Specifications Body.:: .. ......................... 66 CapacIties. . . . . . . . . . . . . . . . . . . . . . . .. 66 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 66 Engine ................ ........ .... 66 Filters ............................. 46 Fuses .......................... ; .. 69 General ....... .................... 66 Light Bulbs. . . . . . . . . . . . . . . . . . . . . . . . 69 Lubricants . . . . . . . .. .. . . . . . . . .. . .. .. 46
Speedometer. . . . . . . . . . . . . . . . . . . . . . . . . 22 Spot Cleaning ........................ 41 Stainless Steel Protection. . . . . . . . . . . . .. 43 Stains, Removal of ........ ............ 41 Starter Interlock. . . . . . . . . . .. . . . . . . . . . . . . .. 13 Safety Switch.. .. . . . .. . . . . .. . . . . .... 14 Starting
Automatic Transmission Cars. . . . . . .. 13 Emergency ......................... 37 Manual Transmission Cars ........... 14
