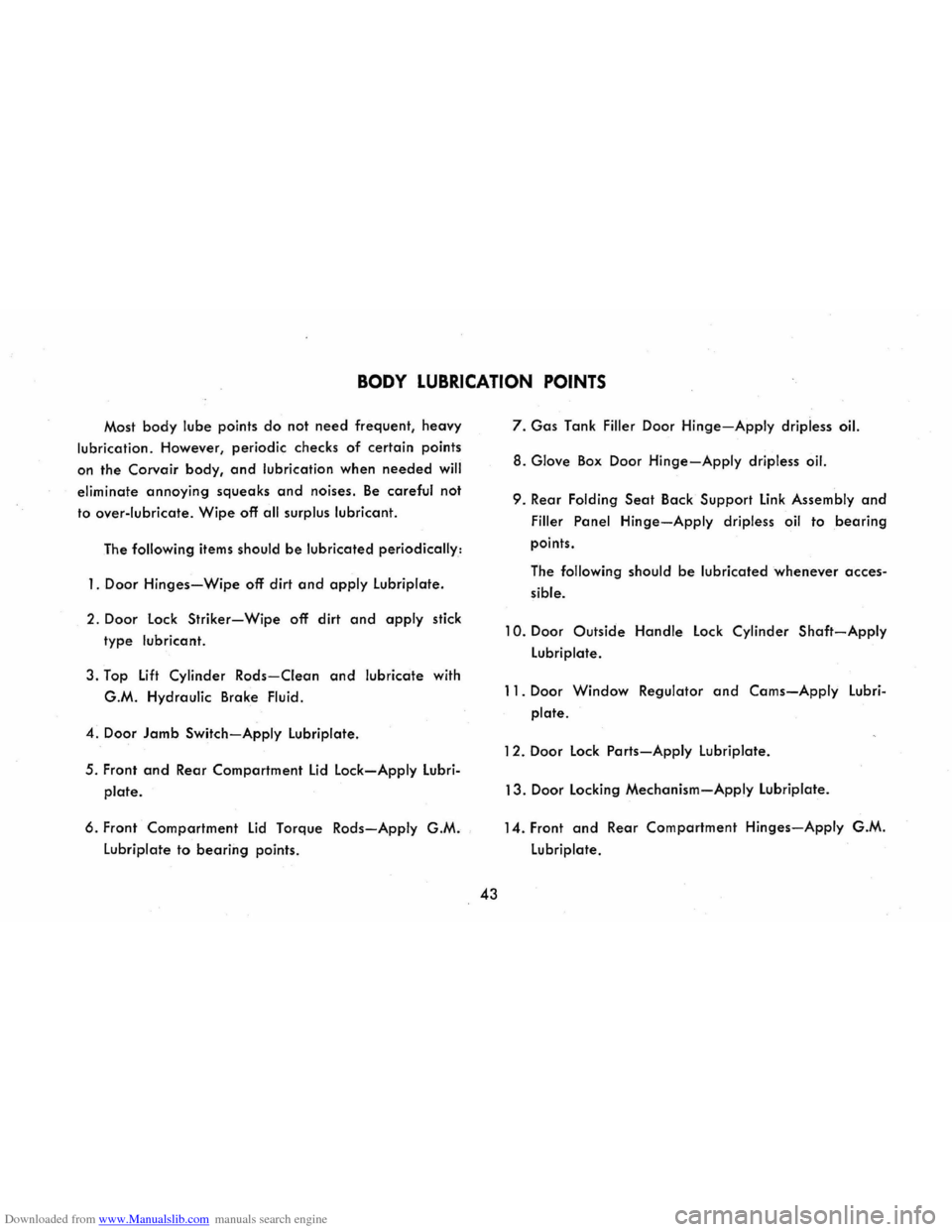

Downloaded from www.Manualslib.com manuals search engine BODY LUBRICATION POINTS
Most body lube points do not need frequent, heavy
lubrication. However, periodic checks
of certain points
on the Corvair body,
and lubrication when needed will
eliminate annoying squeaks and noises. Be careful not
to over-lubricate.
Wipe off all surplus lubricant.
The following items should
be lubricated periodically:
1. Door
Hinges-Wipe off dirt and apply lubriplate.
2. Door lock Striker-Wipe off dirt and apply stick
type lubricant.
3. Top lift Cylinder
Rods-Clean and lubricate with
G.M. Hydraulic Brake Fluid.
4. Door
Jamb Switch-Apply lubriplate.
5. Front and Rear Compartment lid lock-Apply lubri
plate.
6. Front Compartment lid Torque Rods-Apply G.M .
lubriplate to bearing points.
43
7. Gas Tank Filler Door Hinge-Apply dripiess oil.
8 . Glove
Box Door Hinge-Apply dripless oil.
9. Rear Folding Seat Back Support link Assembly and
Filler Panel Hinge-Apply dripless oil to bearing
points.
The following should
be lubricated whenever acces
sible.
10. Door Outside Handle lock Cylinder Shaft-Apply
lubriplate.
11. Door Window Regulator and Cams-Apply lubri
plate.
12. Door
lock Parts-Apply lubriplate.
13. Door locking Mechanism-Apply lubriplate.
14 . Front
and Rear Compartment Hinges-Apply G.M.
lubriplate.
