2024 MAZDA CX90 display

Top view, front wide view
IndicationContent
1 Tire icon Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2 Projected vehicle path lines (red/
yellow) Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper
is expected to travel.
b) Indicates the path where the inner side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4 Extended vehicle width lines and
distance guide lines (red/blue) Indicates the approximate width of the vehicle and the
distance (from front end of bumper) in front of the vehi-
cle.
The red line indicates the point about 50 cm (19 in)
from the front end of the bumper.
The blue lines indicate the points from about 50 cm
(19 in) and up to 2 m (78 in) from the front end of the
bumper.
5 View status icon Indicates which image is selected.
6 Mode switching icon Indicates which mode is selected.
7 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched
off.
NOTE
The front wide view displays the image in front of the vehicle at a wide angle and
corrects the image to help detect approaching obstructions from the side. Therefore,
it differs from the actual view.
Driving
360° View Monitor
5-215
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

NOTE
Even though the back end of the parking space (or garage) displayed on the screen
and distance guide lines appear parallel, they may not actually be parallel.
When parking in a space with a division line on only one side of the parking space,
even though the division line and the vehicle width guide line appear parallel, they
may not actually be parallel.
Top view, rear wide view
Indication Content
1 Tire icon Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2 Projected vehicle path lines (red/
yellow) Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the rear end of the rear
bumper passes as a reference.
b) Indicates the path where the outer side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4 Extended vehicle width lines and
distance guide lines (red/blue) These guide lines indicate the approximate width of the
vehicle and distance to a point measured from the rear of
the vehicle (from the end of the bumper).
The red line indicates the point about 50 cm (19 in)
from the rear end of the rear bumper.
The blue lines indicate the points from about 50 cm
(19 in) and up to 2 m (78 in) from the rear end of the
bumper.
5 View status icon Indicates which image is selected.
6 Mode switching icon Indicates which mode is selected.
Driving
360° View Monitor
5-218
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

IndicationContent
7 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched off.
NOTE
The rear wide view displays the image at the rear of the vehicle at a wide angle and
corrects the image to help detect approaching obstructions from the side. Therefore,
it differs from the actual view.
Top view, front See-Through View
Indication
Content
1 Tire icon Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2 Projected vehicle path lines (red/
yellow) Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper
is expected to travel.
b) Indicates the path where the inner side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4 Tire graphic Indicates the approximate position of the tires.
5 Vehicle bottom graphic Indicates the estimated bottom of the vehicle.
6 Projected vehicle path distance
guide lines (red/yellow) Indicates the distance (from front end of bumper) in
front of the vehicle.
The red line indicates the point about 50 cm (19 in)
from the front end of the bumper.
The yellow lines indicate the points about 1 m (39 in)
and 2 m (78 in) from the front end of the bumper.
7 View status icon Indicates which image is selected.
Driving
360° View Monitor
5-219
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

IndicationContent
8 Mode switching icon Indicates which mode is selected.
9 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched
off.
NOTE
The front See-Through View may be displayed as follows.
The ground and three-dimensional objects may appear curved.The representation of three-dimensional objects changes at the joints of images
and the same object may appear to be duplicated or not connected.
Top view, rear See-Through View
Indication Content
1 Tire icon Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
2 Projected vehicle path lines (red/
yellow) Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the rear end of the rear
bumper passes as a reference.
b) Indicates the path where the outer side of the vehicle
is expected to travel.
3 Parking sensor detection indication Indicates the obstruction detection status.
4 Tire graphic Indicates the approximate position of the tires.
5 Vehicle bottom graphic Indicates the estimated bottom of the vehicle.
Driving
360° View Monitor
5-220
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

IndicationContent
6 Projected vehicle path distance
guide lines (red/yellow) These guide lines indicate the approximate distance to a
point measured from the rear of the vehicle (from the
end of the bumper).
The red line indicates the point about 50 cm (19 in)
from the rear end of the rear bumper.
The yellow lines indicate the points about 1 m (39 in)
and 2 m (78 in) from the rear end of the rear bumper.
7 View status icon Indicates which image is selected.
8 Mode switching icon Indicates which mode is selected.
9 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched
off.
NOTE
The rear See-Through View may be displayed as follows.
The ground and three-dimensional objects may appear curved.Expressions such as three-dimensional objects change at the seams of the image,
and the same objects may be displayed in duplicate or may be connected and not
visible.
System problem indication
In the following cases, there might be a problem with the system. Have the vehicle
inspected by an Authorized Mazda Dealer.
"No camera signal." is displayed on the center display.The display on the center display does not switch to the camera image even if the
selector lever is shifted to the R position.
The display on the center display does not switch to the camera image even if the
360° view monitor switch is pressed.
A portion of the display on the center display is black.
Driving
360° View Monitor
5-221
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

Convenient Ways to Usethe 360° View Monitor
The 360° View Monitor settings can be
changed as follows.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
Automatic display of the 360° View
Monitor when the vehicle power is
switched ON.
When the 360° view mode/
See-Through View mode is activated,
the preferentially displayed images
can be selected.
Automatic display of the front view
or front See-Through View when
switching from reverse to forward
gear.
No display of the projected vehicle
path lines.
Driving
360° View Monitor
5-222
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

Turn off the cruise control when the

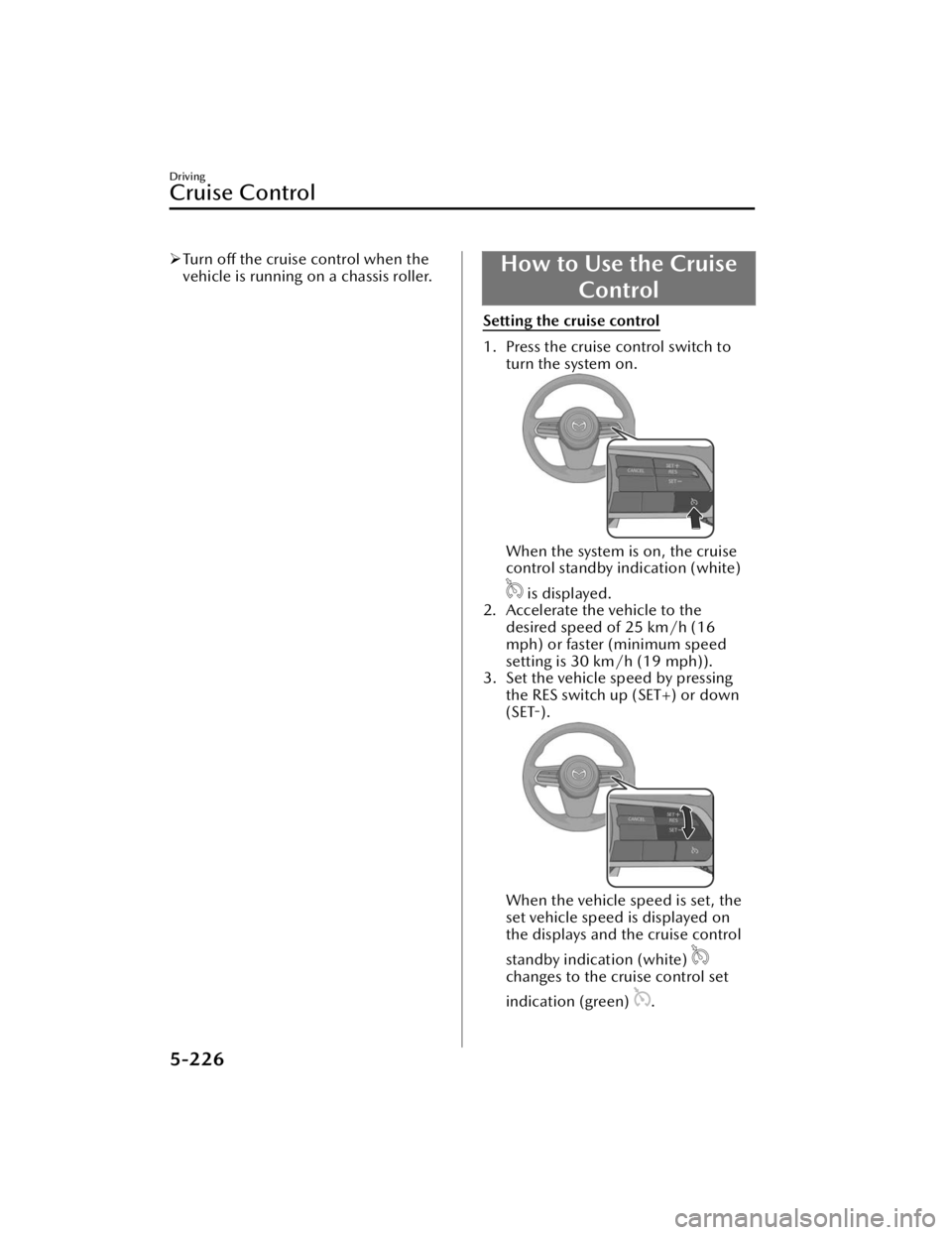

vehicle is running on a chassis roller.How to Use the Cruise
Control
Setting the cruise control
1. Press the cruise control switch toturn the system on.
When the system is on, the cruise
control standby indication (white)
is displayed.
2. Accelerate the vehicle to the desired speed of 25 km/h (16
mph) or faster (minimum speed
setting is 30 km/h (19 mph)).
3. Set the vehicle speed by pressing the RES switch up (SET+) or down
(SET-).
When the vehicle speed is set, the
set vehicle speed is displayed on
the displays and the cruise control
standby indication (white)
changes to the cruise control set
indication (green)
.
Driving
Cruise Control
5-226
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

While the cruise control is operating,
the driver is notified of the operation
condition by the screen display.
Instrument cluster
1. Set speed

Active driving display
1. Set speed
NOTE
The cruise control does not operate
when the Hill Descent Control is
operating.
While in EV mode, acceleration may
be restricted and the vehicle may not
be able to be driven at the set speed.
Refer to Mazda intelligent Drive
Select (Mi-Drive) on page 5-95.
The accelerator pedal operation
takes priority during constant speed
driving. When you release your foot
from the accelerator pedal, the
vehicle returns to constant speed
driving at the set speed.
(Vehicles with Mazda Radar Cruise
Control with Stop & Go function
(MRCC with Stop & Go function))
If the distance between vehicles
control is disabled using the Mazda
Connect, the system switches to the
cruise control. At this time, the
MRCC switch functions as the cruise
control switch.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
If the vehicle power is switched OFF
while the distance between vehicles
control is disabled, the distance
between vehicles control is enabled
automatically the next time the
vehicle power is switched ON.
The system may not be able to
maintain the set speed depending
on the road conditions such as steep
up or down slopes.
When the vehicle speed is less than
20 km/h (12 mph), the cruise
control is canceled. If you want to
use the cruise control again, reset the
cruise control.
The brake lights turn on while the
brakes are operating by the cruise
control.
The cruise control cannot be
canceled while driving in manual
shift mode (selector lever shifted
from the D to M position).
Therefore, engine braking does not
work even if you shift down to a
lower gear. If deceleration is
required, lower the set vehicle speed
or depress the brake pedal.
Changing the set vehicle speed
Changing the set vehicle speed using
the RES switch
Press the RES switch up (SET+) or
down (SET-) to the desired speed.
Press and release immediately: 1
km/h (1 mph)
Press and hold: 10 km/h (5 mph)
Driving
Cruise Control
5-227
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04
