259
4
Owners Manual_Europe_M52N75_en

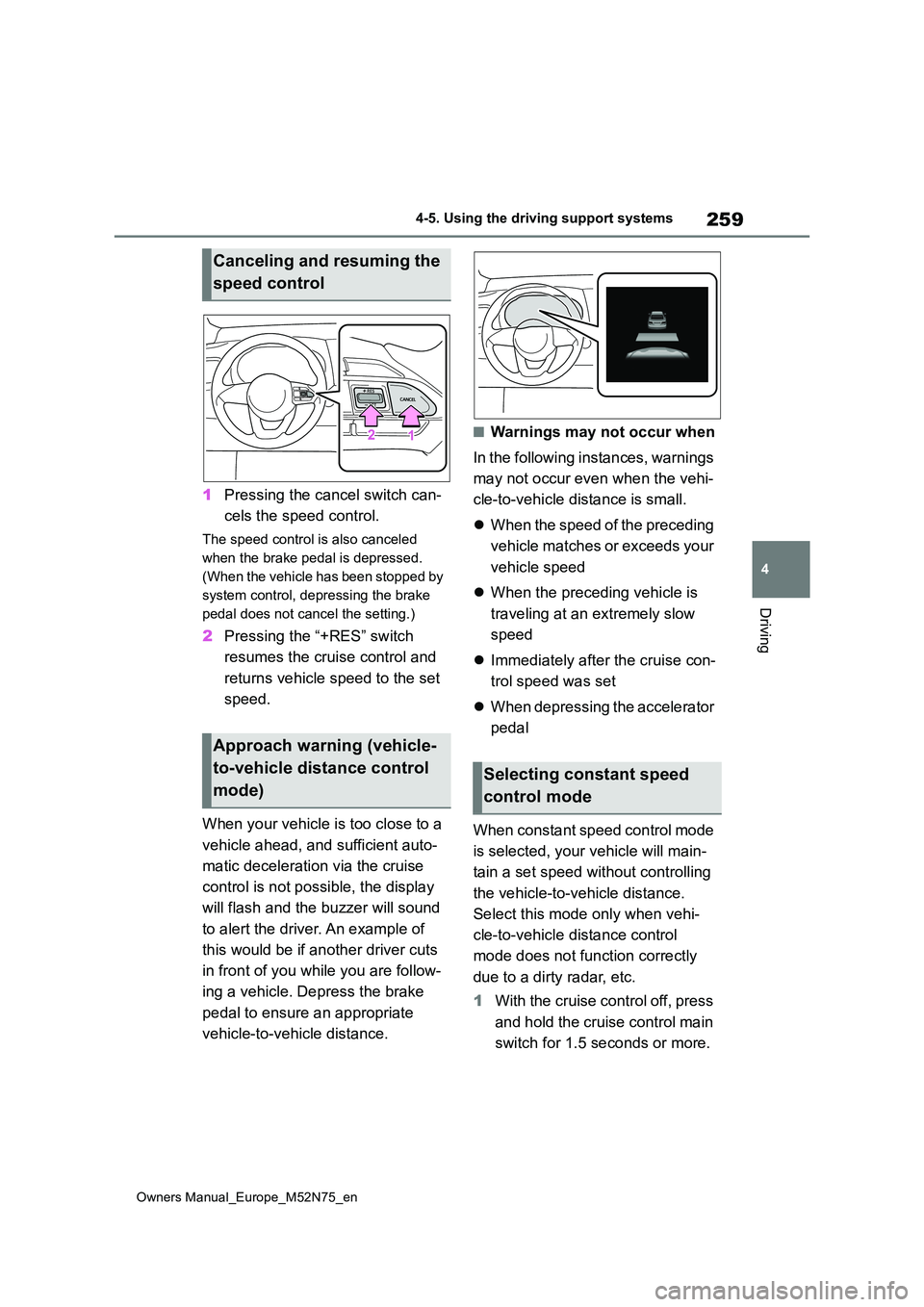

4-5. Using the driving support systems
Driving
1Pressing the cancel switch can-
cels the speed control.
The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been stopped by
system control, depressing the brake
pedal does not cancel the setting.)
2 Pressing the “+RES” switch
resumes the cruise control and
returns vehicle speed to the set
speed.
When your vehicle is too close to a
vehicle ahead, and sufficient auto-
matic deceleration via the cruise
control is not possible, the display
will flash and the buzzer will sound
to alert the driver. An example of
this would be if another driver cuts
in front of you while you are follow-
ing a vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.
■Warnings may not occur when
In the following instances, warnings
may not occur even when the vehi-
cle-to-vehicle distance is small.
When the speed of the preceding
vehicle matches or exceeds your
vehicle speed
When the preceding vehicle is
traveling at an extremely slow
speed
Immediately after the cruise con-
trol speed was set
When depressing the accelerator
pedal
When constant speed control mode
is selected, your vehicle will main-
tain a set speed without controlling
the vehicle-to-vehicle distance.
Select this mode only when vehi-
cle-to-vehicle distance control
mode does not function correctly
due to a dirty radar, etc.
1 With the cruise control off, press
and hold the cruise control main
switch for 1.5 seconds or more.
Canceling and resuming the
speed control
Approach warning (vehicle-
to-vehicle distance control
mode)
Selecting constant speed
control mode
513
Owners Manual_Europe_M52N75_en
Alphabetical Index
Display
Dynamic radar cruise control with
full-speed range ....................... 252
Energy monitor........................... 123
Fuel consumption....................... 123
Head-up display ......................... 119
LTA (Lane-Tracing Assist) .......... 248
Multi-information display .... 106, 112
Speed limiter .............................. 264
Toyota parking assist-sensor ..... 276
Toyota Teammate Advanced Park
................................................. 306
Warning message ...................... 445
Display change button ........... 97, 104
Distance until next engine oil change
............................................... 98, 104
Do-it-yourself maintenance ......... 376
Door
Double locking system ................. 85
Door lock
Back door ................................... 139
Side doors .................................. 135
Smart entry & start system......... 152
Wireless remote control ............. 132
Doors
Back door ................................... 139
Door glasses .............................. 169
Door lock ............................ 135, 139
Open door warning buzzer. 137, 138
Outside rear view mirrors ........... 166
Rear door child-protectors ......... 139
Side doors .................................. 135
Double locking system .................. 85
Downhill assist control system ... 325
Drive distance ....................... 110, 116
Drive information .................. 110, 116
Driving ........................................... 175
Break-in tips ............................... 176
Correct driving posture................. 33
Driving mode select switch......... 322
Hybrid electric vehicle driving tips
................................................. 335
Procedures ................................. 175
Winter drive tips ......................... 337
Driving information display . 107, 114
Driving range......................... 107, 114
Driving support system information
display ................................. 109, 116
Dynamic radar cruise control with
full-speed range.......................... 252
Road Sign Assist (RSA) ............. 260
Warning message ...................... 262
E
eCall ................................................. 65
“SOS” button ................................ 65
ECB (Electronically Controlled Brake
System) ....................................... 328
Warning light .............................. 435
ECO Accelerator Guidance .. 108, 114
Eco drive mode .............................322
Eco score............................... 108, 114
Elapsed time.......................... 110, 116
Electric motor (traction motor) ...... 75
Electric Power Steering (EPS) ..... 329
Warning light .............................. 438
Electronic key ............................... 130
Battery-saving function............... 153
If the electronic key does not operate
properly .................................... 470
Replacing the battery ................. 409
Electronically Controlled Brake Sys-
tem (ECB) .................................... 328
Warning light .............................. 435
Emergency brake signal .............. 329
Emergency flashers...................... 426
Emergency tire puncture ............. 448
