2023 TOYOTA TUNDRA HYBRID display

5618-2. Customization
Owners Manual_USA_M0C052_en
8
Vehicle specifications
8-2.Customization
■Changing by using the
meter control switches
1 Press or to select .
2 Operate the meter control
switches to select the desired
item to be customized.
3 According to the display,
select the desired setting and
then press .
To go back to the previous screen
or exit the customize mode, press .
■Changing by using the mul-
timedia system
1 Select on the main menu
2 Select “Vehicle customize”.
3 According to the display,
select the desired setting.
Various setting can be changed.
Refer to the list of settings that can
be changed for details.
Some function settings are changed simultaneously with other fu nc-
tions being customized. Contact y our Toyota dealer for further
details.
Settings that can be changed using the multimedia system
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Customizable features
Your vehicle includes a vari-
ety of electronic features
that can be personalized to
your preferences. The set-
tings of these features can
be changed by using the
multi-information display,
the multimedia system or at
your Toyota dealer.
Customizing vehicle fea-
tures
WARNING
■During customization
As the hybrid system needs to be
operating during customization,
ensure that the vehicle is parked
in a place with adequate ventila-
tion. In a closed area such as a
garage, exhaust gases including
harmful carbon monoxide (CO)
may collect and enter the vehicle.
This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent 12-volt battery dis-
charge, ensure that the hybrid
system is operating while custom-
izing features.
Customizable features

5628-2. Customization
Owners Manual_USA_M0C052_enDefinition of symbols: O = Av
ailable, — = Not available
■Gauges, meters and multi-information display ( P.91, 95)
*1: For details about each function: P. 9 9
*2: The default setting varies according to country.
Function*1Default settingCustomized
setting
Language*2EnglishFrench—O—Spanish
Units*2miles (MPG US)
km (km/L)
—O—km (L/100 km)
miles (MPG Imperial)
Speedometer displayDigital
Analog
—O—Digital & Ana- log
Fuel economy display
Total average (Average fuel consumption [after reset])
Trip average
(Average fuel consumption [after start])
—O—Tank average (Average fuel consumption
[after refuel])
Audio system linked displayOnOff—O—
Drive information typeTrip (after start)To t a l ( a f t e r reset)—O—
Drive information items (First
item)Distance
Average vehi-cle speed
—O—
Elapsed time
Drive information items (Sec-
ond item)Elapsed time
Average vehi-cle speed
—O—
Distance
Pop-up displayOnOff—O—

5638-2. Customization
Owners Manual_USA_M0C052_en
8
Vehicle specifications

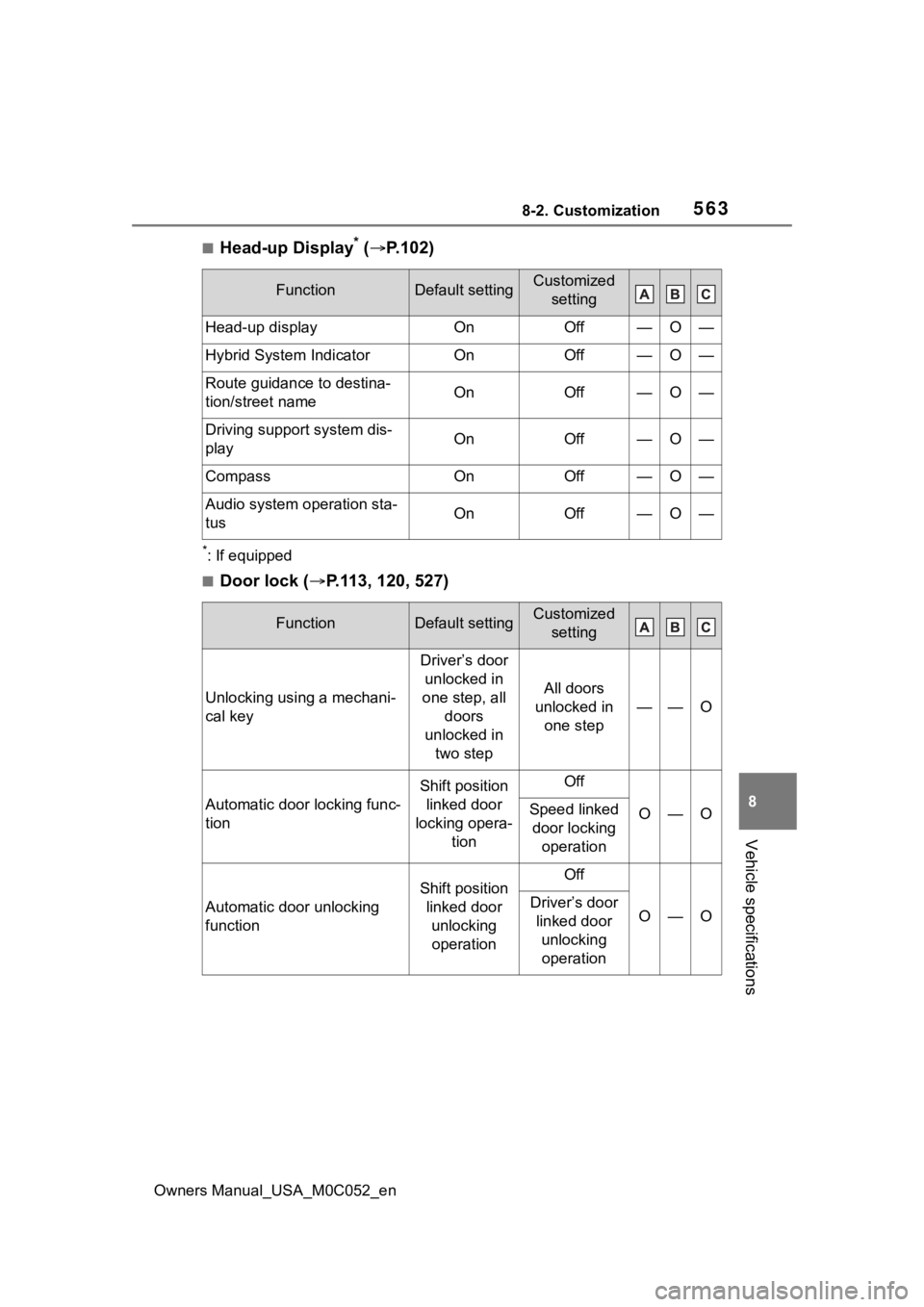

■Head-up Display* (  P.102)
*: If equipped
■Door lock ( P.113, 120, 527)
FunctionDefault settingCustomized
setting
Head-up displayOnOff—O—
Hybrid System IndicatorOnOff—O—
Route guidance to destina-
tion/street nameOnOff—O—
Driving support system dis-
playOnOff—O—
CompassOnOff—O—
Audio system operation sta-
tusOnOff—O—
FunctionDefault settingCustomized setting
Unlocking using a mechani-
cal key
Driver’s door unlocked in
one step, all doors
unlocked in two step
All doors
unlocked in one step
——O
Automatic door locking func-
tion
Shift position linked door
locking opera- tionOff
O—OSpeed linked door locking operation
Automatic door unlocking
function
Shift position linked door unlocking operationOff
O—ODriver’s door linked door unlocking operation

5688-2. Customization
Owners Manual_USA_M0C052_en

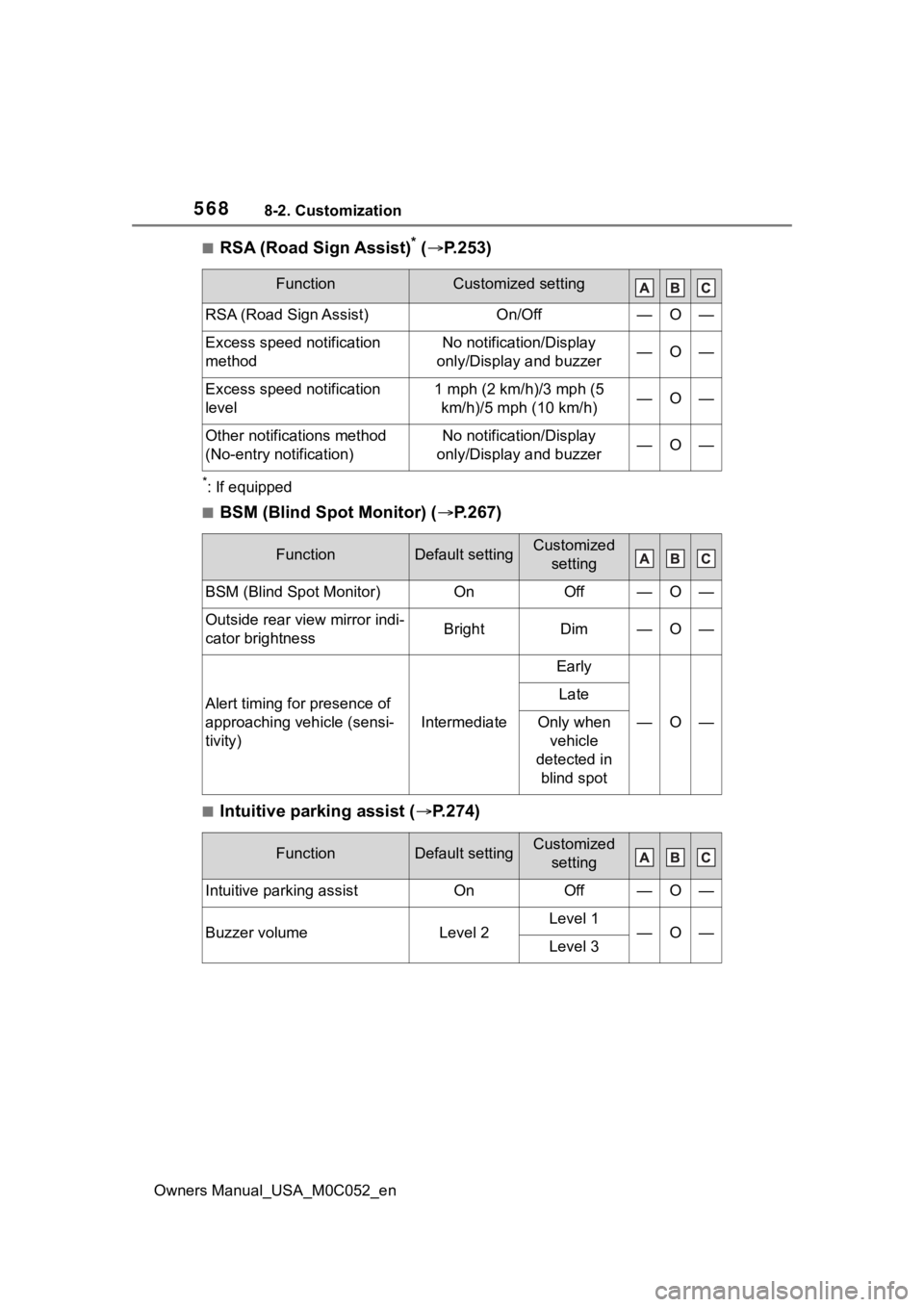

■RSA (Road Sign Assist)* ( P.253)
*: If equipped
■BSM (Blind Spot Monitor) ( P.267)
■Intuitive parking assist ( P.274)
FunctionCustomized setting
RSA (Road Sign Assist)On/Off—O—
Excess speed notification
methodNo notification/Display
only/Display and buzzer—O—
Excess speed notification
level1 mph (2 km/h)/3 mph (5 km/h)/5 mph (10 km/h)—O—
Other notifications method
(No-entry notification)No notification/Display
only/Display and buzzer—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror indi-
cator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—
Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Intuitive parking assistOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3

Owners Manual_USA_M0C052_en
591What to do if... (Troubleshooting)
Is the power switch in ON?
If you cannot release the shift lever
by depressing the brake pedal with
the power switch in ON. ( P.201)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot be
operated if the win dow lock switch
is pressed. ( P.162)
 The auto power off function
will be operated if the vehicle
is left in ACC or ON (the
hybrid system is not operat-
ing) for a period of time.
( P.198)
 The seat belt reminder light is
flashing
Are the driver and the front passen-
ger wearing the seat belts?
( P.507)
 The parking brake indicator is
on
Is the parking br ake released?
(  P.205)
Depending on the situation,
other types of warning buzzer
may also sound. ( P.501, 511)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 8 2 )
Do one of the following to deac-
tivate or stop the alarms:
 Unlock the doors using the
entry function or wireless
remote control.
 Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)
 Is the message displayed on
the multi-information display?
Check the message on the multi-
information display. ( P.501)
 When a warning light turns on
or a warning message is dis-
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The windows do not open
or close by operating the
power window switches
The power switch is
turned off automatically
A warning buzzer sounds
during driving
An alarm is a ctivated and
the horn sounds
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed

Owners Manual_USA_M0C052_en
593Alphabetical Index
Alphabetical Index
A
A/C ........................................... 400Air conditioning filter ............. 479
Automatic air conditioning sys-tem ..................................... 400
Front seat concentrated airflow mode (S-FLOW) ................. 404
ABS (Anti-lock Brake System) ............................................... 374Warning light ........................ 503
Acoustic vehicle alerting system ................................................. 75
Active front spoiler ................ 388
Adaptive Variable Suspension System (AVS) ........................ 375
AHB (Automatic High Beam) . 214
AI-SHIFT .................................. 200
Air conditioning filter ............. 479
Air conditioning system ........ 400 Air conditioning filter ............. 479
Automatic air conditioning sys-tem ..................................... 400
Front seat concentrated airflow mode (S-FLOW) ................. 404
Air suspension ....................... 355
Airbags ...................................... 36 Airbag operating conditions.... 38
Airbag precautions for your child............................................. 41
Correct driving posture ........... 27
Curtain shield airbag operating conditions ............................. 39
Curtain shield airbag precautions ............................................. 41
Front passenger occupant clas- sification system ................... 46
General airbag precautions .... 41
Locations of airbags ............... 36
Modification and disposal of air- bags ..................................... 44
Side airbag operating conditions .............................................39
Side airbag precautions..........41
Side and curtain shield airbags operating conditions .............39
Side and curtain shield airbags precautions ...........................41
SRS airbags ...........................36
SRS warning light .................502
Alarm .........................................82 Warning buzzer ....................501
Ambient lights.........................410
Anchor brackets ... ..............55, 58
Antennas (smart key system)128
Anti-lock Brake System (ABS) ...............................................374Warning light.........................503
Approach warning ..................263
Armrest ......... ......................... ..425
Assist grips .............................425
Audio system-linked display ...98
AUTO LSD system ..................363
Automatic air conditioning sys- tem .........................................400
Automatic headlight leveling system ...................................212
Automatic High Beam ............214
Automatic light control system ............................................... 211
Automatic transmission.........200 If th e s hif t le ver ca n no t b e s hif te d from P .................................201
S mode .................................202
TOW HAUL switch................200
Auxiliary boxes .......................416
Average fuel economy .............97
Average vehicle speed .............98
AVS (Adaptive Variable Suspen- sion System) .........................375

Owners Manual_USA_M0C052_en
Alphabetical Index595
Seat belt extender precautions............................................. 30
Seat belt precautions ............. 52
Child-protectors .. ................... 116
Cleaning .......................... 442, 445 Aluminum wheel ornaments . 442
Aluminum wheels ................. 442
Exterior ................................. 442
Interior .................................. 445
Radar sensor........................ 226
Seat belts ............................. 445
Clock ......................................... 91
Coat hooks .............................. 426
Condenser .............................. 461
Console box ............................ 415
Console box light ................... 410
Consumption screen.............. 106
Coolant .................................... 460 Checking .............................. 460
Cooling system ...................... 460 Engine overheating .............. 535
Coussins gonflables Modification et é limination en fin
de vie des coussins gonflables ........................................... 583
Crawl Control .......................... 365
Cruise control Dynamic radar cruise control with full-speed range .......... 256
Cup holders ............................ 414
Current fuel consumption ....... 97
Curtain shield airbags ............. 36
Customizable features ........... 561D
DAC ..........................................372
Daytime running light system211
Daytime running lights Replacing light bulbs ............490
Deck divider ............................417
Defogger Outside rear view mirrors .....401
Rear window.........................401
Windshield ............................401
Differential ...............................546
Digital Rear-view Mirror .........146
Dimension ...............................540
Dinghy towing .........................194
Display Dynamic radar cruise control with full-speed range ..........256
Head-up display ...................102
Intuitive parking assist ..........274
LTA (Lane Tracing Assist) .....248
Multi-information display.........95
Warning messages ............... 511
Display change button .............93
Distance until next engine oil change .....................................93
Do-it-yourself maintenance ...449
Door courtesy lights...............410
Door lock Side doors ............................ 113
Smart key system .................128
Wireless remote control........ 111
Doors Automatic door locking and unlocking system ................ 116
Door glasses ........................160
Door lock .............................. 113
Open door warning buzzer . 114, 11 6
Outside rear view mirrors .....155
Rear door child-protectors .... 116
Side doors ............................ 113

596Alphabetical Index
Owners Manual_USA_M0C052_en
Downhill assist control system ............................................... 372
Drive distance ........................... 98
Drive information ..................... 98
Drive-start control .................. 177
Driving ..................................... 171 Break-in tips ......................... 172
Correct driving posture ........... 27
Hybrid Electric Vehicle driving tips...................................... 390
Procedures ........................... 171
Winter drive tips ................... 395
Driving information display ..... 97
Driving mode sel ect switch ... 358
Driving position memory ....... 137 Memory recall function ......... 139
Power easy access system .. 137
Driving range ............................ 97
Dynamic radar cruise control with full-speed range ........... 256Approach warning ................ 263
Warning message ................ 265E
ECB (Electronically Controlled Brake System).......................374Warning light.........................501
EDR (Event data recorder) .........8
Elapsed time .............................98
Electric motor (t raction motor)73
Electric Power Steering (EPS) ...............................................375Warning light.........................503
Electronic key ......................... 110 Battery-saving function .........129
If the electronic key does not operate properly .................527
Replacing the battery ...........484
Electronic sunshade ..............164
Electronically Controlled Brake System (ECB) ........................374Warning light.........................501
Electronically modulated air sus- pension ..................................355
Emergency flashers ...............494
Emergency tire puncture .......515
Emergency, in case of If a warning buzzer sounds ..501
If a warning light turns on .....501
If a warning message is dis-played ................................. 511
If the 12-volt battery is dis- charged ..............................529
If the electronic key does not operate properly .................527
If the fuel door cannot be opened ...........................................526
If the hybrid sys tem will not start
...........................................524
If the vehicle is submerged or water on the road is rising ..495
If you have a flat tire .............515
If you lose your keys.............526
If you think something is wrong
