2023 TOYOTA RAIZE Keys

2
RAIZE_OM_General_BZ358E
TABLE OF CONTENTS
For your information................................ 6
Reading this manual .............................. 10
How to search ......................................... 11
Pictorial index .......................................... 12
1 For safety and security
1-1. For safe use
Before driving ............................... 28
For safe driving ............................ 30
Seat belts ....................................... 32
SRS airbags ................................... 37
Exhaust gas precautions............ 47
1-2. Safety information for children
When children are
in the vehicle .............................. 48
Child restraint systems ............... 49
1-3. Emergency assistance
eCall ................................................ 68
1-4. Theft deterrent system
Engine immobilizer system ....... 72
Alarm .............................................. 73
2 Instrument cluster
2-1. Instrument cluster
Warning lights and indicators... 78
Gauges and meters .................... 84
Multi-information display ........... 86
TFT color mult i-information
display ......................................... 98
3 Operation of each component
3-1. Keys
Keys .............................................. 118
3-2. Opening, closing and locking the doors
Key-free system.......................... 121
Wireless remote control .......... 131
Doors
(front doors, rear doors) ....... 133
Back door .................................... 142
3-3. Adjusting the seats
Front seats .................................. 148
Rear seats .................................... 149
Head restraints .......................... 152
3-4. Steering wheel position and mirrors
Steering wheel ........................... 154
Inside rear view mirror ............. 156
Outside rear view mirrors........ 157
3-5. Opening and closing the windows
Power windows .......................... 160
RAIZE_OM_General_BZ358E.book 2 ページ ２０２２年５月１７日　火曜日　午後１時５９分

72
RAIZE_OM_General_BZ358E
1-4. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips, and the vehicle
cannot be started using a key that has not been previously registered
in the vehicle.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
▶Vehicles without key-free system
After the key has been removed
from the engine switch, the security
indicator on the meter flashes indi-
cating the system activation.
Inserting the registered key to the engine
switch will deactivate the system and turn
off the security indicator on the meter.
▶Vehicles with key-free system
The security indicator on the meter
flashes after the engine switch has
been turned to “OFF” to indicate that
the system is operating.
The system is canceled and the security
indicator on the meter turns off when
you turn the engine switch to “ACC” or
“ON” while carrying the registered key.
⬛Maintenance
The engine immobilizer system is maintenance-free.
⬛Conditions that may cause the system to malfunction
⚫If the key touches or is covered by a metal object
⚫If the key is in close proximity to or touching a key for the security system
(key with a built-in transponder chip) of another vehicle
NOTICE
⬛To ensure the engine immobilizer system operates properly
Do not modify or remove the system.
If modified or removed, the proper oper ation of the system cannot be guaranteed.
KBRO120101E
RAIZE_OM_General_BZ358E.book 72 ページ ２０２２年５月１７日　火曜日　午後１時５９分

117
3
RAIZE_OM_General_BZ358E
Operation of eachcomponent
3-1. Keys
Keys .............................................. 118
3-2. Opening, closing and locking
the doors
Key-free system ......................... 121
Wireless remote control .......... 131
Doors
(front doors, rear doors) ....... 133
Back door .................................... 142
3-3. Adjusting the seats
Front seats .................................. 148
Rear seats ................................... 149
Head restraints .......................... 152
3-4. Steering wheel position and mirrors
Steering wheel ........................... 154
Inside rear view mirror............. 156
Outside rear view mirrors ....... 157
3-5. Opening and closing the windows
Power windows .......................... 160
RAIZE_OM_General_BZ358E.book 117 ページ ２０２２年５月１７日　火曜日　午後１時５９分

118
RAIZE_OM_General_BZ358E
3-1. Keys
Keys
Keys
The following keys are provided with the vehicle.
▶Vehicles without key-free system
a Key (wireless key)
Activating the wireless function
(➞ P. 133)
b Key (spare key)
c Key number plate
▶Vehicles with key-free system
a Electronic key
Activating the key-free system
(➞ P. 121)
Activating the wireless function
( ➞ P. 133)
b Emergency key
c Key number plate
Using the emergency key (vehicles with key-free system)
aSlide the knob
b Remove the emergency key
After use, restore the key to the origi-
nal position and carry it with the elec-
tronic key. When the electronic key’s
battery has run out, or the key-free sys-
tem is not working as intended, you will
need the emergency key. ( ➞P. 406)
132
KBTA310101
13
2KBRO310101
2
1
KBTA310105
Knob
RAIZE_OM_General_BZ358E.book 118 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1193-1. Keys
RAIZE_OM_General_BZ358E✽
: If equipped
Operation of each component
3
⬛If you have lost your key (vehicles without key-free system) or emergency
key (vehicles with key-free system)
Toyota dealers can make new genuine keys using the key number stamped on
your key number plate and the other key.
Keep the key number plate in a safe place such as your wallet, not in the vehi-
cle.
⬛When boarding an aircraft
When you bring the key to an aircraft, do not press the key switch in the air-
craft. Even when you store the key inside your luggage, be careful not to have
the switch get pressed easily. If the switch is pressed, the key emits a radio
wave that could interfere with aircraft operation.
⬛Low battery
➞ P. 1 2 8
⬛When you see a warning message about the electronic key status or the
engine switch mode (vehicles with key-free system)
To avoid leaving your electronic key insi de the vehicle, allowing the passengers
from taking the key out, or accidenta lly leaving the power on, the TFT color
multi-information display shows a messa ge reminding you to check the elec-
tronic key or engine switch status. If t hat happens, follow the displayed instruc-
tion immediately. ( ➞P. 393)
⬛When the TFT color multi-information display shows “Key Battery Low
Replace Key Battery” (vehicles with key-free system)
The electronic key’s battery is low. Replace it with a new battery. ( ➞P. 344)
⬛Replacing the battery
➞P. 3 4 4
⬛Purchasing keys
You can set up to 8 wireless keys
✽ (up to 4 for ones with the wireless function),
and up to 4 electronic keys
✽. Please contact your Toyota dealer for purchasing
and the usage information.
RAIZE_OM_General_BZ358E.book 119 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1203-1. Keys
RAIZE_OM_General_BZ358E✽
: If equipped

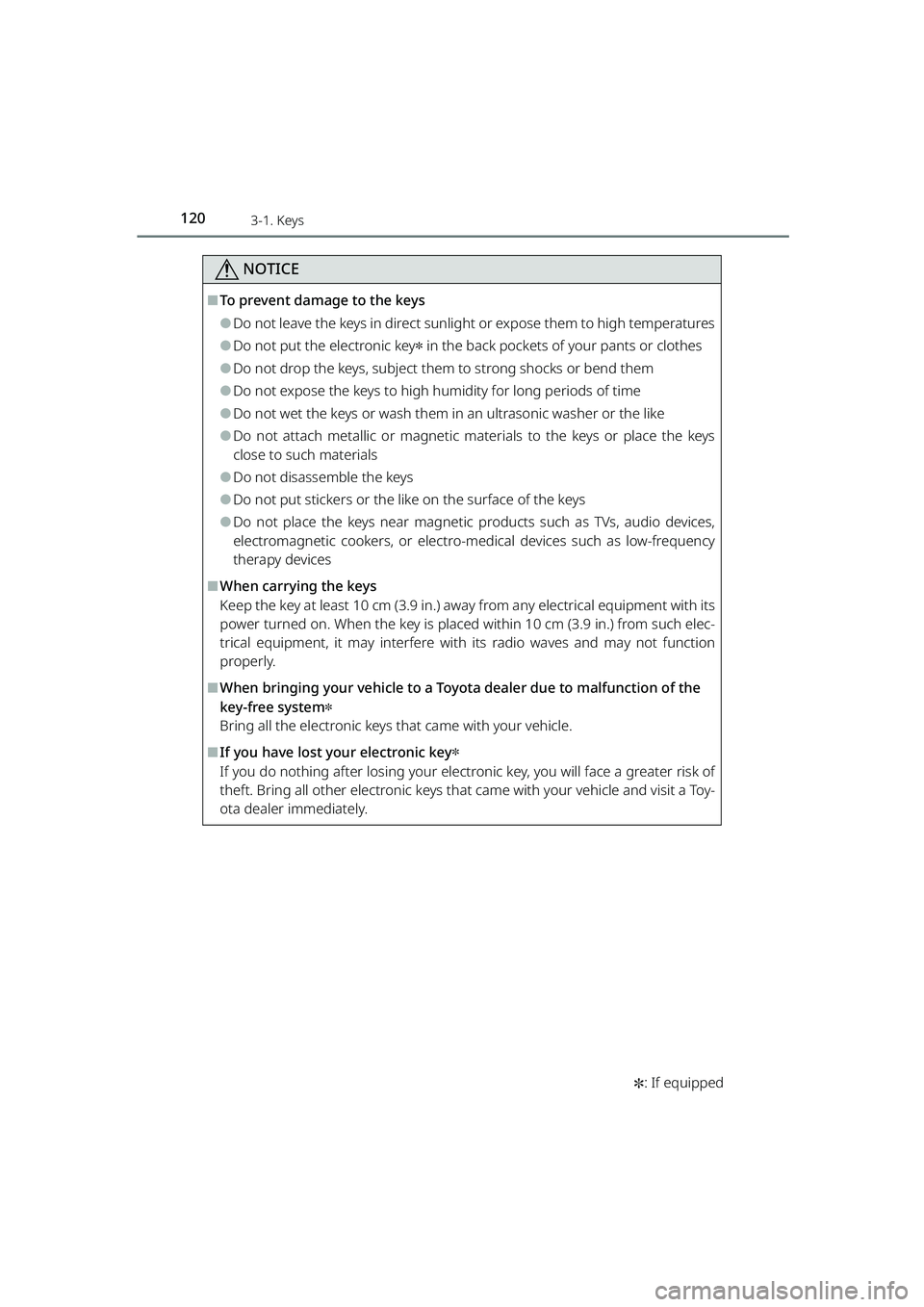

NOTICE
⬛To prevent damage to the keys
⚫Do not leave the keys in direct sunlight or expose them to high temperatures
⚫Do not put the electronic key✽ in the back pockets of your pants or clothes
⚫Do not drop the keys, subject them to strong shocks or bend them
⚫Do not expose the keys to high humidity for long periods of time
⚫Do not wet the keys or wash them in an ultrasonic washer or the like
⚫Do not attach metallic or magnetic materials to th e keys or place the keys
close to such materials
⚫Do not disassemble the keys
⚫Do not put stickers or the like on the surface of the keys
⚫Do not place the keys near magnetic products such as TVs, audio devices,
electromagnetic cookers, or electro- medical devices such as low-frequency
therapy devices
⬛When carrying the keys
Keep the key at least 10 cm (3.9 in.) away from any electrical equipment with its
power turned on. When the key is placed wi thin 10 cm (3.9 in.) from such elec-
trical equipment, it may interfere wi th its radio waves and may not function
properly.
⬛When bringing your vehicle to a Toyo ta dealer due to malfunction of the
key-free system
✽
Bring all the electronic keys that came with your vehicle.
⬛If you have lost your electronic key✽
If you do nothing after losing your electronic key, you will face a greater risk of
theft. Bring all other electronic keys that came with your vehicle and visit a Toy-
ota dealer immediately.
RAIZE_OM_General_BZ358E.book 120 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1253-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Electronic key’s battery-saving mode
⚫The electronic key’s battery consumption can be reduced by setting the key
to the battery-saving mode since the key no longer is in standby for receiv-
ing signals.
While holding down the lock switch
(a ) on the electronic key, press the
unlock switch ( b) 2 times. Make sure
that the indicator of the electronic key
blinks 4 times.
The key-free system does not work in
the battery-saving mode. To cancel
the battery-saving mode, press any of
the switches on the electronic key.
⚫If you do not plan on using the electronic key for a long time, we recommend
that you set the key to the battery-saving mode.
⚫If you plan on setting the electronic key to the battery-saving mode immedi-
ately after replacing the key battery, wait for approximately 10 seconds
before doing so.
⬛Situations where the function may not work properly
The key-free system uses weak radio wa ves. Communication between the elec-
tronic key and the vehicle may be interrupted, and the key-free system, wire-
less remote control, and i mmobilizer system may not function properly in the
following situations. (Measures to take: ➞P. 406)
⚫When the electronic key’s battery is low
⚫When you are in an area with strong radio waves or noise present, such as
near TV towers, power plants, gas stat ions, broadcast stations, large display,
coin-operated parking lots, airports, and so on
⚫When the electronic key is touching or covered by the metal objects listed
below
⦁ Cards with aluminum foil or other metal pasted on
⦁ Cigarette boxes made of aluminum foil
⦁ Metal wallets or purses
⦁ Coins
⦁ Heating pad
⦁ Media such as CDs or DVDs
⚫When another wireless keys (that emit radio waves) is in use
1
2
KBRO320304
RAIZE_OM_General_BZ358E.book 125 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1263-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⚫When the electronic key is carried with products that transmit radio waves as
follows
⦁ Wireless communication devices such as radios, mobile phones, and cord-
less telephones
⦁ Electronic keys or wireless keys (that emit radio waves) of other vehicles
⦁ Computers or portable information terminals (electronic organizers)
⦁ Digital audio players
⦁ Portable gaming devices
⚫When a metal-containing film is pasted on the rear window glass
⚫When the electronic key is placed near electronic devices such as a charger
⬛Important information
⚫Even when the electronic key is placed in the operating (detection) range, it
may not work properly in the following situations.
⦁ The electronic key is located too close to the door windows or door han-
dles when you lock or unlock the doors or located near the ground or at a
high place
⦁ The electronic key is placed on the instrument panel or the floor, placed
inside the door pockets or in the gl ove box when you start the engine or
switch the modes
⚫Even when you have the electronic key in your pocket, the key may not work
properly depending on the position or shape of your pocket. (Operating
range: ➞P. 122)
⚫Depending on the signal conditions, the electronic key could be trapped
inside the vehicle if you step outside of your vehicle by leaving the electronic
key on the instrument panel or near the door pockets since the external
antenna could detect the signal and lock the doors.
⚫As long as the electronic key is located within the operating range, the doors
can be locked and unlocked by anyone besides the person who is carrying
the key. Note that the doors other th an those detect the electronic key can-
not be unlocked in this case.
Even when the electronic key is located near the door that is opposite from
the unlocked door, the opposite door can detect the electronic key and get
unlocked.
⚫If the electronic key is located near th e door window outside the vehicle, the
key could start the engine sometimes.
RAIZE_OM_General_BZ358E.book 126 ページ ２０２２年５月１７日　火曜日　午後１時５９分
