832-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

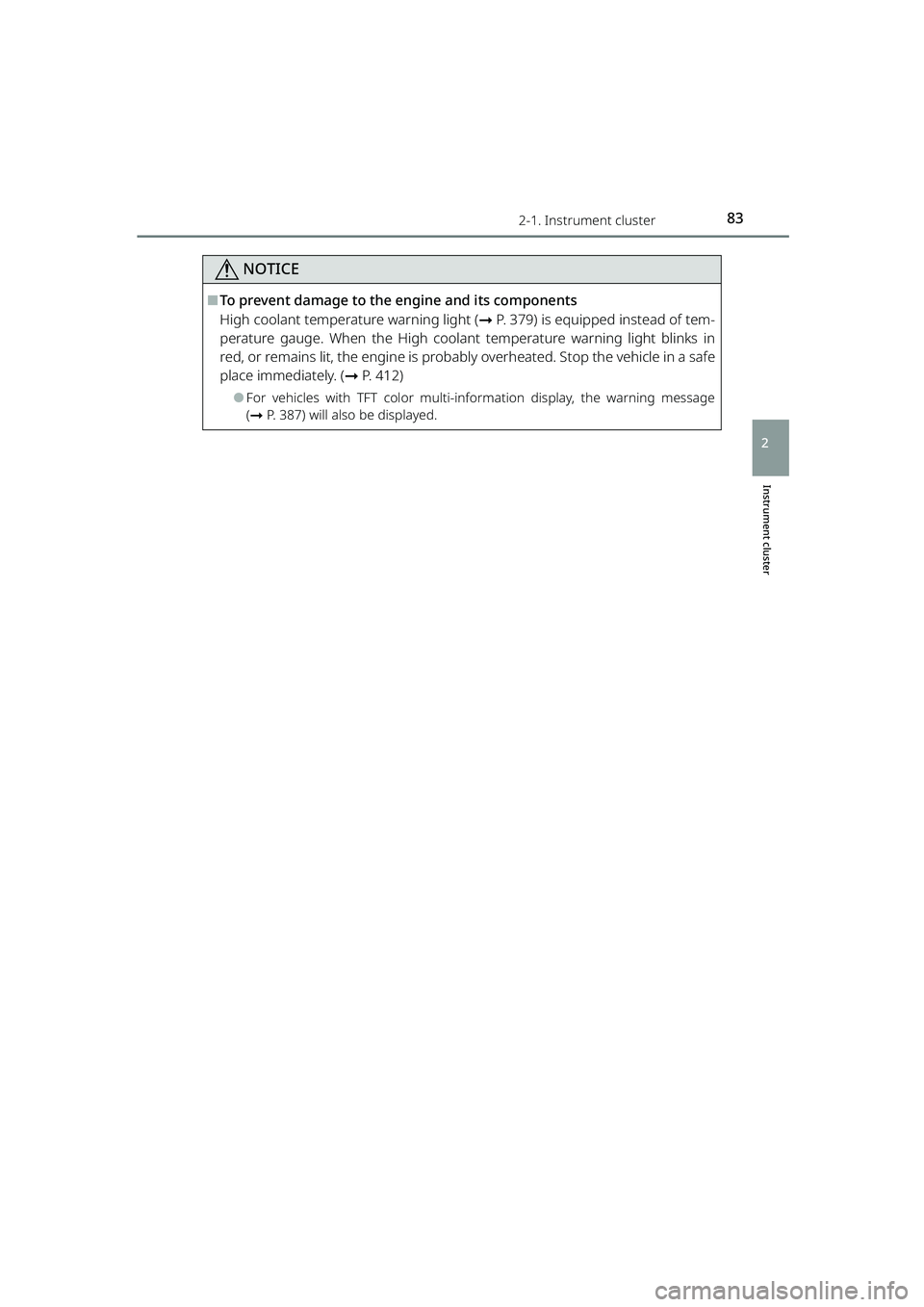

NOTICE
⬛To prevent damage to the engine and its components
High coolant temperature warning light (➞P. 379) is equipped instead of tem-
perature gauge. When the High coolant temperature warning light blinks in
red, or remains lit, the engine is probably overheated. Stop the vehicle in a safe
place immediately. ( ➞P. 412)
⚫
For vehicles with TFT color multi-info rmation display, the warning message
( ➞ P. 387) will also be displayed.
RAIZE_OM_General_BZ358E.book 83 ページ ２０２２年５月１７日　火曜日　午後１時５９分

842-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped

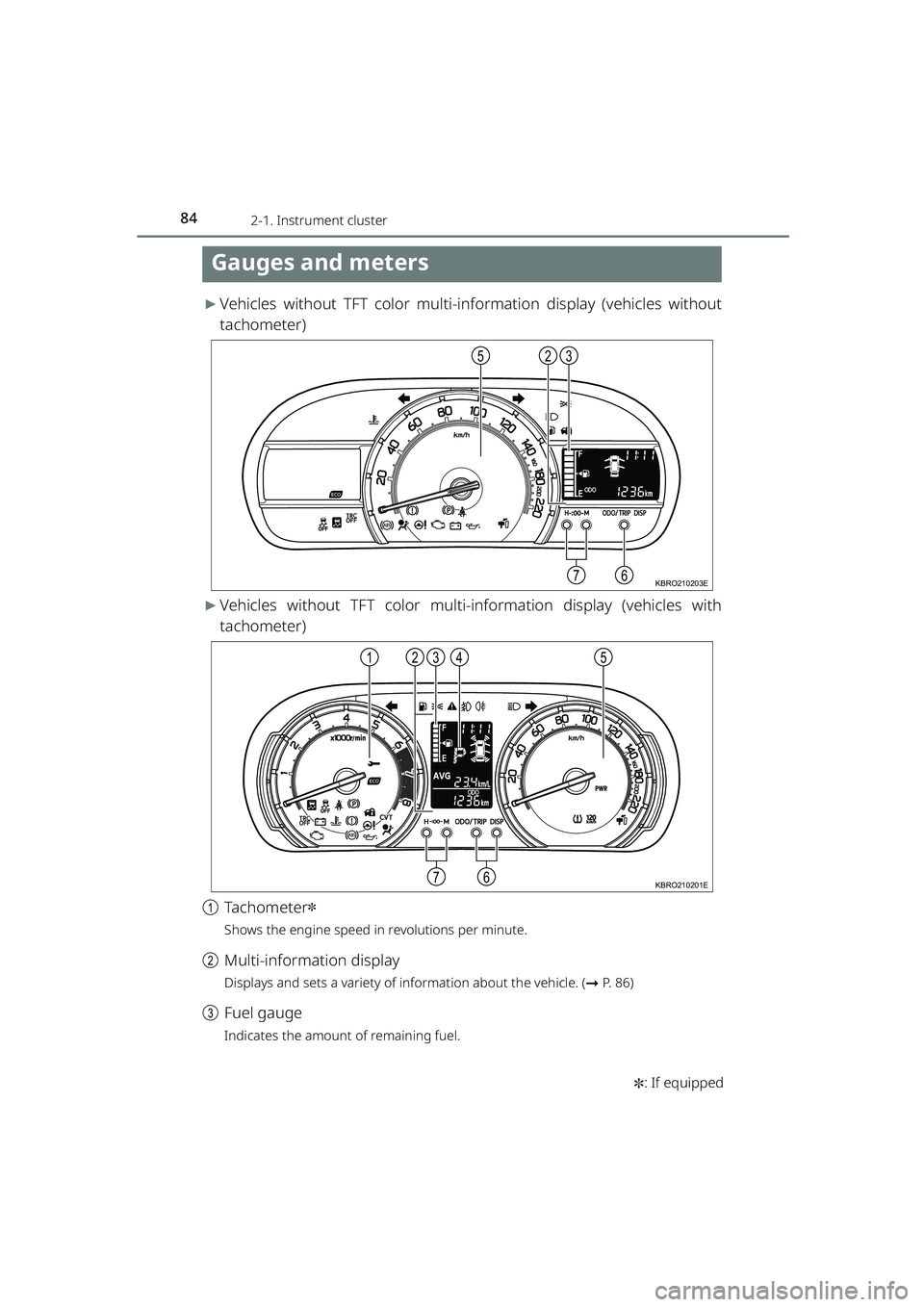

Gauges and meters
▶Vehicles without TFT color multi-in formation display (vehicles without
tachometer)
▶Vehicles without TFT color multi-information display (vehicles with
tachometer)
a Tachometer
✽
Shows the engine speed in revolutions per minute.
bMulti-information display
Displays and sets a variety of information about the vehicle. ( ➞P. 86)
c Fuel gauge
Indicates the amount of remaining fuel.
235
76KBRO210203E
23415
76KBRO210201E
RAIZE_OM_General_BZ358E.book 84 ページ ２０２２年５月１７日　火曜日　午後１時５９分

852-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
d Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
e Speedometer
Indicates the speed of the vehicle.
fDisplay change button
Switches the display of the multi-information display. (➞P. 87)
g Clock adjustment switches ( ➞P. 88)
▶Vehicles with TFT color multi-information display
a TFT color multi-information display
Displays and sets a variety of information about the vehicle. ( ➞P. 98)
b Speedometer
Indicates the speed of the vehicle.
cFuel gauge
Indicates the amount of remaining fuel.
⬛Meter/display operating conditions
When the engine switch is “ON”
⬛Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
1
3
2
KBRO210202E
RAIZE_OM_General_BZ358E.book 85 ページ ２０２２年５月１７日　火曜日　午後１時５９分

862-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Multi-information display✽
Display contents
The multi-information display shows a va riety of outside temperature- and
driving-related information.
⚫Trip information ( ➞P. 8 9 )
The displayed items are as follows.
⦁Odometer
⦁ Tr ip m eter A/B
⦁ Instrument panel illumination adjust-
ment
⚫Driving information ( ➞P. 90)
The displayed items are as follows.
⦁Instantaneous fuel economy
⦁ Average fuel economy
⦁ Cruising distance
⦁ Outside temperature
⚫Fuel gauge
Indicates the amount of remaining fuel.
⚫Shift position display✽ (➞ P. 189)
⚫Clock display ( ➞P. 88)
⚫Front corner sensor/Reverse sen-
sor indicator
✽ (➞ P. 221)
▶Vehicles without tachometer
▶Vehicles with tachometer
KBRO210501E
KBRO210301E
RAIZE_OM_General_BZ358E.book 86 ページ ２０２２年５月１７日　火曜日　午後１時５９分

872-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

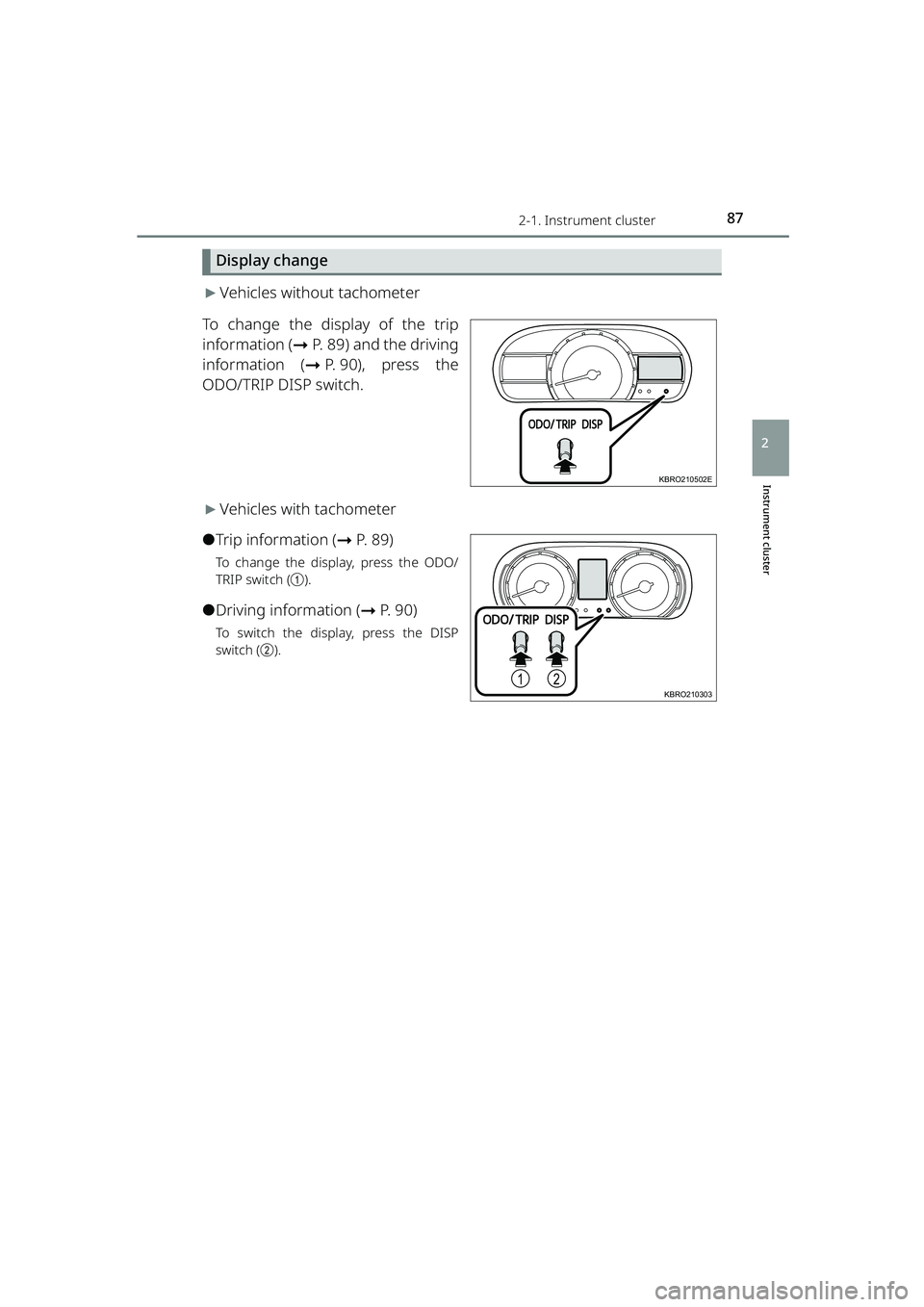

Display change
▶Vehicles without tachometer
To change the display of the trip
information ( ➞P. 89) and the driving
information ( ➞P. 90), press the
ODO/TRIP DISP switch.
▶Vehicles with tachometer
⚫Trip information ( ➞P. 8 9 )
To change the display, press the ODO/
TRIP switch ( a).
⚫Driving information ( ➞P. 90)
To switch the display, press the DISP
switch ( b).
KBRO210502E
12KBRO210303
RAIZE_OM_General_BZ358E.book 87 ページ ２０２２年５月１７日　火曜日　午後１時５９分

882-1. Instrument cluster
RAIZE_OM_General_BZ358E
Clock display
The time can be adjusted by pressing the clock adjustment switches.
Time cannot be adjusted when automatic correction is turned ON on the user cus-
tomization screen. (➞P. 9 2 )
a Adjust “hours” (H)
b Adjust “minutes” (M)
c Set “minutes” to 00*
Press and hold the clock adjustment
switches ( a) and ( b) at the same time.
*(Example) For 1:00 to 1:29, 1:00 is set
For 1:30 to 1:59, 2:00 is set
▶Vehicles without tachometer
▶Vehicles with tachometer
12
3KBRO210503E
12
3KBRO210305
RAIZE_OM_General_BZ358E.book 88 ページ ２０２２年５月１７日　火曜日　午後１時５９分

892-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
Trip information
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
ODO/TRIP switch (for vehicles with tachometer) to switch the display.
*The text layout in the display varies according to the vehicle grade level and
options, etc.
⬛Odometer
Displays the total distance the vehi-
cle has been driven.
⬛Trip meter A*/Trip meter B*Displays the distance the vehicle has
been driven since the meter was last
reset.
To reset the display, press and hold the
switch while trip meter A or B is dis-
played.
Vehicles without tachometer: Press th e switch while trip meter B is dis-
played, the menu changes to instantaneous fuel economy ( ➞P. 90).
*Trip meters A and B can be used to reco rd and display different distances inde-
pendently.
⬛Instrument panel illumination adjustment
Vehicles without tachometer: Press th e switch while the outside tempera-
ture ( ➞P. 91) is displayed, the display changes to the instrument panel
illumination adjustment.
Indicates instrument panel illumina-
tion for day illumination or night illu-
mination (➞P. 96).
⦁Pressing and holding the switch while
instrument panel illumination is dis-
played can adjust the instrument
panel illumination in 5 steps.
⦁ Adjust day illumination by turning off
the front position lights.
⦁ Adjust night illumination by turning on
the front position lights.
RAIZE_OM_General_BZ358E.book 89 ページ ２０２２年５月１７日　火曜日　午後１時５９分

902-1. Instrument cluster
RAIZE_OM_General_BZ358E
Driving information
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
DISP switch (for vehicles with tachometer) to switch the display.
*The text layout in the display varies according to the vehicle grade level and
options, etc.
⬛Instantaneous fuel economy
Vehicles without tachometer: Press the switch while trip meter B (➞P. 89)
is displayed, the display changes to instantaneous fuel economy.
Indicates instantaneous fuel econ-
omy at present.
⬛Average fuel economy
Indicates average fuel economy
taken after reset.
⦁To reset the display, press and hold
the switch while average fuel economy
is displayed.
⦁ Note that the figures displayed as
average fuel economy are just for ref-
erence.
⬛Cruising distance
Indicates the approximate cruising
distance to be attained with the
amount of remaining fuel at present.
⦁The distance indicated is calculated
based on the average fuel economy
taken from the past, which does not
necessarily represent the exact dis-
tance the vehicle can actually run.
⦁ Pressing and holding the switch for
more than 5 seconds while cruising
distance is displayed may erase the
average fuel economy data from the
past, and refresh the display.
⦁ The display may not be refreshed
when the fuel supply is low.
