1102-1. Instrument cluster
RAIZE_OM_General_BZ358E
aPress / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Vehicle Settings” and press the ENTER
switch
c Press the / switch to select “Door Lock” and press the ENTER
switch
d Press and hold the / switch or press it several times to switch
the “Door Lock” screen
e Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⦁ When appears after you press the ENTER switch, press / switch to
select the settings, and then press the ENTER switch again.
⬛Settings of windshield wipers
The follow settings can be selected as needed.
⚫ON/OFF of speed linked windshield wipers ( ➞P. 203)
⚫ON/OFF of rear wiper activation linked with reverse position ( ➞P. 2 0 6 )
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Vehicle Settings” and press the ENTER
switch
c Press the / switch to select “Wiper” and press the ENTER switch
d Press the ENTER switch to switch settings
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
RAIZE_OM_General_BZ358E.book 110 ページ ２０２２年５月１７日　火曜日　午後１時５９分

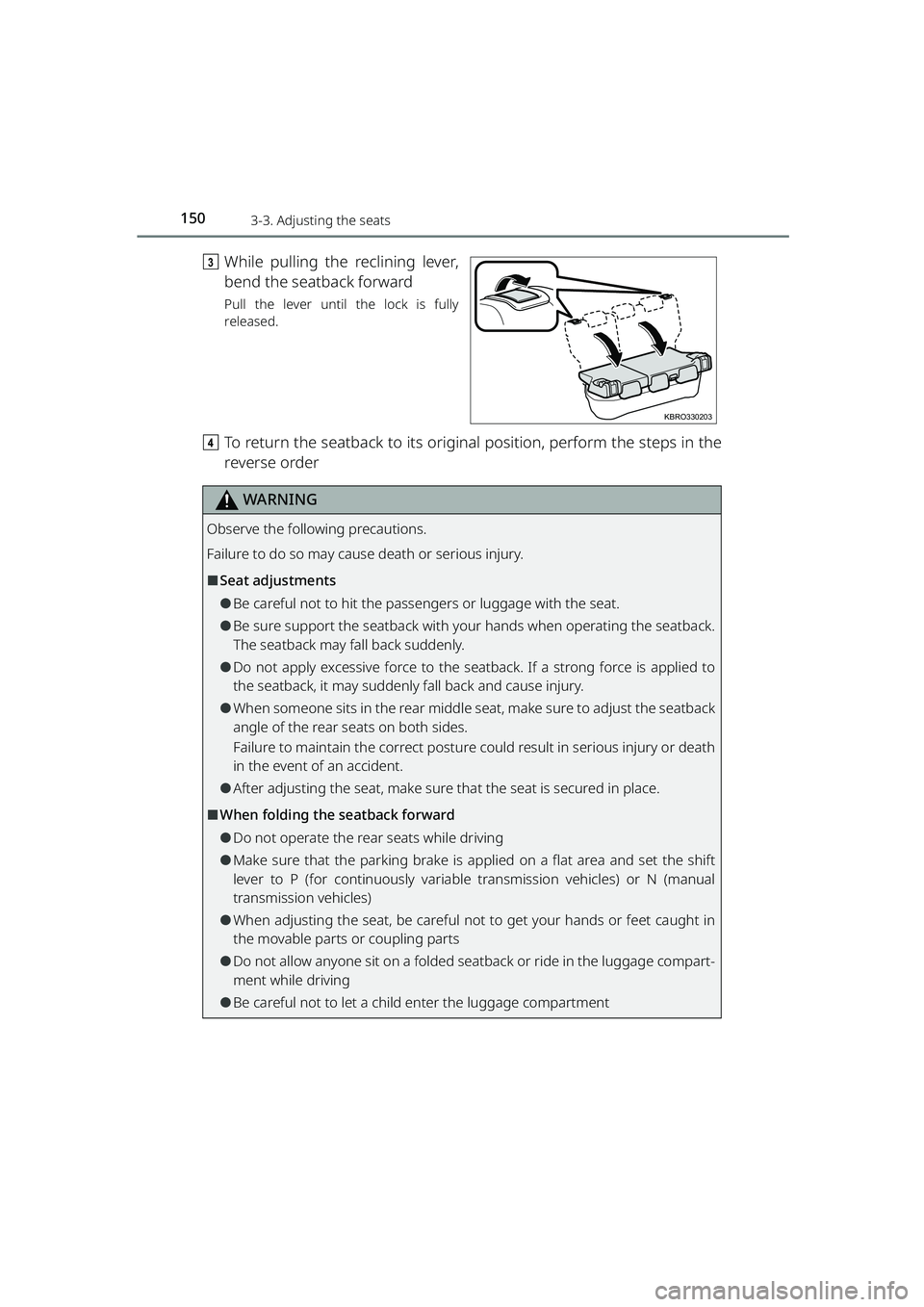

1503-3. Adjusting the seats
RAIZE_OM_General_BZ358E
cWhile pulling the reclining lever,
bend the seatback forward
Pull the lever until the lock is fully
released.
dTo return the seatback to its original position, perform the steps in the
reverse order
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
⬛Seat adjustments
⚫Be careful not to hit the passengers or luggage with the seat.
⚫Be sure support the seatback with your hands when operating the seatback.
The seatback may fall back suddenly.
⚫Do not apply excessive force to the seatback. If a strong force is applied to
the seatback, it may suddenly fall back and cause injury.
⚫When someone sits in the rear middle se at, make sure to adjust the seatback
angle of the rear seats on both sides.
Failure to maintain the correct posture co uld result in serious injury or death
in the event of an accident.
⚫After adjusting the seat, make sure that the seat is secured in place.
⬛When folding the seatback forward
⚫Do not operate the rear seats while driving
⚫Make sure that the parking brake is ap plied on a flat area and set the shift
lever to P (for continuously variable transmission vehicles) or N (manual
transmission vehicles)
⚫When adjusting the seat, be careful not to get your hands or feet caught in
the movable parts or coupling parts
⚫Do not allow anyone sit on a folded seat back or ride in the luggage compart-
ment while driving
⚫Be careful not to let a child enter the luggage compartment
KBRO330203
RAIZE_OM_General_BZ358E.book 150 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1613-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Overheat protection function of the power window motor
The power window motor has a built-in overheat protection function. If the
power window motor continues to run at a high load, the overheat protection
function may get activated and temporarily stops the power window opera-
tion. After a dozen seconds, it starts working normally again.
⬛When the driver’s door window will not close
When the driver’s door window will not close all the way due to the jam protec-
tion function being activated abnormall y, perform the following operations
using the window switch on the driver’s door.
a Stop the vehicle and turn the engine switch to “ON”
b Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 6 seconds
If you release your hand from the swit ch while the door window is moving, you
need to start over from the beginning.
If these operations do not close the door window all the way and the window
still moves in a reverse direction, bring your vehicle to a Toyota dealer for
inspection.
⬛Reconnecting the battery
Follow the steps described below and configure the initial settings to ensure
proper operation of the power windows.
a Turn the engine switch to “ON”
b Hold down the window switch of the driver’s door to open the window all
the way
c Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 2 seconds
If you release your hands from the switch while the door window is moving,
you need to start over from the step b.
RAIZE_OM_General_BZ358E.book 161 ページ ２０２２年５月１７日　火曜日　午後１時５９分

165
4
RAIZE_OM_General_BZ358E
Driving
4-1. Driving the vehicle
Driving the vehicle .....................166
Precautions when loading luggage .....................................177
Trailer towing ..............................179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ......................................180
Engine (ignition) switch (vehicles with key-free
system) ......................................184
Continuously variable transmission .............................189
Driving the manual transmission vehicle ........................................194
Turn signal lever.........................196
Parking brake..............................197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front)......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips ........... 241
RAIZE_OM_General_BZ358E.book 165 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1934-2. Driving procedures
RAIZE_OM_General_BZ358E
