3064-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E

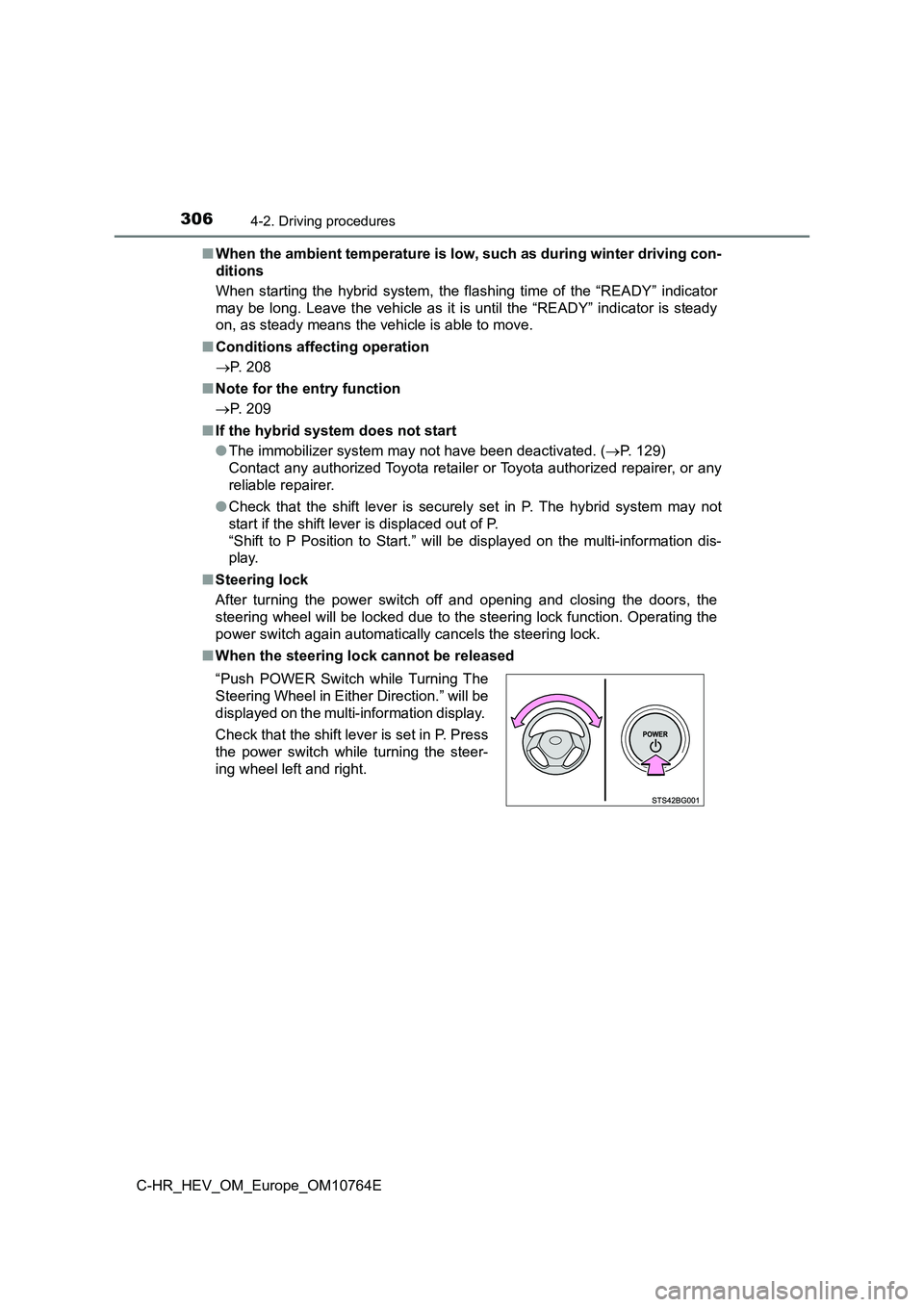

■ When the ambient temperature is low, such as during winter driving con-
ditions
When starting the hybrid system, the flashing time of the “READ Y” indicator
may be long. Leave the vehicle as it is until the “READY” indic ator is steady
on, as steady means the vehicle is able to move.
■ Conditions affecting operation
 P. 208
■ Note for the entry function
 P. 209
■ If the hybrid system does not start
● The immobilizer system may not have been deactivated. (P. 129)
Contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
● Check that the shift lever is securely set in P. The hybrid system may not
start if the shift lever is displaced out of P.
“Shift to P Position to Start.” will be displayed on the multi- information dis-
play.
■ Steering lock
After turning the power switc h off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function . Operating the
power switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
“Push POWER Switch while Turning The
Steering Wheel in Either Direction.” will be
displayed on the multi-information display.
Check that the shift lever is set in P. Press
the power switch while turning the steer-
ing wheel left and right.

3074-2. Driving procedures
4
Driving
C-HR_HEV_OM_Europe_OM10764E

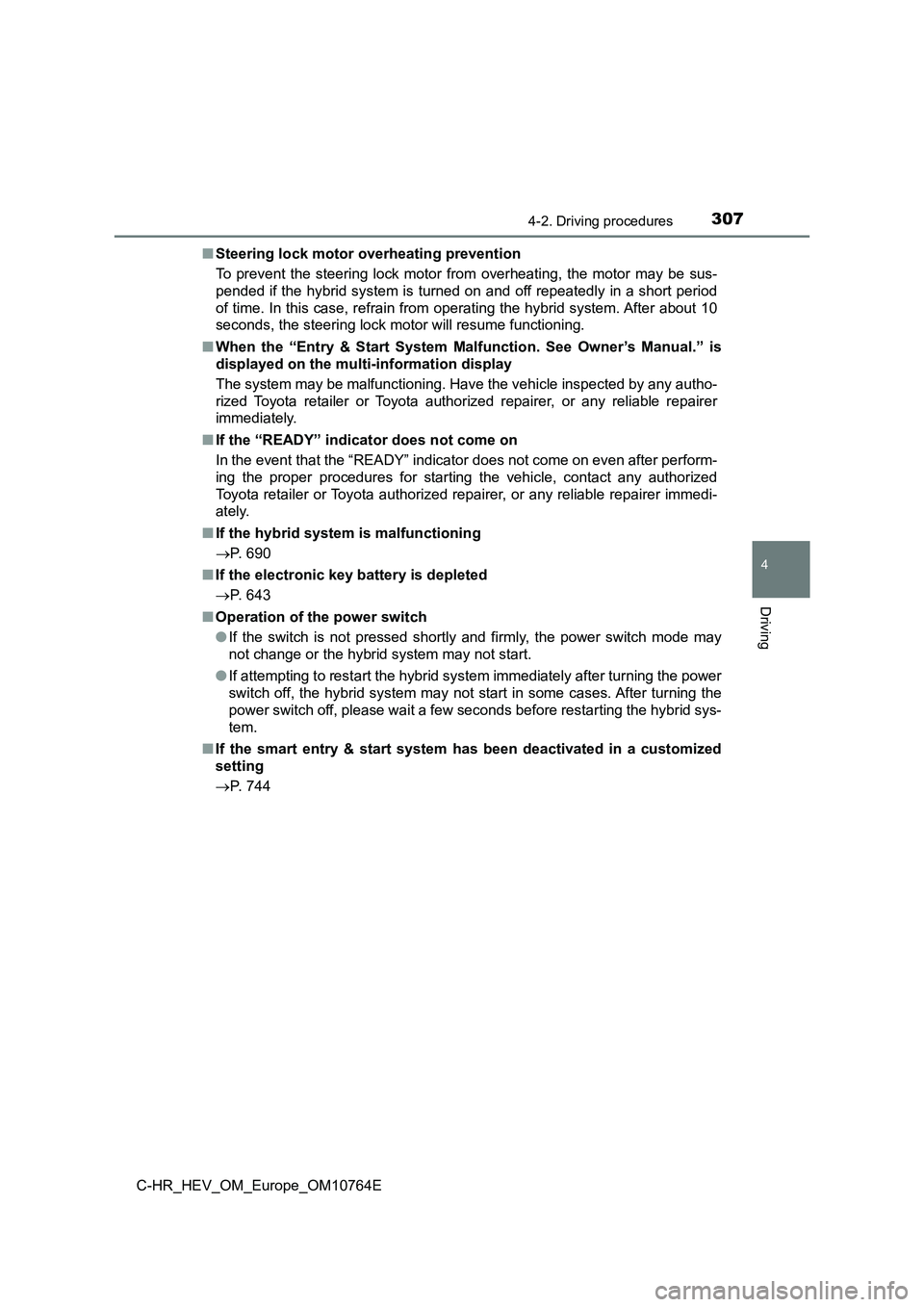

■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the hybrid system is turned on and off repeatedly in a short period
of time. In this case, refrain from operating the hybrid system . After about 10
seconds, the steering lock motor will resume functioning.
■ When the “Entry & Start System Malfunction. See Owner’s Manual.” is
displayed on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
immediately.
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even a fter perform-
ing the proper procedures for starting the vehicle, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer immedi-
ately.
■ If the hybrid system is malfunctioning
 P. 690
■ If the electronic key battery is depleted
 P. 643
■ Operation of the power switch
● If the switch is not pressed shortly and firmly, the power switch mode may
not change or the hybrid system may not start.
● If attempting to restart the hybrid system immediately after turning the power
switch off, the hybrid system may not start in some cases. Afte r turning the
power switch off, please wait a few seconds before restarting t he hybrid sys-
tem.
■ If the smart entry & start system has been deactivated in a customized
setting
 P. 744

3084-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s se at. Do not
depress the accelerator pedal while starting the hybrid system under any
circumstances.
Doing so may cause an accident res ulting in death or serious injury.
■ Caution while driving
If a hybrid system failure occurs while the vehicle is moving, do not lock or
open the doors until the vehicle reaches a safe and complete st op. Activa-
tion of the steering lock in this circumstance may lead to an a ccident, result-
ing in death or serious injury.
■ Stopping the hybrid system in an emergency
● If you want to stop the hybrid system in an emergency while driving the
vehicle, press and hold the power switch for more than 2 second s, or
press it briefly 3 times or more in succession. ( P. 669)
However, do not touch the power switch while driving except in an emer-
gency. Turning the hybrid system off while driving will not cau se loss of
steering or braking control, however, power assist to the steer ing will be
lost. This will make it more difficult to steer smoothly, so yo u should pull
over and stop the vehicle as soon as it is safe to do so.
● If the power switch is operated while the vehicle is running, a warning
message will be shown on the multi-information display and a bu zzer
sounds.
● When restarting the hybrid system after an emergency shutdown while
driving, press the power switch. When restarting the hybrid sys tem after
stopping the vehicle, shift the shift lever to P and then press the power
switch.

3094-2. Driving procedures
4
Driving
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■To prevent 12-volt battery discharge
● Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
● If “ACCESSORY” or “IGNITION ON” is displayed on the multi-information
display while the hybrid system is not operating, the power swi tch is not
off. Exit the vehicle after turning the power switch off.
● Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the
power switch will not be turned off but instead be turned to AC CESSORY
mode. If the vehicle is left in ACCESSORY mode, 12-volt battery dis-
charge may occur.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehi cle checked by
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer immediately.
■ Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunctio n. Contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer immediately.

3104-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E

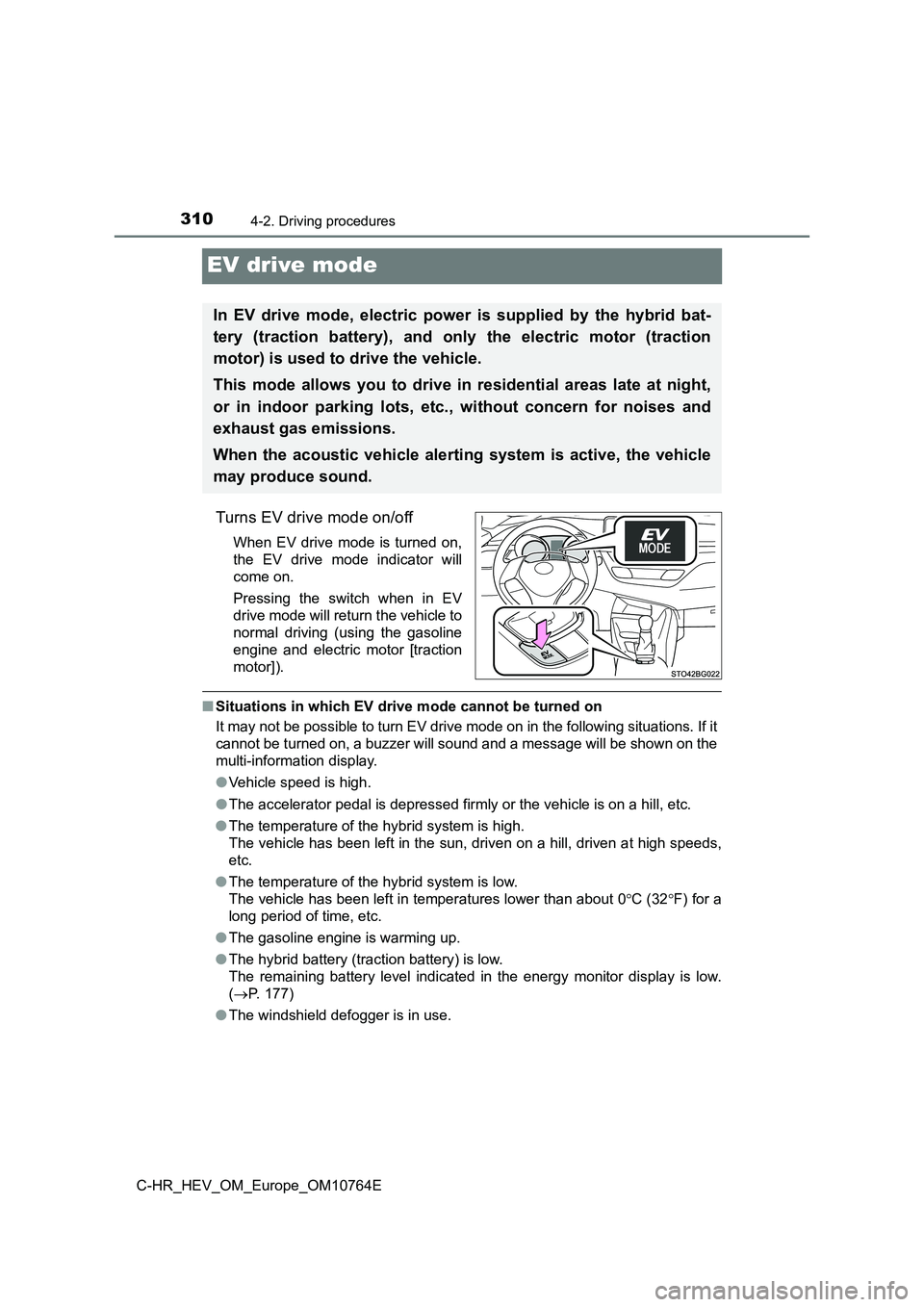

EV drive mode
Turns EV drive mode on/off
When EV drive mode is turned on,
the EV drive mode indicator will
come on.
Pressing the switch when in EV
drive mode will return the vehicle to
normal driving (using the gasoline
engine and electric motor [traction
motor]).
■ Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the followin g situations. If it
cannot be turned on, a buzzer will sound and a message will be shown on the
multi-information display.
● Vehicle speed is high.
● The accelerator pedal is depressed firmly or the vehicle is on a hill, etc.
● The temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.
● The temperature of the hybrid system is low.
The vehicle has been left in temperatures lower than about 0 C (32F) for a
long period of time, etc.
● The gasoline engine is warming up.
● The hybrid battery (traction battery) is low.
The remaining battery level indicated in the energy monitor dis play is low.
( P. 177)
● The windshield defogger is in use.
In EV drive mode, electric power is supplied by the hybrid bat-
tery (traction battery), and only the electric motor (traction
motor) is used to drive the vehicle.
This mode allows you to drive in residential areas late at nigh t,
or in indoor parking lots, etc., without concern for noises and
exhaust gas emissions.
When the acoustic vehicle alerting system is active, the vehicl e
may produce sound.

3184-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for
normal driving.
*2: By selecting shift ranges using S mode, you can control accele rating force
and engine braking force.
 P. 430
To enter S mode, shift the shift lever to S position. Shift ranges can be
selected by operating the shift lever.
Upshifting
Downshifting
The selected shift range, from S1
to S6, will be displayed on the
multi-information display.
The initial shift range in S mode is
4.
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2 ( P. 318)
Selecting a driving mode
Selecting shift ranges in the S position
1
2

3204-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E
■ Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifting ope ration may
sometimes be restricted. In some circumstances, downshifting ma y not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
■ S mode
● When the shift range is S4 or lower, holding the shift lever toward “+” sets
the shift range to S6.
● Automatically selects a higher shift range before the engine speed becomes
too high.
■ If the S indicator does not come on or the D indicator is displayed even
after shifting the shift lever to S
This may indicate a malfunction in the transmission system. Hav e the vehicle
inspected by any authorized Toyota retailer or Toyota authorize d repairer, or
any reliable repairer immediatel y. (In this situation, the transmission will oper-
ate in the same manner as when the shift lever is in D.)

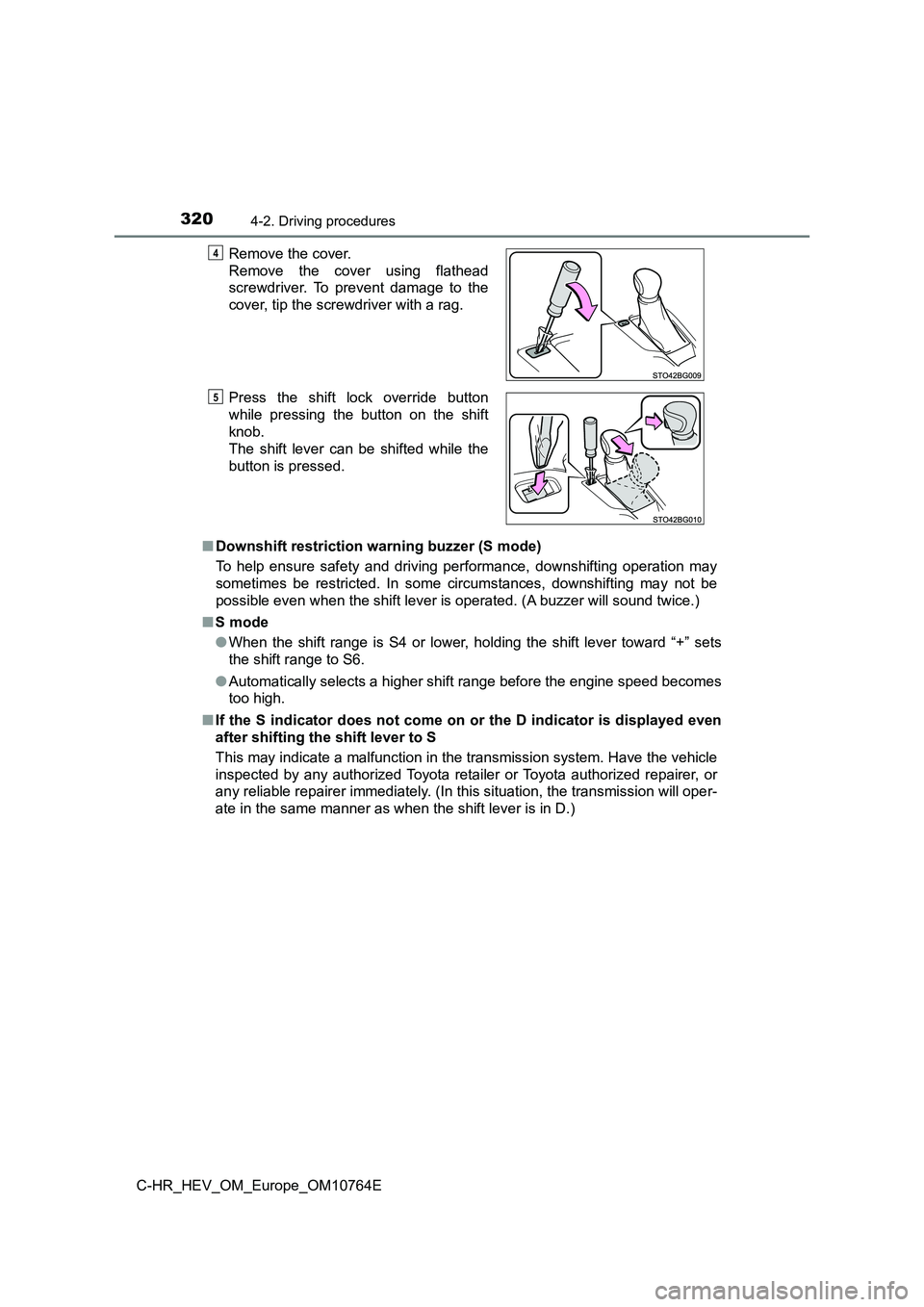

Remove the cover.
Remove the cover using flathead
screwdriver. To prevent damage to the
cover, tip the screwdriver with a rag.
Press the shift lock override button
while pressing the button on the shift
knob.
The shift lever can be shifted while the
button is pressed.
4
5

323
4
4-2. Driving procedures
Driving
C-HR_HEV_OM_Europe_OM10764E

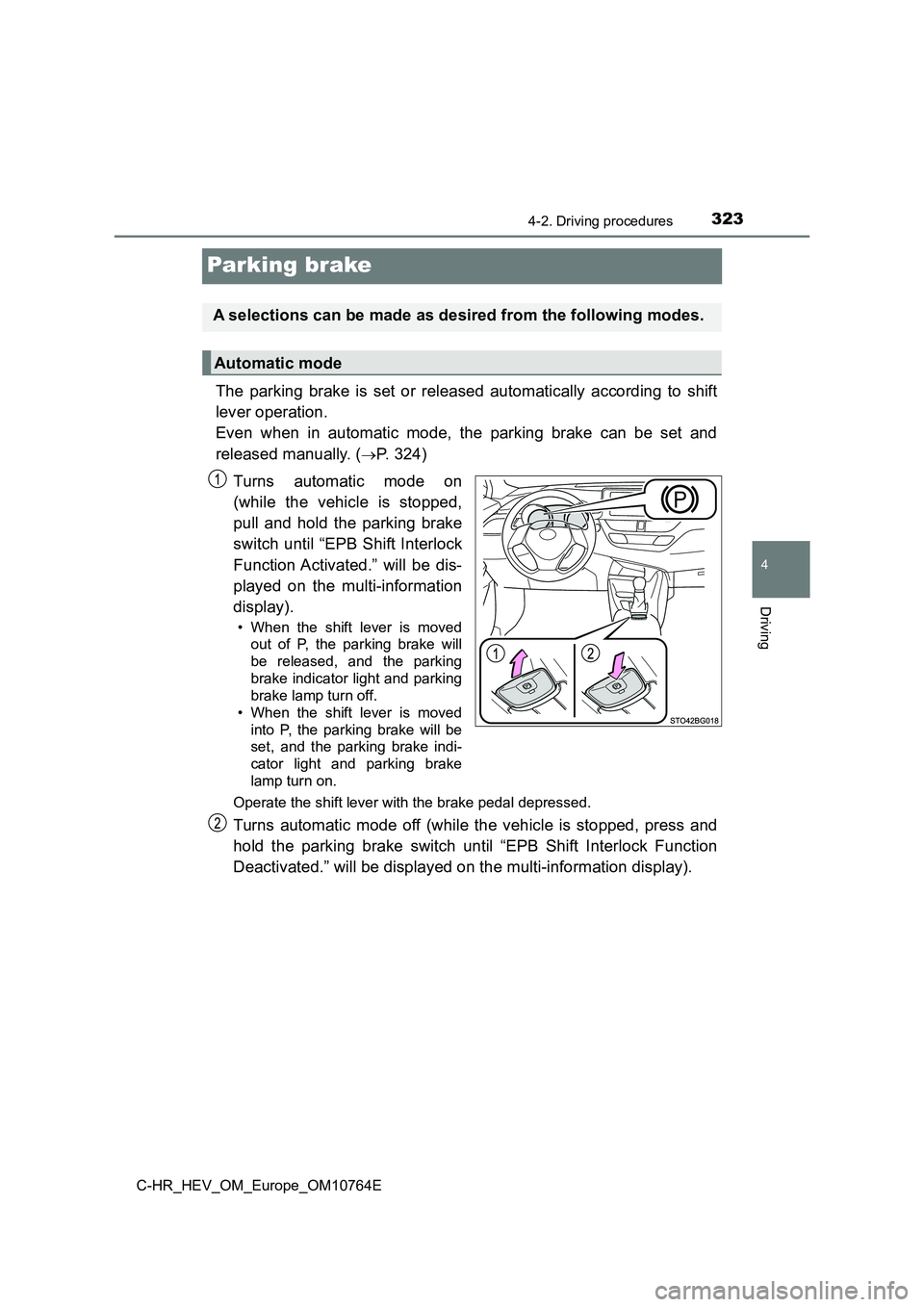

Parking brake
The parking brake is set or released automatically according to shift
lever operation.
Even when in automatic mode, the parking brake can be set and
released manually. (P. 3 2 4 )
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until “EPB Shift Interlock
Function Activated.” will be dis-
played on the multi-information
display).
• When the shift lever is moved
out of P, the parking brake will
be released, and the parking
brake indicator light and parking
brake lamp turn off.
• When the shift lever is moved
into P, the parking brake will be
set, and the parking brake indi-
cator light and parking brake
lamp turn on.
Operate the shift lever with the brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press a nd
hold the parking brake switch until “EPB Shift Interlock Functi on
Deactivated.” will be displayed on the multi-information displa y).
A selections can be made as desired from the following modes.
Automatic mode
