1612. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*1, 2, 3
Brake hold operated indicator P. 328,
683
*1
Brake hold standby indicator P. 328
*4
LTA indicator (if equipped) P. 385,
682
Speed limiter indicator (if equipped) P. 432
Cruise control indicator P. 408,
425
Cruise control “SET” indicator P. 408,
425
Radar cruise control indicator (if equipped) P. 408
“SPORT” indicator P. 430
“ECO MODE” indicator P. 430

1632. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
Symbols on multi-information displayPages
Charging system warning light P. 679
Low engine oil pressure warning light P. 679
High engine coolant temperature warning light P. 684
Smart entry & start system P. 303
Hybrid system overheat warning light P. 757
Brake Override System/Drive-Start Control P. 685
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, whic h could result
in death or serious injury. Have the vehicle inspected by any a uthorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1642. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

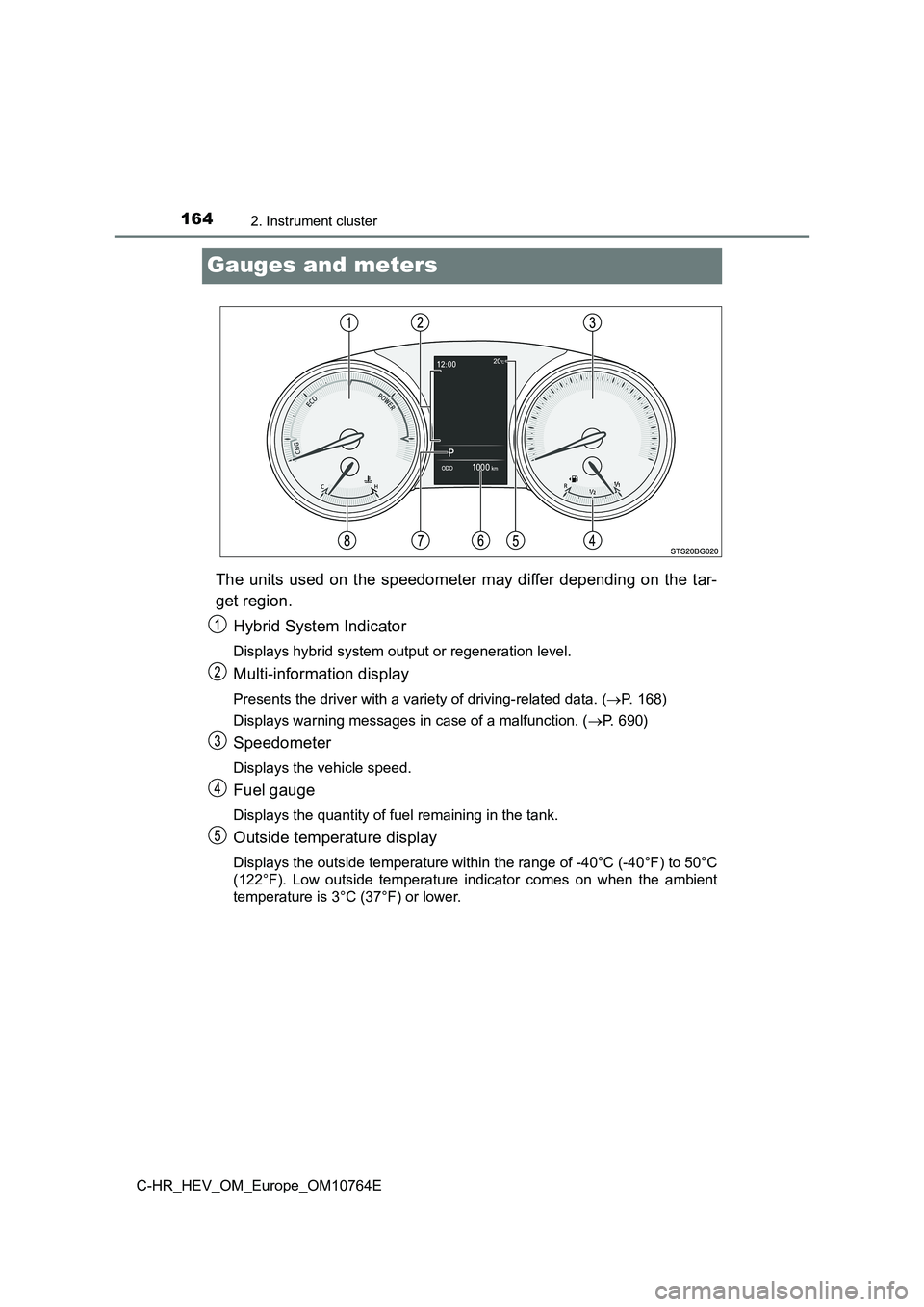

Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 168)
Displays warning messages in case of a malfunction. ( P. 690)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the am bient
temperature is 3°C (37°F) or lower.

1652. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
Odometer and trip meter display:
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the met er was last
reset. Trip meters A and B can be used to record and display di fferent dis-
tances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range. ( P. 313, 317)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
Changing the display

1662. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
■The meters and display illuminate when
The power switch is turned to ON mode.
■ Hybrid System Indicator
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (dur ing full
power driving, etc.)
● In the following situation, the Hybrid System Indicator does not operate.
• “READY” indicator is not illuminated.
• The shift position is in a range P, R or N.
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conver sion of
energy created by the movement of the vehicle into electrical e nergy.
Charge area
Shows that energy is being recovered
via the regenerative brake.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.

1672. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
■ Engine speed
On Hybrid Electric Vehicles, engine speed is precisely controll ed in order to
help improve fuel efficiency and reduce exhaust emissions, etc.
There are times when the engine speed that is displayed may dif fer even
when vehicle operation and driving conditions are the same.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliable repairer.
■ Adjusting the clock (if equipped)
The clocks can be adjusted on the multimedia system screen.
Refer to “Navigation and multimedia system Owner’s manual” or “ Multimedia
owner’s manual”.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehic le in a safe
place, and check the engine after it has cooled completely. ( P. 755)

1682. Instrument cluster
C-HR_HEV_OM_Europe_OM10764E
Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 169)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 169)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following syste ms:
• LTA (Lane Tracing Assist) ( P. 385)
• Dynamic radar cruise control with full-speed range ( P. 408)
• RSA (Road Sign Assist) ( P. 400)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 690)
Display contents

1692. Instrument cluster
2
Instrument cluster
C-HR_HEV_OM_Europe_OM10764E

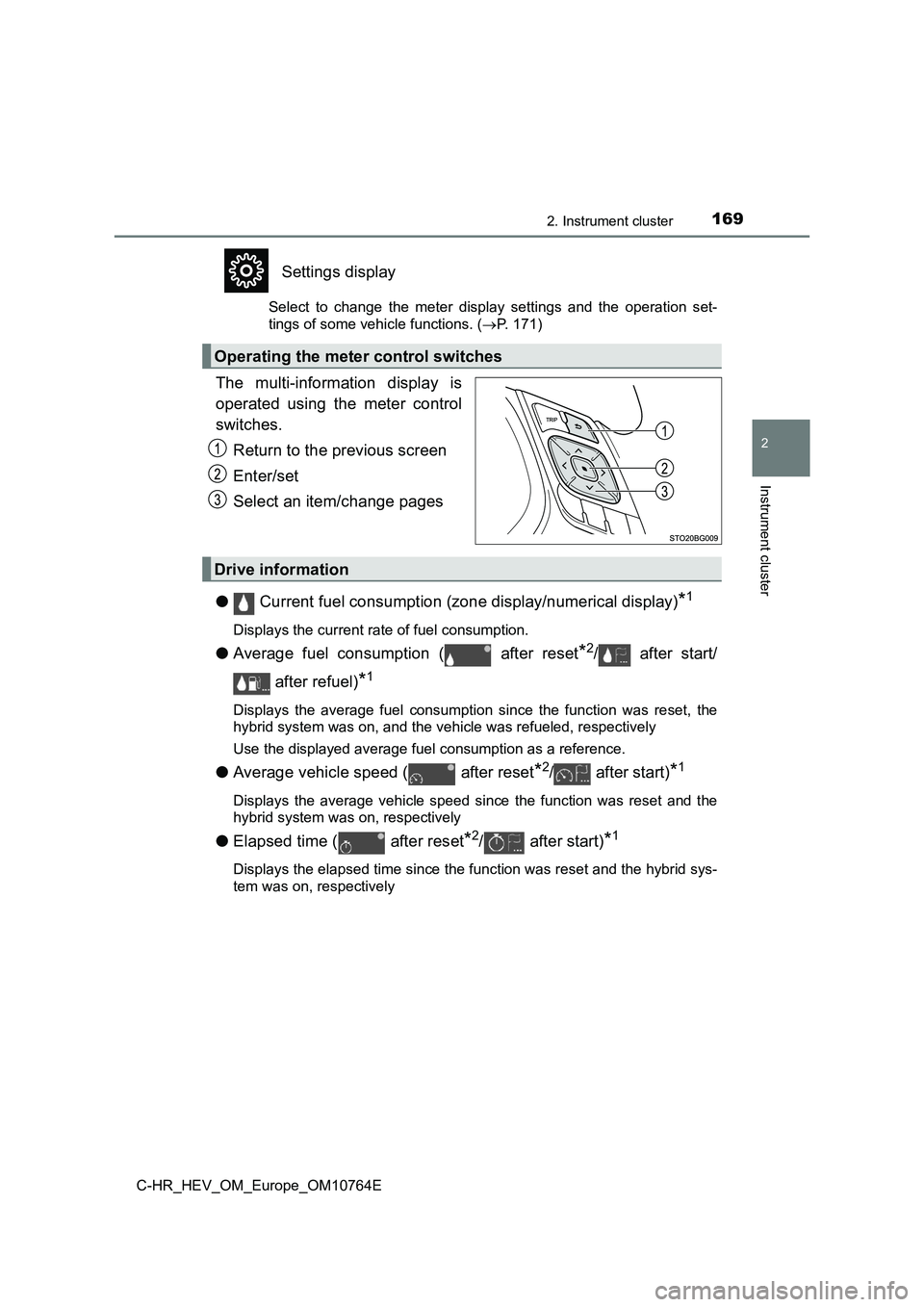

Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( P. 171)
The multi-information display is
operated using the meter control
switches.
Return to the previous screen
Enter/set
Select an item/change pages
● Current fuel consumption (zone display/numerical display)*1
Displays the current rate of fuel consumption.
●Average fuel consumption ( after reset*2/ after start/
after refuel)*1
Displays the average fuel consumption since the function was re set, the
hybrid system was on, and the vehicle was refueled, respectivel y
Use the displayed average fuel consumption as a reference.
● Average vehicle speed ( after reset*2/ after start)*1
Displays the average vehicle speed since the function was reset and the
hybrid system was on, respectively
● Elapsed time ( after reset*2/ after start)*1
Displays the elapsed time since the function was reset and the hybrid sys-
tem was on, respectively
Operating the meter control switches
Drive information
