7587-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
Add coolant if necessary.
If coolant is unavailable, use water as an emergency measure,
and have the vehicle inspected at any authorized Toyota retaile r,
Toyota authorized repairer, or any reliable repairer as soon as
possible.
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check if “Hybrid System
Overheated” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the message appears again frequently, contact any a utho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
5
2ZR-FXE engineM20A-FXS engine
6

7597-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises
WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may au tomati-
cally start, or the cooling fans may suddenly operate even if t he gasoline
engine stops. Do not touch or approach rotating parts such as t he fan,
which may lead to fingers or clothing (especially a tie, a scar f or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
NOTICE
■ When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down suff iciently.
Adding cool coolant to a hot hybrid system too quickly can caus e damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
● Do not use any coolant additive.

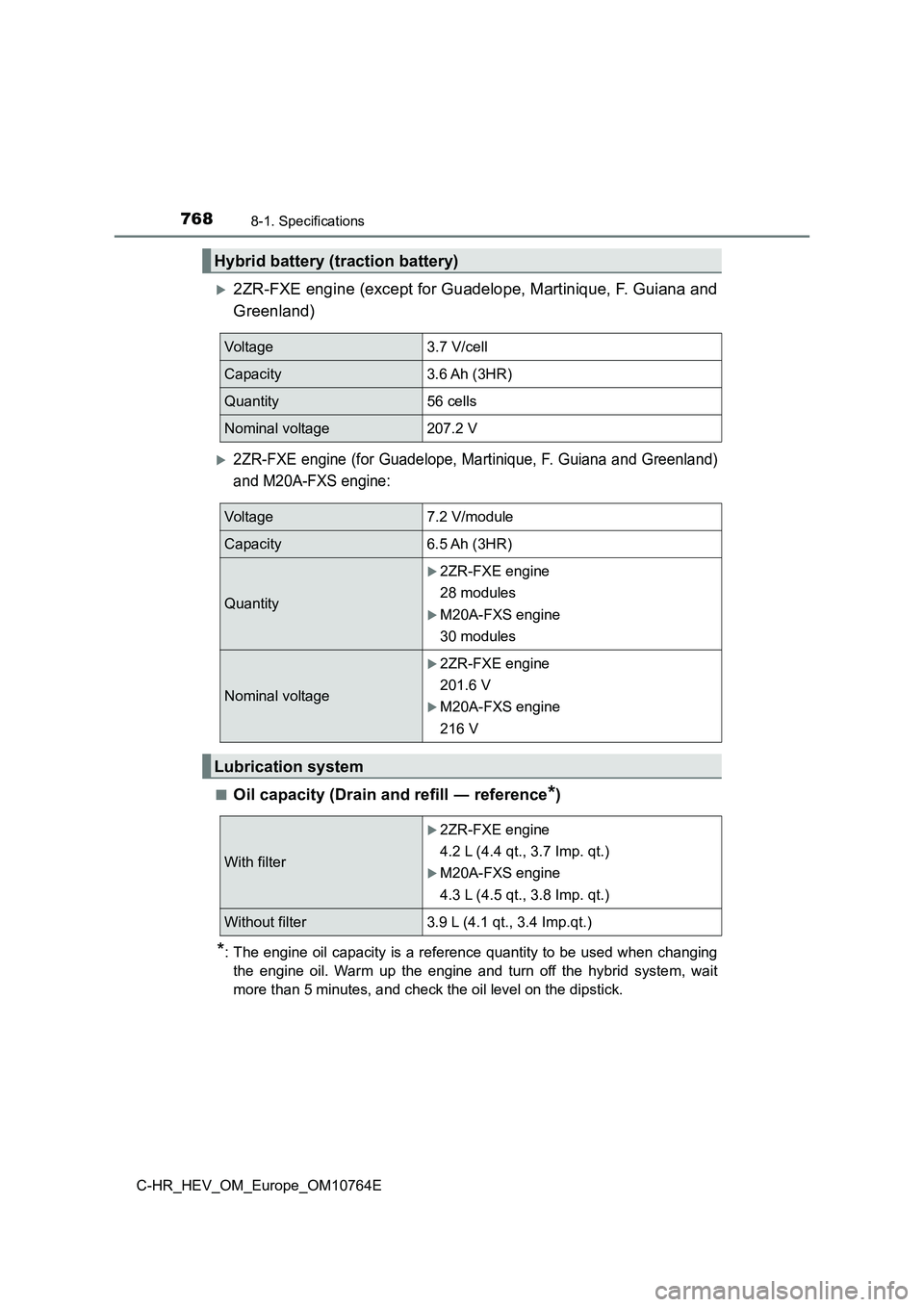

7688-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland)
2ZR-FXE engine (for Guadelope, Martinique, F. Guiana and Greenl and)
and M20A-FXS engine:
■Oil capacity (Drain and refill ― reference*)
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up the engine and turn off the hybrid syst em, wait
more than 5 minutes, and check the oil level on the dipstick.
Hybrid battery (traction battery)
Voltage3.7 V/cell
Capacity3.6 Ah (3HR)
Quantity56 cells
Nominal voltage207.2 V
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity
2ZR-FXE engine
28 modules
M20A-FXS engine
30 modules
Nominal voltage
2ZR-FXE engine
201.6 V
M20A-FXS engine
216 V
Lubrication system
With filter
2ZR-FXE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
M20A-FXS engine
4.3 L (4.5 qt., 3.8 Imp. qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)
