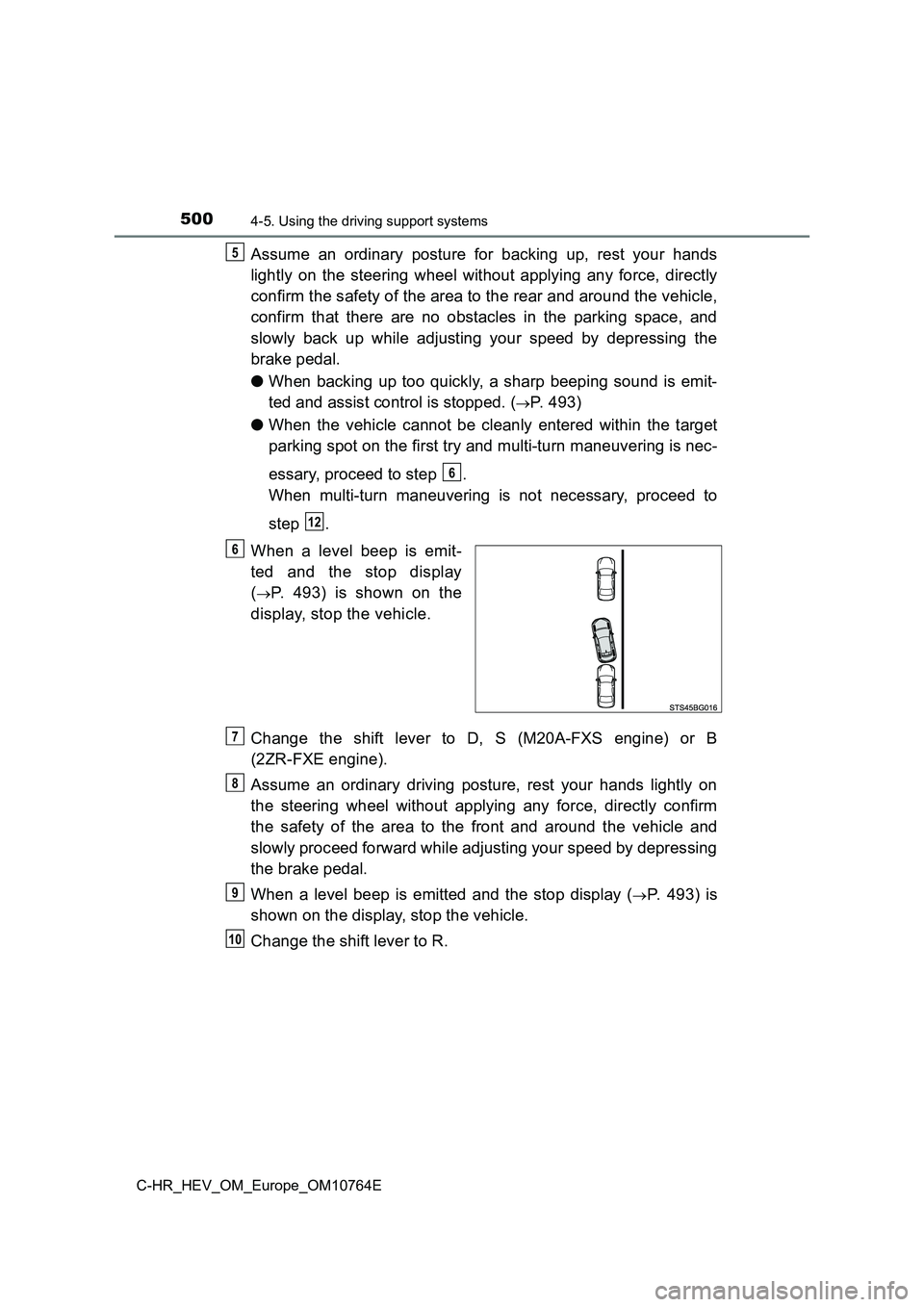

5004-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le,
confirm that there are no obstacles in the parking space, and
slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (P. 493)
● When the vehicle cannot be cleanly entered within the target
parking spot on the first try and multi-turn maneuvering is nec -
essary, proceed to step .
When multi-turn maneuvering is not necessary, proceed to
step .
When a level beep is emit-
ted and the stop display
(P. 493) is shown on the
display, stop the vehicle.
Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).
Assume an ordinary driving posture, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
When a level beep is emitted and the stop display (P. 4 9 3 ) i s
shown on the display, stop the vehicle.
Change the shift lever to R.
5
6
12
6
7
8
9
10

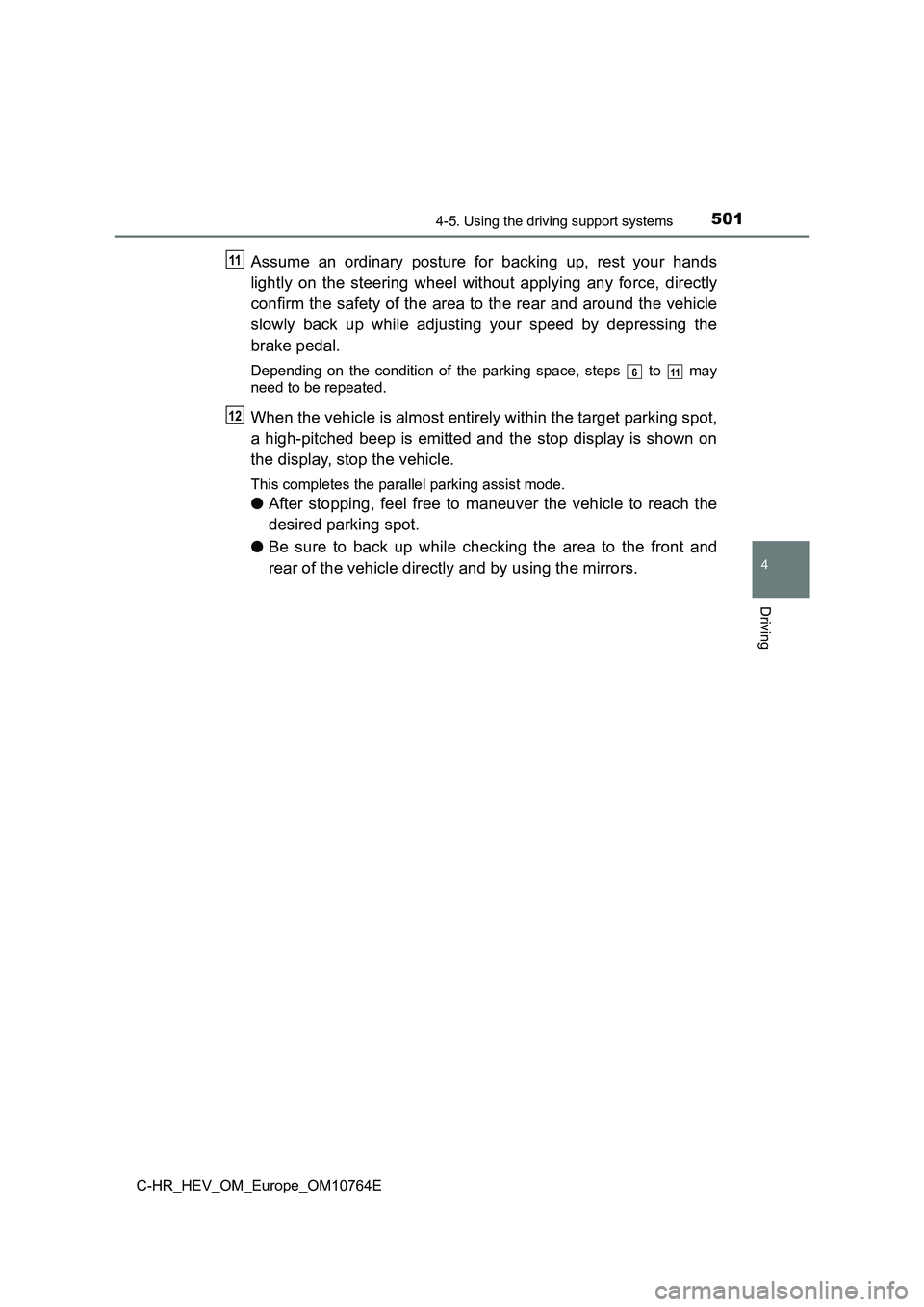

5014-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le
slowly back up while adjusting your speed by depressing the
brake pedal.
Depending on the condition of the parking space, steps to may
need to be repeated.
When the vehicle is almost entirely within the target parking s pot,
a high-pitched beep is emitted and the stop display is shown on
the display, stop the vehicle.
This completes the parallel parking assist mode.
● After stopping, feel free to maneuver the vehicle to reach the
desired parking spot.
● Be sure to back up while checking the area to the front and
rear of the vehicle directly and by using the mirrors.
11
611
12

5024-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Parallel parking assist mode operating conditions
● In order to operate the parallel parking assist mode correctly, drive slowly (at
a speed at which the vehicle can be quickly stopped) parallel t o the road (or
shoulder) while maintaining a distance of approximately 1 m (3. 3 ft.) to any
parked vehicles.
● The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detect ion is not
possible ( P. 528), guidance is not issued.
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the parallel parking assist mode cannot be operated.
● If unable to detect the environment surrounding the parking space, the par-
allel parking assist mode may not be able to operate.
● Guidance will continue until the vehicle speed meets or exceeds approxi-
mately 30 km/h (19 mph) or the function is turned off using the S-IPA switch.
■ Timing for pressing the S-IPA switch
In the following cases, the assist mode may also operate during the steps
taken to park using the parallel parking assist mode. However, in these
cases, conduct parking procedures according to the information on the multi-
information display.
● In step the S-IPA switch is pressed after already passing over the target
parking spot.
If the vehicle is not stopped in step , pressing the S-IPA swit ch 1 time
while the vehicle is in motion allows you to select “Parallel P arking” and pro-
ceed directly to step .
● The vehicle is moved up to the position in step without the S-IPA switch
being pressed. Then the S-IPA switch is pressed after having ch anged the
shift lever to R.
1
1
2
3

5054-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■Using the exit parallel parking assist mode to depart
With the shift lever in P, press
the S-IPA switch and check
that the display on the multi-
information display switches
to “Exit Parallel Parking”.
Operate the turn signal lever (P. 322) to select whether you
would like to depart to the left or right.
If there are any obstacles in the direction the vehicle is depa rting in, the
system determines that it is not possible to depart, and assist control is
stopped.
When the shift lever is changed to R (or D) according to the
advice display on the screen (P. 493), a high-pitched beep is
emitted and assist control will start.
Step and onward is for cases in which the advice display shows
“Back up” after operating the turn signal lever to select a dep arture
direction.
● When the steering wheel auto operation starts, the steering
wheel auto operation display and assistance level indicator
(P. 493) will be shown in the display area.
● To stop assist control, press the S-IPA switch.
1
2
3
4

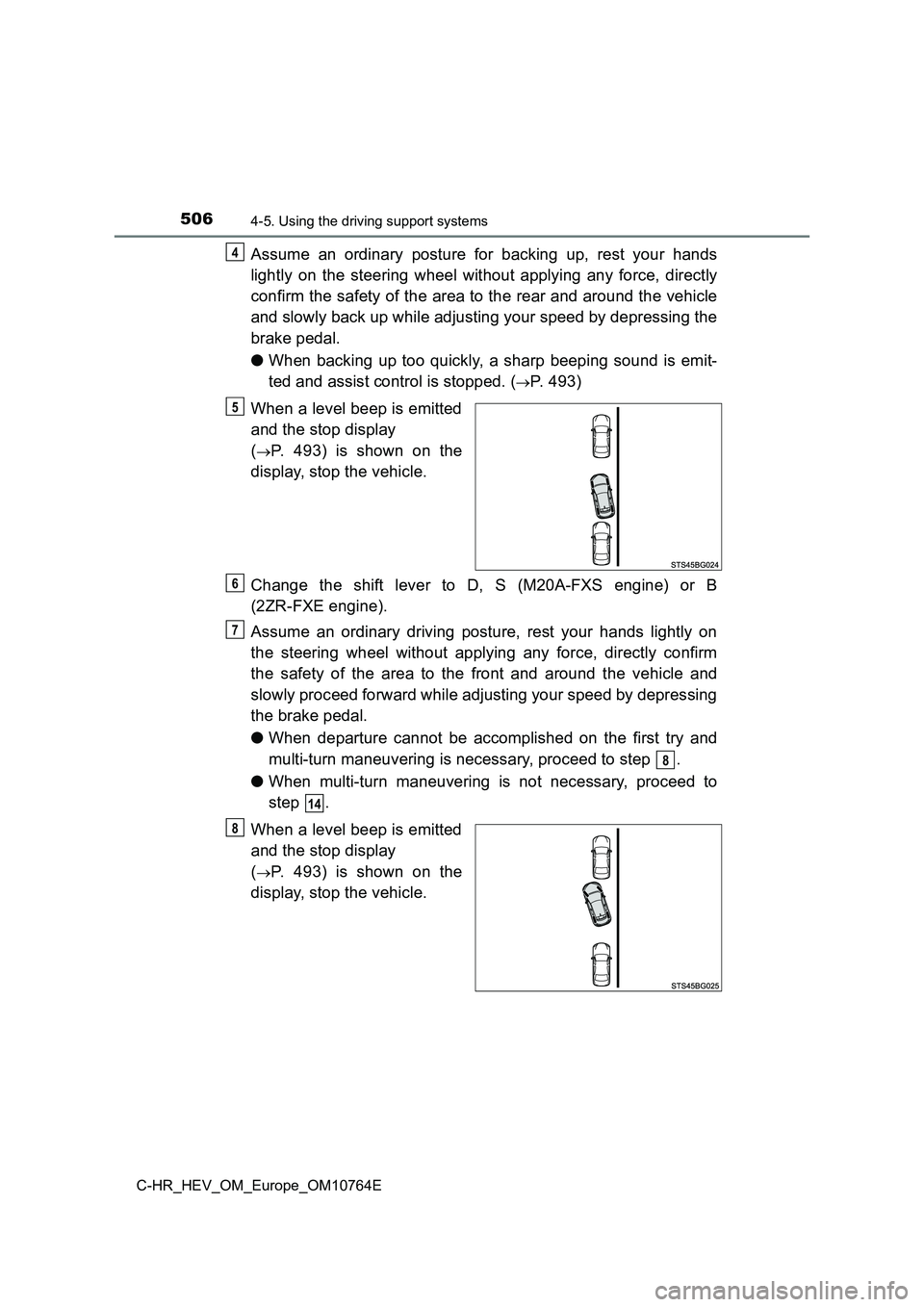

5064-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le
and slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (P. 493)
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).
Assume an ordinary driving posture, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
● When departure cannot be accomplished on the first try and
multi-turn maneuvering is necessary, proceed to step .
● When multi-turn maneuvering is not necessary, proceed to
step .
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
4
5
6
7
8
14
8

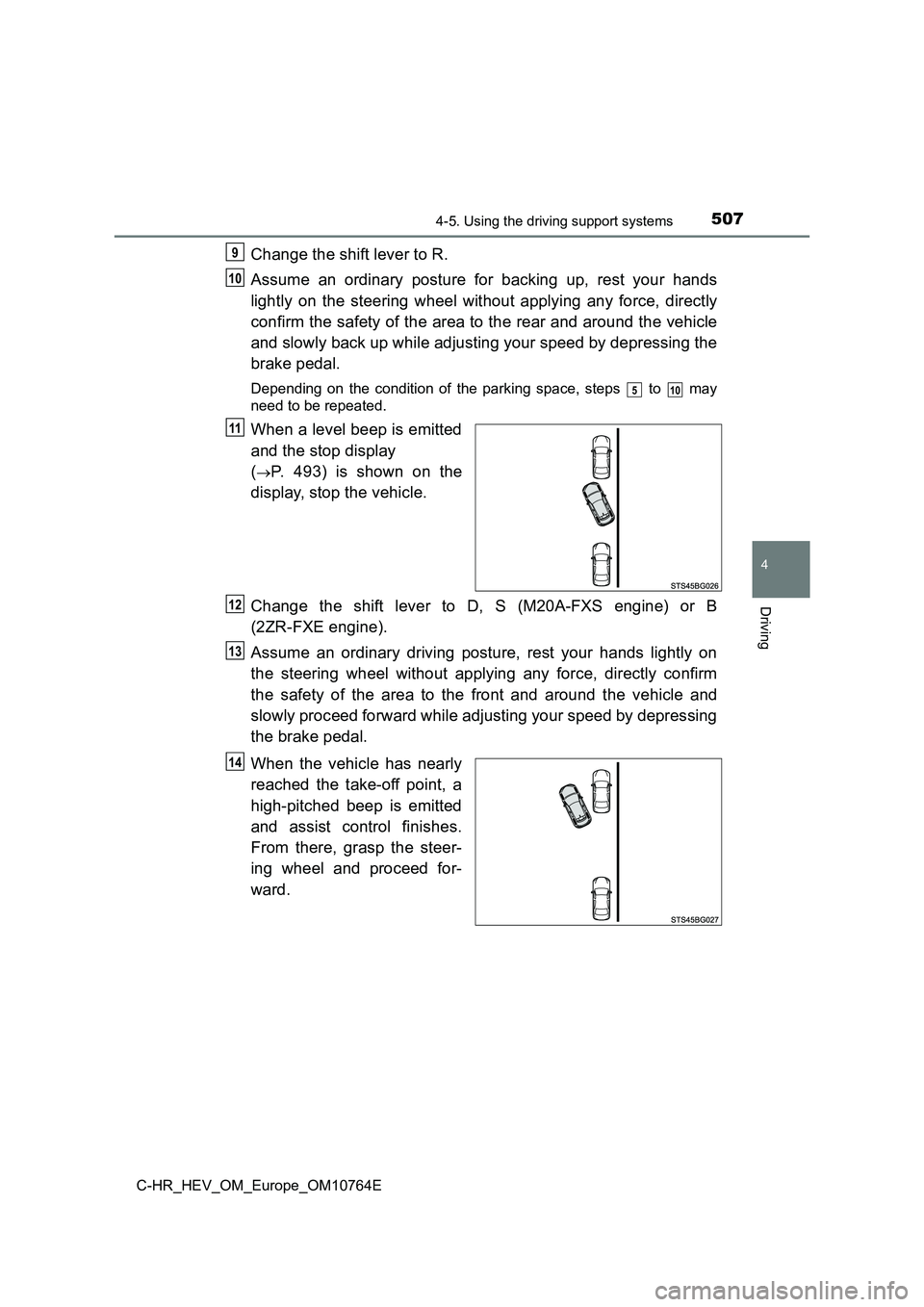

5074-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
Change the shift lever to R.
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le
and slowly back up while adjusting your speed by depressing the
brake pedal.
Depending on the condition of the parking space, steps to may
need to be repeated.
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).
Assume an ordinary driving posture, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
When the vehicle has nearly
reached the take-off point, a
high-pitched beep is emitted
and assist control finishes.
From there, grasp the steer-
ing wheel and proceed for-
ward.
9
10
510
11
12
13
14

5114-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■Parking
Stop so that the center of the
target parking spot appears
nearly perpendicular to vehi-
cle. Then, press the S-IPA
switch 2 times and check that
the display on the multi-infor-
mation display switches to
“Back-in Parking”.
● Visually check the area in
the direction of the arrow
indicating the direction of
the steering wheel auto
operation and the target
parking spot on the dis-
play.
● The mode switches each
time the S-IPA switch is
pressed. (P. 492)
● When the shift lever is not in D, S (M20A-FXS engine) or B
(2ZR-FXE engine), or when the vehicle speed has been
detected, pressing the S-IPA switch will not cause the screen
to switch to the “Back-in Parking” display.
● The turn signal lever (P. 322) can be operated to select
whether you would like to park to the left or right.
● The system cannot be used when the parking space is narrow
or there is not a sufficient enough area for assist control to
operate. Please refer to the information shown on the multi-
information display to use a different parking space.
Approx. 1 m
(3.3 ft.)
1

5124-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Assume an ordinary driving
posture, rest your hands
lightly on the steering wheel
without applying any force,
directly confirm the safety of
the area to the front and
around the vehicle and
slowly proceed forward while
adjusting your speed by
depressing the brake pedal.
When this is done, a high-
pitched beep is emitted and
an indicator on the meter illu-
minates at the same time,
after which assist control will
start.
● When the steering wheel auto operation starts, the steering
wheel auto operation display and assistance level indicator
(P. 493) will be shown in the display area.
● To stop assist control, press the S-IPA switch.
● When the vehicle speed is too high, a sharp beeping sound is
emitted and assist control is stopped. (P. 4 9 3 )
● If the space turns out to be too narrow after assist control
starts, a sharp beeping sound is emitted and assist control is
stopped.
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
