2023 TOYOTA 86 Owners Manual

3777-2. Steps to take in an emergency
7
When trouble arises
1Stop the engine. Set the
parking brake and shift the
shift lever to P (automatic
transmission) or N (manual
transmission).
2 Remove the mud, snow or
sand from around the rear
wheels.
3 Place wood, stones or some
other material under the rear
wheels to help provide trac-
tion.
4 Restart the engine.
5 Shift the shift lever to D or R
(automatic transmission) or 1
or R (manual transmission)
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.
■When it is difficult to free the
vehicle
Press the switch to turn off
TRAC.
If the vehicle becomes
stuck
Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:
Recovering procedure
WARNING
■When attempting to free a
stuck vehicle
If you choose to push the vehicle
back and forth to free it, make
sure the surrounding area is clear
to avoid striking other vehicles,
objects or people. The vehicle
may also lunge forward or lunge
back suddenly as it becomes free.
Use extreme caution.
■When shifting the shift lever
(vehicles with an automatic
transmission)
Be careful not to shift the shift
lever with the accelerator pedal
depressed.
This may lead to unexpected
rapid acceleration of the vehicle
that may cause an accident
resulting in death o r serious injury.
NOTICE
■To avoid damaging the trans-
mission and other compo-
nents
●Avoid spinning the rear wheels
and depressing the accelerator
pedal more than necessary.
●If the vehicle remains stuck
even after these procedures are
performed, the vehicle may
require towing to be freed.

3787-2. Steps to take in an emergency

379
8
8
Vehicle specifications
Vehicle specifications
.8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 380
Fuel information .......... 388
Tire information ........... 390
8-2. Customization Customizable features.................................. 400

3808-1. Specifications
8-1.Specifications
*: Unladen vehicle
■Vehicle identification num-
ber
The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped under
the right-hand front seat. This number is located on the
top left of the body panel.
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length167.9 in. (4265 mm)
Overall width69.9 in. (1775 mm)
Overall height*51.6 in. (1310 mm)
Wheelbase101.4 in. (2575 mm)
TreadFront59.8 in. (1520 mm)
Rear61.0 in. (1550 mm)
Vehicle capacity weight (Occupants + lug-
gage)Details are described on the
tire and loading information
label. (
P.323)
Seating capacity
Seating capacity4 (Front 2, Rear 2)
Vehicle identification

3818-1. Specifications
8
Vehicle specifications
This number is also on the Certi-
fication Label.
The vehicle model type, vehicle
identification number, etc. are on
the manufacturer’s label.

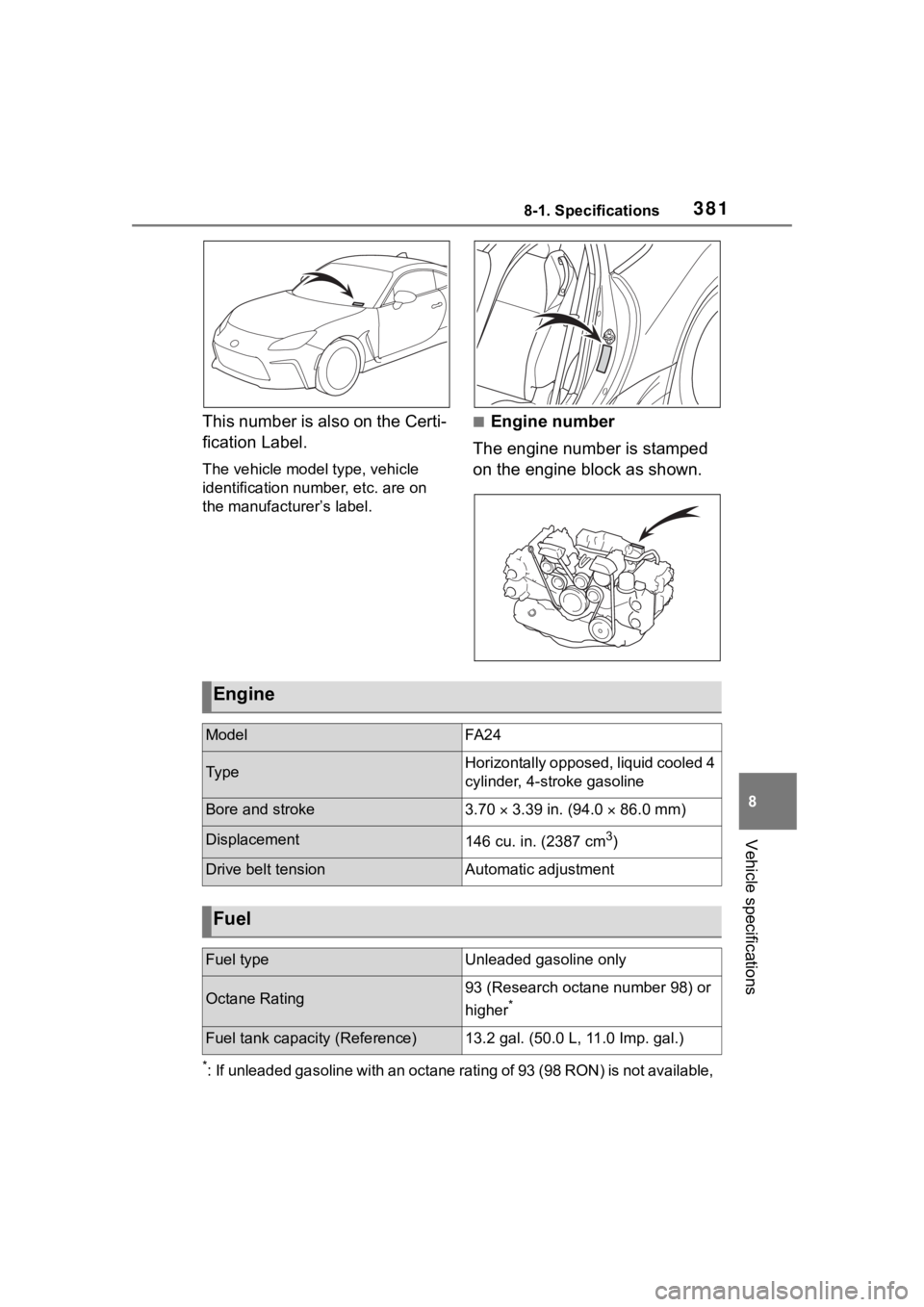

■Engine number
The engine number is stamped
on the engine block as shown.
*: If unleaded gasoline with an octane rating of 93 (98 RON) is not available,
Engine
ModelFA 2 4
Ty p eHorizontally opposed, liquid cooled 4
cylinder, 4-stroke gasoline
Bore and stroke3.70  3.39 in. (94.0  86.0 mm)
Displacement146 cu. in. (2387 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating93 (Research octane number 98) or
higher
*
Fuel tank capacity (Reference)13.2 gal. (50.0 L, 11.0 Imp. gal.)

3828-1. Specifications
unleaded gasoline with an octane rating of 91 (95 RON) may be used
with no detri ment to engine durab ility or driveability.
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up and turn off the engine, wait more than 5 min-
utes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity: SAE
0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change. Outside temperature
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
Lubrication system
With filter5.3 qt. (5.0 L , 4.4 Imp. qt.)
Without filter5.1 qt. (4.8 L, 4.2 Imp. qt.)
A

3838-1. Specifications
8
Vehicle specifications

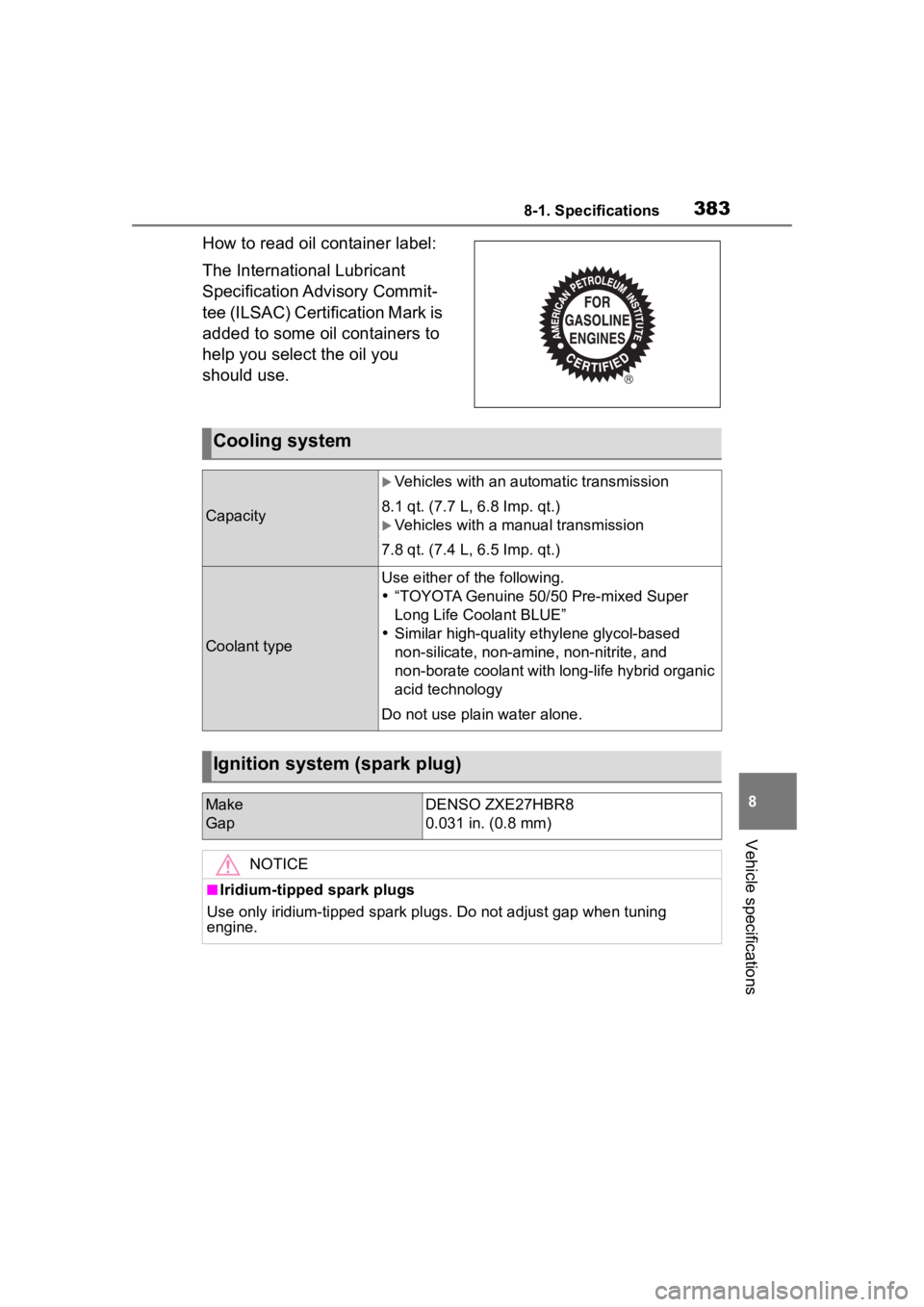

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.
Cooling system
Capacity
Vehicles with an automatic transmission
8.1 qt. (7.7 L, 6.8 Imp. qt.)
Vehicles with a manual transmission
7.8 qt. (7.4 L, 6.5 Imp. qt.)
Coolant type
Use either o f the following.
 “TOYOTA Genuine 50/50 Pre-mixed Super
Long Life Coolant BLUE”
 Similar high-quality et hylene glycol-based
non-silicate, non -amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology
Do not use pla in water alone.
Ignition system (spark plug)
Make
GapDENSO ZXE27HBR8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark pl ugs. Do not adjust gap when tun ing
engine.

3848-1. Specifications
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil LX”
at the factory. Use Toyota approved “Toyota Genuine Differentia l Gear Oil
LX” or an equivalent of matching quality to satisfy the above s pecification.
Please contact your Toyota dealer for further details.
*: The fluid capacity is p rovided as a reference.
If replacement is necessary, contact your Toyota dealer.

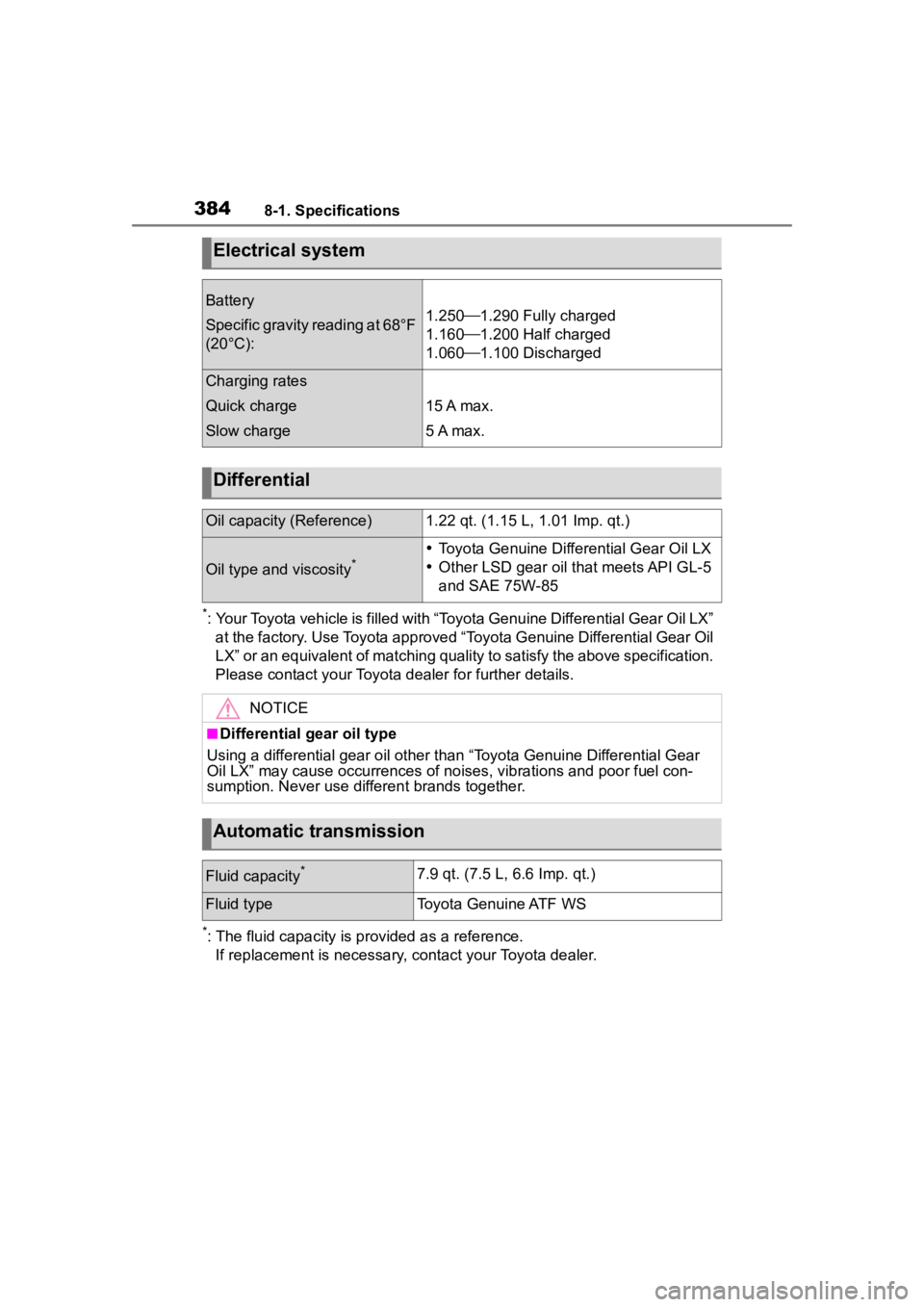

Electrical system
Battery
Specific gravity reading at 68°F
(20°C):1.2501.290 Fully charged
1.1601.200 Half charged
1.0601.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Differential
Oil capacity (Reference)1.22 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity* Toyota Genuine Differential Gear Oil LX
 Other LSD gear oil that meets API GL-5
and SAE 75W-85
NOTICE
■Differential gear oil type
Using a differential gear oil ot her than “Toyota Genuine Differ ential Gear
Oil LX” may cause occurrences of noises, vibrations and poor fuel con-
sumption. Never use different brands together.
Automatic transmission
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine ATF WS
