2023 TOYOTA 86 Owners Manual

2254-5. EyeSight
4
Driving
WARNING
Even after alerts are given audibly
and through the display of an indi-
cator, be sure to carefully check
the area surrounding the vehicle
before pulling away. Relying
solely on Lead Vehicle Start Alert
may result in an accident.

2264-5. EyeSight

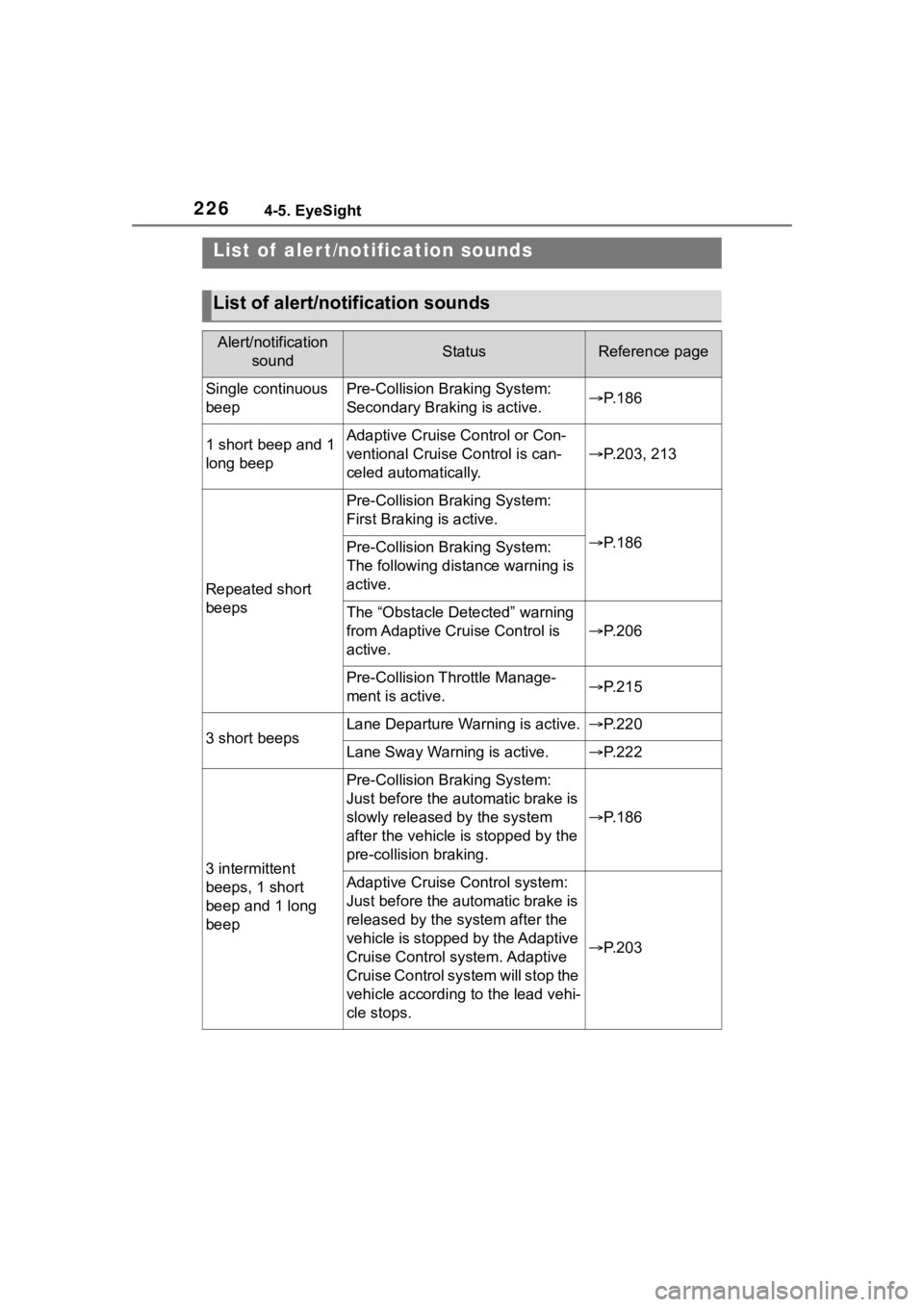

List of aler t/notification sounds
List of alert/notification sounds
Alert/notification soundStatusReference page
Single continuous
beepPre-Collision Braking System:
Secondary Braking is active.P. 1 8 6
1 short beep and 1
long beepAdaptive Cruise Control or Con-
ventional Cruise Control is can-
celed automatically.
P.203, 213
Repeated short
beeps
Pre-Collision Braking System:
First Braking is active.
P. 1 8 6Pre-Collision Braking System:
The following distance warning is
active.
The “Obstacle Detected” warning
from Adaptive Cruise Control is
active.
P. 2 0 6
Pre-Collision Th rottle Manage-
ment is active. P. 2 1 5
3 short beepsLane Departure Warning is active.P. 2 2 0
Lane Sway Warning is active.P. 2 2 2
3 intermittent
beeps, 1 short
beep and 1 long
beep
Pre-Collision Braking System:
Just before the automatic brake is
slowly released by the system
after the vehicle is stopped by the
pre-collision braking.
P. 1 8 6
Adaptive Cruise Control system:
Just before the automatic brake is
released by the system after the
vehicle is stopped by the Adaptive
Cruise Control system. Adaptive
Cruise Control system will stop the
vehicle according to the lead vehi-
cle stops.
P. 2 0 3

2274-5. EyeSight
4

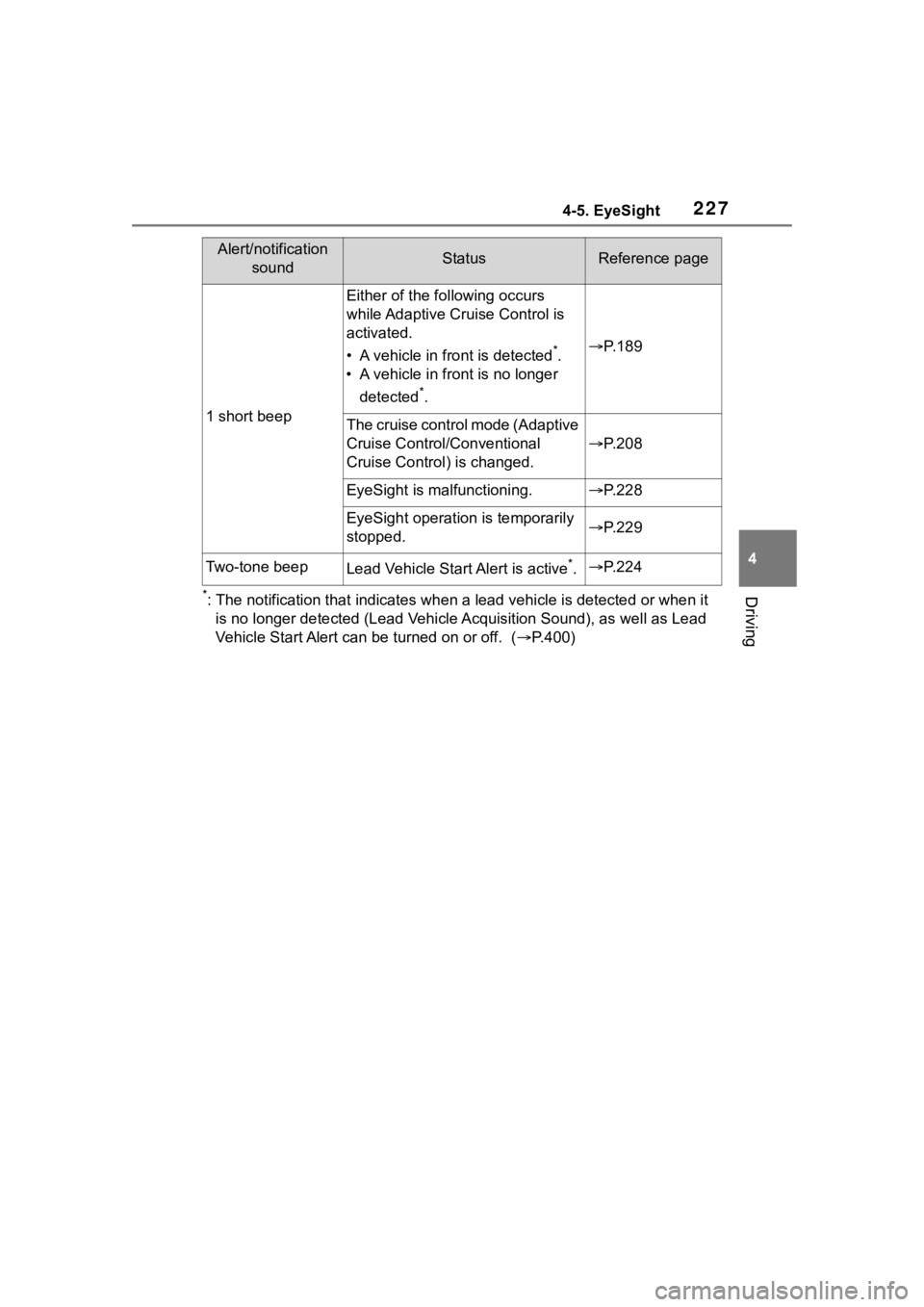

Driving*: The notification that indicates when a lead vehicle is detected or when it
is no longer detected (Lead Vehicle Acquisition Sound), as well as Lead
Vehicle Start Alert can be turned on or off. ( P.400)
1 short beep
Either of the fo llowing occurs
while Adaptive Cru ise Control is
activated.
• A vehicle in fr ont is detected
*.
• A vehicle in fron t is no longer
detected
*.
 P. 1 8 9
The cruise control mode (Adaptive
Cruise Control/Conventional
Cruise Control) is changed.
P. 2 0 8
EyeSight is malfunctioning.P. 2 2 8
EyeSight operation is temporarily
stopped.P. 2 2 9
Two-tone beepLead Vehicle Start Alert is active*.P. 2 2 4
Alert/notification
soundStatusReference page

2284-5. EyeSight

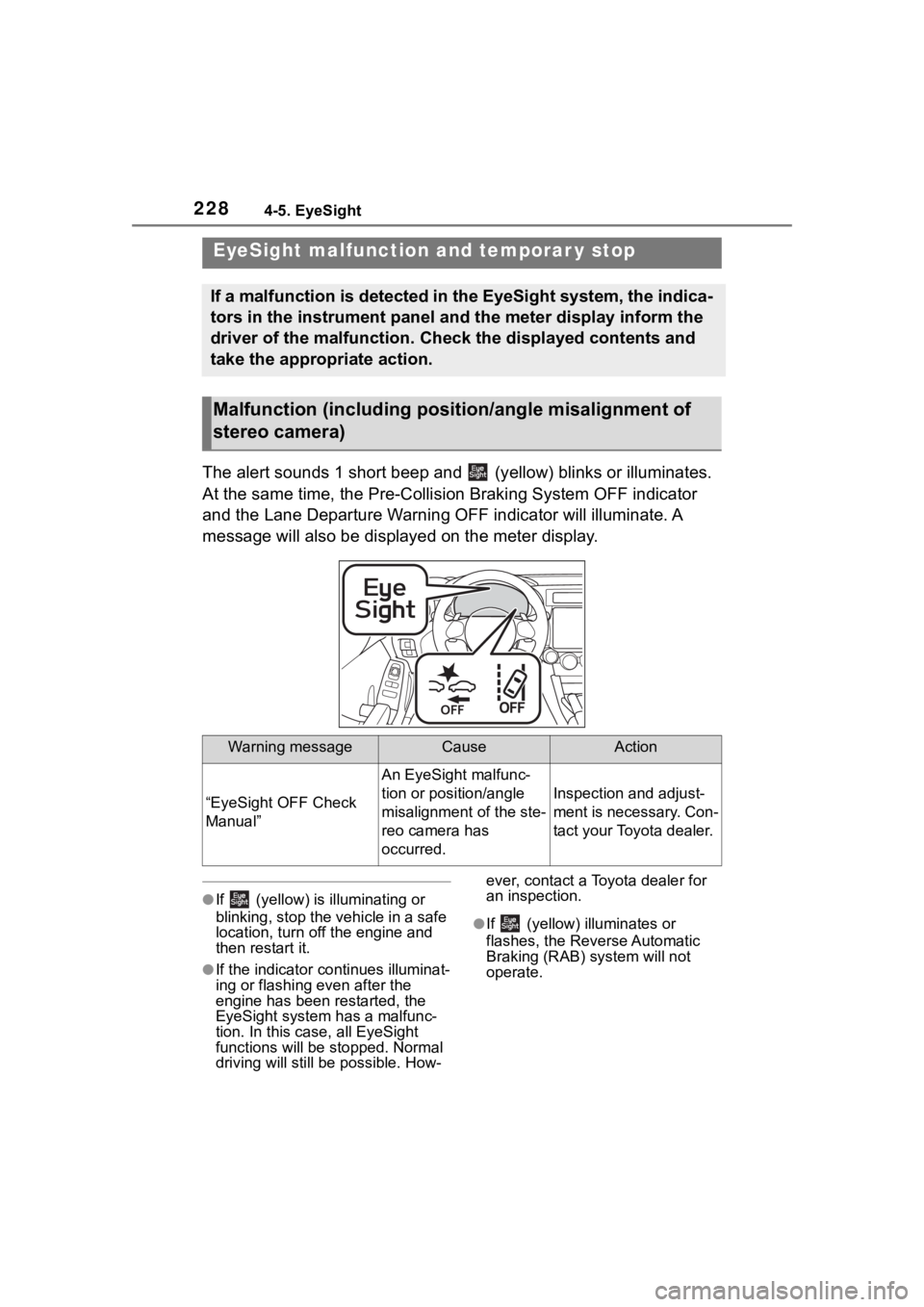

The alert sounds 1 short beep and (yellow) blinks or illuminates.
At the same time, the Pre-Collision Braking System OFF indicato r
and the Lane Departure Warning OFF indicator will illuminate. A
message will also be displayed on the meter display.
●If (yellow) is illuminating or
blinking, stop the vehicle in a safe
location, turn off the engine and
then restart it.
●If the indicator co ntinues illuminat-
ing or flashing even after the
engine has been restarted, the
EyeSight system has a malfunc-
tion. In this case, all EyeSight
functions will be stopped. Normal
driving will still be possible. How- ever, contact a Toyota dealer for
an inspection.
●If (yellow) illuminates or
flashes, the Reverse Automatic
Braking (RAB) system will not
operate.
EyeSight malfuncti
on and temporar y stop
If a malfunction is detected in the EyeSight system, the indica -
tors in the instrument panel and the meter display inform the
driver of the malfunction. Check the displayed contents and
take the appropriate action.
Malfunction (including posit ion/angle misalignment of
stereo camera)
Warning messageCauseAction
“EyeSight OFF Check
Manual”
An EyeSight malfunc-
tion or position/angle
misalignment of the ste-
reo camera has
occurred.
Inspection and adjust-
ment is necessary. Con-
tact your Toyota dealer.

2294-5. EyeSight
4
Driving
The alert will sound 1 short beep, and the EyeSight temporary stop
indicator (white), the Pre-Collision Braking System OFF indicator
and the Lane Departure Warning OFF indicator will illuminate at the
same time.
A message will also be displayed on the meter display. When the
cause has been resolved, temporary stop will be canceled and the
EyeSight system will automatically restart.
NOTICE
If both (yellow) and the mal-
function indicator lamp illuminate
at the same time while driving,
have your vehicle
checked/repaired by a Toyota
dealer as soon as possible. Eye-
Sight cannot be used if there is an
abnormality with the engine, etc.
Temporary stop

2304-5. EyeSight

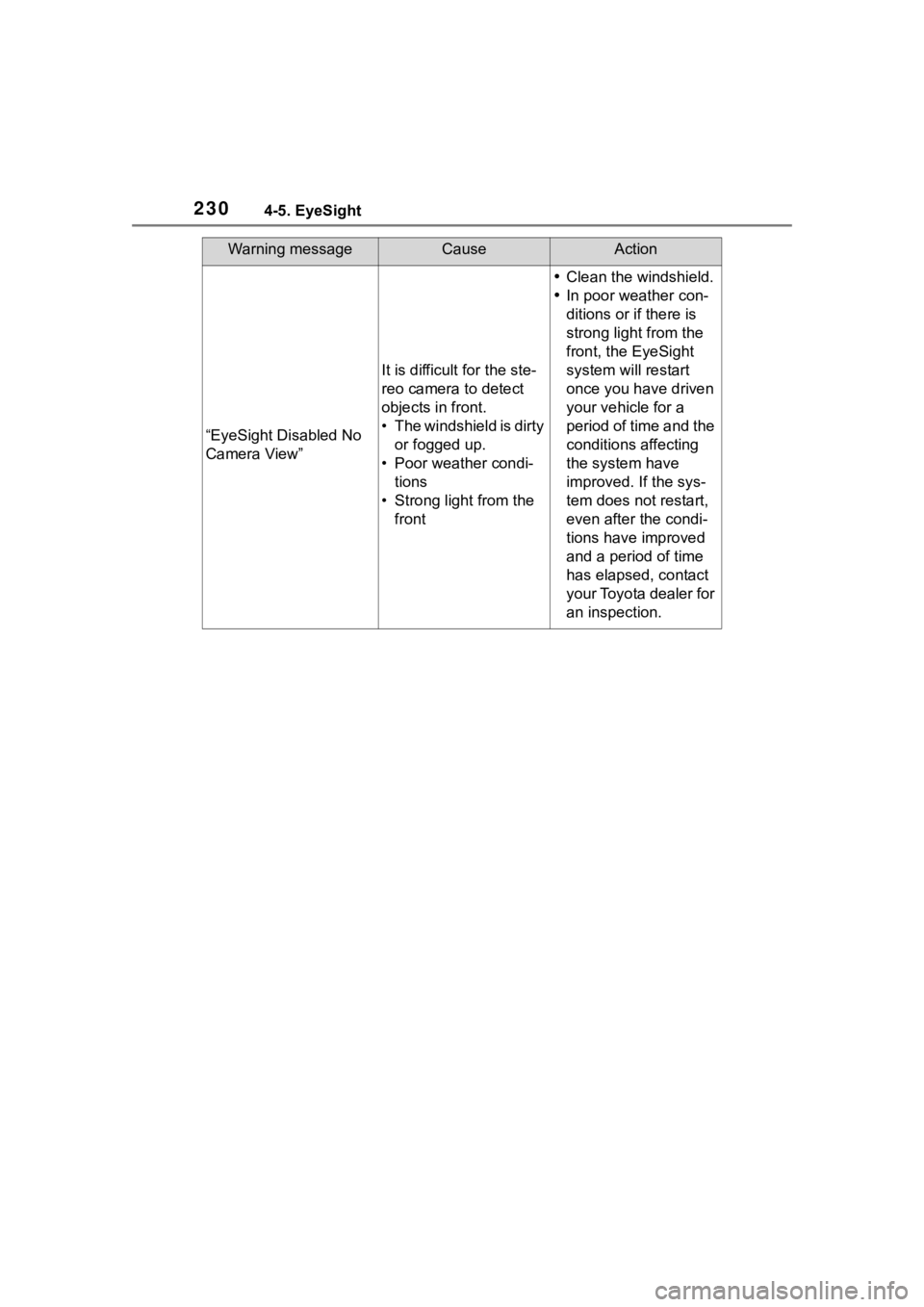

Warning messageCauseAction
“EyeSight Disabled No
Camera View”
It is difficult for the ste-
reo camera to detect
objects in front.
• The windshield is dirty or fogged up.
• Poor weather condi- tions
• Strong light from the front
 Clean the windshield.
 In poor weather con-
ditions or if there is
strong light from the
front, the EyeSight
system will restart
once you have driven
your vehicle for a
period of time and the
conditions affecting
the system have
improved. If the sys-
tem does not restart,
even after the condi-
tions have improved
and a period of time
has elapsed, contact
your Toyota dealer for
an inspection.

2314-5. EyeSight
4
Driving

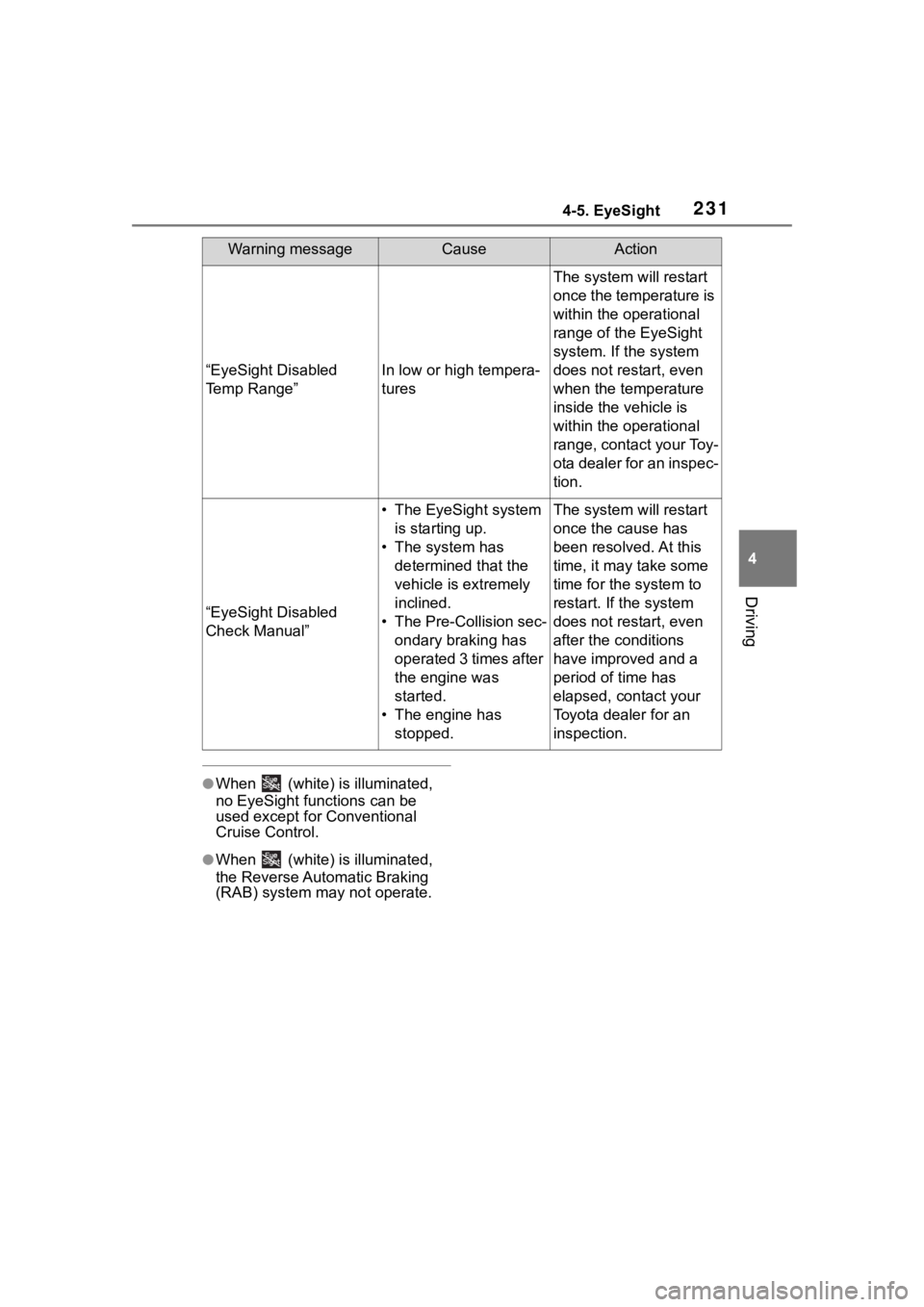

●When (white) is illuminated,
no EyeSight functions can be
used except for Conventional
Cruise Control.
●When (white) is illuminated,
the Reverse Automatic Braking
(RAB) system may not operate.
“EyeSight Disabled
Temp Range”In low or high tempera-
tures
The system will restart
once the temperature is
within the operational
range of the EyeSight
system. If the system
does not restart, even
when the temperature
inside the vehicle is
within the operational
range, contact your Toy-
ota dealer for an inspec-
tion.
“EyeSight Disabled
Check Manual”
• The EyeSight system is starting up.
• The system has determined that the
vehicle is extremely
inclined.
• The Pre-Collision sec- ondary braking has
operated 3 times after
the engine was
started.
• The engine has stopped.The system w ill restart
once the cause has
been resolved. At this
time, it may take some
time for the system to
restart. If the system
does not restart, even
after the co nditions
have improved and a
period of time has
elapsed, contact your
Toyota dealer for an
inspection.
Warning messageCauseAction

2324-6. Using other driving systems
4-6.Using other driving systems
*: If equippedBSD/RCTA consists of the fol-
lowing functions.
To detect a vehicle in a blind
spot on an adjacent lane or a
vehicle approaching at high
speed while driving the vehi-
cle (Blind Spot Detection)
 To detect a vehicle approach-
ing from the right or left while
reversing the vehicle (Rear
Cross Traffic Alert)
The system uses radar sensors
for the following features.
The BSD/RCTA radar sensor has
been certified by the radio wave
related laws of the U.S. and other
FCC compliant countries and Can-
ada. When drivi ng in other coun-
tries, certification of the country
where the vehicle is driven must be
obtained. For certif ication in the U.S.
and other FCC comp liant countries
and Canada, refer to P.440.
■Blind Spot Detection (BSD)
The system notifies the driver of
the presence of vehicles in its
blind spot.
 If the system detects a vehicle
in its blind spot, it warns the
driver by illuminating the
BSD/RCTA approach indica-
tor(s) on the outside mirror(s).
 If the driver operates the turn
signal lever in the direction
where the BSD/RCTA
approach indicator is illumi-
nating, the system warns the
BSD/RCTA*
The BSD/RCTA consists of
rear corner radars with
Blind Spot Detection, Lane
Change Assist and Rear
Cross Traffic Alert.
These functions of
BSD/RCTA are the systems
that detect objects and vehi-
cles to the rear and draw
attention to the driver when
changing a lane or when
driving in reverse.
WARNING
The driver is responsible for driv-
ing safely. Always be sure to
check the surroundings with your
eyes when changing lanes or
reversing the vehicle.
The system is designed to assist
the driver in changing lanes or
reversing safely by monitoring the
rear and side areas of the vehicle.
However, you cannot rely on this
system alone in assuring the
safety during a lane change or
reversing. Overconfidence in this
system could result in an accident
and lead to serious injury or
death. Since the system operation
has various limitations, the flash-
ing or illumination of the
BSD/RCTA approach indicator
may be delayed or it may not
operate at all even when a vehicle
is present in a neighboring lane or
approaching from either side.
The driver is responsible for pay-
ing attention to t he rear and side
areas of the vehicle.
System features
