2023 PEUGEOT LANDTREK Owners Manual

HANDBOOK
L CarM an uals 2 .c o m

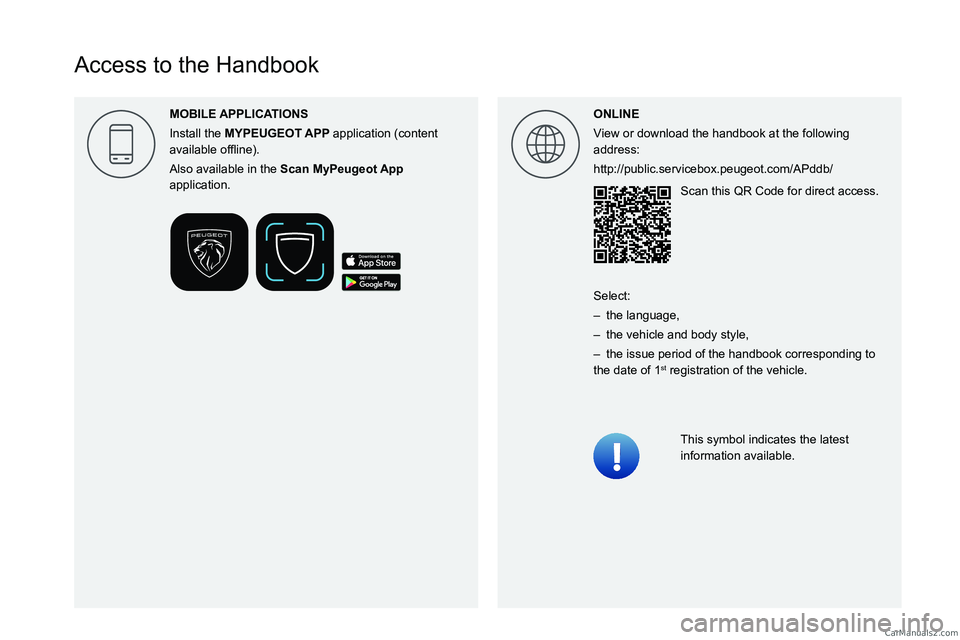

Access to the Handbook
ONLINE
View or download the handbook at the following
address:
http://public.servicebox.peugeot.com/APddb/Scan this QR Code for direct access.
This symbol indicates the latest
information available.
Select:
–
the language,
–


the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.
MOBILE
Install the MYPEUGEOT application (content
004400590044004C004F00440045004F0048000300521089004C00510048000C0011
Also available in the
Scan
application. CarM an uals 2 .c o m

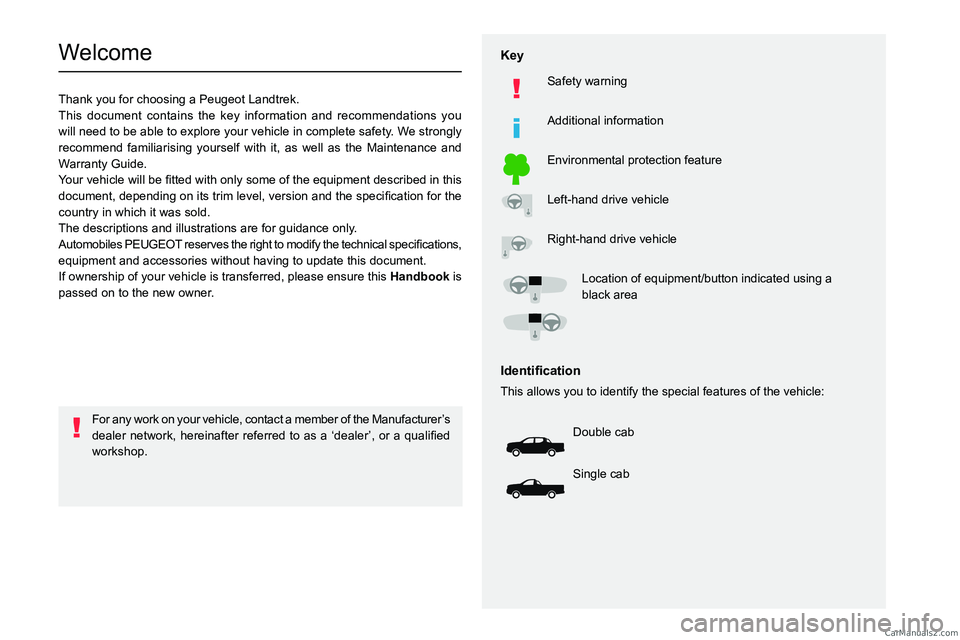

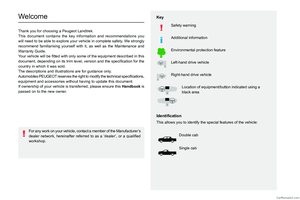

Welcome
Thank you for choosing a Peugeot Landtrek.
This document contains the key information and recommendations you
will need to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with it, as well as the Maintenance and
Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
004800540058004C00530050004800510057
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicle002F0052004600440057004C005200510003005200490003004800540058004C0053005000480051005700120045005800570057005200510003004C00510047004C00460044005700480047000300580056004C0051004A000300440003
black area
002C0047004800510057004C00BF004600440057004C00520051
This allows you to identify the special features of the vehicle:
Double cab
Single cab
For any work on your vehicle, contact a member of the Manufacturer’s
004700480044004F004800550003
workshop. CarM an uals 2 .c o m

2

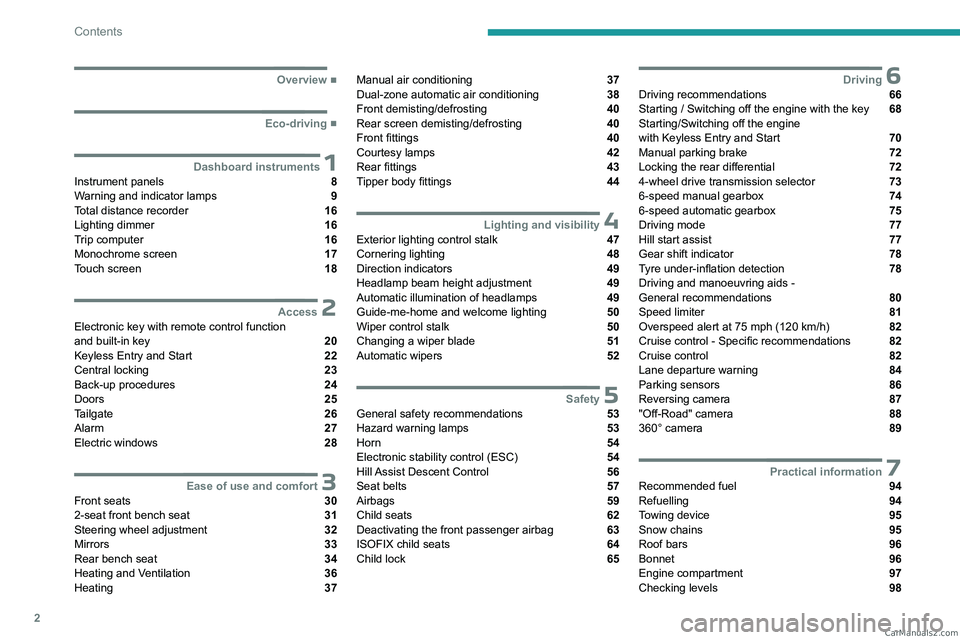

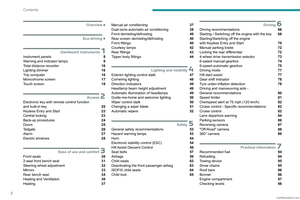

Contents
 ■
Overview
 ■
Eco-driving

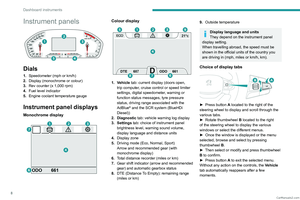

 1Dashboard instrumentsInstrument panels 8

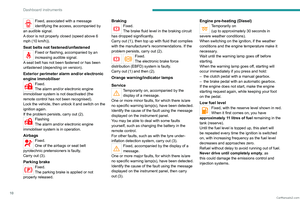

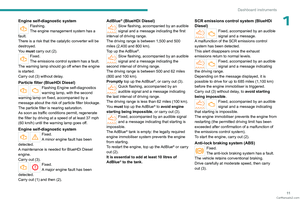

Warning and indicator lamps 9

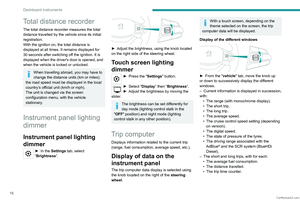

Total distance recorder 16
Lighting dimmer 16
Trip computer 16
Monochrome screen 17

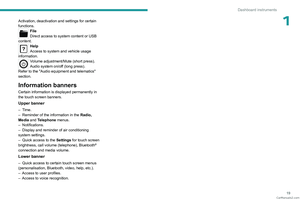

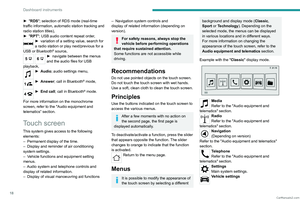

Touch screen 18

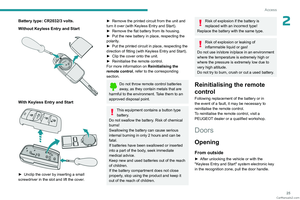

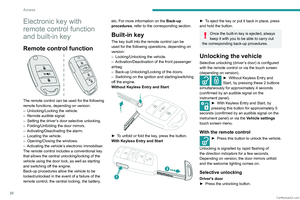

 2AccessElectronic key with remote control function
and built-in key 20

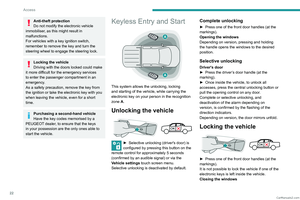

Keyless Entry and Start 22

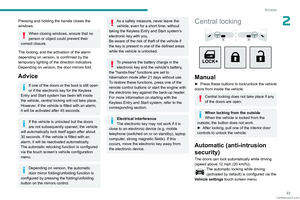

Central locking 23

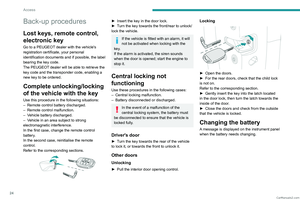

Back-up procedures 24
Doors 25

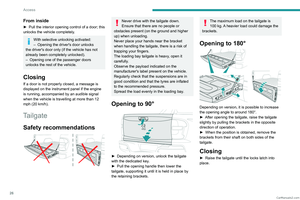

Tailgate 26

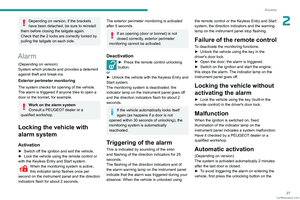

Alarm 27

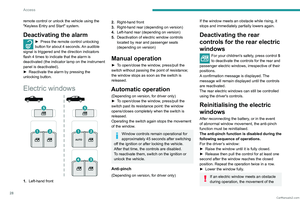

Electric windows 28

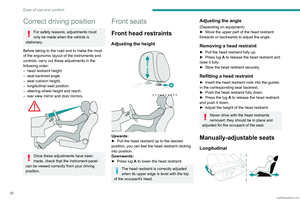

 3Ease of use and comfortFront seats 30
2-seat front bench seat 31
Steering wheel adjustment 32

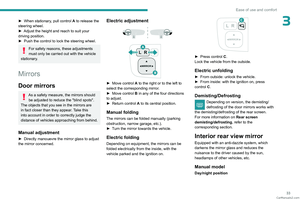

Mirrors 33

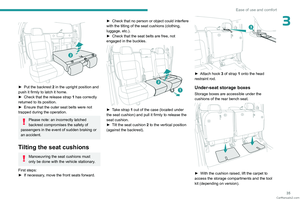

Rear bench seat 34
Heating and Ventilation 36
Heating 37
Manual air conditioning 37

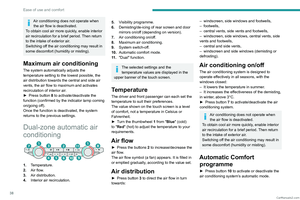

Dual-zone automatic air conditioning 38

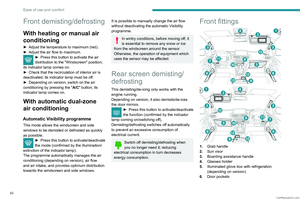

Front demisting/defrosting 40
Rear screen demisting/defrosting 40

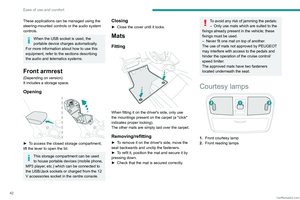

Front fittings 40

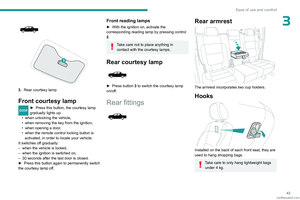

Courtesy lamps 42
Rear fittings 43

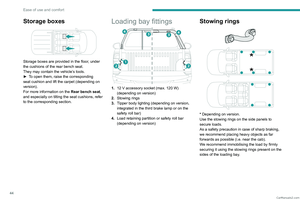

Tipper body fittings 44

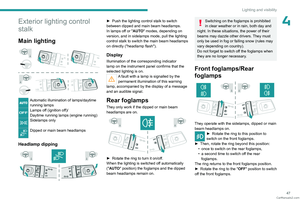

 4Lighting and visibilityExterior lighting control stalk 47

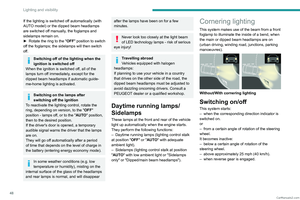

Cornering lighting 48

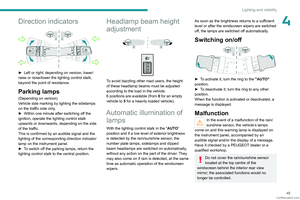

Direction indicators 49
Headlamp beam height adjustment 49
Automatic illumination of headlamps 49
Guide-me-home and welcome lighting 50
Wiper control stalk 50
Changing a wiper blade 51

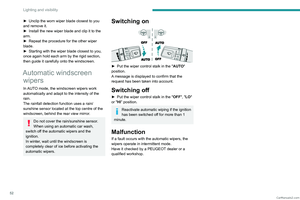

Automatic wipers 52
 5SafetyGeneral safety recommendations 53

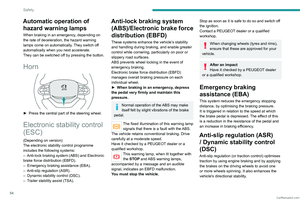

Hazard warning lamps 53
Horn 54

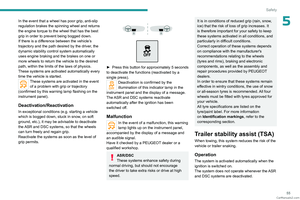

Electronic stability control (ESC) 54
Hill Assist Descent Control 56

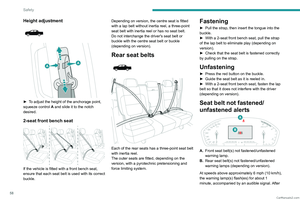

Seat belts 57

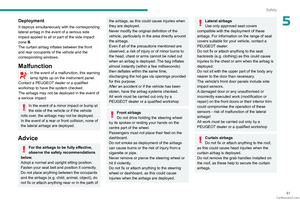

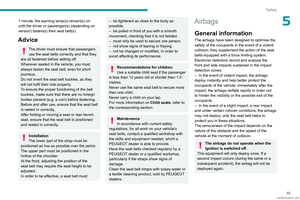

Airbags 59
Child seats 62
Deactivating the front passenger airbag 63

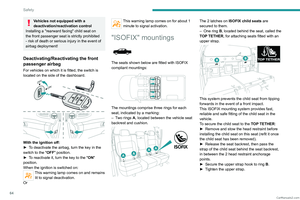

ISOFIX child seats 64

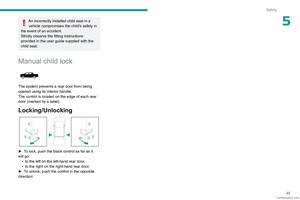

Child lock 65

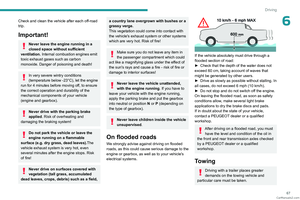

 6DrivingDriving recommendations 66

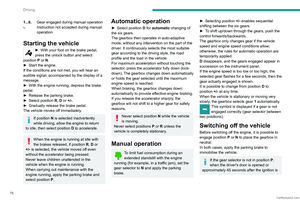

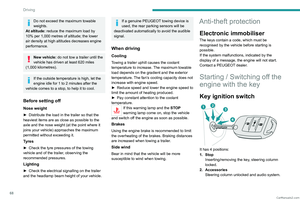

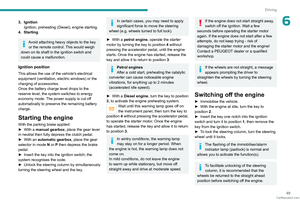

Starting / Switching off the engine with the key 68

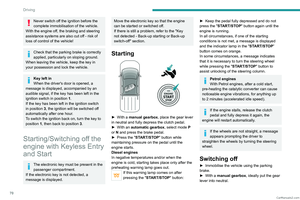

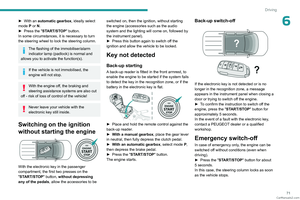

Starting/Switching off the engine
with Keyless Entry and Start
70

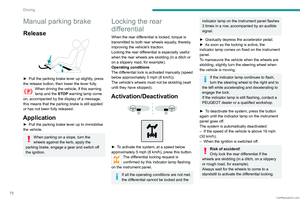

Manual parking brake 72
Locking the rear differential 72

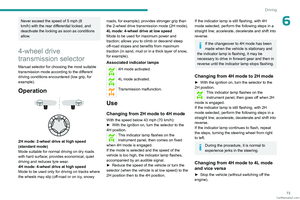

4-wheel drive transmission selector 73

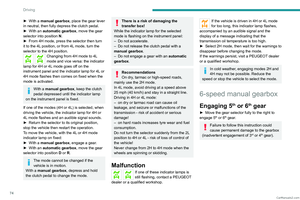

6-speed manual gearbox 74

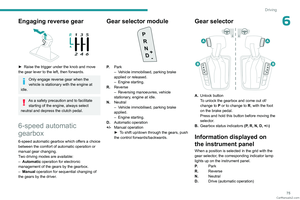

6-speed automatic gearbox 75
Driving mode 77
Hill start assist 77

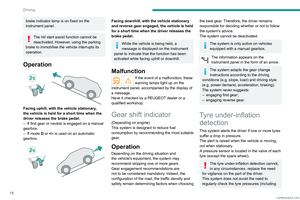

Gear shift indicator 78

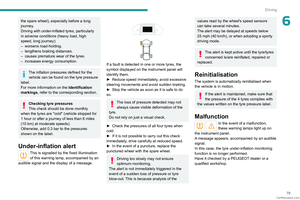

Tyre under-inflation detection 78

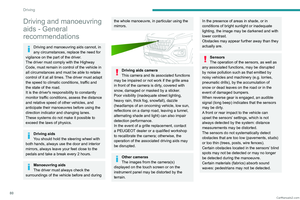

Driving and manoeuvring aids -
General recommendations
80

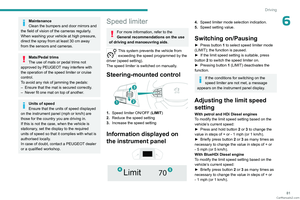

Speed limiter 81

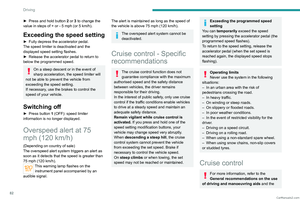

Overspeed alert at 75 mph (120

km/h) 82

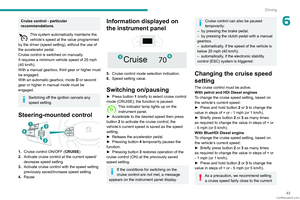

Cruise control - Specific recommendations 82
Cruise control 82

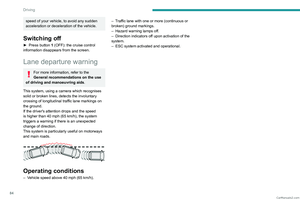

Lane departure warning 84

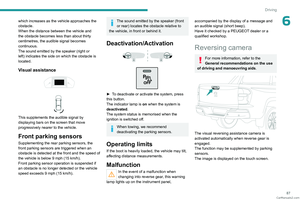

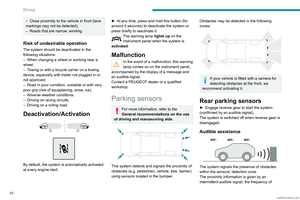

Parking sensors 86
Reversing camera 87

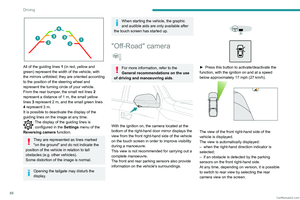

"Off-Road" camera 88

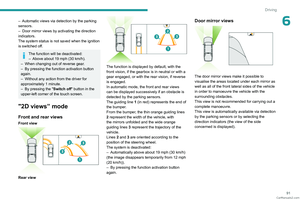

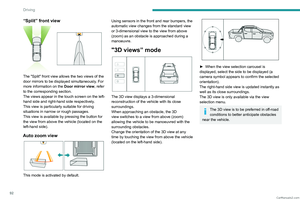

360° camera 89
 7Practical informationRecommended fuel 94
Refuelling 94

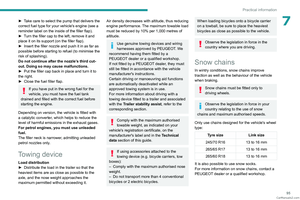

Towing device 95
Snow chains 95
Roof bars 96

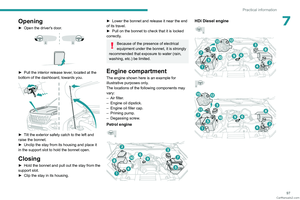

Bonnet 96
Engine compartment 97

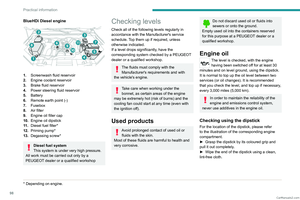

Checking levels 98 CarM an uals 2 .c o m

3

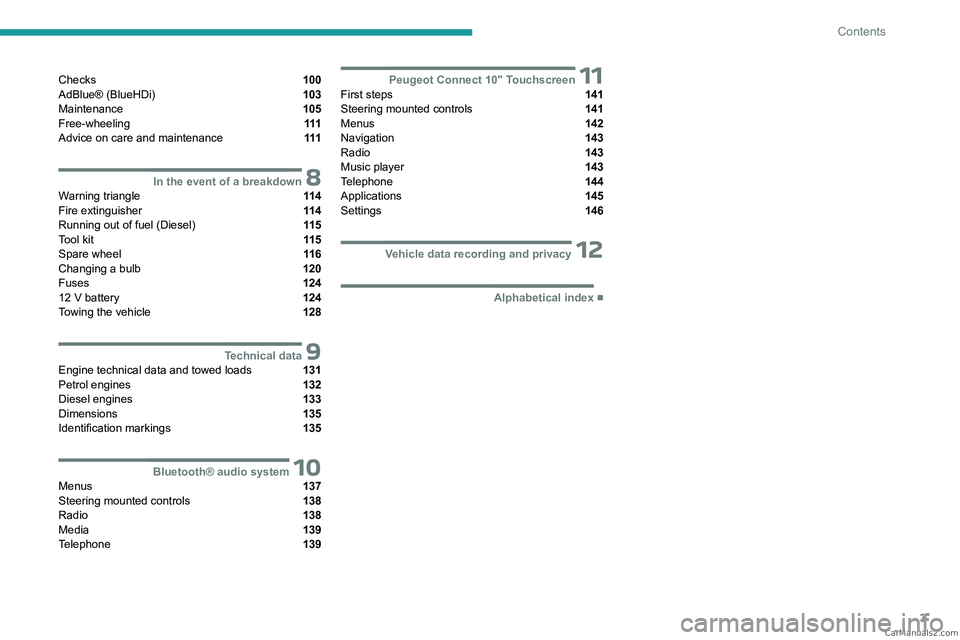

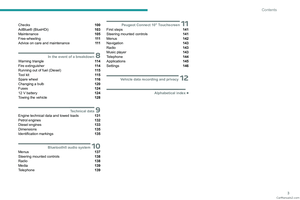

Contents
Checks 100
AdBlue® (BlueHDi) 103
Maintenance 105
Free-wheeling 111

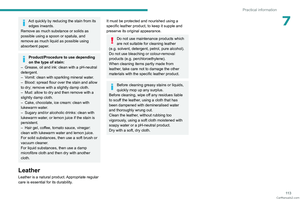

Advice on care and maintenance 111
 8In the event of a breakdownWarning triangle 11 4
Fire extinguisher 11 4
Running out of fuel (Diesel) 11 5
Tool kit 11 5

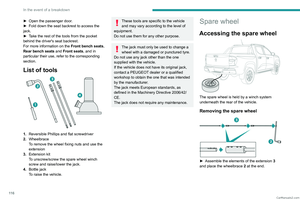

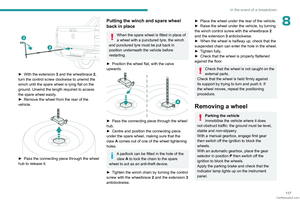

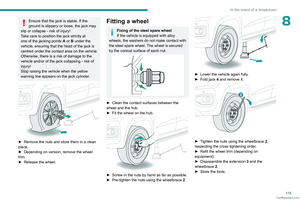

Spare wheel 11 6

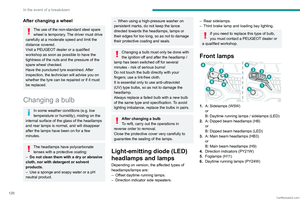

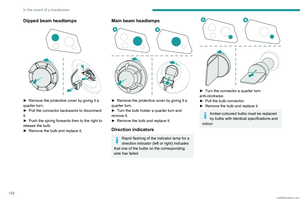

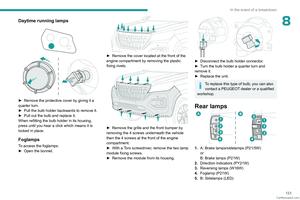

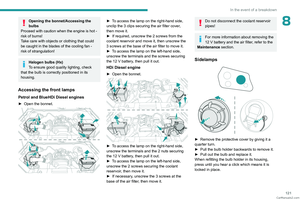

Changing a bulb 120
Fuses 124
12

V battery 124

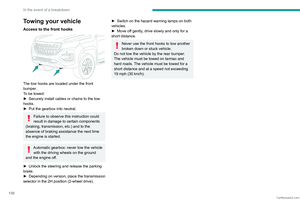

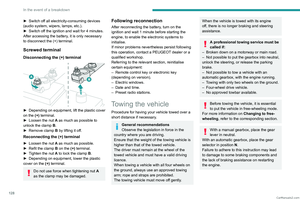

Towing the vehicle 128

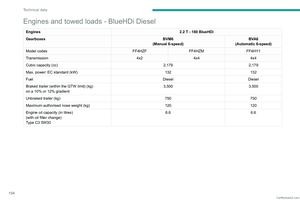

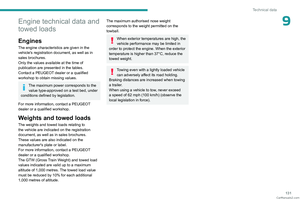

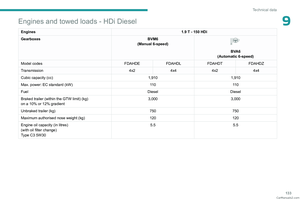

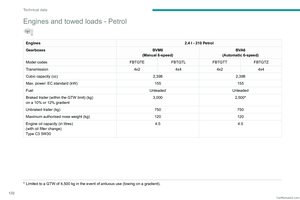

 9Technical dataEngine technical data and towed loads 131
Petrol engines 132
Diesel engines 133

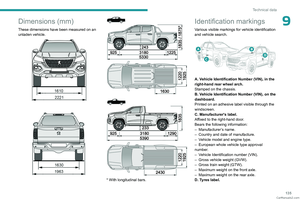

Dimensions 135
Identification markings 135

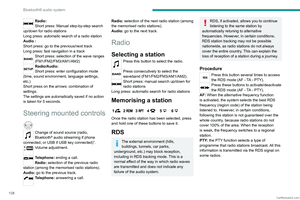

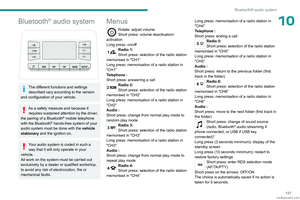

 10Bluetooth® audio systemMenus 137
Steering mounted controls 138
Radio 138
Media 139

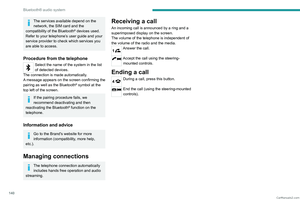

Telephone 139

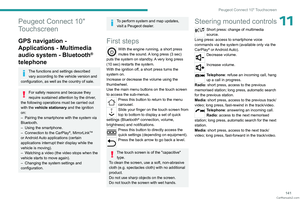

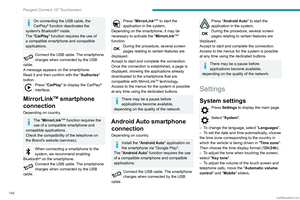

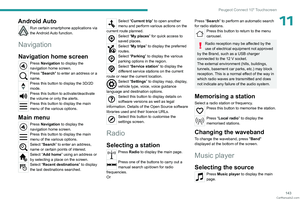

  11Peugeot Connect 10" TouchscreenFirst steps 141
Steering mounted controls 141

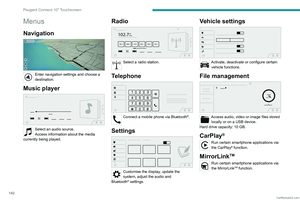

Menus 142
Navigation 143
Radio 143
Music player 143

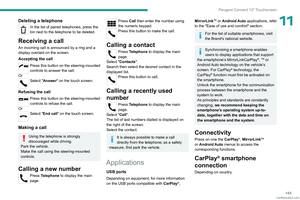

Telephone 144
Applications 145
Settings 146

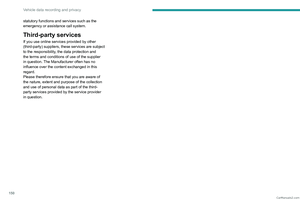

 12Vehicle data recording and privacy
 ■

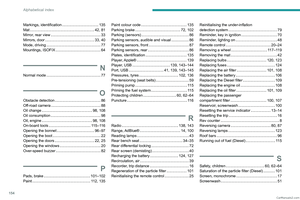

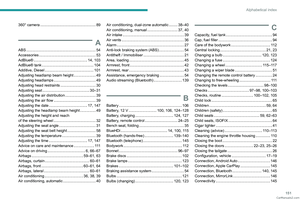

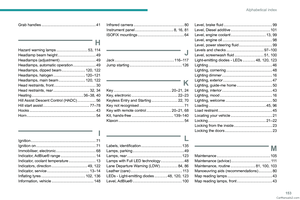

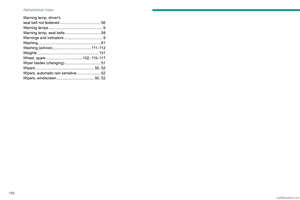

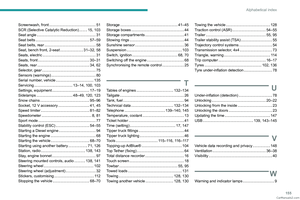

Alphabetical index CarM an uals 2 .c o m

4
Overview

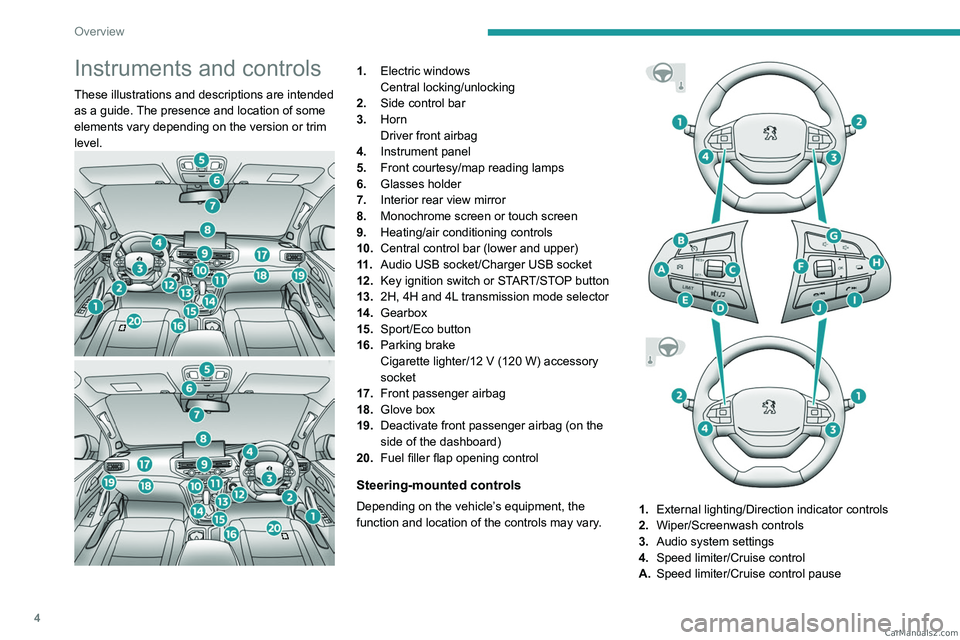

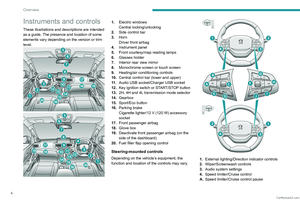

Instruments and controls
These illustrations and descriptions are intended
as a guide. The presence and location of some
elements vary depending on the version or trim
level.
1.Electric windows
Central locking/unlocking
2. Side control bar
3. Horn
Driver front airbag
4. Instrument panel
5. Front courtesy/map reading lamps
6. Glasses holder
7. Interior rear view mirror
8. Monochrome screen or touch screen
9. Heating/air conditioning controls
10. Central control bar (lower and upper)
11 . Audio USB socket/Charger USB socket
12. Key ignition switch or START/STOP button
13. 2H, 4H and 4L transmission mode selector
14. Gearbox
15. Sport/Eco button
16. Parking brake
Cigarette lighter/12
V (120 W) accessory
socket
17. Front passenger airbag
18. Glove box
19. Deactivate front passenger airbag (on the
side of the dashboard)
20. Fuel filler flap opening control
Steering-mounted controls
Depending on the vehicle’s equipment, the
function and location of the controls may vary.1.External lighting/Direction indicator controls
2. Wiper/Screenwash controls
3. Audio system settings
4. Speed limiter/Cruise control
A. Speed limiter/Cruise control pause CarM an uals 2 .c o m

5
Overview

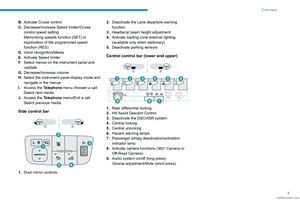

B.Activate Cruise control
C. Decrease/Increase Speed limiter/Cruise
control speed setting
Memorising speeds function (SET) or
reactivation of the programmed speed
function (RES)
D. Voice recognition/Media
E. Activate Speed limiter
F. Select menus on the instrument panel and
validate
G. Decrease/Increase volume
H. Select the instrument panel display mode and
navigate in the menus
I. Access the Telephone menu /Answer a call
Select next media
J. Access the Telephone menu/End a call
Select previous media
Side control bar
1.Door mirror controls 2.
Deactivate the Lane departure warning
function
3. Headlamp beam height adjustment
4. Activate loading zone external lighting
(available only when stationary)
5. Deactivate parking sensors
Central control bar (lower and upper)
1.Rear differential locking
2. Hill Assist Descent Control
3. Deactivate the DSC/ASR system
4. Central locking
5. Central unlocking
6. Hazard warning lamps
7. Passenger airbag deactivation/activation
indicator lamp
8. Activate camera functions (360° Camera or
Off-Road Camera)
9. Audio system on/off (long press)
Volume adjustment/Mute (short press) CarM an uals 2 .c o m

6
Eco-driving

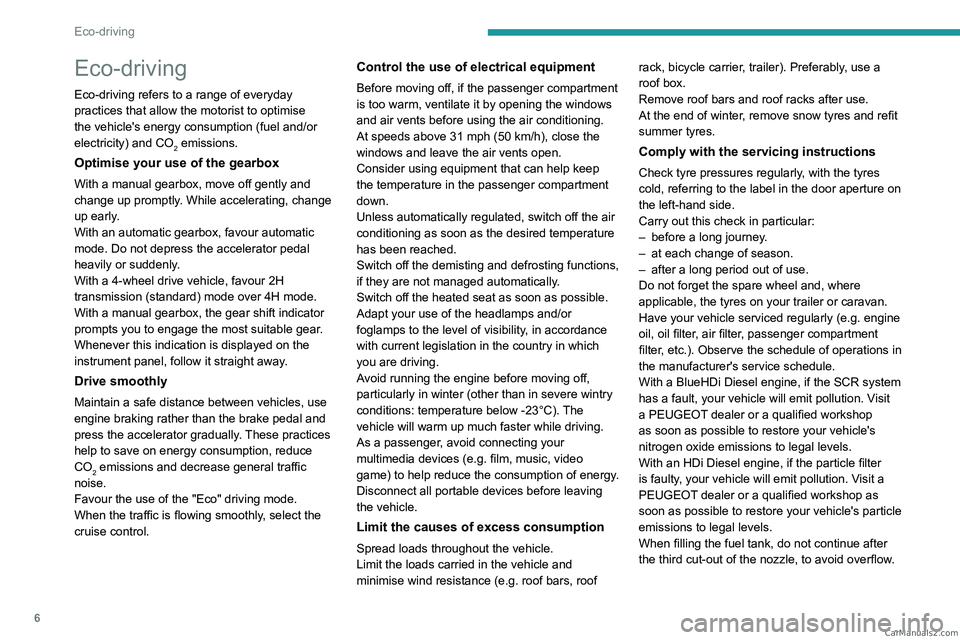

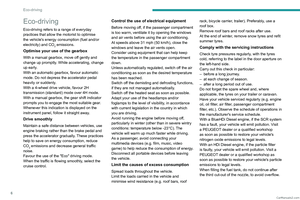

Eco-driving
Eco-driving refers to a range of everyday
practices that allow the motorist to optimise
the vehicle's energy consumption (fuel and/or
electricity) and CO
2 emissions.
Optimise your use of the gearbox
With a manual gearbox, move off gently and
change up promptly. While accelerating, change
up early.
With an automatic gearbox, favour automatic
mode. Do not depress the accelerator pedal
heavily or suddenly.
With a 4-wheel drive vehicle, favour 2H
transmission (standard) mode over 4H mode.
With a manual gearbox, the gear shift indicator
prompts you to engage the most suitable gear.
Whenever this indication is displayed on the
instrument panel, follow it straight away.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal and
press the accelerator gradually. These practices
help to save on energy consumption, reduce
CO
2 emissions and decrease general traffic
noise.
Favour the use of the "Eco" driving mode.
When the traffic is flowing smoothly, select the
cruise control.
Control the use of electrical equipment
Before moving off, if the passenger compartment
is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
At speeds above 31
mph (50 km/h), close the
windows and leave the air vents open.
Consider using equipment that can help keep
the temperature in the passenger compartment
down.
Unless automatically regulated, switch off the air
conditioning as soon as the desired temperature
has been reached.
Switch off the demisting and defrosting functions,
if they are not managed automatically.
Switch off the heated seat as soon as possible.
Adapt your use of the headlamps and/or
foglamps to the level of visibility, in accordance
with current legislation in the country in which
you are driving.
Avoid running the engine before moving off,
particularly in winter (other than in severe wintry
conditions: temperature below -23°C). The
vehicle will warm up much faster while driving.
As a passenger, avoid connecting your
multimedia devices (e.g.
film, music, video
game) to help reduce the consumption of energy.
Disconnect all portable devices before leaving
the vehicle.
Limit the causes of excess consumption
Spread loads throughout the vehicle.
Limit the loads carried in the vehicle and
minimise wind resistance (e.g.
roof bars, roof rack, bicycle carrier, trailer). Preferably, use a
roof box.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit
summer tyres.
Comply with the servicing instructions
Check tyre pressures regularly, with the tyres
cold, referring to the label in the door aperture on
the left-hand side.
Carry out this check in particular:
–

before a long journey
.
–

at each change of season.
–


after a long period out of use.
Do not forget the spare wheel and, where
applicable, the tyres on your trailer or caravan.
Have your vehicle serviced regularly (e.g.

engine
oil, oil filter, air filter, passenger compartment
filter, etc.). Observe the schedule of operations in
the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system
has a fault, your vehicle will emit pollution. Visit
a PEUGEOT dealer or a qualified workshop
as soon as possible to restore your vehicle's
nitrogen oxide emissions to legal levels.
With an HDi Diesel engine, if the particle filter
is faulty, your vehicle will emit pollution. Visit a
PEUGEOT dealer or a qualified workshop as
soon as possible to restore your vehicle's particle
emissions to legal levels.
When filling the fuel tank, do not continue after
the third cut-out of the nozzle, to avoid overflow. CarM an uals 2 .c o m
