171
Driving
6
You can choose the display mode at any time by
pressing this area.
When the sub-menu is displayed, select one of
the four views:
"Standard view".
"180° view".
"Zoom view".
"AUTO mode".
The function will be deactivated:– If a trailer is attached or a bicycle
carrier is fitted on a towing device (vehicle
fitted with a towing device installed in line with
the manufacturer's recommendations).
–
Above about 6
mph (10 km/h).
–
When the boot is opened.
–
Upon changing out of reverse gear (the
image remains displayed for 7
seconds).
–
By pressing the white arrow in the upper-
left corner of the touch screen.
AUTO mode
This mode is activated by default.
Using sensors in the rear bumper, the automatic
view changes from the rear view (standard) to
the view from above (zoom) as an obstacle is
approached at the level of the red line (less than
30
cm) during a manoeuvre.
Standard view
The area behind the vehicle is displayed on the
screen.
The blue lines 1 represent the width of your
vehicle, with the mirrors unfolded; their direction
changes according to the position of the steering
wheel.
The red line 2 represents a distance of 30 cm
from the rear bumper; the two blue lines 3 and 4
represent 1
m and 2 m, respectively.
This view is available with AUTO mode or in the
view selection menu.
Zoom view
The camera records the vehicle's surroundings
during the manoeuvre in order to create a
view from above the rear of the vehicle in its
near surroundings, allowing the vehicle to be
manoeuvred around nearby obstacles.
This view is available with AUTO mode or in the
view selection menu.
Obstacles may appear further away than
they actually are.
It is important to monitor the sides of the
vehicle during the manoeuvre, using the
mirrors.
Parking sensors also provide additional
information about the area around the vehicle. CarM an uals 2 .c o m

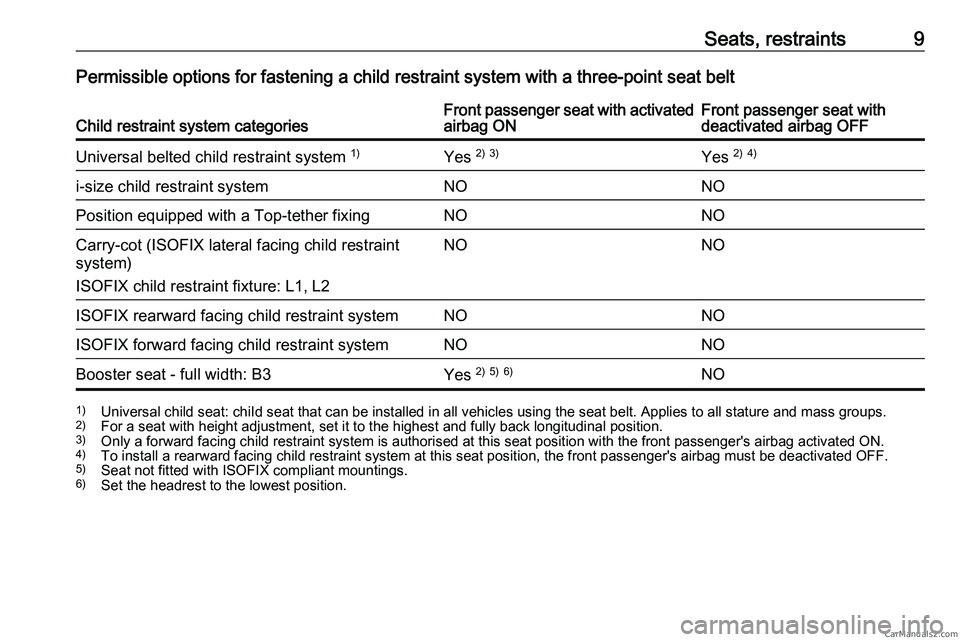

Seats, restraints 9
Permissible options for fastening a child restraint system with a three-point seat belt
Child restraint system categories Front passenger seat with activated
airbag ON Front passenger seat with
deactivated airbag OFF
Universal belted child restraint system 1)
Yes 2)
3)
Yes 2)
4)
i-size child restraint system NONO
Position equipped with a Top-tether fixing NO NO
Carry-cot (ISOFIX lateral facing child restraint
system)
ISOFIX child restraint fixture: L1, L2 NO
NO
ISOFIX rearward facing child restraint system NO NO
ISOFIX forward facing child restraint system NO NO
Booster seat - full width: B3 Yes 2)
5)
6)
NO1)
Universal child seat: chiId seat that can be installed in all vehicles using the seat belt. Applies to all stature and mass groups.
2) For a seat with height adjustment, set it to the highest and fully back longitudinal position.
3) Only a forward facing child restraint system is authorised at this seat position with the front passenger's airbag activated ON.
4) To install a rearward facing child restraint system at this seat position, the front passenger's airbag must be deactivated OFF.
5) Seat not fitted with ISOFIX compliant mountings.
6) Set the headrest to the lowest position.CarM an uals 2 .c o m
