2023 PEUGEOT 508 glove box

4
Overview
Presentation
These illustrations and descriptions are provided
for information. The presence and location of
some elements vary depending on the version
or trim level.
Instruments and controls



1. Sunroof and blind controls
Touch-sensitive courtesy lamp/Front touch-
sensitive reading lamps
2. Warning lamp display for seat belts and front
passenger airbag
Emergency call/Assistance call
3. Interior mirror
4. Digital instrument panel
5. Side control bar/Ticket holder
6. Fusebox
7. Bonnet release
8. Door mirror and electric window control
panel
9. Front armrest
USB sockets
10. USB sockets
11 . Front passenger airbag
12. Glove box
Centre console

1.Hazard warning lamps
Central locking
2. 10"
HD touch screen
3. Wireless smartphone charger
4. Storage
12
V socket
5. Electric parking brake
6. Automatic gearbox controls
7. Starting/Switching off the engine with START/
STOP button
Driving mode selector

56
Ease of use and comfort
Operating conditions
– The function is only activated when the
ignition is switched off and the
vehicle
locked.
–

When the vehicle is not connected, the
function is only activated if the battery charge
level is greater than 20%.
–


When the vehicle is not connected and a
recurring programme is active (e.g. from Monday
to Friday), if two temperature pre-conditioning
sequences are run without the vehicle being
used, the programme will be deactivated.
Front fittings

1. Sun visor
2. Card holder
3. Illuminated glove box
4.Door pockets
5. Storage compartment or Wireless
smartphone charger
Storage/Front 12
V socket (120 W)
6. Cup holder
7. Front armrest with storage
USB sockets
8. USB sockets
Sun visor
► With the ignition on, raise the concealing
flap; depending on the version, the mirror is
illuminated automatically
.
This sun visor is also equipped with a ticket
holder.
Glove box
► To open the glove box, lift the handle.
With the ignition on, the glove box is lit when
open.
It contains an adjustable ventilation nozzle,
distributing the same conditioned air as the vents
in the passenger compartment.
Never drive with the glove box open
when a passenger is at the front. It may
cause injury during sharp deceleration!
Cigarette lighter/12 V
accessory socket(s)




► To use the cigarette lighter, press it in and
wait a few seconds until it pops out automatically.
►
T
o use a 12 V accessory (max. power:
120
W), remove the cigarette lighter and connect
a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer, etc.
After use, put the cigarette lighter back into place
straight away.
The connection of an electrical device not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio reception or
interference with displays in the screens.
USB sockets
These symbols determine the type of use of a USB socket:

85
Safety
5Airbags
General information
This system is designed to improve the safety
of the occupants of the front seats and the rear
outer seats in the event of a violent collision. The
airbags supplement the action of the seat belts
equipped with a force limiting system.
Electronic detectors record and analyse the
front and side impacts sustained in the impact
detection zones:
–
In the event of violent impact, the airbags
deploy instantly and help better protect the
occupants of the vehicle; immediately after the
impact, the airbags deflate rapidly in order not
to hinder the visibility or the possible exit of the
occupants.
–


In the event of a slight impact, a rear impact
and under certain rollover conditions, the airbags
may not deploy; only the seat belt helps to
protect you in these situations.
The seriousness of the impact depends on the
nature of the obstacle and the speed of the
vehicle at the moment of collision.
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once. If a
second impact occurs (during the same or a
* For more information on Deactivating the front passenger airbag, refer t\
o the corresponding section.
subsequent accident), the airbag will not be
deployed again.
Impact detection zones
A. Front impact zone
B. Side impact zone
When one or more airbags are deployed,
the detonation of the pyrotechnic charge
incorporated in the system makes a noise and
releases a small quantity of smoke.
This smoke is not harmful, but sensitive
individuals may experience irritation.
The detonation noise associated with the
deployment of one or more airbags may result
in a slight loss of hearing for a short time.
Front airbags

This system protects the driver and front
passenger in the event of a serious front impact,
limiting the risk of head and chest injury.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger airbag is
fitted in the dashboard above the glove box.
The front airbags are adaptive. In particular, they inflate less firmly in the
presence of a smaller occupant, with the seat
set in a forward longitudinal position.
Deployment
They deploy, except the front passenger airbag
if it is deactivated*, in the event of a serious front
impact to all or part of the front impact zone A.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the

173

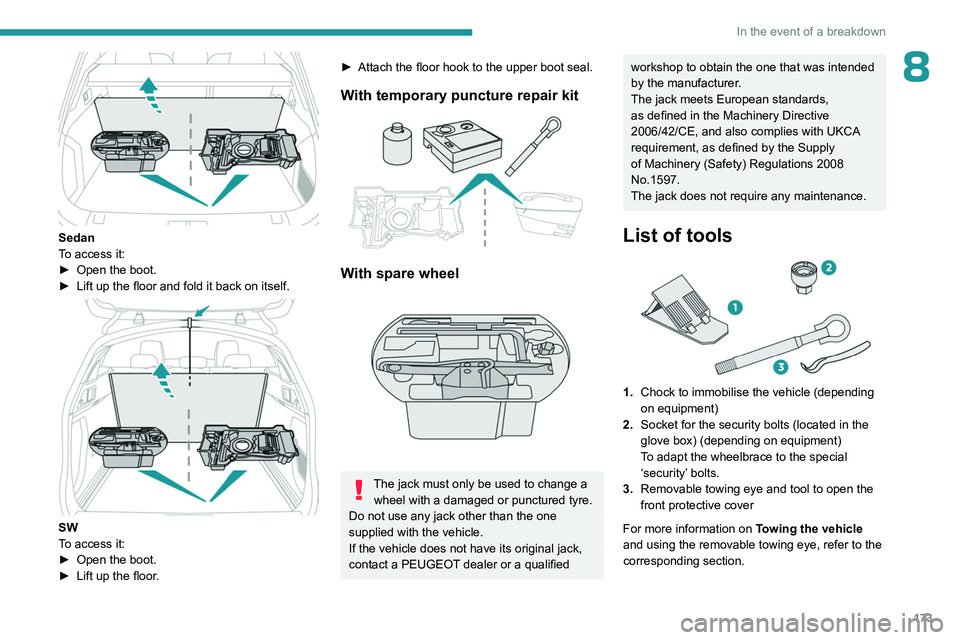

In the event of a breakdown
8

Sedan
To access it:
►
Open the boot.
►


Lift up the floor and fold it back on itself.

SW
To access it:
►
Open the boot.
►


Lift up the floor
.
► Attach the floor hook to the upper boot seal.
With temporary puncture repair kit

With spare wheel

The jack must only be used to change a wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with the vehicle.
If the vehicle does not have its original jack,
contact a PEUGEOT dealer or a qualified
workshop to obtain the one that was intended
by the manufacturer.
The jack meets European standards,
as defined in the Machinery Directive
2006/42/CE, and also complies with UKCA
requirement, as defined by the Supply
of Machinery (Safety) Regulations 2008
No.1597.
The jack does not require any maintenance.
List of tools

1. Chock to immobilise the vehicle (depending
on equipment)
2. Socket for the security bolts (located in the
glove box) (depending on equipment)
To adapt the wheelbrace to the special
‘security’ bolts.
3. Removable towing eye and tool to open the
front protective cover
For more information on Towing the vehicle
and using the removable towing eye, refer to the
corresponding section.

217
Alphabetical index
Emergency warning lamps 77, 172
Emissions control system, SCR
20, 167
Energy economy (mode)

161
Energy economy mode

161
Energy flows

24
Energy recovery

21, 104
Engine

167
Engine compartment

162–163
Engine, Diesel

145, 163, 172, 192
Engine, petrol

107, 163, 191
Engines

190–193
Environment

8, 31
e-Save function (energy reserve)

25
ESC (electronic stability control)

81
Event data recorder

80
Expanded traffic sign recognition

11 8
Exterior lighting

69
F
Fatigue detection 132–133
Favourite driving functions
11 3
Filling the AdBlue® tank

165, 168
Filling the fuel tank

145–146
Filter, air

166
Filter, oil

166
Filter, particle

165–166
Filter, passenger compartment

51, 166
Fitting a wheel

178–179
Fitting roof bars

159–160
Fittings, boot

61
Fittings, interior 56
Fittings, rear
60
Flap, charging

157
Flap, fuel filler

145–146
Flap, ski

60
Flashing indicators

67
Flat bed (towing)

188
Fluid, brake

164
Fluid, engine coolant

165
Foglamps, rear

66, 181
Folding the rear seats

49–50
Four-wheel drive (4WD)

108, 161
Frequency (radio)

207
Fuel

8, 145
Fuel consumption

8, 21
Fuel level, low

145
Fuel (tank)

145–146
Fuses

182
G
Gauge, fuel 145
Gearbox, automatic
103–105, 166, 182
Gear lever

108
Gear shift indicator

109
Glove box

56
Grab handles

56
H
Hands-free access 38–39
Hands-free tailgate
38–39
Hazard warning lamps

77, 172
Headlamps

69
Headlamps (adjustment)

67
Headlamps, automatic operation

68
Headlamps, dipped beam

181
Headlamps, main beam

181
Head restraints, front

44
Head restraints, rear

49–50
Heating

50
Heating, programmable

25, 55
Hi-Fi system

58
High voltage

147
Hill start assist

108
Histogramme, fuel consumption

24–25
Horn

78
I
Ignition 100, 209
Ignition on
100
Immobiliser, electronic

98
Indicator, AdBlue® range

19
Indicator, coolant temperature

19
Indicator, engine oil level

18
Indicators, direction

67
Indicator, service

18
Inflating tyres

167, 195
