2023 PEUGEOT 408 remote start

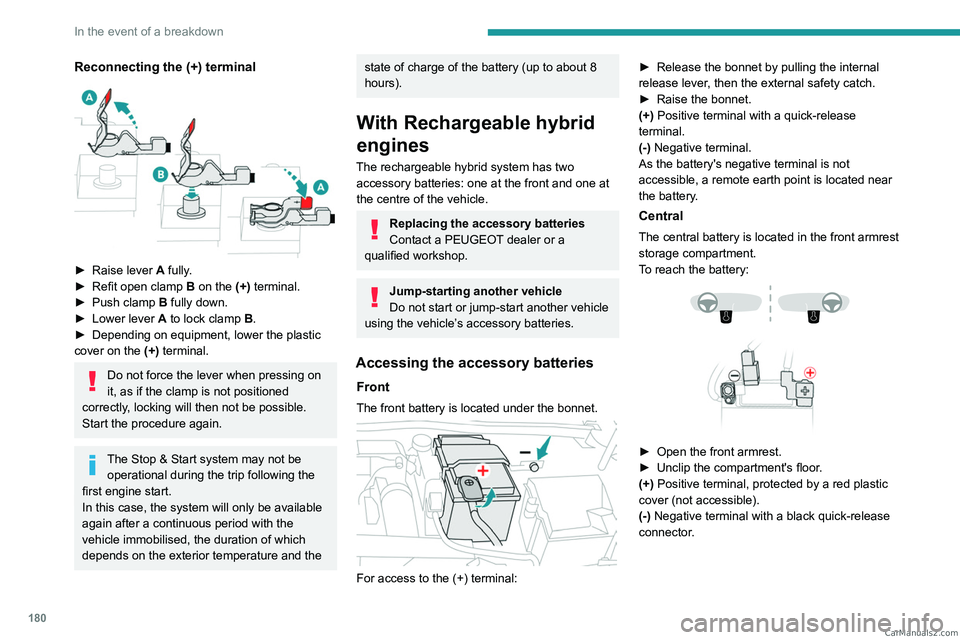

180
In the event of a breakdown
Reconnecting the (+) terminal

► Raise lever A fully.
► Refit open clamp B on the (+) terminal.
►

Push clamp
B fully down.
►

Lower lever

A
to lock clamp B.
►

Depending on equipment, lower the plastic
cover on the

(+) terminal.
Do not force the lever when pressing on
it, as if the clamp is not positioned
correctly, locking will then not be possible.
Start the procedure again.
The Stop & Start system may not be operational during the trip following the
first engine start.
In this case, the system will only be available
again after a continuous period with the
vehicle immobilised, the duration of which
depends on the exterior temperature and the
state of charge of the battery (up to about 8
hours).
With Rechargeable hybrid
engines
The rechargeable hybrid system has two accessory batteries: one at the front and one at
the centre of the vehicle.
Replacing the accessory batteries
Contact a PEUGEOT dealer or a
qualified workshop.
Jump-starting another vehicle
Do not start or jump-start another vehicle
using the vehicle’s accessory batteries.
Accessing the accessory batteries
Front
The front battery is located under the bonnet.

For access to the (+) terminal: ►
Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►
Raise the bonnet.
(+)
Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Central
The central battery is located in the front armrest
storage compartment.
To reach the battery:




► Open the front armrest.
► Unclip the compartment's floor .
(+) Positive terminal, protected by a red plastic
cover (not accessible).
(-) Negative terminal with a black quick-release
connector. CarM an uals 2 .c o m

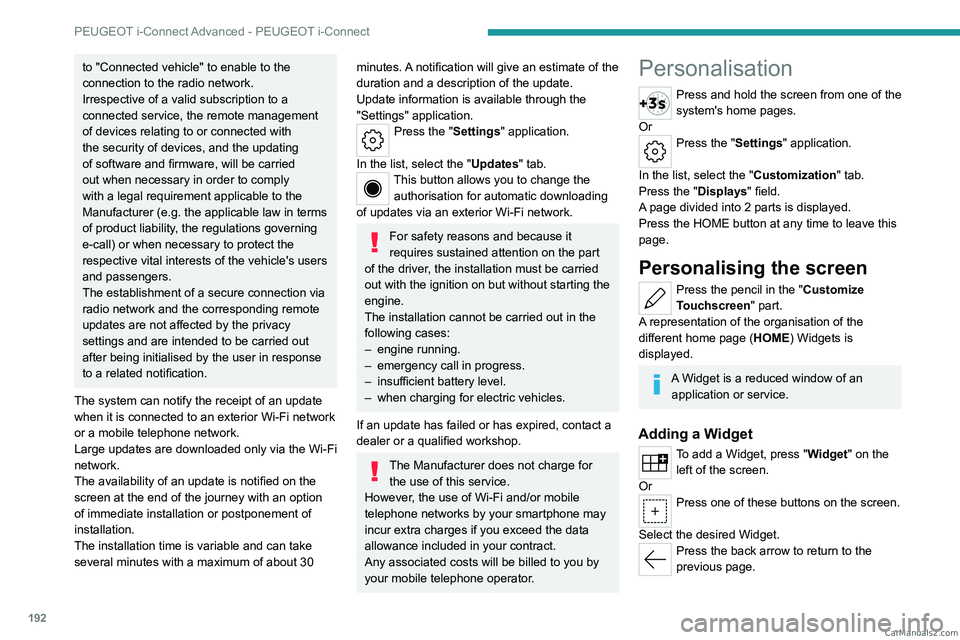

192
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
to "Connected vehicle" to enable to the
connection to the radio network.
Irrespective of a valid subscription to a
connected service, the remote management
of devices relating to or connected with
the security of devices, and the updating
of software and firmware, will be carried
out when necessary in order to comply
with a legal requirement applicable to the
Manufacturer (e.g. the applicable law in terms
of product liability, the regulations governing
e-call) or when necessary to protect the
respective vital interests of the vehicle's users
and passengers.
The establishment of a secure connection via
radio network and the corresponding remote
updates are not affected by the privacy
settings and are intended to be carried out
after being initialised by the user in response
to a related notification.
The system can notify the receipt of an update
when it is connected to an exterior Wi-Fi network
or a mobile telephone network.
Large updates are downloaded only via the Wi-Fi
network.
The availability of an update is notified on the
screen at the end of the journey with an option
of immediate installation or postponement of
installation.
The installation time is variable and can take
several minutes with a maximum of about 30 minutes. A notification will give an estimate of the
duration and a description of the update.
Update information is available through the
"Settings" application.
Press the "Settings" application.
In the list, select the "Updates" tab.
This button allows you to change the authorisation for automatic downloading
of updates via an exterior Wi-Fi network.
For safety reasons and because it
requires sustained attention on the part
of the driver, the installation must be carried
out with the ignition on but without starting the
engine.
The installation cannot be carried out in the
following cases:
–

engine running.
–


emergency call in progress.
–


insufficient battery level.
–


when charging for electric vehicles.
If an update has failed or has expired, contact a
dealer or a qualified workshop.
The Manufacturer does not charge for the use of this service.
However, the use of Wi-Fi and/or mobile
telephone networks by your smartphone may
incur extra charges if you exceed the data
allowance included in your contract.
Any associated costs will be billed to you by
your mobile telephone operator.
Personalisation
Press and hold the screen from one of the
system's home pages.
Or
Press the "Settings" application.
In the list, select the "Customization" tab.
Press the "Displays" field.
A page divided into 2 parts is displayed.
Press the HOME button at any time to leave this
page.
Personalising the screen
Press the pencil in the "Customize
Touchscreen" part.
A representation of the organisation of the
different home page ( HOME) Widgets
is
displayed.
A Widget is a reduced window of an application or service.
Adding a Widget
To add a Widget, press "Widget" on the left of the screen.
Or
Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page. CarM an uals 2 .c o m

210
Alphabetical index
Filter, oil 163
Filter, passenger compartment
49, 163
Fitting a wheel

172, 174
Fitting roof bars

157–158
Fittings, boot

59
Fittings, interior

54
Fittings, rear

58
Flap, charging

153
Flap, fuel filler

143
Flap, ski

59
Flashing indicators

62
Flat bed (towing)

183
Fluid, brake

162
Fluid, engine coolant

162
Foglamps, rear

61, 176
Folding the rear seats

47–48
Frequency (radio)

200
Fuel

8, 143
Fuel consumption

8, 18
Fuel level, low

143
Fuel (tank)

143
Fuses

177
G
Gauge, fuel 143
Gearbox, automatic
96–99, 101, 163, 177
Gearbox, manual

101
Gear shift indicator

101
Glove box

54
H
Hands-free access 33–34
Hands-free tailgate
33–34
Hazard warning lamps

72, 168
Headlamps (adjustment)

62
Headlamps, automatic dipping

64–65
Headlamps, automatic operation

63
Headlamps, halogen

62
Headlamps, main beam

64
Head restraints, front

41
Head restraints, rear

47–48
Head-up display

67
Heated steering wheel

45
Heating

48
Heating, programmable

22, 53
Hi-Fi system

57
High voltage

144
Hill start assist

100–101
Histogramme, fuel consumption

22
Horn

73
I
Ignition 93, 202
Ignition on
93
Immobiliser, electronic

92
Indicator, coolant temperature

18
Indicator, engine oil level

17
Indicators, direction

62
Indicator, service

17
Inflating tyres

164, 188
Inflating tyres and accessories
(using the kit)
169, 171
Information, vehicle

10, 205
Infrared camera

67, 105
Instrument panel

10, 19, 19–20, 106
Instrument panels

10
ISOFIX mountings

85, 88–89
J
Jack 168–169, 172
Jump starting
178
K
Key 24–25, 29
Key, electronic
26–27
Keyless Entry and Starting

24, 26–27, 92–93
Key not recognised

94
Key with remote control

24, 92
Kit, hands-free

197
Kit, puncture repair

168–169
Kit, temporary puncture repair

168–171
Klaxon

73
L
Labels, identification 188
Lamps, parking
62
Lamps, rear

176 CarM an uals 2 .c o m

212
Alphabetical index
R
Radar (warnings) 105
Radio
199–200
Reading lamps

57
Reading lamps, touch-sensitive

58
READY (warning lamp)

160
Rear bench seat

47
Rear cross traffic alert

140
Rear screen (demisting)

52
Rechargeable
hybrid engine

9, 21, 160, 183, 187
Rechargeable
hybrid system

6, 9, 21, 93, 100, 144
Recharging the battery

177–178, 181
Recharging the traction battery

148
Recharging the traction battery
(Rechargeable hybrid)

144, 151–153
Recirculation, air

51–52
Recorder, trip distance

19
Reduction of electrical load (mode)

160
Regenerative braking (deceleration by
engine braking)

98
Reinitialising the remote control

30
Reinitialising the under-inflation detection
system

104
Reminder, lighting on

61
Remote control

24–27, 29
Remote functions

153
Remotely operable functions (Rechargeable
hybrid)

22, 53
Removing a wheel

172–174
Removing the mat

57
Replacing bulbs 175–176
Replacing fuses
177
Replacing the air filter

163
Replacing the oil filter

163
Replacing the passenger compartment
filter

163
Reservoir, screenwash

162
Resetting the trip

19–20
Reversing camera

105, 136–138
Reversing lamps

176
Roof bars

157–158
Roof, opening

38
S
Safety, children 80, 83–87
Screen, cold climate
158
Screenwash

69
Screenwash, front

69
Seat angle

42
Seat belts

78–79, 85
Seat belts, rear

78
Seats, electric

42–43
Seats, front

41–43
Seats, heated

43–44
Seats, rear

47–48, 83
Selector, gear

96–99
Semi-automatic lane changing

122
Sensors (warnings)

105
Serial number, vehicle

188
Servicing

17, 163–164
Settings, equipment

10, 21
Shield, snow 158
Sidelamps
62, 176
Silent vehicle warning sound (Rechargeable
hybrid)

73
Smartphone

22–23, 55
Snow chains

103, 159
Snow screen

158
Socket, 12 V

54
Socket, 12 V accessory

54, 60
Speakers

57
Speed limiter

109–112
Speed limit recognition

107, 109
Speedometer

10, 106
Sport mode

99–100
Spotlamps, side

64
Stability control (ESC)

75, 77
Starting/Stopping the vehicle

92
Starting the engine

92–93
Starting the vehicle

93, 98
Starting using another battery

94, 178
State of charge, battery

21
Station, radio

199–200
Stay, engine bonnet

160
Steering wheel

106
Steering wheel (adjustment)

45
Stickers, customising

166
Stopping the vehicle

93, 98–99
Stop & Start

20, 49, 52, 101–103,
143, 160, 163, 180
Storage

54, 56, 58
Storage box

60
Storage wells

60
Storing driving positions

43 CarM an uals 2 .c o m
