2023 PEUGEOT 408 remote control

94
Driving
With the electronic key in the passenger
compartment, pressing the "START/STOP"
button, without depressing any of the pedals ,
allows the ignition to be switched on without
starting the engine.
►

Press this button again to switch off the
ignition and allow the vehicle to be locked.
Key not detected
Back-up starting
A back-up reader is fitted to the steering column,
to enable the engine to be started if the system
fails to detect the key in the recognition zone, or
if the battery in the electronic key is flat.


► Place and hold the remote control against the
back-up reader .
►

Select mode
P on the automatic gearbox,
then depress the brake pedal.
►

Press the "
START/STOP" button.
The engine starts.
Back-up switch-off

If the electronic key is not detected or is no
longer in the recognition zone, a message
appears in the instrument panel when closing a
door or trying to switch off the engine.
►

T
o confirm the instruction to switch off the
engine, press the " START/STOP" button for
approximately 5
seconds.
In the event of a fault with the electronic key,
contact a PEUGEOT dealer or a qualified
workshop.
Emergency switch-off
In case of emergency only, the engine can be
switched off without conditions (even when
driving).
►

Press the "
START/STOP" button for about
5
seconds.
In this case, the steering column locks as soon
as the vehicle stops.
Electric parking brake
In automatic mode, this system applies the
parking brake when the engine is switched off
and releases it when the vehicle moves off.




At any time, with the engine running:
► T o apply the parking brake, briefly pull the
control.
►

T
o release it, briefly push the control while
pressing the brake pedal.
Automatic mode is activated by default.
This automatic operation can be deactivated in
certain situations.
Indicator lamp
This indicator lamp comes on both on the instrument panel and on the control to
confirm that the parking brake has been applied,
accompanied by display of the message
"Parking brake applied".
The indicator lamp goes out to confirm the
release of the parking brake, accompanied by
the display of the message " Parking brake
released ". CarM an uals 2 .c o m

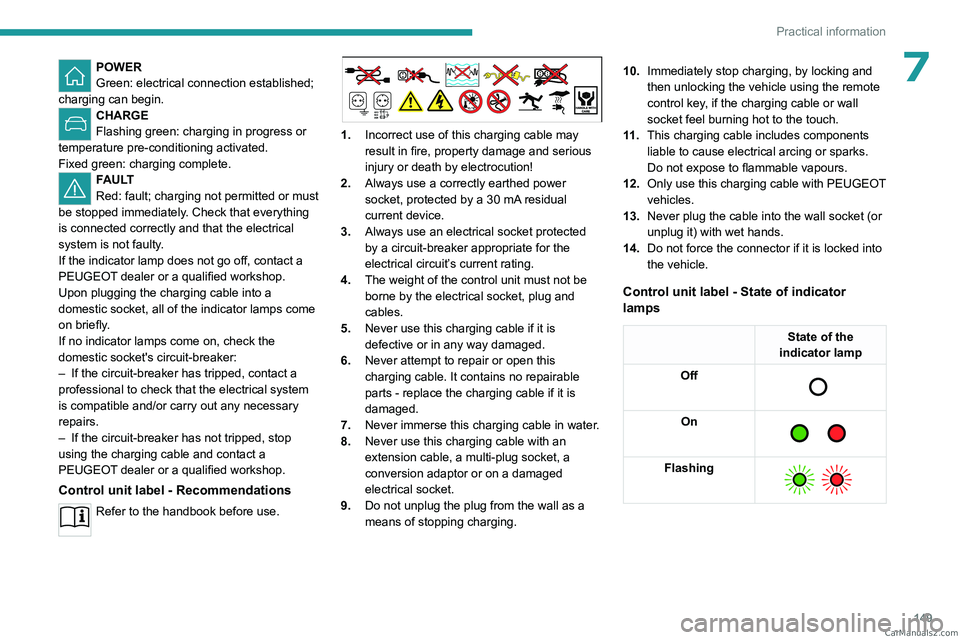

149
Practical information
7POWER
Green: electrical connection established;
charging can begin.
CHARGE
Flashing green: charging in progress or
temperature pre-conditioning activated.
Fixed green: charging complete.
FAULT
Red: fault; charging not permitted or must
be stopped immediately. Check that everything
is connected correctly and that the electrical
system is not faulty.
If the indicator lamp does not go off, contact a
PEUGEOT dealer or a qualified workshop.
Upon plugging the charging cable into a
domestic socket, all of the indicator lamps come
on briefly.
If no indicator lamps come on, check the
domestic socket's circuit-breaker:
–

If the circuit-breaker has tripped, contact a
professional to check that the electrical system
is compatible and/or carry out any necessary
repairs.
–


If the circuit-breaker has not tripped, stop
using the charging cable and contact a
PEUGEOT

dealer or a qualified workshop.
Control unit label - Recommendations
Refer to the handbook before use.
1. Incorrect use of this charging cable may
result in fire, property damage and serious
injury or death by electrocution!
2. Always use a correctly earthed power
socket, protected by a 30
mA residual
current device.
3. Always use an electrical socket protected
by a circuit-breaker appropriate for the
electrical circuit’s current rating.
4. The weight of the control unit must not be
borne by the electrical socket, plug and
cables.
5. Never use this charging cable if it is
defective or in any way damaged.
6. Never attempt to repair or open this
charging cable. It contains no repairable
parts - replace the charging cable if it is
damaged.
7. Never immerse this charging cable in water.
8. Never use this charging cable with an
extension cable, a multi-plug socket, a
conversion adaptor or on a damaged
electrical socket.
9. Do not unplug the plug from the wall as a
means of stopping charging. 10.
Immediately stop charging, by locking and
then unlocking the vehicle using the remote
control key, if the charging cable or wall
socket feel burning hot to the touch.
11 . This charging cable includes components
liable to cause electrical arcing or sparks.
Do not expose to flammable vapours.
12. Only use this charging cable with PEUGEOT
vehicles.
13. Never plug the cable into the wall socket (or
unplug it) with wet hands.
14. Do not force the connector if it is locked into
the vehicle.
Control unit label - State of indicator
lamps
State of the
indicator lamp
Off


On

Flashing
CarM an uals 2 .c o m

151
Practical information
7The control unit can be reset by simultaneously disconnecting the chargi\
ng connector and the wall socket.
Then, reconnect the wall socket first. For more information, refer to the handbook.
Charging the traction
battery (Rechargeable
hybrid)
Principle
For a full charge, follow the charging procedure
without interrupting it, until it stops automatically.
Charging may be performed either immediately
(by default) or deferred.
Deferred charging is set via the touch
screen or the MYPEUGEOT APP
application.
When the vehicle is connected, the following
information is displayed on the instrument panel:
–

T

raction battery charge status (%).
–

Remaining range (miles or km).
–


Estimated charging time (calculation may take
a few seconds).
–


Charging speed (miles or km gained per hour).
After the instrument panel has been put into
standby mode, this information can be displayed
again by unlocking the vehicle or opening a door

.
It is also possible to monitor the charging
progress using the MYPEUGEOT APP
application.
For more information on Remotely
operable additional functions , refer to the
corresponding section.
Lounge mode
When the vehicle is connected, it is
possible to switch on the ignition and use
certain functions such as the audio and
telematics system and the air conditioning
system for several hours.
Low charging / Driving
Driving when the charge level of the
traction battery is too low can lead to the
vehicle breaking down and can lead to
accidents or serious injuries. ALWAYS make
sure the traction battery has a sufficient
charge level.
Low charging / Parking
If the outside temperature is negative,
it is recommended not to park your vehicle
outside for several hours at a low charging
(less than 20%).
Vehicle in storage for more than
1 month
In the event of a long period of non-use of
the vehicle (beyond 4
weeks) without the
possibility of charging when restarting, the
self-discharge may make it impossible to
restart if the traction battery charge level
is a low or very low, especially at negative
ambient temperatures. ALWAYS make sure
that the traction battery has a charge between
20% and 40% if you do not plan to use your
vehicle for several weeks.
Do not connect the charging cable.
Always park the vehicle in a place with
temperatures between -10°C and 30°C
(parking in a place with extreme temperatures
can damage the traction battery).
Refer to the Accessory battery
(Rechargeable hybrid) section for the
battery disconnection procedure.
Precautions
Rechargeable hybrid vehicles have
been developed in accordance with the
recommendations for maximum electromagnetic
field limits established by the ICNIRP
(International Commission on Non-Ionizing
Radiation Protection - 1998 Guidelines). CarM an uals 2 .c o m

153
Practical information
7Accelerated charging (mode 3)

► Follow the accelerated charging unit
(W allbox) user instructions.
►

Remove the protective cover from the
charging nozzle.
►


Insert the nozzle into the vehicle's charging
connector

.
The start of charging is confirmed by the flashing
of the green light guides in the flap.
If this is not the case, charging has not
started; restart the procedure ensuring that all
connections are properly established.
The red indicator lamp in the flap comes on to
indicate that the nozzle is locked.
Disconnection

Before disconnecting the nozzle from the
charging connector:
►

If the vehicle is locked, unlock it.
► If the vehicle is unlocked, lock it and then
unlock it .
If selective unlocking of the doors is
activated, press the unlocking button on
the remote control twice to disconnect the
nozzle.
The red indicator lamp in the flap goes out to
confirm that the nozzle is unlocked.
►

Within
30 seconds, remove the charging
nozzle.
Domestic charging (mode 2)
The end of charging is confirmed when the
green CHARGE indicator lamp on the control
unit comes on fixed and the green light guides in
the flap come on fixed.
►

After disconnection, replace the protective
cover over the nozzle and close the charging
flap.
►


Disconnect the control unit's charging cable
from the domestic socket.
Accelerated charging (mode 3)
The end of charging is confirmed by the
accelerated charging unit (Wallbox) and when
the green light guides in the flap come on fixed.
►

After disconnection, replace the nozzle on to
the charging unit and close the charging flap.
Deferred charging
By default, the deferred charging start time is set
to be around midnight. Depending on equipment, this time can be
changed.
Settings
► In the
Energy touch screen
application, select the Charging tab.
►

Set the charging start time.
►


Press
OK.
The setting is saved in the system.
You can also programme the deferred charging function using a smartphone, via
the MYPEUGEOT APP application.
For more information on Remotely operable
additional functions , refer to the corresponding
section.
Activation
► After programming the deferred charging,
connect the vehicle to the desired charging
equipment.
► Press this button in the flap within one
minute to activate the deferred charging
(confirmed by the light guides coming on in
blue).
Towing device
Load distribution
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle, and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing
engine performance.
The maximum towable load CarM an uals 2 .c o m

177
In the event of a breakdown
8Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED
technology headlamps
Never connect the negative jump lead to the
metal part of the electronic control units or at
the back of the headlamps.
Risk of destroying the electronic control units
and/or headlamps!
Connect to the remote earth point provided
for this purpose.
Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
PEUGEOT dealer or by a qualified workshop,
who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.
Automatic gearbox
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol engines
Procedure for starting the engine using another
battery or for charging a discharged battery. CarM an uals 2 .c o m

208
Alphabetical index
A
ABS 75
Accelerated charging unit (Wallbox)
146–147
Accessories

72
Active LED Vision

63, 65
Active Safety Brake

126–127, 129
Adjusting headlamps

62
Adjusting head restraints

41
Adjusting seat

41–42
Adjusting the air distribution

49, 51
Adjusting the air flow

49, 51
Adjusting the headlamp beam height

62
Adjusting the height and reach of
the steering wheel

45
Adjusting the lumbar support

42
Adjusting the seat angle

42
Adjusting the temperature

50
Adjusting the time

203
Advice on care and maintenance

145, 165
Advice on driving

8, 91–92
Airbags

80–82, 84
Airbags, curtain

81–82
Airbags, front

80–81, 85
Airbags, lateral

81–82
Air conditioning

49, 52
Air conditioning, automatic

52
Air conditioning, dual-zone automatic

49
Air intake

51–52
Air vents

48
Alarm

35–36
Amplifier, audio

57
Anti-lock braking system (ABS)

75
Antitheft / Immobiliser 25
Applications
21–22
Armrest, front

56
Armrest, rear

58
Assistance call

73–74
Assistance, emergency braking

76, 128
Audio streaming (Bluetooth)

200
B
Battery, 12 V 159, 163, 177–181
Battery, ancillaries
177
Battery, charging

177–178, 181
Battery, remote control

29–30
Blanking screen (snow shield)

158
Blind

38
Bluetooth (hands-free)

197
Bluetooth (telephone)

197–198
Bodywork

165
Bonnet

160
Bonnet, active

82
Boot

31, 34, 60
Brake discs

163–164
Brake lamps

176
Brakes

163–164
Braking

98
Braking assistance system

75–76
Braking, automatic emergency

126–127, 129
Braking, dynamic emergency

95–96
Bulbs (changing)

175–176
C
Capacity, fuel tank 143
Care of the bodywork
165
Central locking

27–28
Changing a bulb

175–176
Changing a fuse

177
Changing a wheel

168, 172
Changing a wiper blade

71
Changing the remote control battery

29
Changing to free-wheeling

164
Charge level indicator (Rechargeable
hybrid)

19
Charger, induction

55
Charger, wireless

55
Charging cable

148
Charging cable (Rechargeable
hybrid)

146–147, 152
Charging connector (Rechargeable
hybrid)

146, 151–153
Charging flap (Rechargeable
hybrid)

146, 151–153
Charging the traction battery
(Rechargeable hybrid)

18, 144, 151–153
CHECK

19
Checking the engine oil level

17
Checking the levels

161–162
Checking tyre pressures
(using the kit)

169, 171
Checks

161, 163–164
Checks, routine

163–164
Child lock

90
Children

79, 85–87 CarM an uals 2 .c o m

210
Alphabetical index
Filter, oil 163
Filter, passenger compartment
49, 163
Fitting a wheel

172, 174
Fitting roof bars

157–158
Fittings, boot

59
Fittings, interior

54
Fittings, rear

58
Flap, charging

153
Flap, fuel filler

143
Flap, ski

59
Flashing indicators

62
Flat bed (towing)

183
Fluid, brake

162
Fluid, engine coolant

162
Foglamps, rear

61, 176
Folding the rear seats

47–48
Frequency (radio)

200
Fuel

8, 143
Fuel consumption

8, 18
Fuel level, low

143
Fuel (tank)

143
Fuses

177
G
Gauge, fuel 143
Gearbox, automatic
96–99, 101, 163, 177
Gearbox, manual

101
Gear shift indicator

101
Glove box

54
H
Hands-free access 33–34
Hands-free tailgate
33–34
Hazard warning lamps

72, 168
Headlamps (adjustment)

62
Headlamps, automatic dipping

64–65
Headlamps, automatic operation

63
Headlamps, halogen

62
Headlamps, main beam

64
Head restraints, front

41
Head restraints, rear

47–48
Head-up display

67
Heated steering wheel

45
Heating

48
Heating, programmable

22, 53
Hi-Fi system

57
High voltage

144
Hill start assist

100–101
Histogramme, fuel consumption

22
Horn

73
I
Ignition 93, 202
Ignition on
93
Immobiliser, electronic

92
Indicator, coolant temperature

18
Indicator, engine oil level

17
Indicators, direction

62
Indicator, service

17
Inflating tyres

164, 188
Inflating tyres and accessories
(using the kit)
169, 171
Information, vehicle

10, 205
Infrared camera

67, 105
Instrument panel

10, 19, 19–20, 106
Instrument panels

10
ISOFIX mountings

85, 88–89
J
Jack 168–169, 172
Jump starting
178
K
Key 24–25, 29
Key, electronic
26–27
Keyless Entry and Starting

24, 26–27, 92–93
Key not recognised

94
Key with remote control

24, 92
Kit, hands-free

197
Kit, puncture repair

168–169
Kit, temporary puncture repair

168–171
Klaxon

73
L
Labels, identification 188
Lamps, parking
62
Lamps, rear

176 CarM an uals 2 .c o m

212
Alphabetical index
R
Radar (warnings) 105
Radio
199–200
Reading lamps

57
Reading lamps, touch-sensitive

58
READY (warning lamp)

160
Rear bench seat

47
Rear cross traffic alert

140
Rear screen (demisting)

52
Rechargeable
hybrid engine

9, 21, 160, 183, 187
Rechargeable
hybrid system

6, 9, 21, 93, 100, 144
Recharging the battery

177–178, 181
Recharging the traction battery

148
Recharging the traction battery
(Rechargeable hybrid)

144, 151–153
Recirculation, air

51–52
Recorder, trip distance

19
Reduction of electrical load (mode)

160
Regenerative braking (deceleration by
engine braking)

98
Reinitialising the remote control

30
Reinitialising the under-inflation detection
system

104
Reminder, lighting on

61
Remote control

24–27, 29
Remote functions

153
Remotely operable functions (Rechargeable
hybrid)

22, 53
Removing a wheel

172–174
Removing the mat

57
Replacing bulbs 175–176
Replacing fuses
177
Replacing the air filter

163
Replacing the oil filter

163
Replacing the passenger compartment
filter

163
Reservoir, screenwash

162
Resetting the trip

19–20
Reversing camera

105, 136–138
Reversing lamps

176
Roof bars

157–158
Roof, opening

38
S
Safety, children 80, 83–87
Screen, cold climate
158
Screenwash

69
Screenwash, front

69
Seat angle

42
Seat belts

78–79, 85
Seat belts, rear

78
Seats, electric

42–43
Seats, front

41–43
Seats, heated

43–44
Seats, rear

47–48, 83
Selector, gear

96–99
Semi-automatic lane changing

122
Sensors (warnings)

105
Serial number, vehicle

188
Servicing

17, 163–164
Settings, equipment

10, 21
Shield, snow 158
Sidelamps
62, 176
Silent vehicle warning sound (Rechargeable
hybrid)

73
Smartphone

22–23, 55
Snow chains

103, 159
Snow screen

158
Socket, 12 V

54
Socket, 12 V accessory

54, 60
Speakers

57
Speed limiter

109–112
Speed limit recognition

107, 109
Speedometer

10, 106
Sport mode

99–100
Spotlamps, side

64
Stability control (ESC)

75, 77
Starting/Stopping the vehicle

92
Starting the engine

92–93
Starting the vehicle

93, 98
Starting using another battery

94, 178
State of charge, battery

21
Station, radio

199–200
Stay, engine bonnet

160
Steering wheel

106
Steering wheel (adjustment)

45
Stickers, customising

166
Stopping the vehicle

93, 98–99
Stop & Start

20, 49, 52, 101–103,
143, 160, 163, 180
Storage

54, 56, 58
Storage box

60
Storage wells

60
Storing driving positions

43 CarM an uals 2 .c o m
