2023 PEUGEOT 308 technical data

197
Technical data

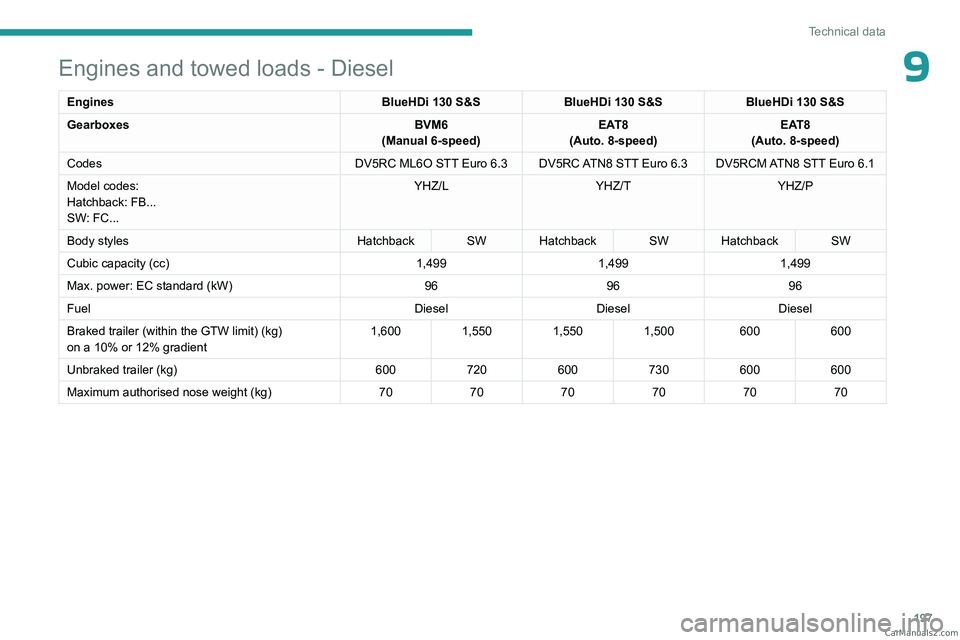

9Engines and towed loads - Diesel
EnginesBlueHDi 130 S&SBlueHDi 130 S&SBlueHDi 130 S&S
Gearboxes BVM6
(Manual 6-speed) EAT8
(Auto. 8-speed) EAT8
(Auto. 8-speed)
Codes DV5RC ML6O STT Euro
6.3 DV5RC ATN8 STT Euro 6.3 DV5RCM ATN8 STT Euro 6.1
Model codes:
Hatchback: FB...
SW: FC... YHZ/L
YHZ/T YHZ/P
Body styles Hatchback SW Hatchback SW Hatchback SW
Cubic capacity (cc) 1,4991,4991,499
Max. power: EC standard (kW) 969696
Fuel DieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,600
1,5501,5501,500 600600
Unbraked trailer (kg) 600720600730600600
Maximum authorised nose weight (kg) 707070707070 CarM an uals 2 .c o m

198
Technical data

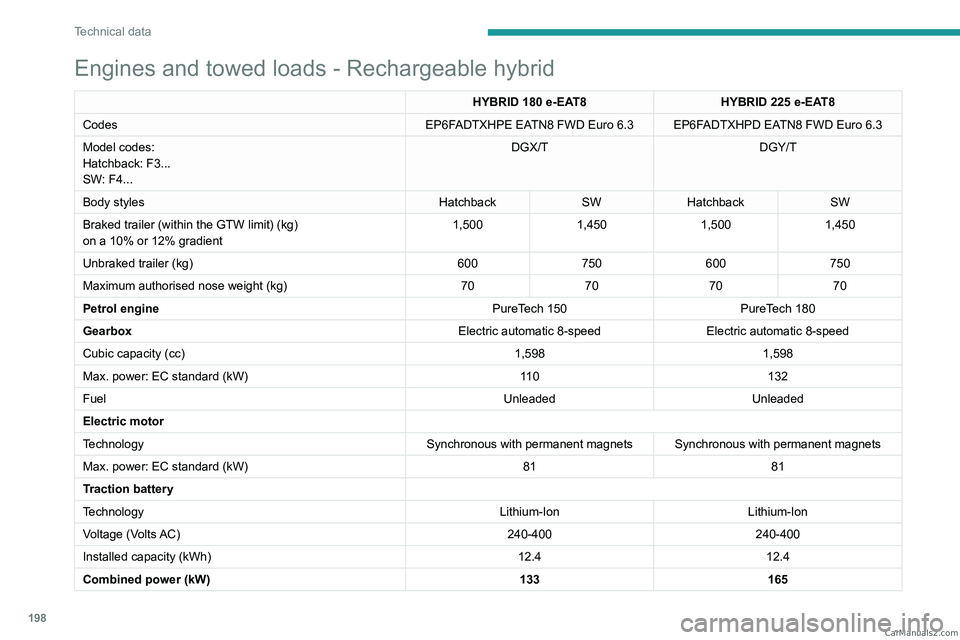

Engines and towed loads - Rechargeable hybrid
HYBRID 180 e-EAT8HYBRID 225 e-EAT8
Codes EP6FADTXHPE EATN8 FWD Euro 6.3 EP6FADTXHPD EATN8 FWD Euro
6.3
Model codes:
Hatchback: F3...
SW: F4... DGX/T
DGY/T
Body styles HatchbackSWHatchback SW
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,500
1,4501,5001,450
Unbraked trailer (kg) 600750600750
Maximum authorised nose weight (kg) 70707070
Petrol engine PureTech
150 PureTech
180
Gearbox Electric automatic 8-speedElectric automatic 8-speed
Cubic capacity (cc) 1,5981,598
Max. power: EC standard (kW) 11 0132
Fuel UnleadedUnleaded
Electric motor
Technology Synchronous with permanent magnets Synchronous with permanent magnets
Max. power: EC standard (kW) 8181
Traction battery
Technology Lithium-IonLithium-Ion
Voltage (Volts AC) 240-400240-400
Installed capacity (kWh) 12.412.4
Combined power (kW) 133165 CarM an uals 2 .c o m

199
Technical data

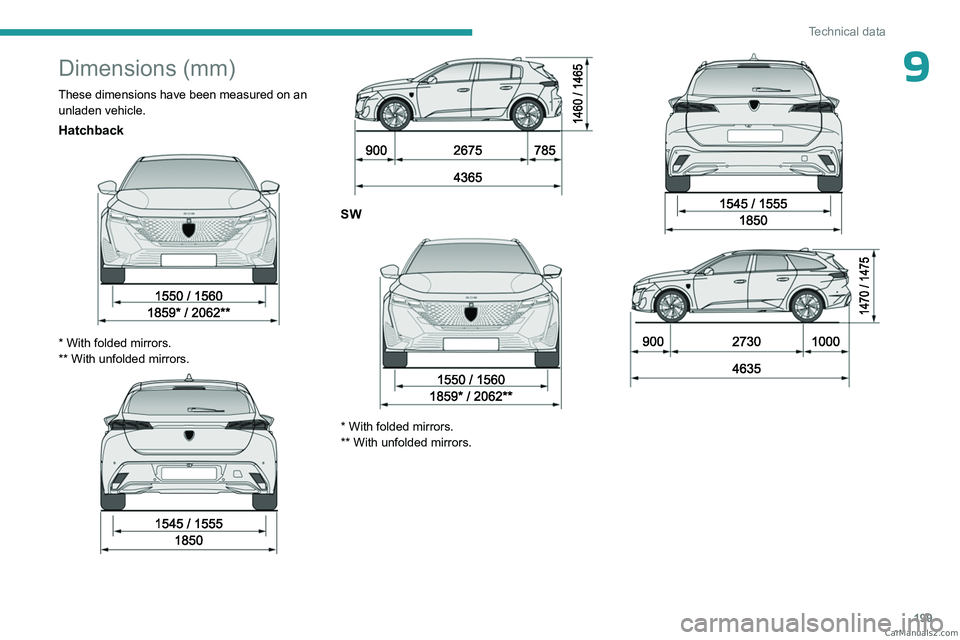

9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.
Hatchback

* With folded mirrors.
** With unfolded mirrors.




SW

* With folded mirrors.
** With unfolded mirrors.



CarM an uals 2 .c o m

200
Technical data

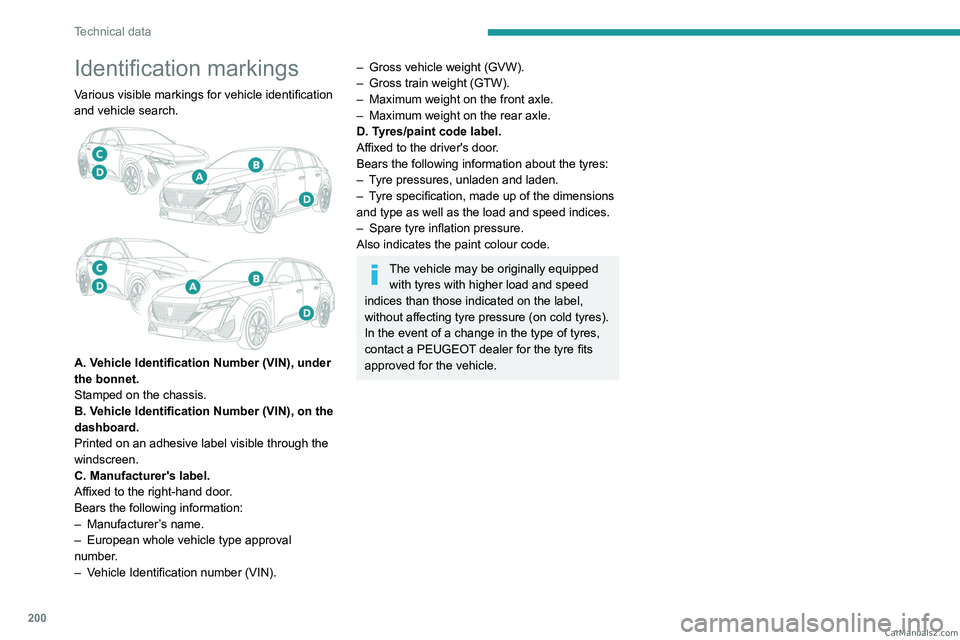

Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the right-hand door.
Bears the following information:
–
Manufacturer
’s name.
–

European whole vehicle type approval
number

.
–

V
ehicle Identification number (VIN).
– Gross vehicle weight (GVW).
– Gross train weight (GTW).
–

Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.
Affixed to the driver's door.
Bears the following information about the tyres:
–

T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a PEUGEOT dealer for the tyre fits
approved for the vehicle. CarM an uals 2 .c o m

217
Vehicle data recording and privacy
11Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request. CarM an uals 2 .c o m

225
Alphabetical index
Serial number, vehicle 200
Servicing
17, 168, 170
Settings, equipment

10, 23
Shield, snow

163
Sidelamps

66, 185
Silent vehicle warning sound
(Rechargeable hybrid)

77
Smartphone

24, 57
Snow chains

107, 164
Snow screen

163
Socket, 12 V

57
Socket, 12 V accessory

57, 63
Speakers

59
Speed limiter

113–115
Speed limit recognition

111 – 11 2
Speedometer

10, 110
Sport mode

103–104
Spotlamps, side

68
Stability control (ESC)

79, 81
Starting a Diesel engine

147
Starting/Stopping the vehicle

95
Starting the engine

95–96
Starting the vehicle

96, 102
Starting using another battery

97, 187
State of charge, battery

23
Station, radio

211–212
Stay, engine bonnet

166
Steering wheel

11 0
Steering wheel (adjustment)

47
Stickers, customising

174
Stopping the vehicle

96, 102
Stop & Start

22, 52, 55, 105–106, 147, 165, 169, 189Storage 56–61
Storage box
64
Storage wells

61, 64
Storing driving positions

45
Stowing rings

61
Sunshine sensor

51
Sun visor

57
Suspension

170
Switching off the engine

95
Synchronising the remote control

32
T
Tables of engines 195, 197–198
Tailgate
33
Tank, fuel

147–148
Technical data

195, 197–198
Telephone

209–210, 213–214
Temperature, coolant

18
Time (setting)

215
Tool box

64
Tools

176–178
Topping-up AdBlue®

172
Top Tether (fixing)

89, 91–92
Total distance recorder

21
Touch screen

22–24, 55
Towball, quickly detachable

159–162
Towbar

81, 158
Towbar with quickly
detachable towball

159–162
Towed loads

194–195, 197–198
Towing

192–193
Towing another vehicle 192–193
Towing the vehicle
192–193
Traction battery charge

153
Traction battery
(Rechargeable hybrid)

20, 149–150, 155
Traction control (ASR)

80
Trailer

81, 158
Trailer stability assist (TSA)

81
Trajectory control systems

79
Triangle, warning

176
Trip computer

21–22
Tyres

170, 200
Tyre under-inflation detection

107, 179
U
Under-inflation (detection) 107
Unlocking
26, 28
Unlocking from the inside

30
Unlocking the boot

26, 29
Unlocking the doors

30
Unlocking the tailgate

26, 29
Updating the time

215
V
Vehicle data recording and privacy 217
Ventilation
51
Visibility

55
Visiopark

142
Visiopark 1

140 CarM an uals 2 .c o m
