2023 NISSAN SENTRA Owners Manual

Warning/Indicator
light (red) Name Page
or
Brake warning
light 2-10
Charge warning
light 2-11
Engine oil
pressure
warning light 2-11
Malfunction
Indicator Light (MIL) 2-11
Master warning
light 2-12
Warning/
Indicator
light (red) Name Page
Seat belt warning
light and chime 2-12
Supplemental air
bag warning light 2-12
Warning/
Indicator light
(yellow) Name Page
or
Anti-lock Braking
System (ABS)warning light 2-13
Warning/
Indicator light
(yellow) Name Page
Automatic
Emergency
Braking with Pedestrian
Detection system
warning light (if so equipped) 2-13
Front passenger
air bag status light 2-13
Low tire pressure
warning light 2-13
Master warning
light 2-15
Power steering
warning light 2-15
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

Warning/Indicator light
(yellow) Name Page
Rear Automatic
Braking OFF
warning light
(if so equipped) 2-15
Slip indicator light 2-16
Vehicle Dynamic
Control (VDC) OFF indicator light 2-16
Warning/
Indicator light
(other) Name Page
ECO mode
indicator light (green) 2-16
Front fog light
indicator light
(if so equipped) (green) 2-16
High Beam Assist
indicator light(green) (if so equipped) 2-17
High beam
indicator light (blue) 2-17
Warning/
Indicator light
(other) Name Page
Side light and
headlight
indicator light (green) 2-17
Turn signal/
hazard indicator lights (green) 2-17
0-10Illustrated table of contents

1 Safety-Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(for passenger's seat and if so
equipped for driver's seat) .....................1-3
Front power seat adjustment
(if so equipped for driver's seat) .............. 1-5
Folding rear seat ..............................1-7
Center armrest (if so equipped) ...............1-7
Head restraints/headrests ...................... 1-8
Adjustable head restraint/headrest
components ................................. 1-9
Non-adjustable head restraint/
headrest components ....................... 1-9
Remove...................................... 1-9
Install ........................................ 1-10
Adjust ........................................ 1-10
Seatbelts ....................................... 1-12
Precautions on seat belt usage ...............1-12
Seat belt warning light and chime ............1-15
Pregnant women ............................ 1-15
Injured persons .............................. 1-16
Three-point type seat belt with
retractor ..................................... 1-16Seat belt extenders
......................... 1-20
Seat belt maintenance ......................1-20
Child safety ..................................... 1-21
Infants ....................................... 1-21
Small children ............................... 1-22
Larger children .............................. 1-22
Child restraints ................................. 1-23
Precautions on child restraints ..............1-23
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-25
Rear-facing child restraint installation
using LATCH ................................ 1-28
Rear-facing child restraint installation
using the seat belts ......................... 1-30
Forward-facing child restraint
installation using LATCH .....................1-33
Forward-facing child restraint
installation using the seat belts .............1-36
Booster seats ............................... 1-40
Supplemental Restraint System (SRS) ..........1-44
Precautions on SRS ......................... 1-44
Supplemental air bag warning labels ........1-65
Supplemental air bag warning light .........1-65

WARNING
• Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. •
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat properly. For additional infor-
mation, see “Precautions on seat belt
usage” (P. 1-12).
•
Af ter adjustment, gently rock in the
seat to make sure it is securely locked.
• Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in
serious accidents.
• To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
• Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
•
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety-Seats, seat belts and supplemental restraint system

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

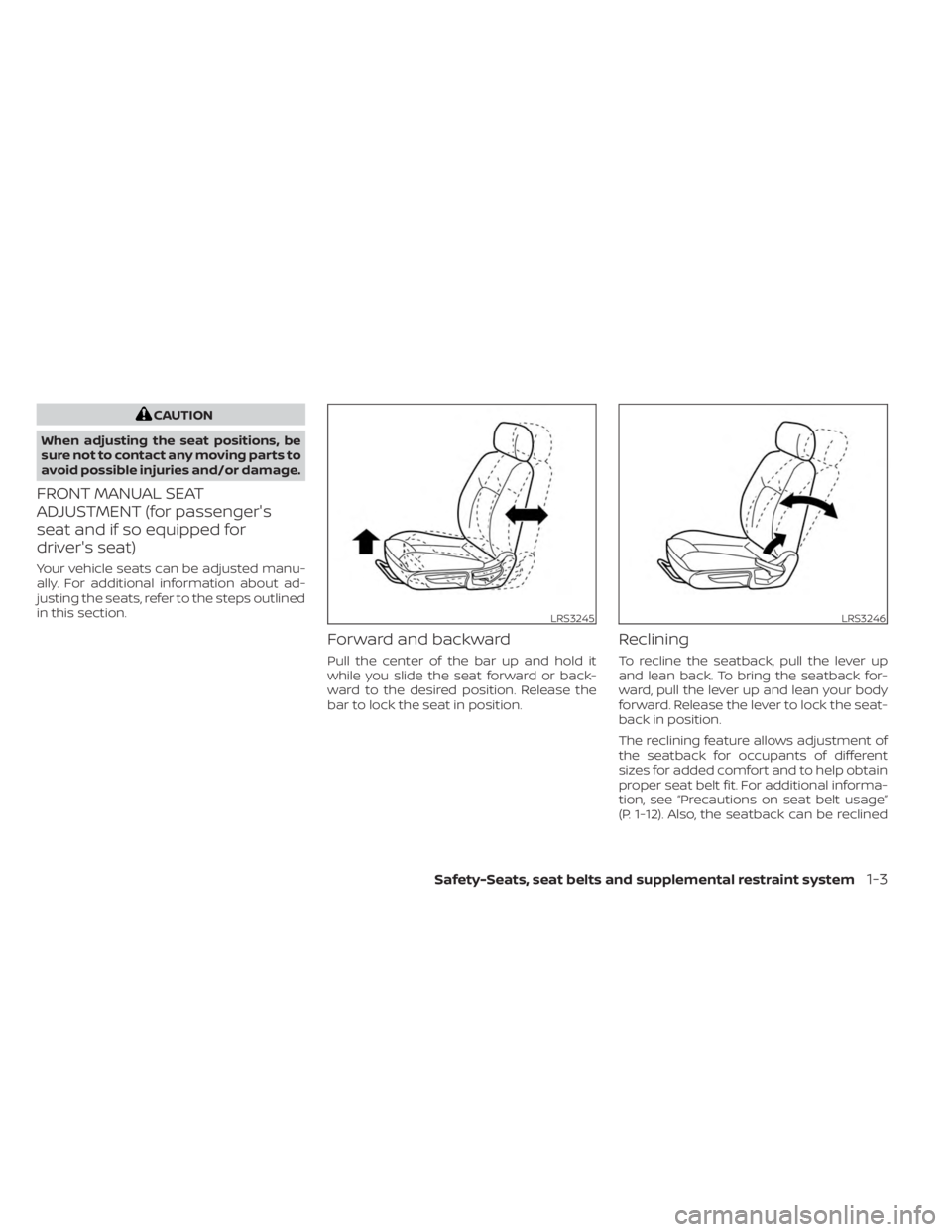

FRONT MANUAL SEAT
ADJUSTMENT (for passenger's
seat and if so equipped for
driver's seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, see “Precautions on seat belt usage”
(P. 1-12). Also, the seatback can be reclined
LRS3245LRS3246
Safety-Seats, seat belts and supplemental restraint system1-3

to allow occupants to rest when the vehicle
is stopped and the shif t lever (CVT) is in P
(Park) or the manual shif t lever is in N (Neu-
tral) with the parking brake applied.

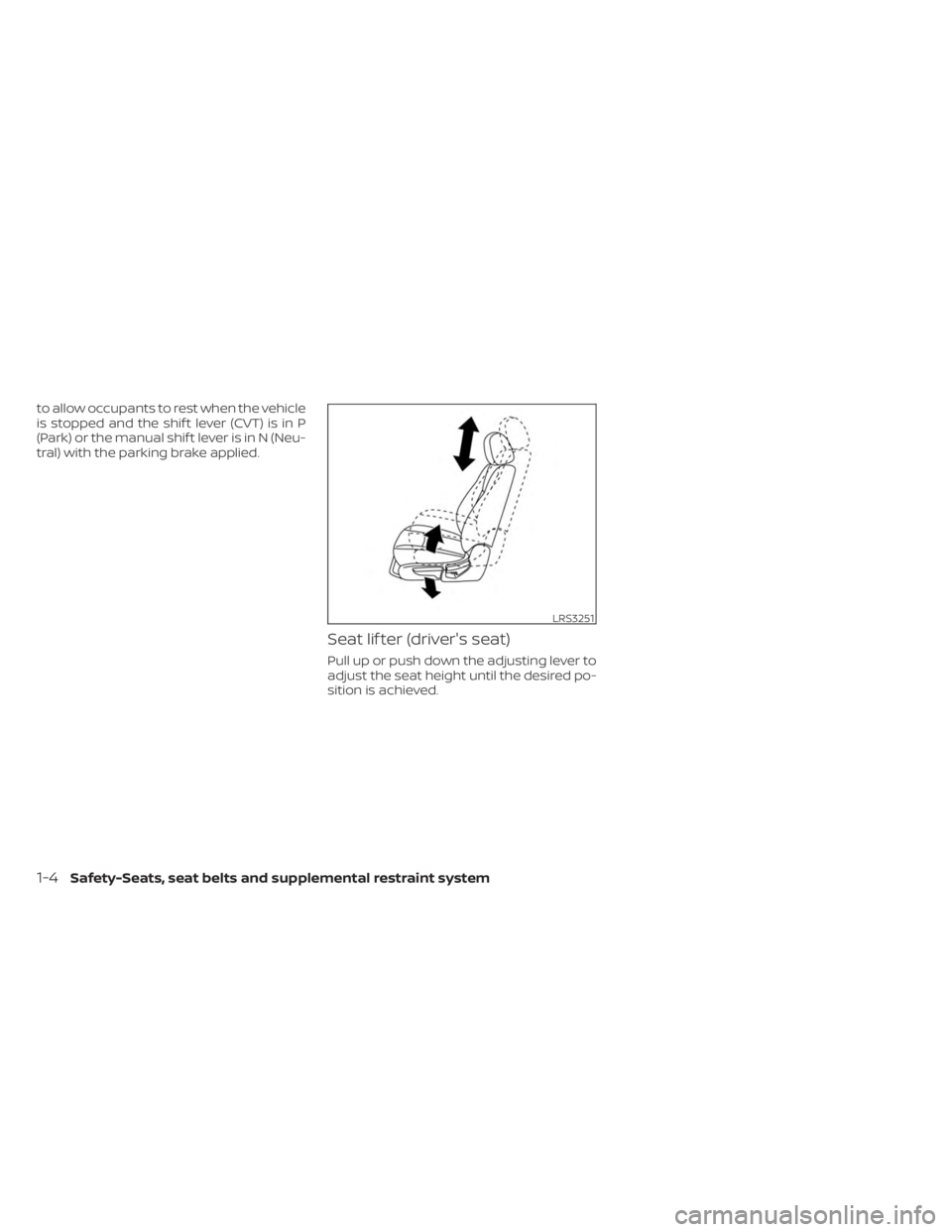

Seat lif ter (driver's seat)
Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.
LRS3251
1-4Safety-Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT
(if so equipped for driver's seat)
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is
off. This will discharge the battery.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained. The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, see “Precautions on seat belt usage”
(P. 1-12). Also, the seatback can be reclined
to allow occupants to rest when the vehicle
is stopped and the shif t lever is in P (Park) or
N (Neutral) position with the parking brake
fully applied.
LRS3478
Safety-Seats, seat belts and supplemental restraint system1-5

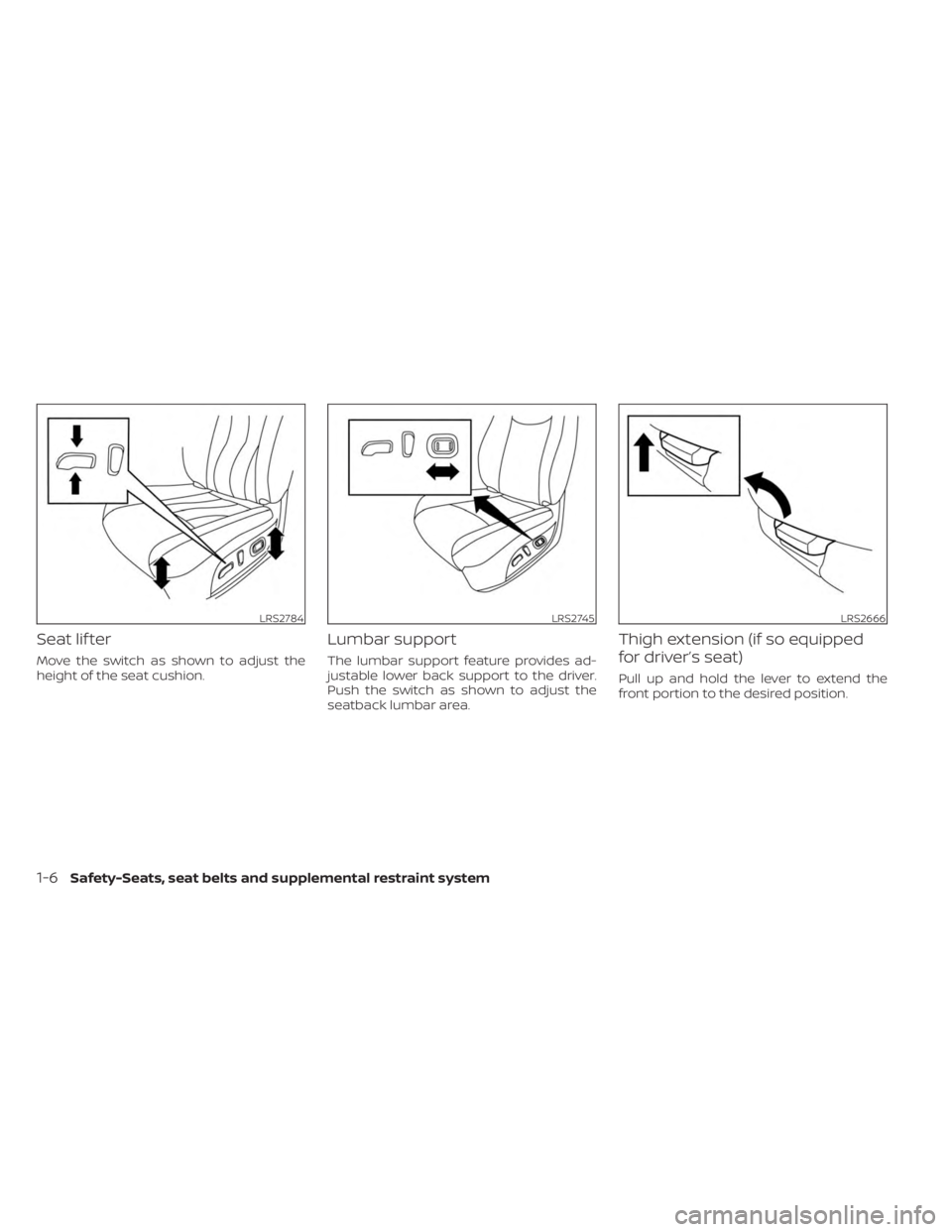

Seat lif ter
Move the switch as shown to adjust the
height of the seat cushion.
Lumbar support
The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seatback lumbar area.
Thigh extension (if so equipped
for driver’s seat)
Pull up and hold the lever to extend the
front portion to the desired position.
LRS2784LRS2745LRS2666
1-6Safety-Seats, seat belts and supplemental restraint system
