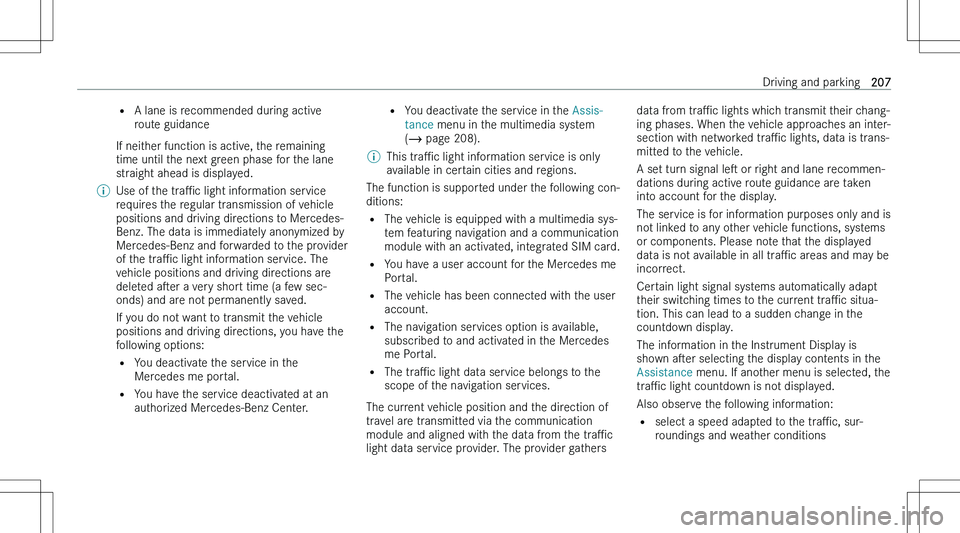

=A lane is recommended during active
route guidance
If neither function is active, the remaining time until the next green phase for the lane
straight ahead is displayed.\bUse of the traPc light information service
requires the regular transmission of vehicle
positions and driving directions to Mercedes-
Benz. The data is immediately anonymized by Mercedes-Benz and forwarded to the providerof the traPc light information service. The
vehicle positions and driving directions are
deleted aser a very short time (a few sec-
onds) and are not permanently saved.
If you do not want to transmit the vehicle
positions and driving directions, you have the following options:
= You deactivate the service in the
Mercedes me portal.
= You have the service deactivated at an
authorized Mercedes-Benz Center.= You deactivate the service in the Assis-
tance menu in the multimedia system
(  page 208).\bThis traPc light information service is only
available in certain cities and regions.
The function is supported under the following con-
ditions:
= The vehicle is equipped with a multimedia sys-
tem featuring navigation and a communication
module with an activated, integrated SIM card.
= You have a user account for the Mercedes me
Portal.
= The vehicle has been connected with the user
account.
= The navigation services option is available,
subscribed to and activated in the Mercedes me Portal.
= The traPc light data service belongs to the
scope of the navigation services.
The current vehicle position and the direction of travel are transmitted via the communicationmodule and aligned with the data from the traPc
light data service provider. The provider gathers
data from traPc lights which transmit their chang-
ing phases. When the vehicle approaches an inter- section with networked traPc lights, data is trans-
mitted to the vehicle.
A set turn signal les or right and lane recommen-
dations during active route guidance are taken
into account for the display.
The service is for information purposes only and is
not linked to any other vehicle functions, systems or components. Please note that the displayed data is not available in all traPc areas and may be
incorrect.
Certain light signal systems automatically adapt
their switching times to the current traPc situa-
tion. This can lead to a sudden change in the
countdown display.
The information in the Instrument Display is shown aser selecting the display contents in the
Assistance menu. If another menu is selected, the
traPc light countdown is not displayed.
Also observe the following information:
= select a speed adapted to the traPc, sur-
roundings and weather conditionsDriving and parking207

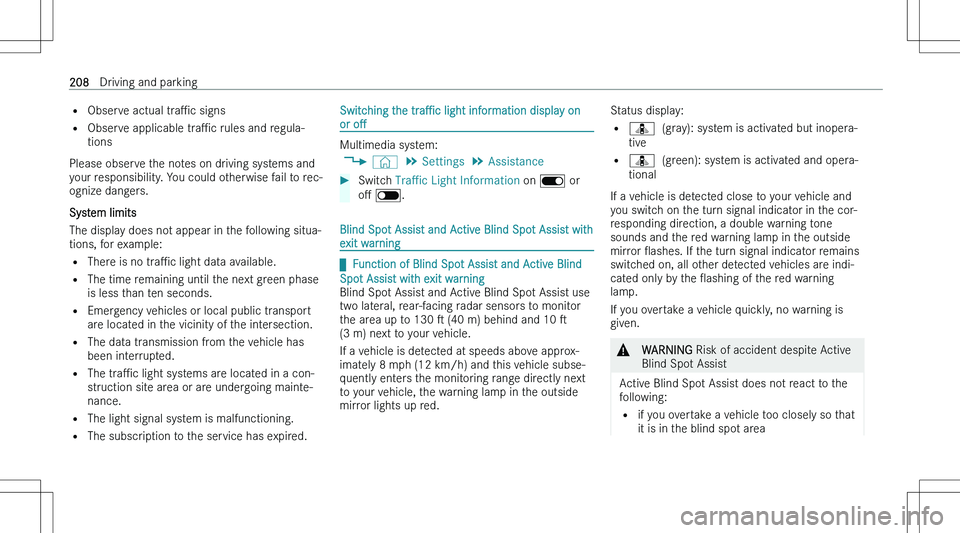

=Observe actual traPc signs
= Observe applicable traPc rules and regula-
tions
Please observe the notes on driving systems and your responsibility. You could otherwise fail to rec- ognize dangers.
System limits
The display does not appear in the following situa-
tions, for example:
= There is no traPc light data available.
= The time remaining until the next green phase
is less than ten seconds.
= Emergency vehicles or local public transport
are located in the vicinity of the intersection.
= The data transmission from the vehicle has
been interrupted.
= The traPc light systems are located in a con-
struction site area or are undergoing mainte-
nance.
= The light signal system is malfunctioning.
= The subscription to the service has expired.Switching the traPc light information display on
or oM
Multimedia system:
4 © 5
Settings 5
Assistance
Switch Traffic Light Information on D or
oM E .
Blind Spot Assist and Active Blind Spot Assist with
exit warning

q Function of Blind Spot Assist and Active Blind
Spot Assist with exit warning
Blind Spot Assist and Active Blind Spot Assist use two lateral, rear-facing radar sensors to monitor the area up to 130 s (40 m) behind and 10 s
(3 m) next to your vehicle.
If a vehicle is detected at speeds above approx-
imately 8 mph (12 km/h) and this vehicle subse-
quently enters the monitoring range directly next
to your vehicle, the warning lamp in the outside mirror lights up red.
Status display:
= ¸ (gray): system is activated but inopera-
tive
= ¸ (green): system is activated and opera-
tional
If a vehicle is detected close to your vehicle and you switch on the turn signal indicator in the cor-responding direction, a double warning tone
sounds and the red warning lamp in the outside mirror Oashes. If the turn signal indicator remains
switched on, all other detected vehicles are indi- cated only by the Oashing of the red warning
lamp.
If you overtake a vehicle quickly, no warning is given.&WARNING Risk of accident despite Active
Blind Spot Assist
Active Blind Spot Assist does not react to the following:
= if you overtake a vehicle too closely so that
it is in the blind spot area
208Driving and parking

=if vehicles traveling at a much faster speed
approach and then overtake
Active Blind Spot Assist may not give warnings
or intervene in such situations.Always pay careful attention to the traPc
situation and maintain a safe distance at
the side of the vehicle.
Observe the notes on driving systems and your responsibility; you may otherwise fail to recognizedangers (  page 176).
Exit warning
The exit warning is an additional function of Blind Spot Assist and can warn vehicle occupants about approaching vehicles when leaving the vehicle
when stationary.
&WARNING Risk of accident despite exit
warning
The exit warning neither reacts to stationary
objects nor to persons or road users approaching you at a greatly diMering speed.
The exit warning cannot warn drivers in these
situations.Always pay particular attention to thetraPc situation when opening the doors
and make sure there is suPcient clear-
ance.
If there is a vehicle in the monitoring range, this is
indicated in the outside mirror. If a vehicle occu-
pant opens the door on the side with the warning, a warning tone sounds and the warning lamp in
the outside mirror starts to Oash.
This additional function is available only when
Blind Spot Assist is active. When the exit warning
is activated, it can warn vehicle occupants for up to three minutes aser switching the vehicle oM.
The exit warning is no longer available once the warning lamp in the outside mirror Oashes three
times.
The exit warning is only an aid and not a substi-
tute for the attention of vehicle occupants. The responsibility for opening and closing the doorsand for leaving the vehicle remains with the vehi- cle occupants.
System limits
Blind Spot Assist and Active Blind Spot Assist may be limited in the following situations, in particular:
= if there is dirt on the sensors or the sensors
are obscured
= in poor visibility, e.g. due to fog, heavy rain or
snow
= if there are narrow vehicles, e.g. bicycles or
motorbikes
= if the road has very wide or narrow lanes
= if vehicles are not driving in the middle of their
lane
Warnings may be issued in error when driving
close to crash barriers or similar continuous lane borders. Always make sure that there is suPcient
distance to the side for other traPc or obstacles.
Warnings may be interrupted when you are driving
alongside long vehicles (e.g. trucks) for a pro- longed time.
Blind Spot Assist is not operational when reverse
gear is engaged.Driving and parking209

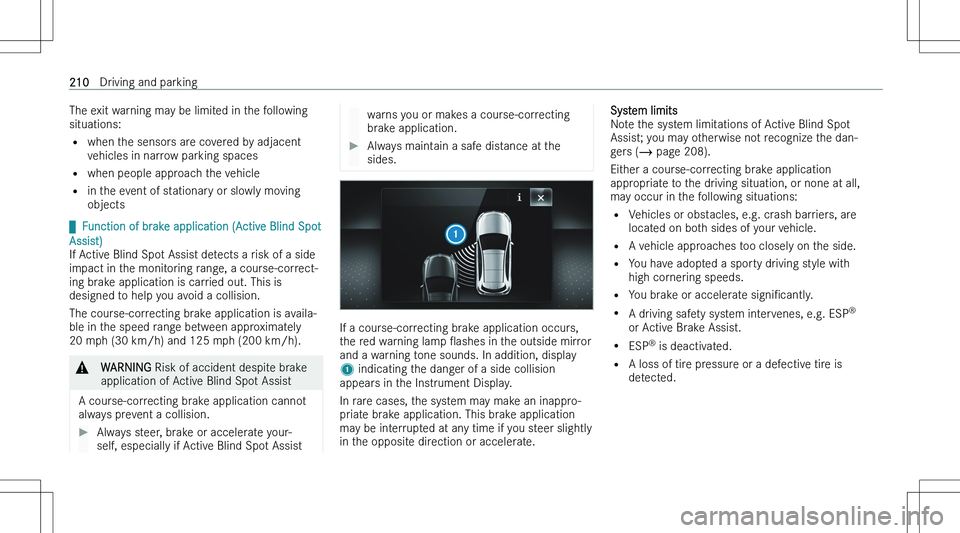

The exit warning may be limited in the followingsituations:
= when the sensors are covered by adjacent
vehicles in narrow parking spaces
= when people approach the vehicle
= in the event of stationary or slowly moving
objects

q Function of brake application (Active Blind Spot
Assist)
If Active Blind Spot Assist detects a risk of a side
impact in the monitoring range, a course-correct- ing brake application is carried out. This isdesigned to help you avoid a collision.
The course-correcting brake application is availa-
ble in the speed range between approximately 20 mph (30 km/h) and 125 mph (200 km/h).&WARNING Risk of accident despite brake
application of Active Blind Spot Assist
A course-correcting brake application cannot
always prevent a collision.
Always steer, brake or accelerate your- self, especially if Active Blind Spot Assistwarns you or makes a course-correcting
brake application.Always maintain a safe distance at the
sides.
If a course-correcting brake application occurs, the red warning lamp Oashes in the outside mirror
and a warning tone sounds. In addition, display
1 indicating the danger of a side collision
appears in the Instrument Display.
In rare cases, the system may make an inappro-
priate brake application. This brake application
may be interrupted at any time if you steer slightly
in the opposite direction or accelerate.
System limits
Note the system limitations of Active Blind Spot
Assist; you may otherwise not recognize the dan-
gers (  page 208).
Either a course-correcting brake application appropriate to the driving situation, or none at all,
may occur in the following situations:
= Vehicles or obstacles, e.g. crash barriers, are
located on both sides of your vehicle.
= A vehicle approaches too closely on the side.
= You have adopted a sporty driving style with
high cornering speeds.
= You brake or accelerate signiNcantly.
= A driving safety system intervenes, e.g. ESP n
or Active Brake Assist.
= ESP n
is deactivated.
= A loss of tire pressure or a defective tire is
detected.210Driving and parking

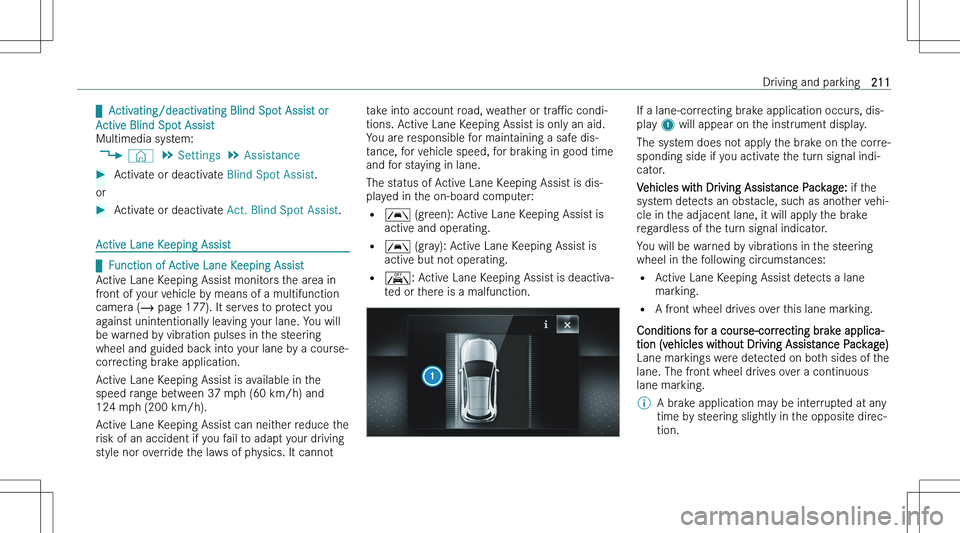

qActivating/deactivating Blind Spot Assist or
Active Blind Spot Assist
Multimedia system:
4 © 5
Settings 5
AssistanceActivate or deactivate Blind Spot Assist.
or
Activate or deactivate Act. Blind Spot Assist.
Active Lane Keeping Assist

qFunction of Active Lane Keeping Assist
Active Lane Keeping Assist monitors the area in front of your vehicle by means of a multifunction
camera (  page 177). It serves to protect you
against unintentionally leaving your lane. You will
be warned by vibration pulses in the steering
wheel and guided back into your lane by a course- correcting brake application.
Active Lane Keeping Assist is available in the
speed range between 37 mph (60 km/h) and
124 mph (200 km/h).
Active Lane Keeping Assist can neither reduce the risk of an accident if you fail to adapt your driving
style nor override the laws of physics. It cannot
take into account road, weather or traPc condi-
tions. Active Lane Keeping Assist is only an aid. You are responsible for maintaining a safe dis-
tance, for vehicle speed, for braking in good time and for staying in lane.
The status of Active Lane Keeping Assist is dis-
played in the on-board computer:
=

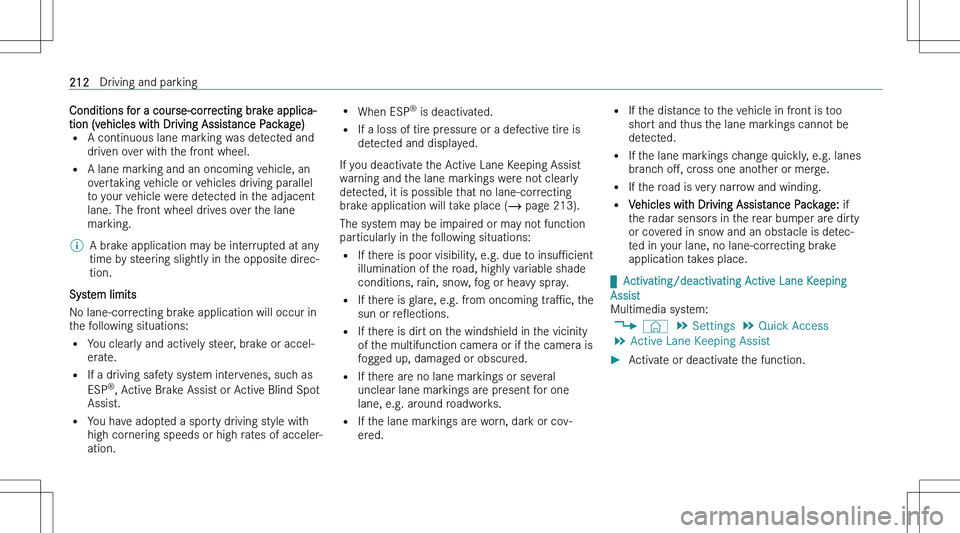

Conditions for a course-correcting brake applica-tion (vehicles with Driving Assistance Package)
= A continuous lane marking was detected and
driven over with the front wheel.
= A lane marking and an oncoming vehicle, an
overtaking vehicle or vehicles driving parallel
to your vehicle were detected in the adjacent lane. The front wheel drives over the lane
marking.\bA brake application may be interrupted at any
time by steering slightly in the opposite direc-
tion.
System limits
No lane-correcting brake application will occur in the following situations:
= You clearly and actively steer, brake or accel-
erate.
= If a driving safety system intervenes, such as
ESP n
, Active Brake Assist or Active Blind Spot
Assist.
= You have adopted a sporty driving style with
high cornering speeds or high rates of acceler-
ation.
= When ESP n
is deactivated.
= If a loss of tire pressure or a defective tire is
detected and displayed.
If you deactivate the Active Lane Keeping Assist
warning and the lane markings were not clearly
detected, it is possible that no lane-correcting brake application will take place (  page 213).
The system may be impaired or may not function
particularly in the following situations:
= If there is poor visibility, e.g. due to insuPcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray.
= If there is glare, e.g. from oncoming traPc, the
sun or reOections.
= If there is dirt on the windshield in the vicinity
of the multifunction camera or if the camera isfogged up, damaged or obscured.
= If there are no lane markings or several
unclear lane markings are present for one
lane, e.g. around roadworks.
= If the lane markings are worn, dark or cov-
ered.= If the distance to the vehicle in front is too
short and thus the lane markings cannot be detected.
= If the lane markings change quickly, e.g. lanes
branch oM, cross one another or merge.
= If the road is very narrow and winding.
= Vehicles with Driving Assistance Package: if
the radar sensors in the rear bumper are dirty
or covered in snow and an obstacle is detec-
ted in your lane, no lane-correcting brake
application takes place.

q Activating/deactivating Active Lane Keeping
Assist
Multimedia system:
4 © 5
Settings 5
Quick Access
5 Active Lane Keeping AssistActivate or deactivate the function.212Driving and parking

qSetting Active Lane Keeping Assist
Multimedia system: 4 © 5
Settings 5
Assistance
5 Active Lane Keeping Assist
Activating or deactivating the haptic warningSelect Warning .
Activate or deactivate the function.
Function of adaptive damping adjustment
Suspension with adaptive damping adjustment continuously adjusts the characteristics of the
suspension dampers to the current operating and
driving conditions.
The damping is set individually for each wheel and
is aMected by the following factors:
= the road surface conditions
= vehicle load
= the drive program selected
= the driving style
The drive program can be adjusted using the DYNAMIC SELECT switch.
Rear view camera

q Function of the rear view camera
The rear view camera is only an aid. It is not a
substitute for your attention to the surroundings. Responsibility for safe maneuvering and parking
remains with you. Make sure that there are no
persons, animals, objects, etc. in the maneuvering
area while maneuvering and parking.
\bYou can open the cover of the rear view cam- era manually (  page 218).
The guide lines in the media display show the dis-
tances to your vehicle. The distances displayed apply only to road level.
Depending on the vehicle equipment, you can
select from the following views:
= Normal view
= Wide-angle view
The area behind the vehicle is displayed as a mir- ror image, as in the inside rear-view mirror.
Vehicles without Parking Assist PARKTRONICThe following camera views are available in the
multimedia system:
Normal view1Yellow guide line, vehicle width (driven sur-
face) depending on the current steering angle
(dynamic)2Yellow guide line at a distance of approx-
imately 3.3 s (1.0 m) from the rear area3Yellow lanes marking the course the tires will
take with the current steering angle (dynamic)4Bumper5Red guide line at a distance of approximately 1.0 in (0.3 m) from the rear areaDriving and parking213

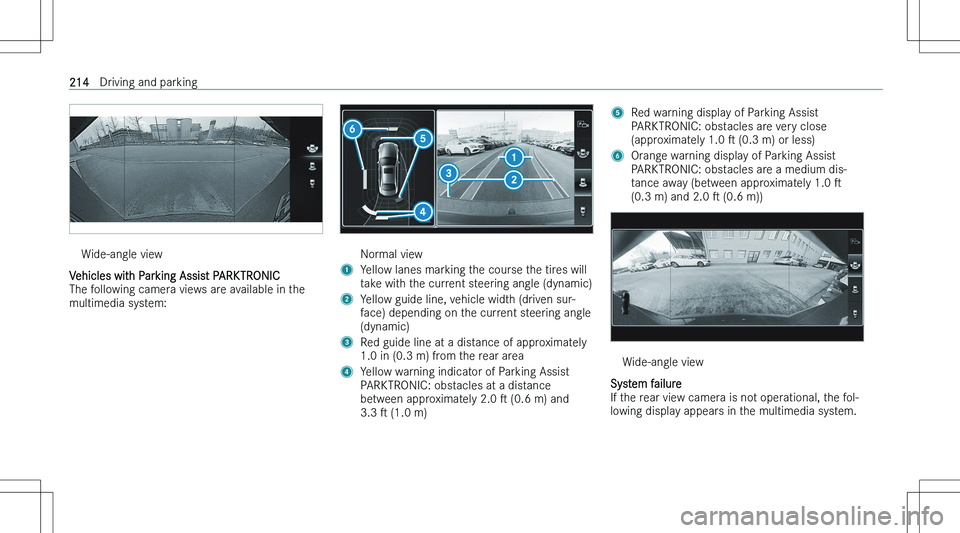

Wide-angle view
Vehicles with Parking Assist PARKTRONICThe following camera views are available in the
multimedia system:
Normal view1Yellow lanes marking the course the tires will
take with the current steering angle (dynamic)2Yellow guide line, vehicle width (driven sur-
face) depending on the current steering angle
(dynamic)3Red guide line at a distance of approximately 1.0 in (0.3 m) from the rear area4Yellow warning indicator of Parking Assist
PARKTRONIC: obstacles at a distance
between approximately 2.0 s (0.6 m) and
3.3 s (1.0 m)5Red warning display of Parking Assist
PARKTRONIC: obstacles are very close
(approximately 1.0 s (0.3 m) or less)6Orange warning display of Parking Assist
PARKTRONIC: obstacles are a medium dis-
tance away (between approximately 1.0 s
(0.3 m) and 2.0 s (0.6 m))Wide-angle view
System failure
If the rear view camera is not operational, the fol-
lowing display appears in the multimedia system.
214Driving and parking
