2023 MERCEDES-BENZ GLB Owners Manual

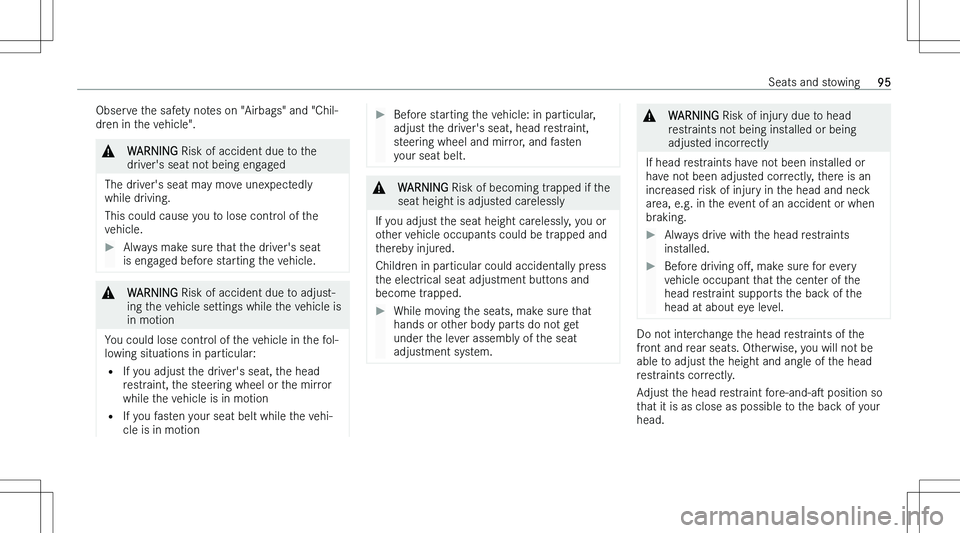

Observe the safety notes on "Airbags" and "Chil-
dren in the vehicle".&WARNING Risk of accident due to the
driver\bs seat not being engaged
The driver\bs seat may move unexpectedly
while driving.
This could cause you to lose control of the
vehicle.
Always make sure that the driver\bs seat
is engaged before starting the vehicle.&WARNING Risk of accident due to adjust-
ing the vehicle settings while the vehicle is
in motion
You could lose control of the vehicle in the fol-
lowing situations in particular:
= If you adjust the driver\bs seat, the head
restraint, the steering wheel or the mirror while the vehicle is in motion
= If you fasten your seat belt while the vehi-
cle is in motion
Before starting the vehicle: in particular,
adjust the driver\bs seat, head restraint,
steering wheel and mirror, and fasten
your seat belt.&WARNING Risk of becoming trapped if the
seat height is adjusted carelessly
If you adjust the seat height carelessly, you or
other vehicle occupants could be trapped and
thereby injured.
Children in particular could accidentally press
the electrical seat adjustment buttons and
become trapped.
While moving the seats, make sure that hands or other body parts do not get
under the lever assembly of the seat adjustment system.&WARNING Risk of injury due to head
restraints not being installed or being
adjusted incorrectly
If head restraints have not been installed or
have not been adjusted correctly, there is an increased risk of injury in the head and neck
area, e.g. in the event of an accident or when
braking.
Always drive with the head restraints
installed.Before driving oM, make sure for every
vehicle occupant that the center of the
head restraint supports the back of the
head at about eye level.Do not interchange the head restraints of the front and rear seats. Otherwise, you will not be
able to adjust the height and angle of the head restraints correctly.
Adjust the head restraint fore-and-as position so
that it is as close as possible to the back of your head.Seats and stowing95

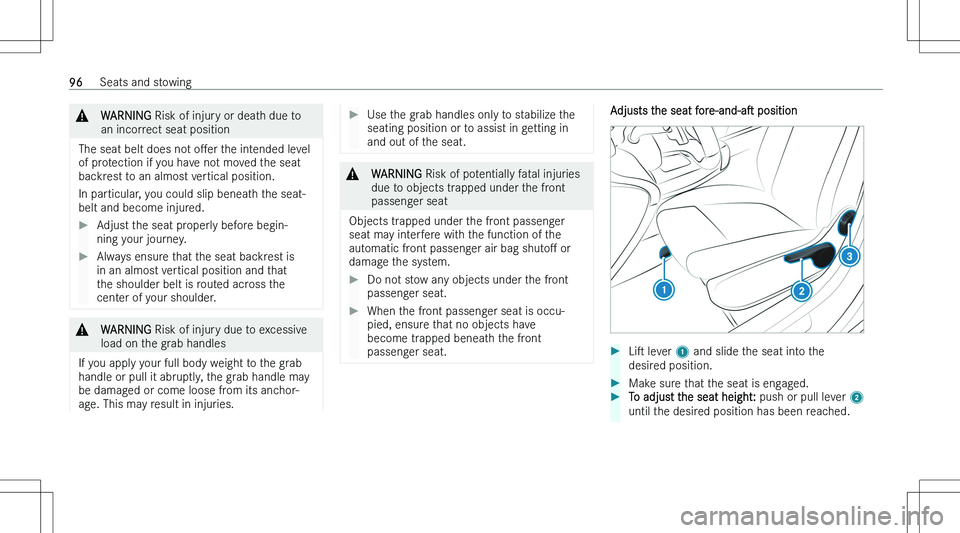

&WARNING Risk of injury or death due to
an incorrect seat position
The seat belt does not oMer the intended level
of protection if you have not moved the seat backrest to an almost vertical position.
In particular, you could slip beneath the seat- belt and become injured.
Adjust the seat properly before begin-
ning your journey.Always ensure that the seat backrest is
in an almost vertical position and that
the shoulder belt is routed across the
center of your shoulder.&WARNING Risk of injury due to excessive
load on the grab handles
If you apply your full body weight to the grab
handle or pull it abruptly, the grab handle may
be damaged or come loose from its anchor-
age. This may result in injuries.
Use the grab handles only to stabilize the seating position or to assist in getting in
and out of the seat.&WARNING Risk of potentially fatal injuries
due to objects trapped under the front
passenger seat
Objects trapped under the front passenger seat may interfere with the function of the
automatic front passenger air bag shutoM or
damage the system.
Do not stow any objects under the front
passenger seat.When the front passenger seat is occu-
pied, ensure that no objects have
become trapped beneath the front
passenger seat.Adjusts the seat fore-and-as positionLis lever 1 and slide the seat into the
desired position.Make sure that the seat is engaged.To adjust the seat height: push or pull lever 2
until the desired position has been reached.96Seats and stowing

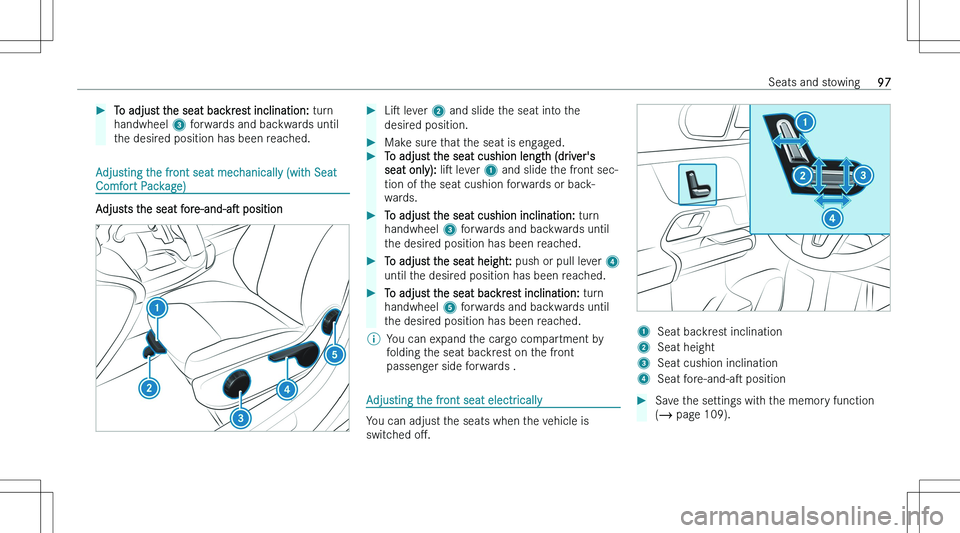

To adjust the seat backrest inclination: turn
handwheel 3 forwards and backwards until
the desired position has been reached.
Adjusting the front seat mechanically (with Seat
Comfort Package)
Adjusts the seat fore-and-as position
Lis lever 2 and slide the seat into the
desired position.Make sure that the seat is engaged.To adjust the seat cushion length (driver\bs seat only): lis lever 1 and slide the front sec-
tion of the seat cushion forwards or back-
wards.To adjust the seat cushion inclination: turn
handwheel 3 forwards and backwards until
the desired position has been reached.To adjust the seat height: push or pull lever 4
until the desired position has been reached.To adjust the seat backrest inclination: turn
handwheel 5 forwards and backwards until
the desired position has been reached.\bYou can expand the cargo compartment by folding the seat backrest on the frontpassenger side forwards .
Adjusting the front seat electrically
You can adjust the seats when the vehicle is
switched oM.1Seat backrest inclination2Seat height3Seat cushion inclination4Seat fore-and-as positionSave the settings with the memory function
(  page 109).Seats and stowing97

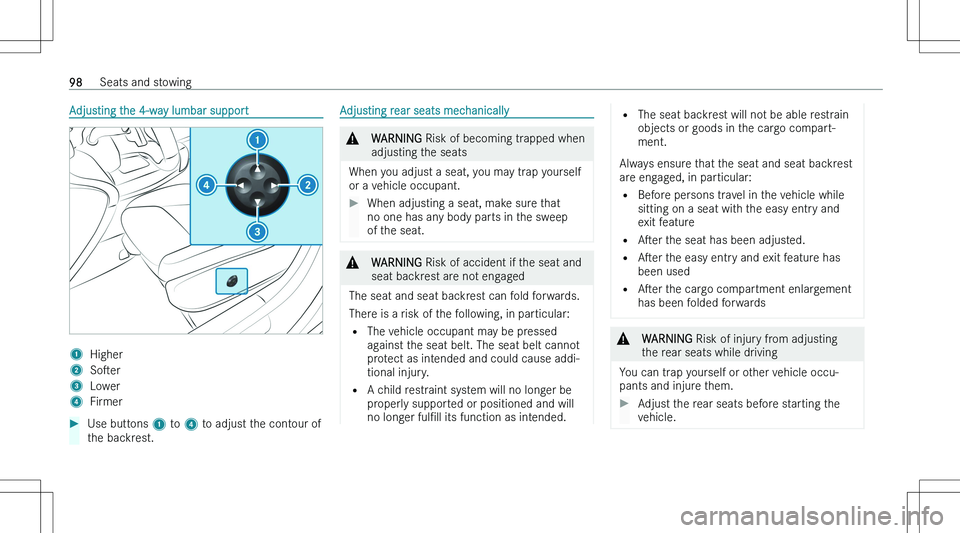

Adjusting the 4-way lumbar support1Higher2Soser3Lower4FirmerUse buttons 1 to 4 to adjust the contour of
the backrest.Adjusting rear seats mechanically&WARNING Risk of becoming trapped when
adjusting the seats
When you adjust a seat, you may trap yourself
or a vehicle occupant.
When adjusting a seat, make sure that no one has any body parts in the sweep
of the seat.&WARNING Risk of accident if the seat and
seat backrest are not engaged
The seat and seat backrest can fold forwards.
There is a risk of the following, in particular: = The vehicle occupant may be pressed
against the seat belt. The seat belt cannot
protect as intended and could cause addi- tional injury.
= A child restraint system will no longer be
properly supported or positioned and will
no longer fulNll its function as intended.
=
The seat backrest will not be able restrain
objects or goods in the cargo compart-
ment.
Always ensure that the seat and seat backrest
are engaged, in particular:
= Before persons travel in the vehicle while
sitting on a seat with the easy entry and exit feature
= Aser the seat has been adjusted.
= Aser the easy entry and exit feature has
been used
= Aser the cargo compartment enlargement
has been folded forwards&WARNING Risk of injury from adjusting
the rear seats while driving
You can trap yourself or other vehicle occu- pants and injure them.
Adjust the rear seats before starting the
vehicle.98Seats and stowing

*NOTE Damage caused by objects in the
footwell or behind the rear seats
When adjusting the fore-and-as position, the
rear seats and/or the object can be damaged.
Stow objects in a suitable place.
This function is available only for vehicles with a
movable rear bench seat.
The components of the rear bench seat can be
moved. You can move the right-hand and les-hand
parts together with the center part independently of each other. This allows you to make the foot-well larger in either the second or third row of
seats.
Lis release handle 1 and slide the corre-
sponding part of the bench seat into the
desired position.Let go of release handle 1.Make sure that the seat is engaged.Adjusting the rear seat backrests mechanically&WARNING Risk of injury due to seat
backrests folded forwards
If the seat backrest of the rear seat is folded
forwards, persons in the third row of seats
may hit parts of the seat mechanism, espe-
cially in the event of an accident, braking
maneuver or abrupt change of direction.
If there is a person in the third row of
seats, the rear seat in front of them must
be folded back to the driving position
before the journey begins.Persons in the third row of seats should
not rest their legs on a seat backrest
that has been folded forwards.You can fold the backrests of the second row of seats forwards to get in or out.Seats and stowing99

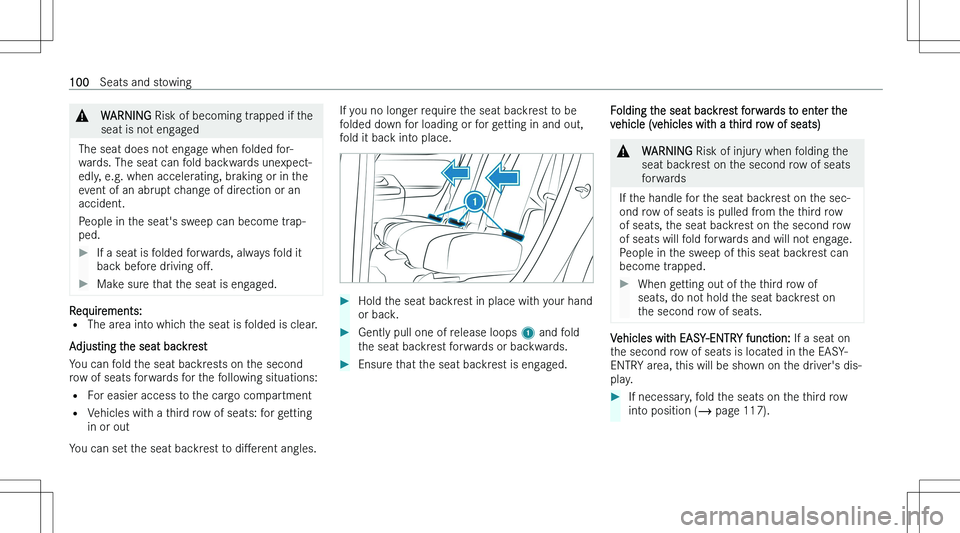

&WARNING Risk of becoming trapped if the
seat is not engaged
The seat does not engage when folded for-
wards. The seat can fold backwards unexpect-
edly, e.g. when accelerating, braking or in the
event of an abrupt change of direction or an accident.
People in the seat\bs sweep can become trap-
ped.
If a seat is folded forwards, always fold it
back before driving oM.Make sure that the seat is engaged.
Requirements:
= The area into which the seat is folded is clear.
Adjusting the seat backrest
You can fold the seat backrests on the second
row of seats forwards for the following situations:
= For easier access to the cargo compartment
= Vehicles with a third row of seats: for getting
in or out
You can set the seat backrest to diMerent angles.
If you no longer require the seat backrest to be
folded down for loading or for getting in and out, fold it back into place.Hold the seat backrest in place with your hand
or back.Gently pull one of release loops 1 and fold
the seat backrest forwards or backwards.Ensure that the seat backrest is engaged.Folding the seat backrest forwards to enter the vehicle (vehicles with a third row of seats)&WARNING Risk of injury when folding the
seat backrest on the second row of seats
forwards
If the handle for the seat backrest on the sec- ond row of seats is pulled from the third row
of seats, the seat backrest on the second row of seats will fold forwards and will not engage.
People in the sweep of this seat backrest can
become trapped.
When getting out of the third row of seats, do not hold the seat backrest on
the second row of seats.
Vehicles with EASY-ENTRY function: If a seat on
the second row of seats is located in the EASY- ENTRY area, this will be shown on the driver\bs dis-play.
If necessary, fold the seats on the third row
into position (  page 117).100Seats and stowing

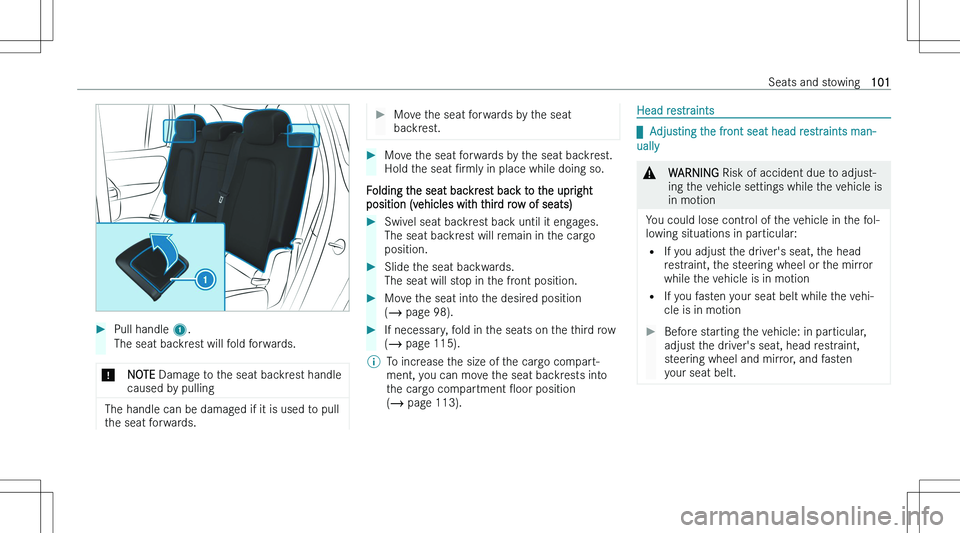

Pull handle 1.
The seat backrest will fold forwards.*NOTE Damage to the seat backrest handle
caused by pulling
The handle can be damaged if it is used to pull
the seat forwards.
Move the seat forwards by the seat backrest.Move the seat forwards by the seat backrest.Hold the seat Nrmly in place while doing so.
Folding the seat backrest back to the upright
position (vehicles with third row of seats)
Swivel seat backrest back until it engages.
The seat backrest will remain in the cargo position.Slide the seat backwards.The seat will stop in the front position.Move the seat into the desired position
(  page 98).If necessary, fold in the seats on the third row
(  page 115).\bTo increase the size of the cargo compart-
ment, you can move the seat backrests into the cargo compartment Ooor position
(  page 113).Head restraints

qAdjusting the front seat head restraints man-
ually
&WARNING Risk of accident due to adjust-
ing the vehicle settings while the vehicle is
in motion
You could lose control of the vehicle in the fol-
lowing situations in particular:
= If you adjust the driver\bs seat, the head
restraint, the steering wheel or the mirror while the vehicle is in motion
= If you fasten your seat belt while the vehi-
cle is in motion
Before starting the vehicle: in particular,
adjust the driver\bs seat, head restraint,
steering wheel and mirror, and fasten
your seat belt.Seats and stowing101

&WARNING Risk of injury due to head
restraints not being installed or being
adjusted incorrectly
If head restraints have not been installed or
have not been adjusted correctly, there is an increased risk of injury in the head and neck
area, e.g. in the event of an accident or when
braking.
Always drive with the head restraints
installed.Before driving oM, make sure for every
vehicle occupant that the center of the
head restraint supports the back of the
head at about eye level.Do not interchange the head restraints of the front and rear seats. Otherwise, you will not be
able to adjust the height and angle of the head restraints correctly.
Adjust the head restraint fore-and-as position so
that it is as close as possible to the back of your head.To raise: pull the head restraint up.To lower: press release knob 1 in the direc-
tion of the arrow and push the head restraint
down.To move the driver\bs head restraint forwards:
press release knob 2 and pull the head
restraint forwards.To move the driver\bs head restraint back- wards: press release knob 2 and push the
head restraint backwards.

q Adjusting the head restraints of the rear seats
manually
To raise: pull the head restraint up.102Seats and stowing
