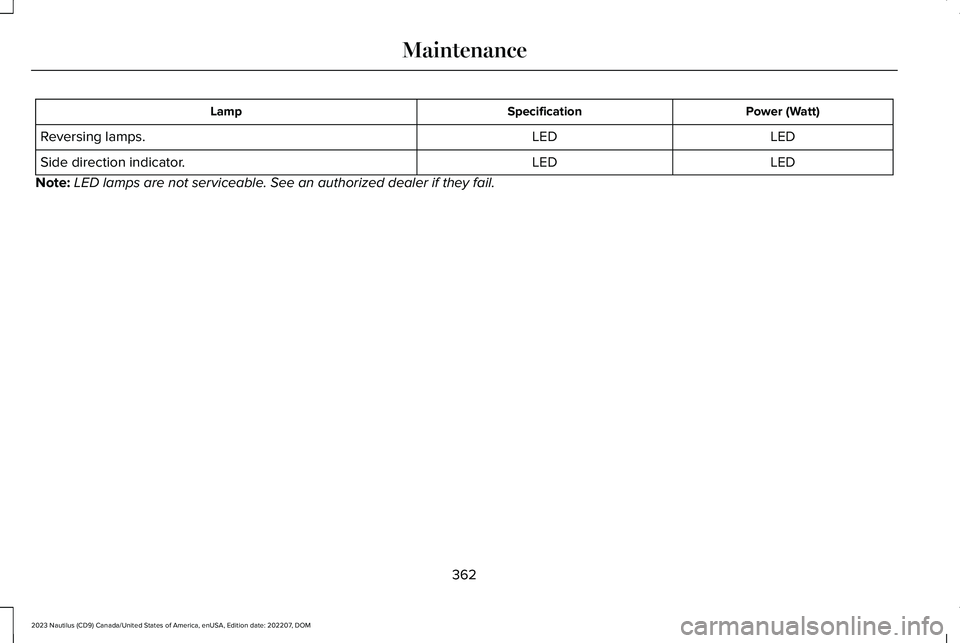

Power (Watt)SpecificationLamp
LEDLEDReversing lamps.
LEDLEDSide direction indicator.
Note:LED lamps are not serviceable. See an authorized dealer if they fail.
362
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenance
CHANGING A FLAT TIRE
WARNING: If the tire pressuremonitor sensor becomes damaged it maynot function.
If you get a flat tire while driving, do not applythe brake heavily. Instead, graduallydecrease your speed. Hold the steeringwheel firmly and slowly move to a safe placeon the side of the road.
Have a flat serviced by an authorized dealerin order to prevent damage to the tirepressure monitoring system sensors. SeeTire Pressure Monitoring System Overview(page 396). Replace the spare tire with a roadtire as soon as possible. During repairing orreplacing of the flat tire, have an authorizeddealer inspect the tire pressure monitoringsystem sensor for damage.
Note:The use of tire sealant could damageyour tire pressure monitoring sensor andshould only be used in roadsideemergencies. If you must use a sealant, usethe Tire Mobility Kit sealant. Replace the tirepressure monitoring system sensor andvalve stem on the wheel by an authorizeddealer after use of the sealant.
Note:The tire pressure monitoring systemindicator light will illuminate when the sparetire is in use. To restore the full function ofthe monitoring system, all road wheelsequipped with tire pressure monitoringsensors must be mounted on the vehicle.
Dissimilar Spare Wheel and TireAssembly Information
WARNING: Failure to follow theseguidelines could result in an increased riskof loss of vehicle control, injury or death.
If you have a dissimilar spare wheel and tire,then it is intended for temporary use only.This means that if you need to use it, youshould replace it as soon as possible with aroad wheel and tire assembly that is thesame size and type as the road tires andwheels that were originally provided on yourvehicle. If the dissimilar spare tire or wheelis damaged, replace it instead of repairingit.
A dissimilar spare wheel and tire assemblyis defined as a spare wheel and tire assemblythat is different in brand, size or appearancefrom the road tires and wheels and can beone of three types:
1. T-type mini-spare: This spare tire beginswith the letter T for tire size and could haveTemporary Use Only molded in the sidewall.
2. Full-size dissimilar spare with label onwheel: This spare tire has a label on thewheel that states: THIS WHEEL AND TIREASSEMBLY FOR TEMPORARY USE ONLY.
When driving with one of the dissimilar sparetires listed above, do not:
401
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMChanging a Road Wheel (If Equipped)
Replacing a Lost Key or RemoteControl............................................................78Replacing the Cabin Air Filter....................162Replacing the Front Wiper Blades.............117Replacing the Rear Wiper Blades...............117Reporting Safety Defects in Canada.......486Reporting Safety Defects in the UnitedStates............................................................485Resetting the Stopping Position - VehiclesWith: Power Adjustable SteeringColumn...........................................................114Restarting the Engine.................................200Resuming the Set Speed............................257Reverse Wipe..................................................116Reverse Wipe Settings........................................116What Is Reverse Wipe.........................................116
Roadside Assistance....................................317Rollover Warning..........................................483Roof Rack.......................................................300Roof Rack Load Capacities..............................300Roof Rack Precautions......................................300
Route Guidance............................................460Adjusting the Guidance PromptVolume.............................................................460Canceling Route Guidance..............................460
Running-InSee: Breaking-In..................................................313
Running Out of Fuel....................................205Adding Fuel From a Portable FuelContainer.........................................................205Filling a Portable Fuel Container...................205
S
Satellite Radio...............................................438Locating the Satellite Radio IdentificationNumber.............................................................438Satellite Radio Limitations................................438Satellite Radio Settings.....................................439Selecting a Channel...........................................438Setting an Alert...................................................439What Is Satellite Radio......................................438
Saving a Preset Position..............................176Scheduled Maintenance.............................470Seatbelt Extensions........................................61Seatbelt Precautions......................................53Seatbelt Reminder..........................................57How Does the Seatbelt Reminder Work.........57Seatbelt Reminder Audible Warnings.............60Seatbelt Reminder Indicators............................59Switching the Seatbelt Reminder On andOff........................................................................60
Seatbelts...........................................................53Automatic Locking Mode....................................55Seatbelt Reminder................................................57
Sensitive Locking Mode......................................55
Security............................................................109Anti-Theft Alarm System...................................109Anti-Theft Alarm System Settings....................110Passive Anti-Theft System................................109Security – Troubleshooting.................................111
Security – Troubleshooting..........................111Security – Frequently Asked Questions........112Security – Information Messages......................111
Selecting a Drive Mode..............................270Selecting the Audio Source.......................433Sending and Receiving a TextMessage......................................................450Sensitive Locking Mode...............................55How Does Sensitive Locking ModeWork.....................................................................55What is Sensitive Locking Mode.......................55
Service Data.....................................................23Setting a Destination...................................459Setting a Destination Using a Point ofInterest..............................................................459Setting a Destination Using a PredictiveDestination......................................................459Setting a Destination Using a RecentDestination......................................................459Setting a Destination Using a SavedDestination......................................................459
595
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
