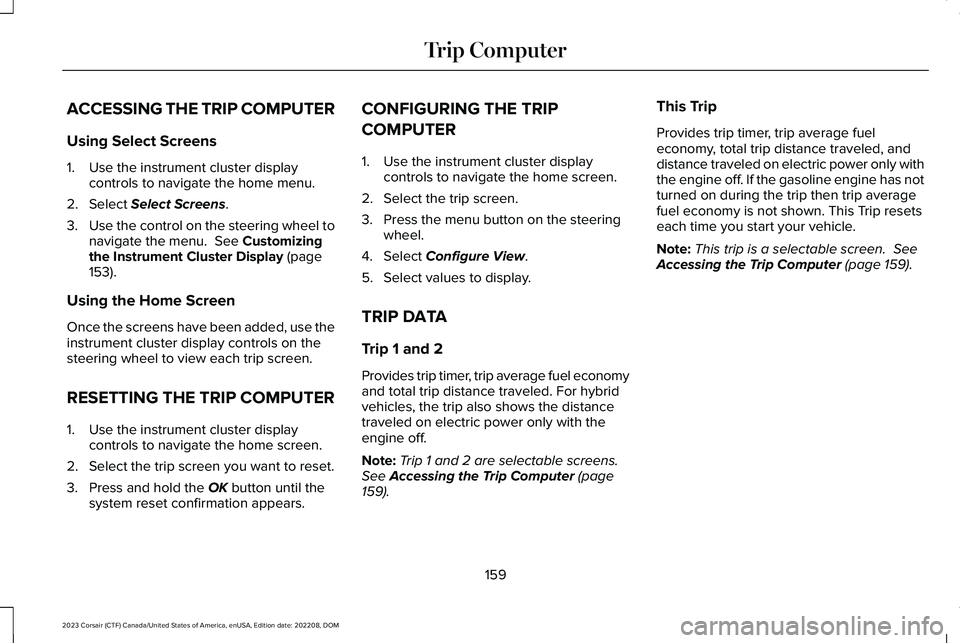

ACCESSING THE TRIP COMPUTER
Using Select Screens
1.Use the instrument cluster displaycontrols to navigate the home menu.
2.Select Select Screens.
3.Use the control on the steering wheel tonavigate the menu. See Customizingthe Instrument Cluster Display (page153).
Using the Home Screen
Once the screens have been added, use theinstrument cluster display controls on thesteering wheel to view each trip screen.
RESETTING THE TRIP COMPUTER
1.Use the instrument cluster displaycontrols to navigate the home screen.
2.Select the trip screen you want to reset.
3.Press and hold the OK button until thesystem reset confirmation appears.
CONFIGURING THE TRIP
COMPUTER
1.Use the instrument cluster displaycontrols to navigate the home screen.
2.Select the trip screen.
3.Press the menu button on the steeringwheel.
4.Select Configure View.
5.Select values to display.
TRIP DATA
Trip 1 and 2
Provides trip timer, trip average fuel economyand total trip distance traveled. For hybridvehicles, the trip also shows the distancetraveled on electric power only with theengine off.
Note:Trip 1 and 2 are selectable screens.See Accessing the Trip Computer (page159).
This Trip
Provides trip timer, trip average fueleconomy, total trip distance traveled, anddistance traveled on electric power only withthe engine off. If the gasoline engine has notturned on during the trip then trip averagefuel economy is not shown. This Trip resetseach time you start your vehicle.
Note:This trip is a selectable screen. SeeAccessing the Trip Computer (page 159).
159
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTrip Computer

WHAT IS THE HEAD UP DISPLAY
The system displays information on a displayscreen in your field of vision, allowing you tokeep your eyes on the road. You can selectwhich information the system displays.
SWITCHING THE HEAD UP
DISPLAY ON AND OFF
Use the instrument cluster controls on thesteering wheel to navigate to the head updisplay menu.
ActionMenu Item
Press the OK button.HUD
Press the OK button.HUD On
Note:The system remembers the last settingwhen you start the engine.
HEAD UP DISPLAY SETTINGS
You can control the system's options throughthe instrument cluster display by using theHUD, OK and arrow buttons on your steeringwheel. See Using the Instrument ClusterDisplay Controls (page 154).
You can adjust the display according to yourheight to make viewing the content easier.You can also adjust what content displaysand the brightness of the content. Thesystem's options appear in the instrumentcluster while the updates happen in the headup display.
Note:If HUD On is unchecked, other optionsof the system are hidden.
Note:The head up display menuautomatically closes after a certain periodof inactivity.
Note:The head up display image brightnessautomatically adjusts to the brightness ofthe ambient environment. You have theability to adjust the brightness furtheraccording to your preference.
Note:In some instances, sunlight can causesome reflections in and around the head updisplay image.
160
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHead Up Display (If Equipped)

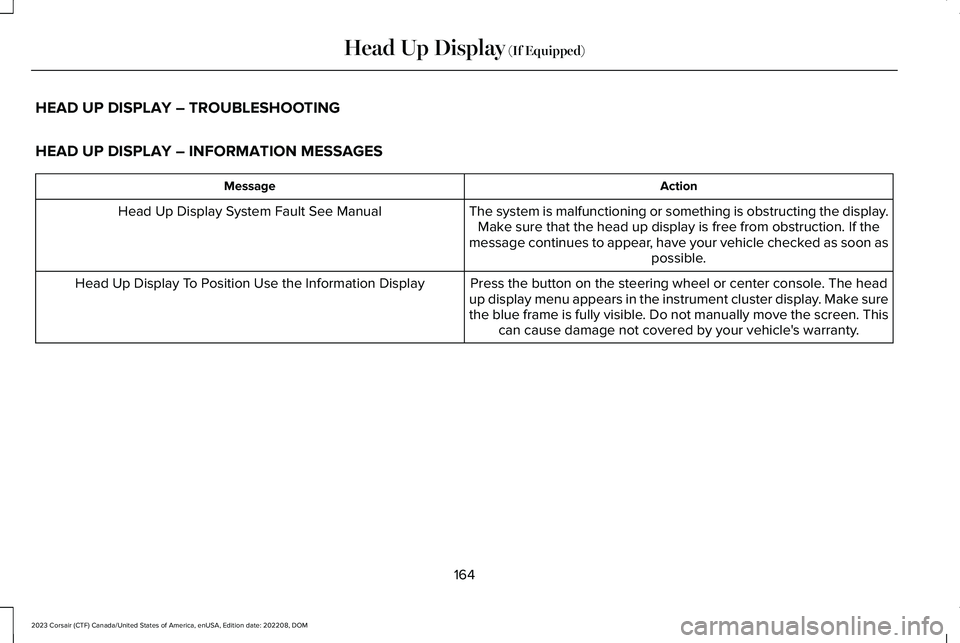

HEAD UP DISPLAY – TROUBLESHOOTING
HEAD UP DISPLAY – INFORMATION MESSAGES
ActionMessage
The system is malfunctioning or something is obstructing the display.Make sure that the head up display is free from obstruction. If themessage continues to appear, have your vehicle checked as soon aspossible.
Head Up Display System Fault See Manual
Press the button on the steering wheel or center console. The headup display menu appears in the instrument cluster display. Make surethe blue frame is fully visible. Do not manually move the screen. Thiscan cause damage not covered by your vehicle's warranty.
Head Up Display To Position Use the Information Display
164
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHead Up Display (If Equipped)

All electrical circuits and accessories areoperational and the warning lamps andindicators illuminate.
Note:Your vehicle has a battery saverfeature that shuts your vehicle off when itdetects a certain amount of battery drain, orafter approximately 30 minutes of inactivityin accessory mode.
Note:The system may not function if theremote control is close to metal objects orelectronic devices, for example keys or acell phone.
Note:You need a valid key inside yourvehicle to switch the ignition on and start theengine.
STARTING THE ENGINE
STARTING A GASOLINE ENGINE
Before starting your vehicle, check thefollowing:
•Make sure that the headlamps andelectrical accessories are off.
•Make sure that the parking brake is on.
•Make sure that the transmission is in park(P).
1.Fully press the brake pedal.
Note:Do not touch the accelerator pedal.
2.Press the push button ignition switch.
Note:The engine may continue cranking forup to 15 seconds or until it starts.
Note:The engine takes longer to start atlower temperatures. It may crank for severalseconds when very cold.
STARTING A HYBRID ELECTRICVEHICLE SYSTEM
Before starting your vehicle, check thefollowing:
•Make sure the headlamps and electricalaccessories are off.
•Make sure the parking brake is on.
•Make sure the transmission is in park (P).
Note:Do not touch the accelerator pedal.
1.Fully press the brake pedal.
2.Press the push button ignition switch.
When you start your vehicle, agreen indicator light appears in theinstrument cluster letting you knowthat your vehicle is ready for driving. Sinceyour vehicle is equipped with a silent keystart, the engine may not start when yourvehicle starts.
206
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMStarting and Stopping the EngineE357998 E357998 E354490

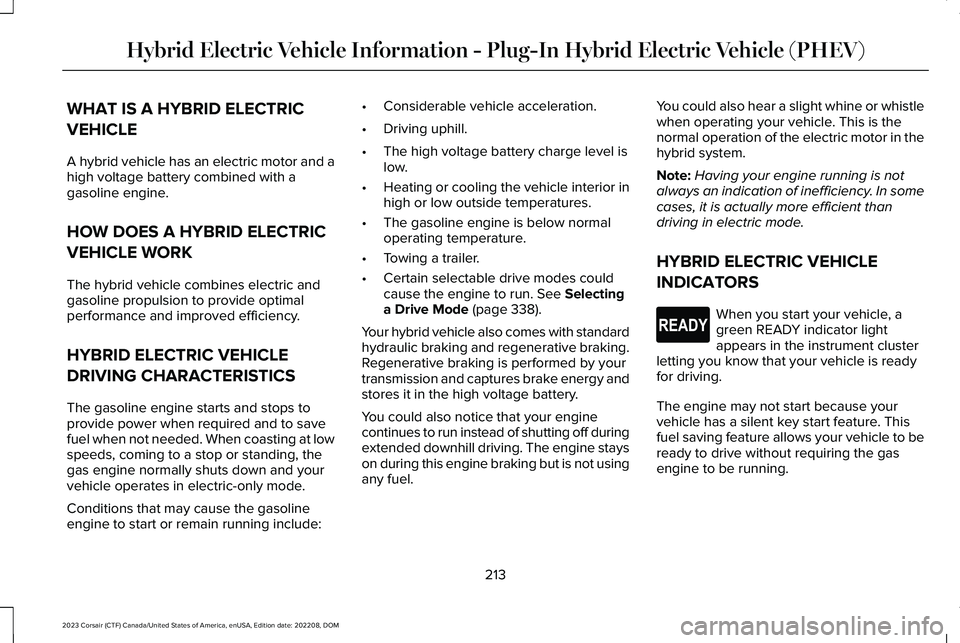

WHAT IS A HYBRID ELECTRIC
VEHICLE
A hybrid vehicle has an electric motor and ahigh voltage battery combined with agasoline engine.
HOW DOES A HYBRID ELECTRIC
VEHICLE WORK
The hybrid vehicle combines electric andgasoline propulsion to provide optimalperformance and improved efficiency.
HYBRID ELECTRIC VEHICLE
DRIVING CHARACTERISTICS
The gasoline engine starts and stops toprovide power when required and to savefuel when not needed. When coasting at lowspeeds, coming to a stop or standing, thegas engine normally shuts down and yourvehicle operates in electric-only mode.
Conditions that may cause the gasolineengine to start or remain running include:
•Considerable vehicle acceleration.
•Driving uphill.
•The high voltage battery charge level islow.
•Heating or cooling the vehicle interior inhigh or low outside temperatures.
•The gasoline engine is below normaloperating temperature.
•Towing a trailer.
•Certain selectable drive modes couldcause the engine to run. See Selectinga Drive Mode (page 338).
Your hybrid vehicle also comes with standardhydraulic braking and regenerative braking.Regenerative braking is performed by yourtransmission and captures brake energy andstores it in the high voltage battery.
You could also notice that your enginecontinues to run instead of shutting off duringextended downhill driving. The engine stayson during this engine braking but is not usingany fuel.
You could also hear a slight whine or whistlewhen operating your vehicle. This is thenormal operation of the electric motor in thehybrid system.
Note:Having your engine running is notalways an indication of inefficiency. In somecases, it is actually more efficient thandriving in electric mode.
HYBRID ELECTRIC VEHICLE
INDICATORS
When you start your vehicle, agreen READY indicator lightappears in the instrument clusterletting you know that your vehicle is readyfor driving.
The engine may not start because yourvehicle has a silent key start feature. Thisfuel saving feature allows your vehicle to beready to drive without requiring the gasengine to be running.
213
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHybrid Electric Vehicle Information - Plug-In Hybrid Electric Vehicle (PHEV)E293827

The indicator remains on when your vehicleis on, whether the engine is running or not,to indicate your vehicle is capable ofmovement using the electric motor, gasengine or both.
Typically, the engine does not start unlessthe vehicle is cold, a climate control changeis requested or you press the acceleratorpedal.
HYBRID ELECTRIC VEHICLE
INFORMATION – TROUBLESHOOTING
HYBRID ELECTRIC VEHICLEINFORMATION – WARNING LAMPS
Illuminates if your vehicle has anelectrical component fault or failurethat causes your vehicle to shutdown or enter a limited operating mode. Amessage may appear in the instrumentcluster display.
HYBRID ELECTRIC VEHICLEINFORMATION – INFORMATIONMESSAGES
ActionMessage
Displays when amalfunction occursin the high voltageelectric system. Stopyour vehicle as soonas it is safe to do so.Have your vehiclechecked as soon aspossible.
Stop Safely Now
HYBRID ELECTRIC VEHICLEINFORMATION – FREQUENTLY ASKEDQUESTIONS
What should I do if the vehicle runs out offuel and the high voltage battery is out ofcharge?
Refuel and start your vehicle normally.The engine will recharge the highvoltage battery.
Why does the engine sometimes start atkey-on?
The vehicle's computer determines if anengine start is required at key-on. Itstarts the engine when necessary forcabin heating, windshield defrost, or ifthe outside temperature is low.
Can I put E15 or E85 in my vehicle, and howwill it affect my fuel economy?
Your hybrid vehicle can use E15 (15%ethanol, 85% gasoline) fuel, but you maynotice slightly reduced fuel economybecause ethanol contains less energyper gallon than gasoline. Your hybridvehicle is not designed to use E85 (85%ethanol).
Why does it take a long time before theengine shuts down?
There are several reasons the enginestays on for an extended amount of timewhen you first start it. One commonreason is to make sure that theemissions components are warmenough to minimize tailpipe emission.As the climate gets cooler, theengine-on time is extended.
214
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHybrid Electric Vehicle Information - Plug-In Hybrid Electric Vehicle (PHEV)E384927

Why does my engine stay on when it isextremely cold outside?
In order to make sure that the climatecontrol system can begin heating thecabin or defrosting the windshield assoon as a driver requests it, the enginecoolant temperature has to be keptsufficiently hot. Keeping the engine onis required to maintain the correctcoolant temperature.
PLUG-IN HYBRID ELECTRIC VEHICLE
INFORMATION
WHAT IS A PLUG-IN HYBRID ELECTRICVEHICLE
A plug-in hybrid electric vehicle combines agasoline engine with an electric motor andrechargeable high voltage battery allowingyou to use only electricity to power yourvehicle.
HOW DOES A PLUG-IN HYBRIDELECTRIC VEHICLE WORK
Charging your vehicle adds electrical energythat propels the vehicle, providing extendedelectric-only driving range. System conditionscould require the engine to operate whileelectric-only range is still available. When theelectric range reaches zero, the powertrainsystem operates as a hybrid electric vehicle.See How Does a Hybrid Electric VehicleWork (page 213).
PLUG-IN HYBRID ELECTRIC VEHICLEDRIVING CHARACTERISTICS
Your plug-in hybrid vehicle shares the drivingcharacteristics of hybrid electric vehicles withthe addition of extended electric- only drivingrange and unique selectable drive modes.See Hybrid Electric Vehicle DrivingCharacteristics (page 213).
The system maximizes the use ofelectric-only operation in normal drive mode.System conditions could require the engineto operate, however, the system uses theavailable electric range whenever possible.
In Pure EV drive mode, your vehicle typicallyuses only electric power. The engineoperates to provide extra power when youfully press the accelerator pedal. Systemconditions may also require the engine tooperate.
Preserve EV drive mode saves the electricrange for later use. If you select this modeand the battery is at full or near full charge,it uses some electric-only range to dischargethe battery. This allows the regenerativebraking system to fully operate. If batterycharge is low when this mode is selected theengine charges the high voltage battery toprovide some electric range for later.
Other drive modes use electric power asnecessary to deliver the selected drive modeexperience. See What Is Drive ModeControl (page 338).
PLUG-IN HYBRID ELECTRIC VEHICLEINDICATORS
When you start your vehicle, agreen ready indicator light appearsin the instrument cluster letting youknow that your vehicle is ready for driving.
215
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHybrid Electric Vehicle Information - Plug-In Hybrid Electric Vehicle (PHEV)E293827

The engine may not start because yourvehicle has a silent key start feature. Thisfuel saving feature allows your vehicle to beready to drive without requiring the gasengine to be running.
The indicator remains on when your vehicleis on, whether the engine is running or not,to indicate your vehicle is capable ofmovement using the electric motor, gasengine or both.
Typically, the engine does not start unlessthe vehicle is cold, a climate control changeis requested or you press the acceleratorpedal.
WHAT IS LOW ENGINE USE MODE
Low engine use mode maintains properengine lubrication at sufficient temperatureand activates when you drive your vehiclewith limited engine operation.
HOW DOES LOW ENGINE USE MODEWORK
When in low engine use mode, your vehicleruns the engine as necessary. When lowengine use mode begins, a message appearsin the information display. If low engine usemode does not complete before you switchyour vehicle off, it continues the next timeyou start your vehicle and the messagereappears.
Note:Pure EV now mode is not availablewhen in low engine use mode.
Note:Cold temperatures affect the enginewarm up time and the low engine use modemay operate more frequently.
Note:An oil change is not required but givesyou the option of not running a low engineuse cycle. Resetting the oil life monitoringsystem suspends the low engine use mode.
PLUG-IN HYBRID ELECTRIC VEHICLE
INFORMATION – TROUBLESHOOTING
PLUG-IN HYBRID ELECTRIC VEHICLEINFORMATION – WARNING LAMPS
Illuminates if your vehicle'selectrical system requires serviceto identify the cause for yourvehicle to shut down or enter a limitedoperating mode. A message may appear inthe instrument cluster display. Have yourvehicle checked as soon as possible.
216
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHybrid Electric Vehicle Information - Plug-In Hybrid Electric Vehicle (PHEV)E384927
